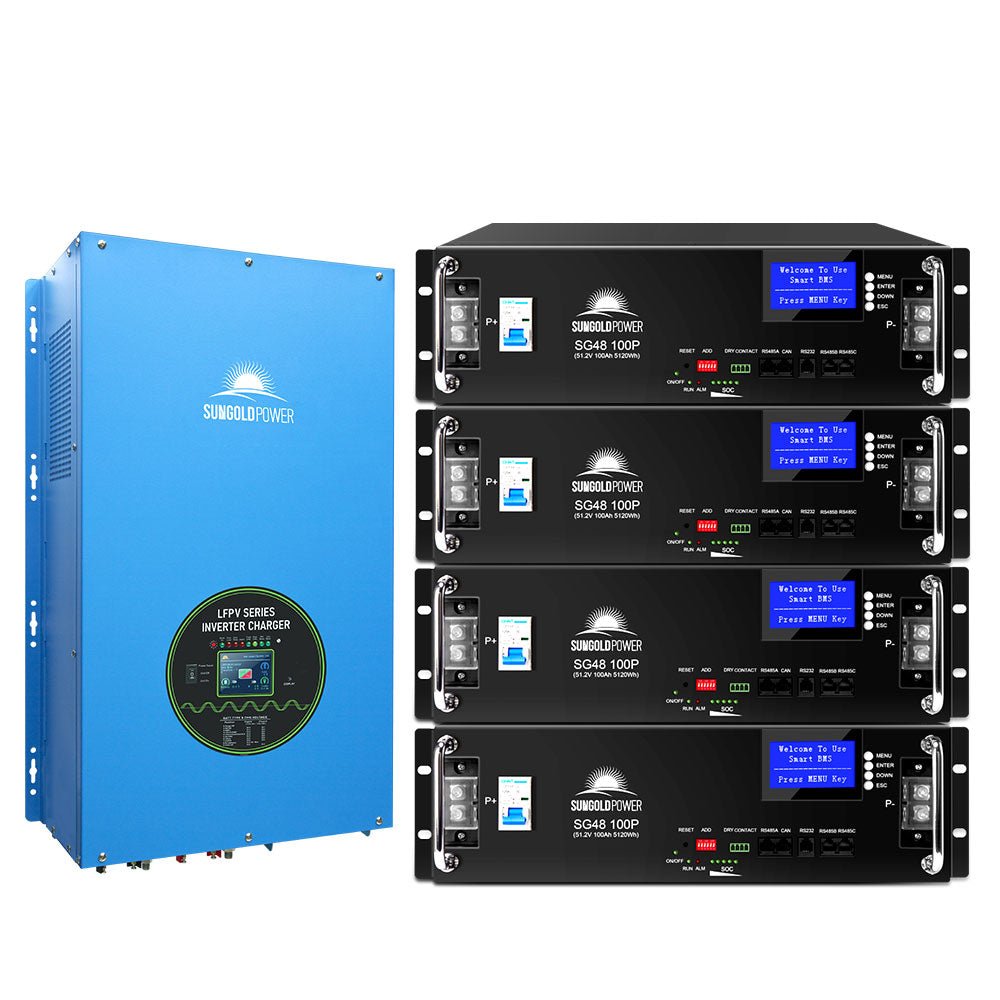

SunGold Power 12000W 48V Split Phase Pure Sine Wave Inverter Charger

When 6KW is not enough, this 12000W split phase inverter charger picks up where smaller units stop. The SunGold Power LF-PV series delivers 12KW of continuous pure sine wave power from a 48V battery bank - enough to run refrigerators, freezers, air conditioners, dryers, pumps, and microwaves simultaneously. With a 36KW surge rating, it handles the brutal startup demands of multiple motor-driven appliances without tripping or clipping.

The LF-PV 12KW combines an inverter, a 120-amp battery charger, and an automatic transfer switch in a single heavy-duty chassis. It supports eight battery types including LiFePO4, gel, AGM, and lead acid, and features 4-step intelligent charging with PFC correction for maximum charging efficiency. Transfer time between utility and battery power is 10 milliseconds max. At 160 lbs, this is a serious piece of power infrastructure - built for permanent installations in homes, shops, and commercial applications where downtime is not an option.

Features

• 12KW Continuous / 36KW Surge - Runs your heaviest appliances simultaneously and handles extreme startup loads for 20 seconds
• Split Phase 120V/240V Output - Full residential panel compatibility with two legs of 120V for 240V output
• 120A Battery Charger - Powerful multi-stage charging adjustable from 0% to 100%, recharges large battery banks quickly
• 8 Battery Type Selections - Compatible with LiFePO4, gel, AGM, and lead acid batteries for maximum system flexibility
• 4-Step Intelligent Charging with PFC - Power Factor Correction optimizes charger efficiency and protects battery health
• Auto Generator Start (AGS) - Automatically starts and stops your generator based on battery voltage levels
• AC/Battery Priority Modes - Configure as grid-backup or battery-first via SW5 for solar-priority setups
• 10ms Max Transfer Time - Near-instantaneous switchover ensures power continuity for sensitive equipment
• Remote Control and BTS Included - Full remote operation plus temperature-compensated battery charging
• 15-Second AC Recovery Delay - Protects loads from unstable generator power by waiting before switching back

Specifications

• Continuous Output Power: 12,000W (12KW)
• Surge Rating (20s): 36,000W (36KW)
• Output Waveform: Pure Sine Wave
• DC Battery Voltage: 48VDC
• AC Input Voltage: 240VAC (not suitable for 120VAC input)
• AC Output Voltage: 120V and 240V (Split Phase)
• Output Frequency: 50Hz / 60Hz
• AC Battery Charger: 115 +/- 5A
• Charger Breaker: 80A
• AC Input Range: 184-253VAC / 140-270VAC
• Typical Transfer Time: 10ms Max
• Nominal Input Voltage: 48.0VDC
• Minimum Start Voltage: 40.0VDC / 42.0VDC
• Low Battery Alarm: 42.0VDC / 44.0VDC
• Low Battery Trip: 40.0VDC / 42.0VDC
• High Voltage Alarm: 64.0VDC
• Idle Consumption (Power Saver On): 40W
• Idle Consumption (Power Saver Off): 180W
• Battery Initial Voltage for Start Up: 40-62.8V
• Over Charge Protection Shutdown: 62.8V
• Input Frequency: 50Hz or 60Hz (Auto Detect)
• Unit Weight: 160 lbs (72.6 kg)

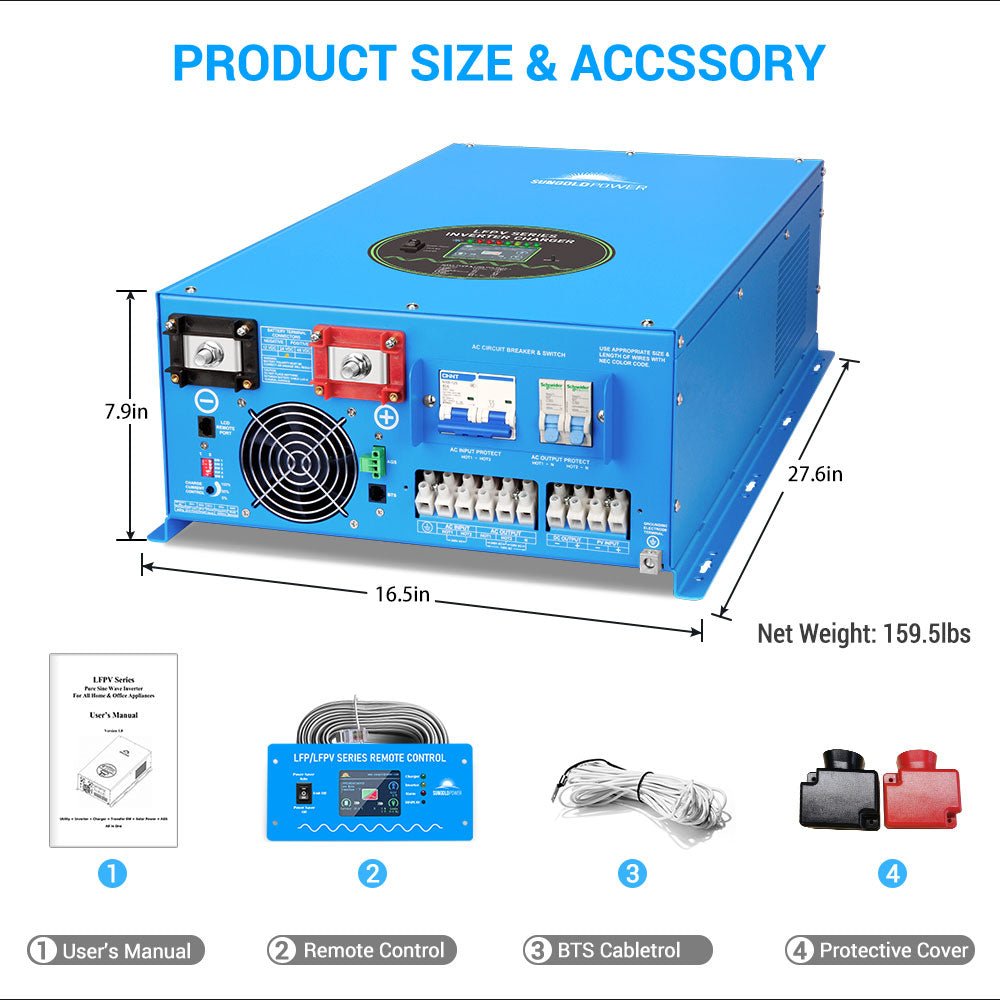

• Unit Dimensions: 27.6 x 16.5 x 8 inches (70.1 x 41.9 x 20.3 cm)
• Shipping Weight: 185 lbs (83.9 kg)
• Shipping Dimensions: 29.2 x 23 x 16.5 inches (74.2 x 58.4 x 41.9 cm)
• Battery Compatibility: LiFePO4, Gel, AGM, Lead Acid (8 selections)

What is in the Box

• 12000W 48V Split Phase Pure Sine Wave Power Inverter
• English Manual
• Remote Control
• BTS Cable

Warranty and Resources

LF-PV Series User Manual (PDF)
