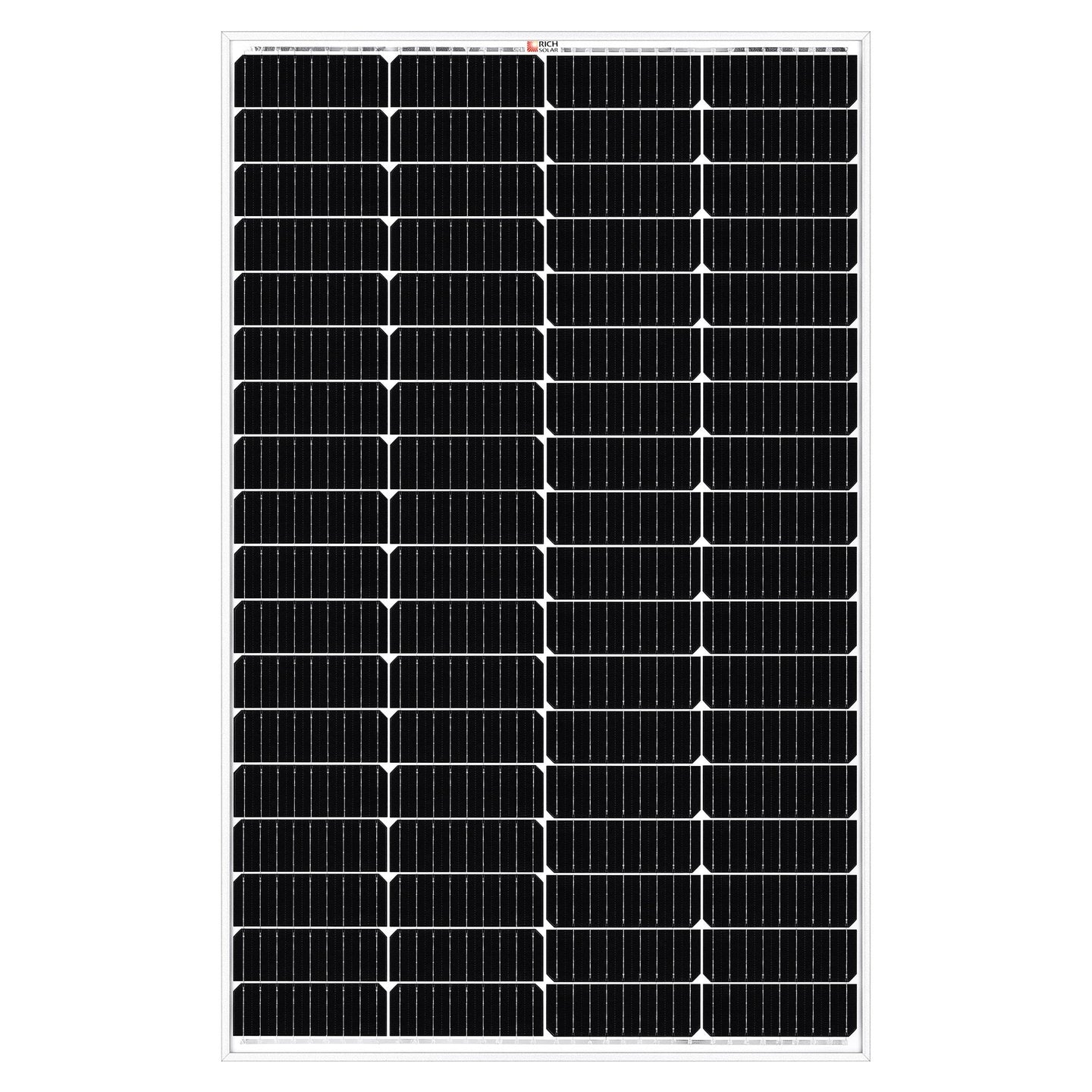

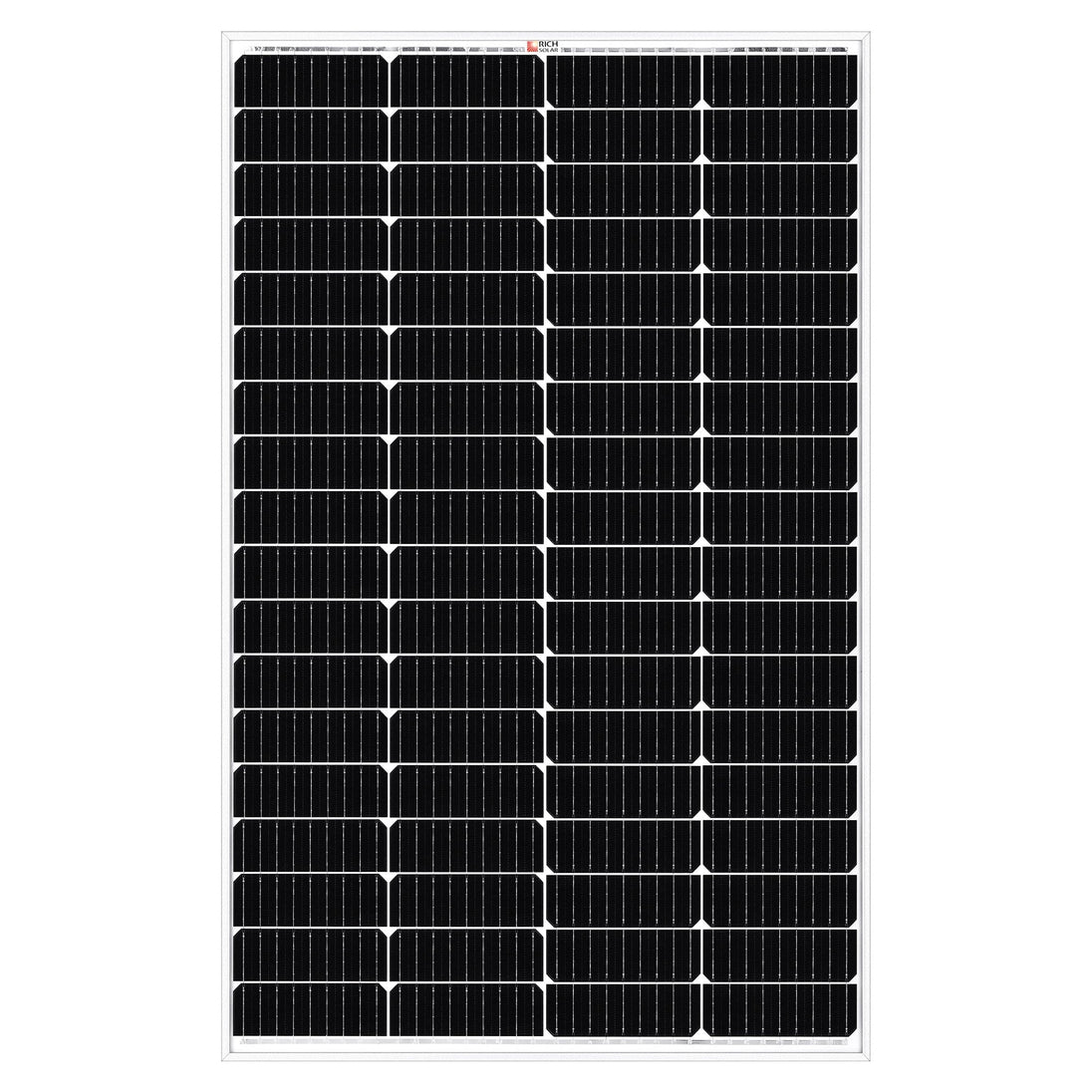

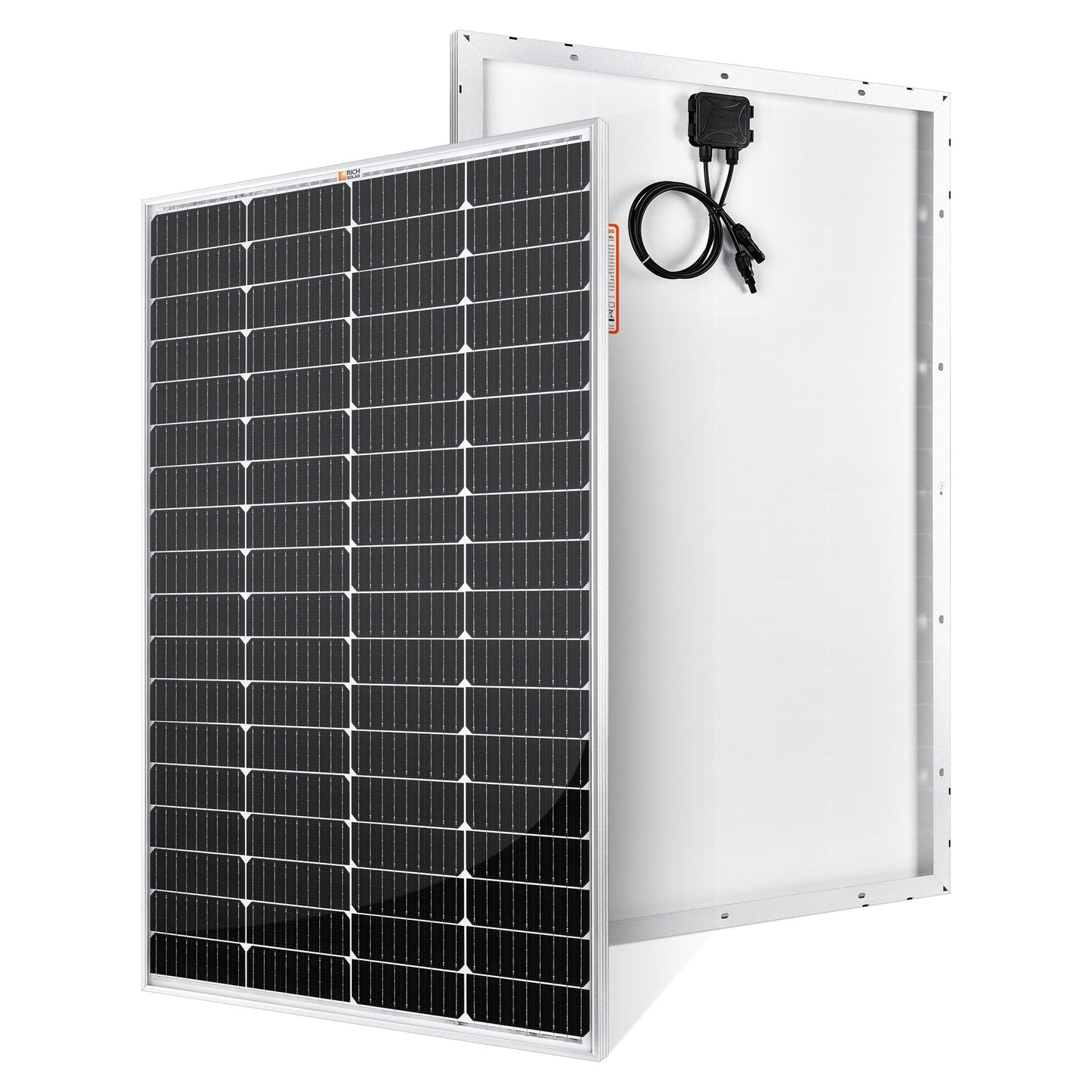

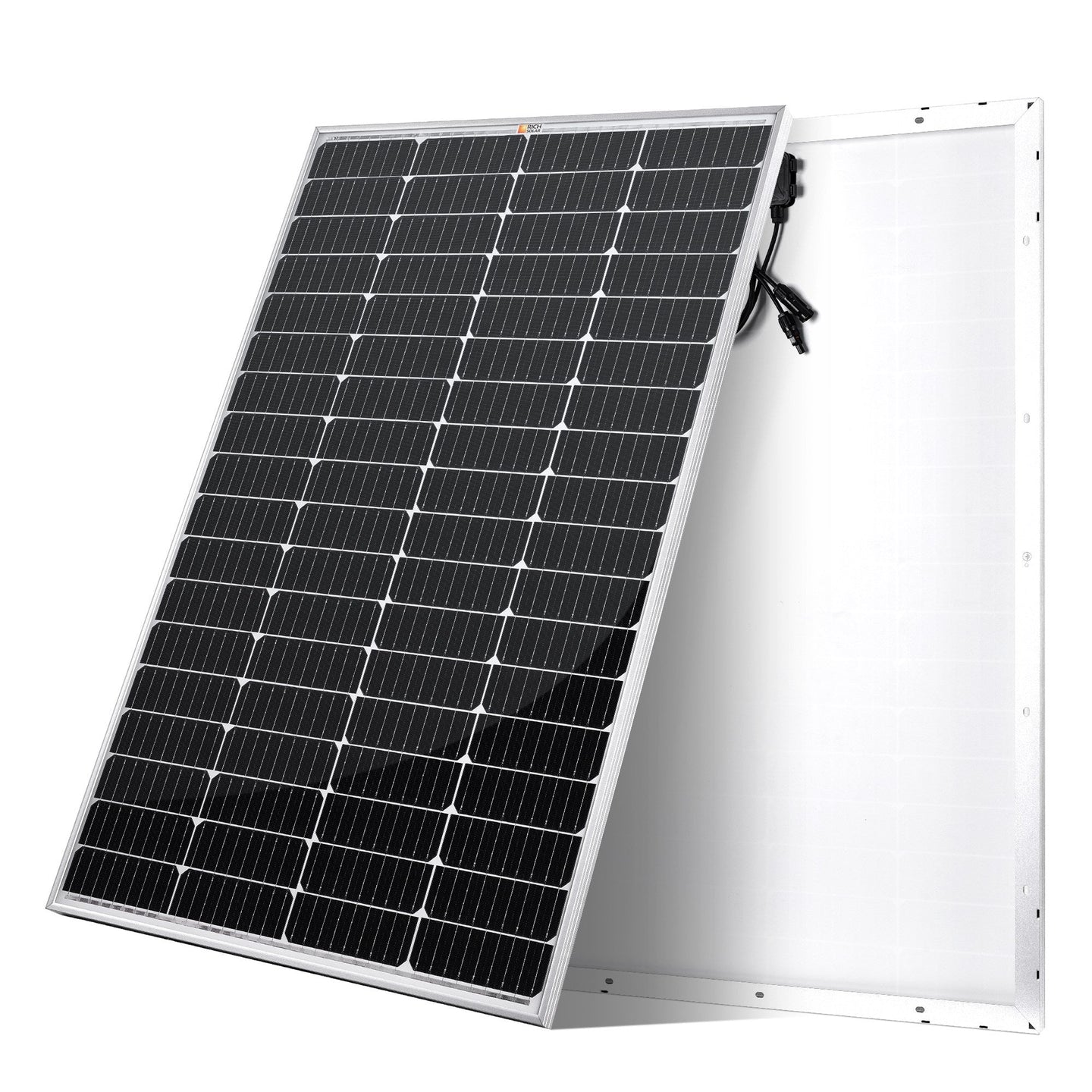

The MEGA 150 Solar Panel: Compact, Efficient, and Built for Durability

The MEGA 150 solar panel offers an excellent combination of high efficiency and a compact design, making it the ideal solution for any off-grid setup. Featuring lightweight anodized aluminum frames and a 9-busbar solar cell configuration, this panel ensures maximum energy generation and reliability.

Key Features

• 9-Busbar Solar Cell Configuration for improved performance.

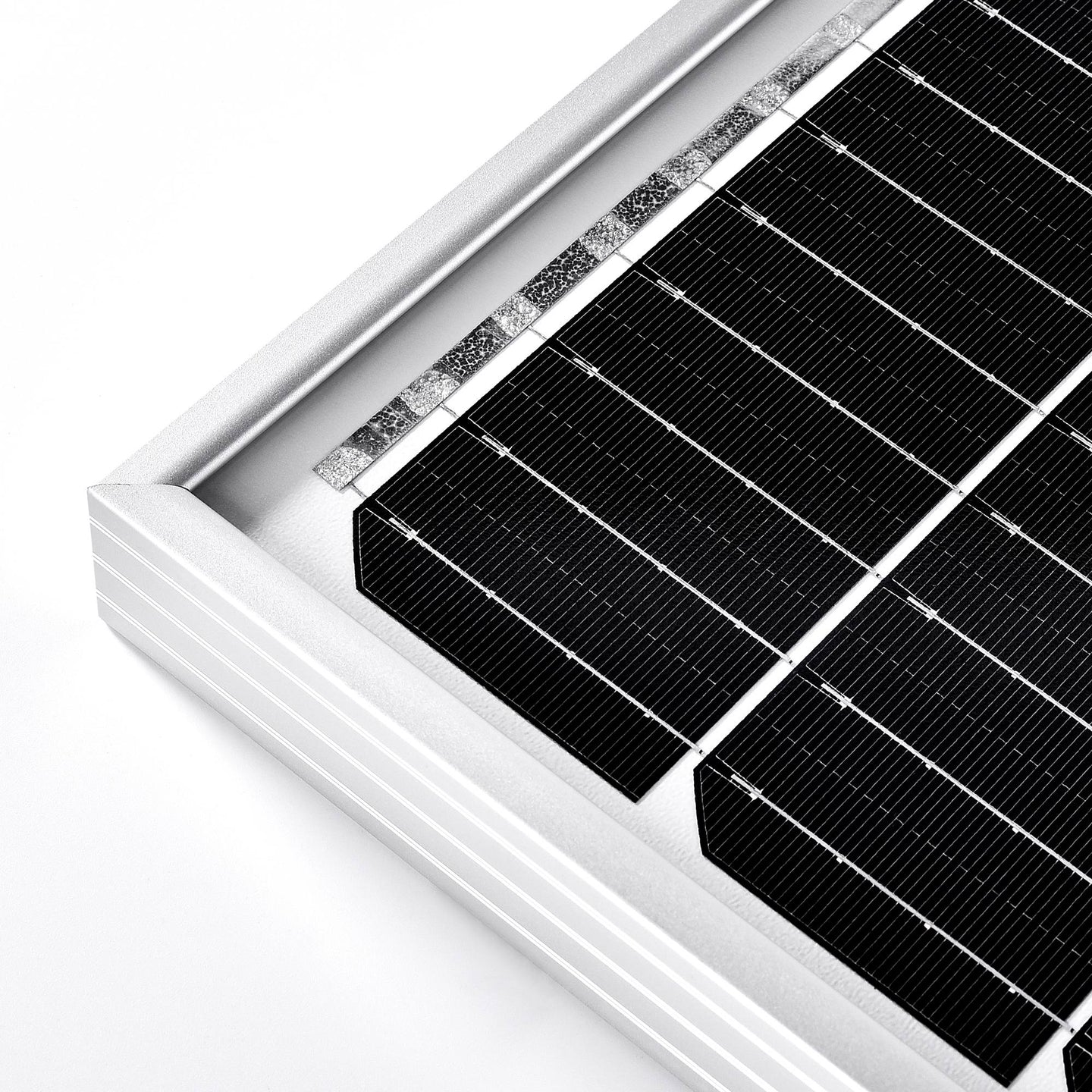

• Lightweight Anodized Aluminum Frame for easy handling and enhanced durability.
• High-Transmission, AR Coated Tempered Glass that maximizes light absorption.
• Plug-and-Play Junction Box for straightforward installation.

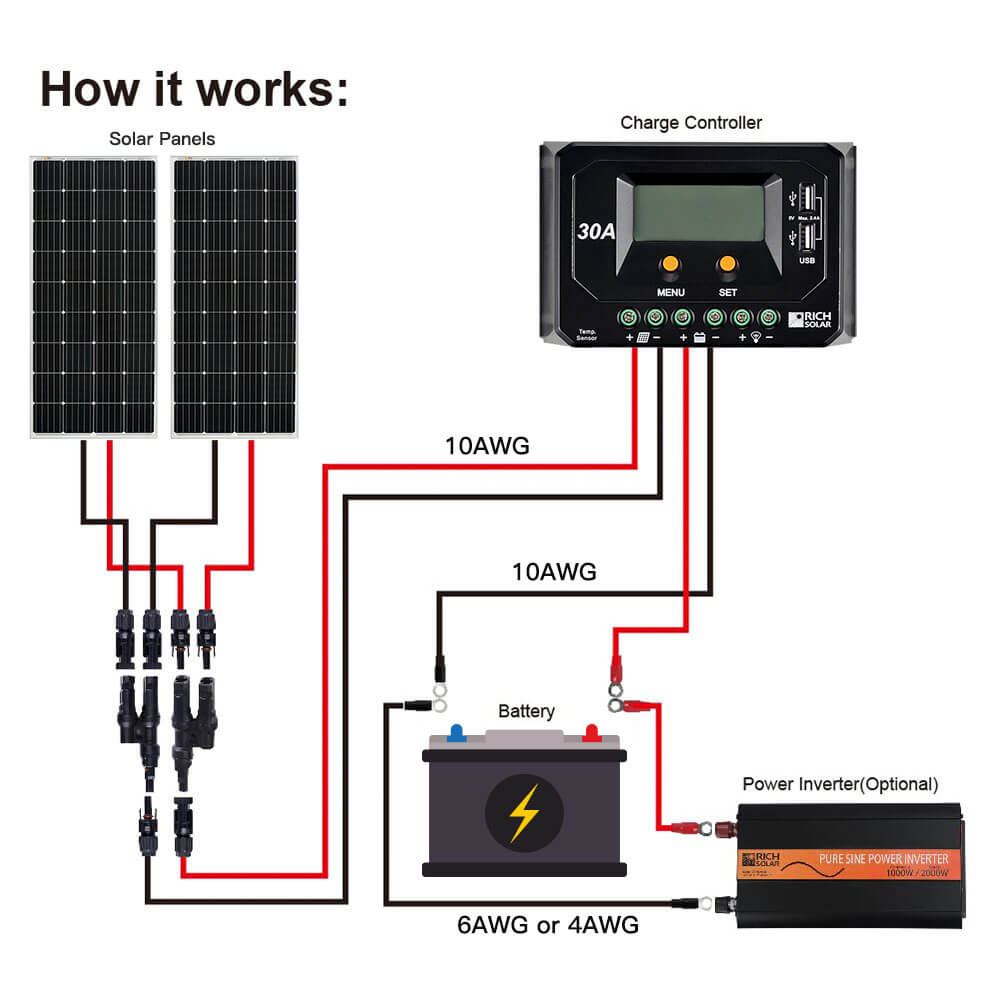

• Industry-Standard Quick-Connect Cables designed for series or parallel connections.
• Built to Withstand Harsh Environmental Conditions for reliable off-grid use.
• Excellent Low-Light Performance under cloudy conditions, as well as in mornings and evenings.

Installation Made Easy

• Versatile Applications: Ideal for high-end off-grid and mobile applications.

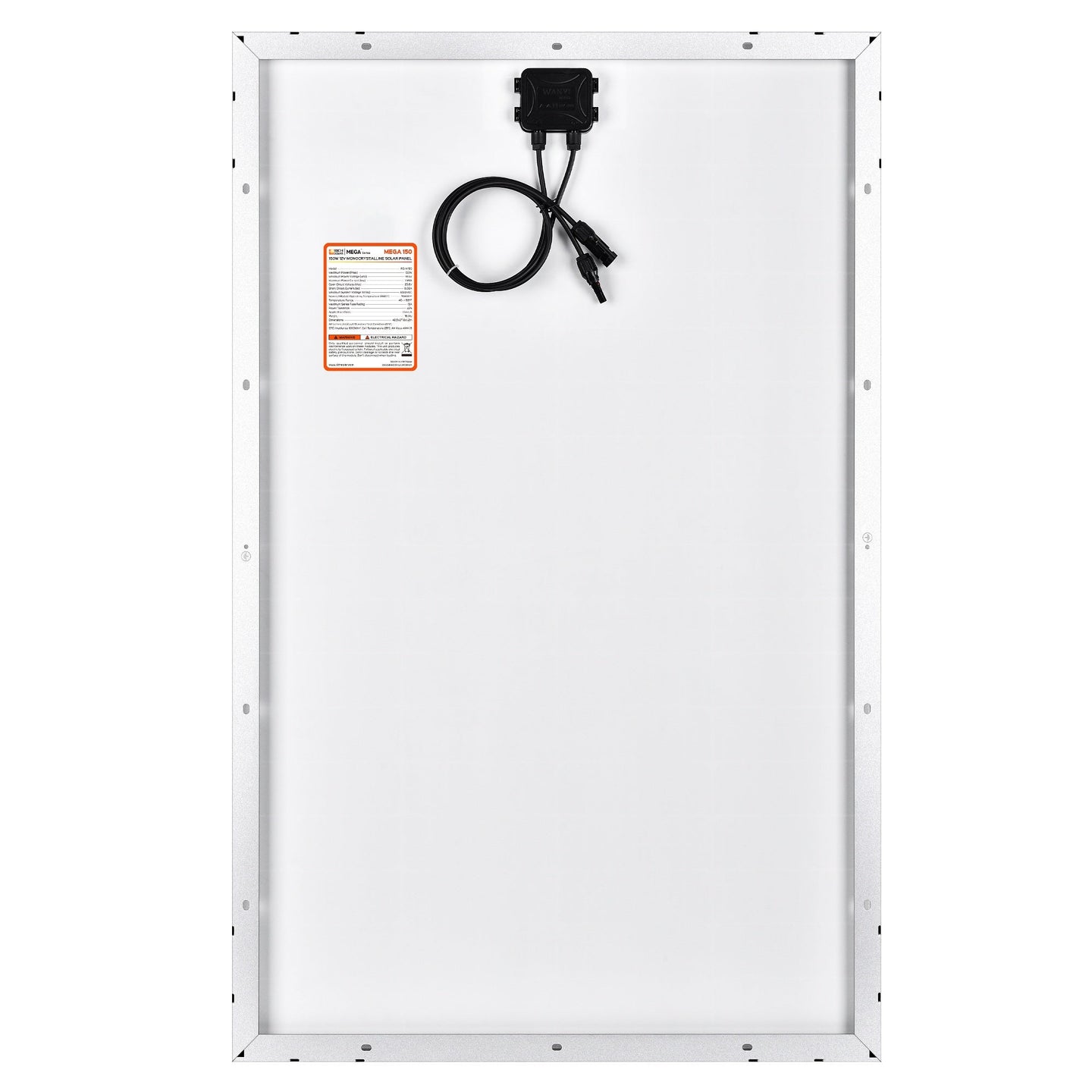

• Pre-Drilled Mounting Holes: Compatible with ground mounts, Z brackets, pole mounts, and tilt mounts.

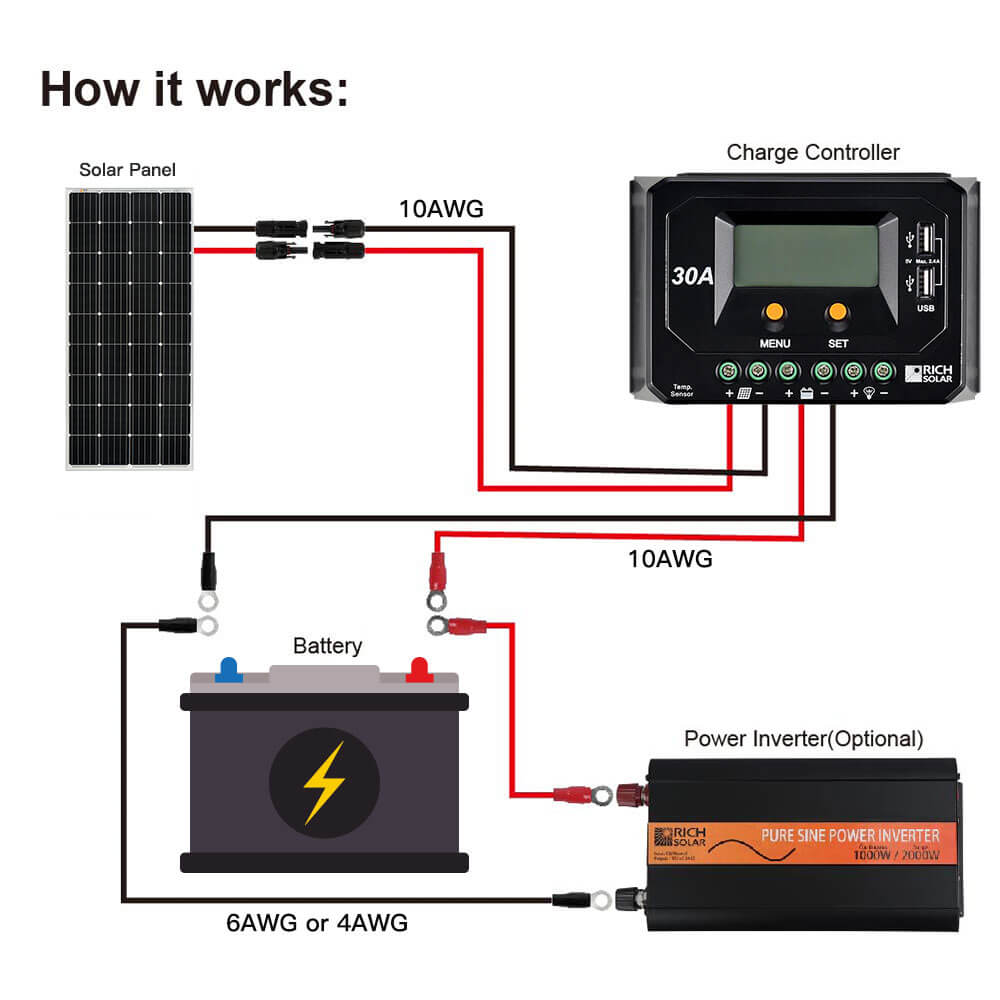

• Wide Compatibility: Works with both on-grid and off-grid inverters.

Built-In Components

• 150W Monocrystalline Solar Panel (RICH SOLAR).
• Panel Leads (pair): 3 feet each.

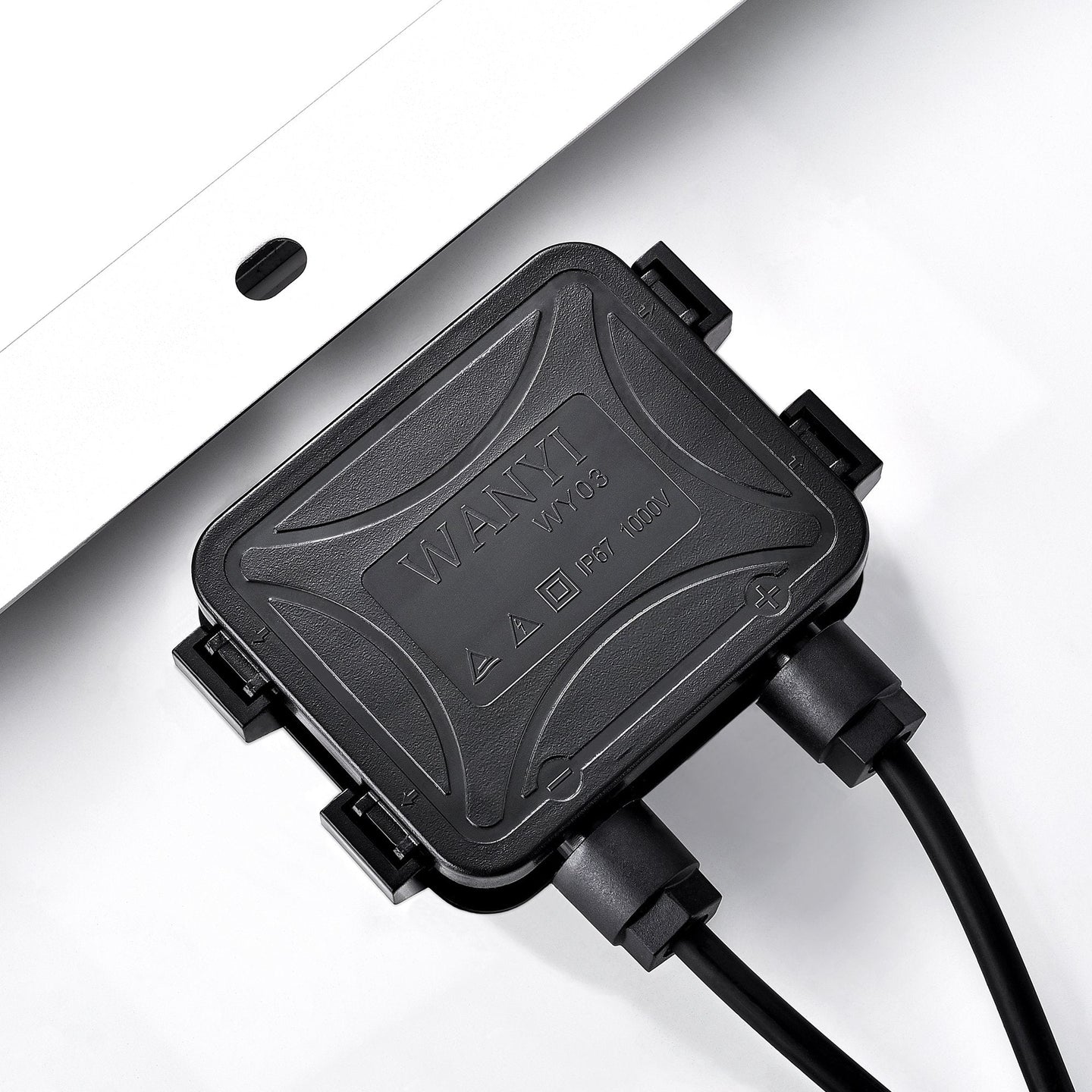

• IP67-Rated Waterproof Junction Box for added protection.

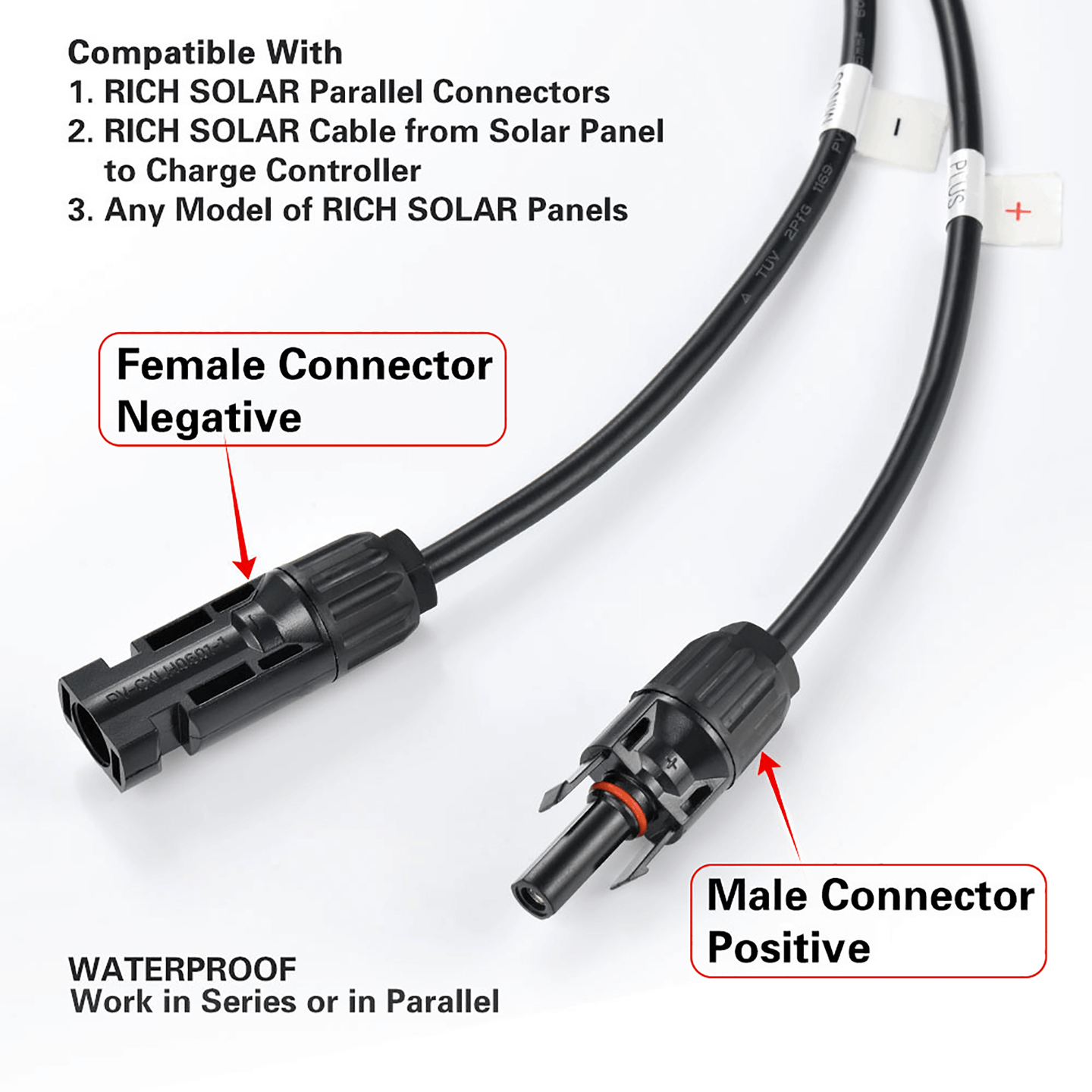

• IP67-Rated Waterproof Solar Connectors for secure connections.
• Bypass Diodes integrated into the junction box to prevent shading loss.

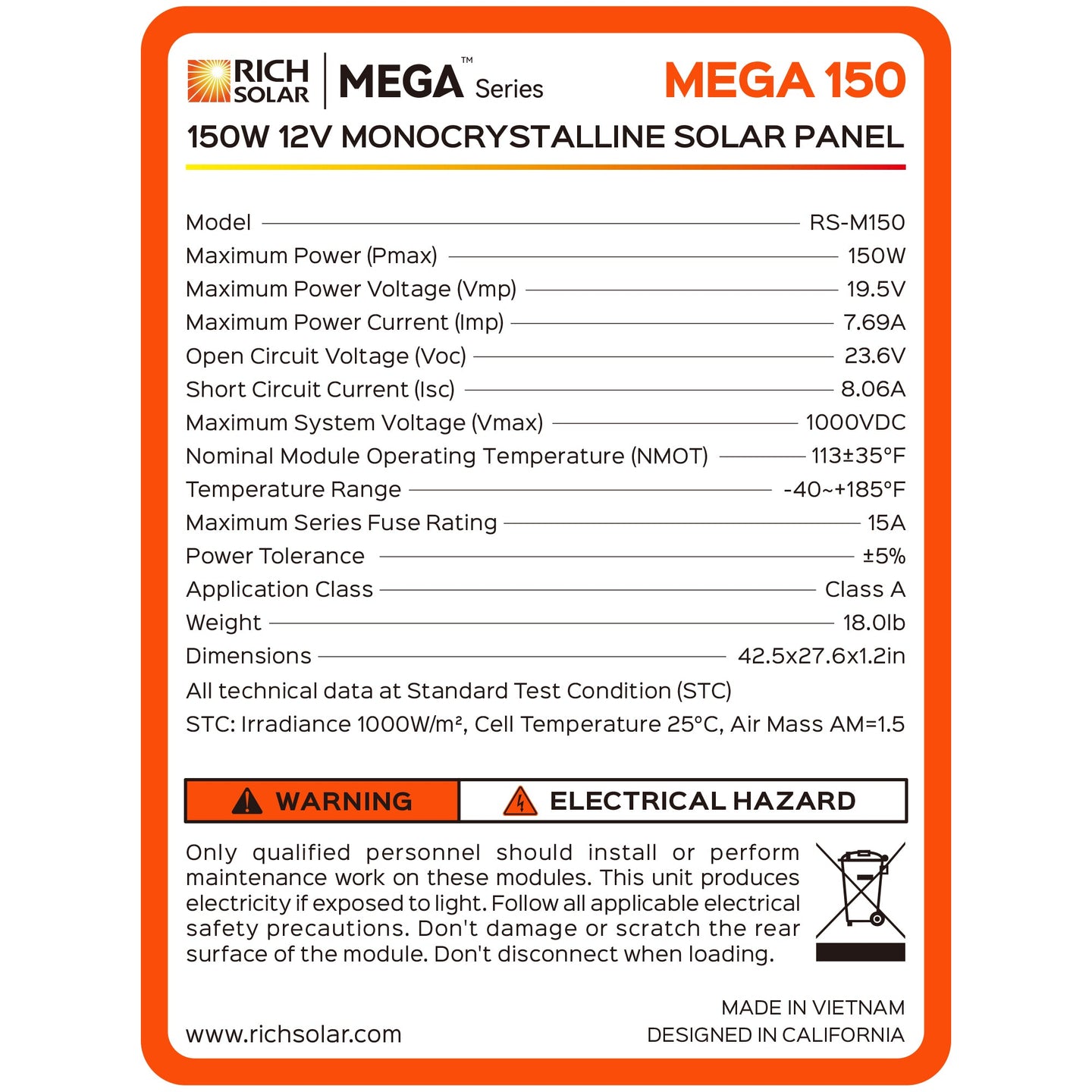

Technical Specifications

• Model: RS-M150
• Maximum Power (Pmax): 150W
• Maximum Power Voltage (Vmp): 19.5V
• Maximum Power Current (Imp): 7.69A
• Open Circuit Voltage (Voc): 23.6V
• Short Circuit Current (Isc): 8.06A
• Maximum System Voltage (Vmax): 1000VDC
• Temperature Range: -40°F to +185°F
• Weight: 18.0 lbs

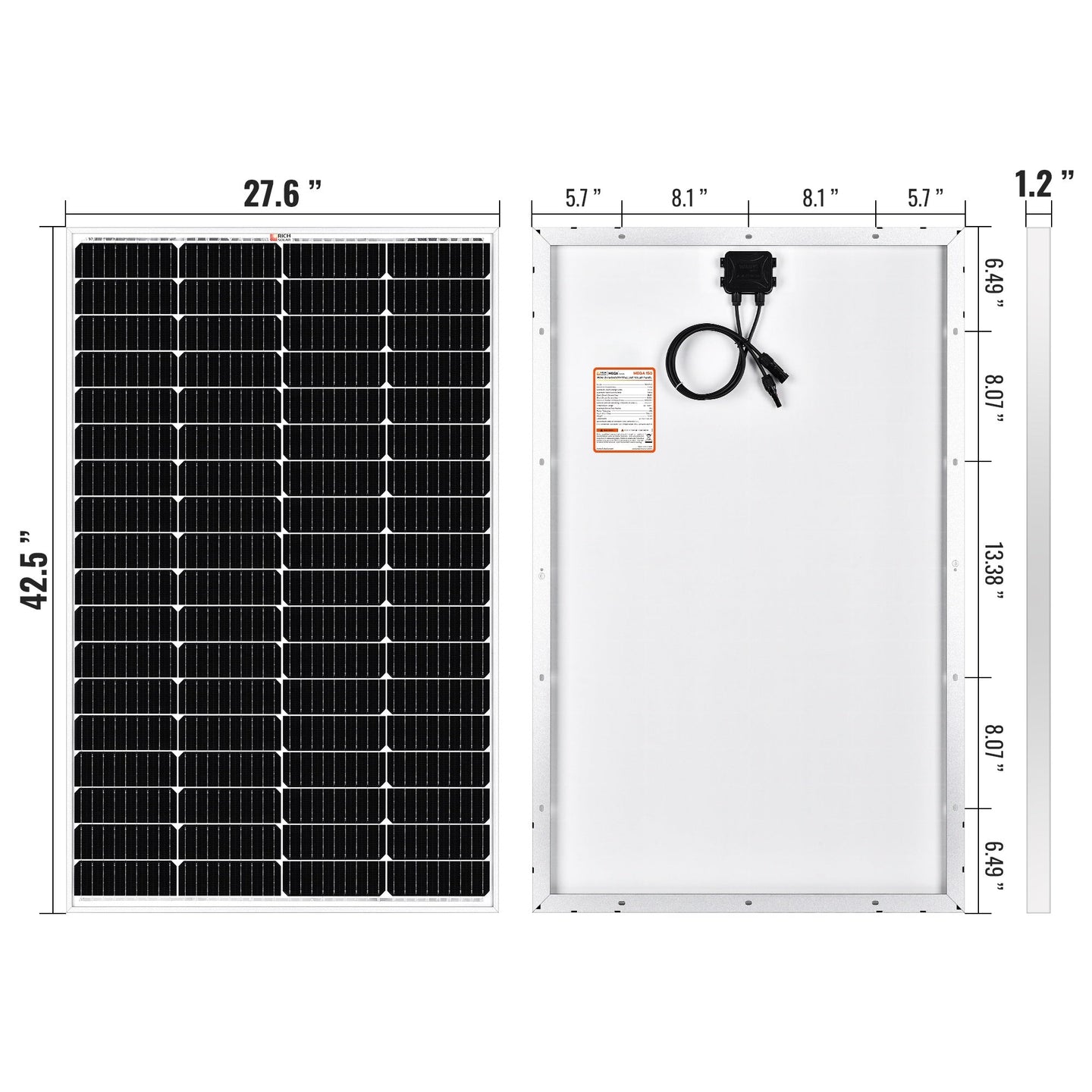

• Dimensions: 42.5 x 27.6 x 1.2 in
