Newstripe | NewRider 5000 Airless Riding Field Line Striper | 10003033

NewRider 5000 Airless Riding Field Line Striper

Overview

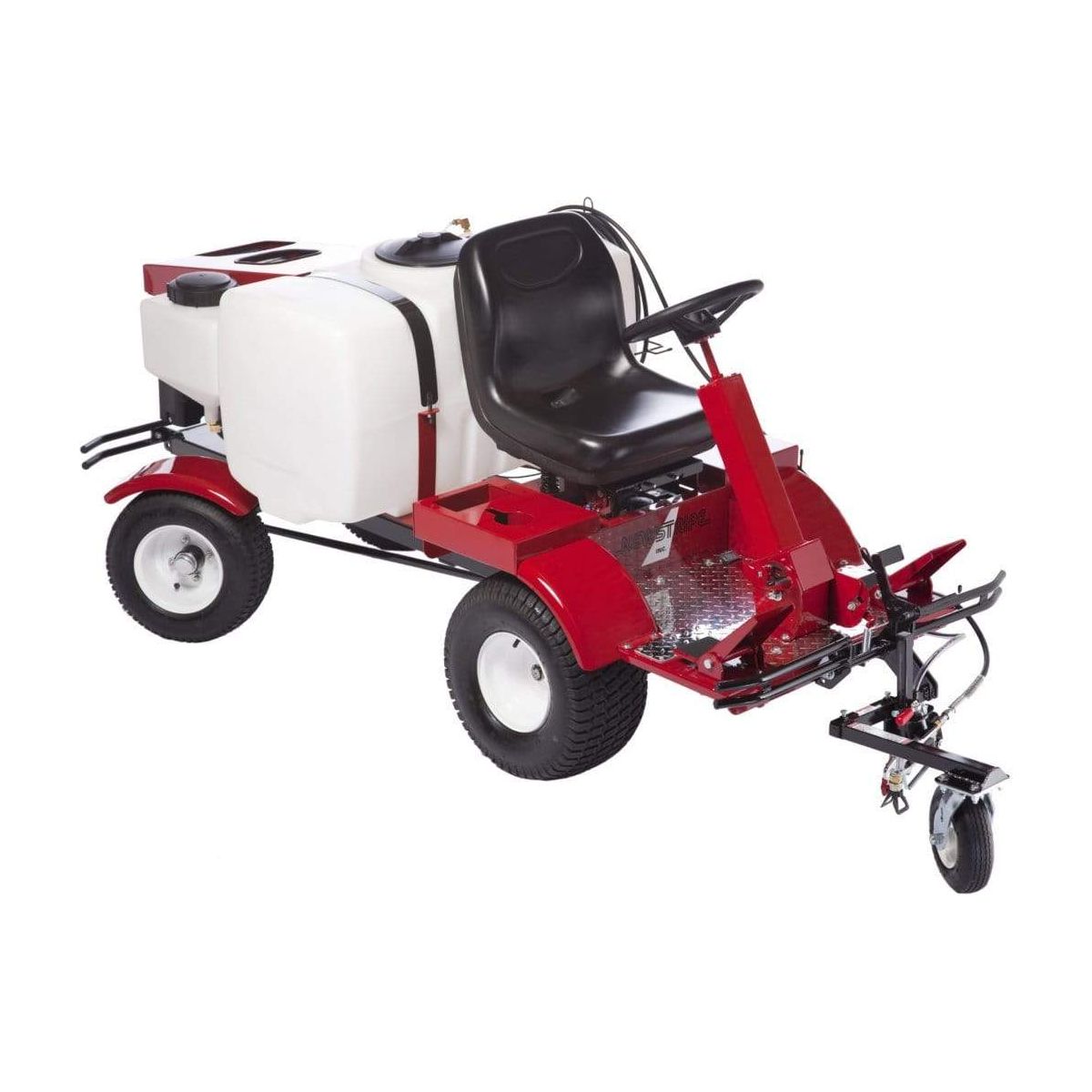

The NewRider 5000 is a ride-on airless field line striper designed to deliver bright, straight lines on natural and artificial turf. Its front-wheel drive with rear steering, adjustable airless pump, and floating front caster work together to keep paint on the turf without disturbing soil or rubber infill. The machine prioritizes operator comfort and field productivity with a low seat height, easy controls, and a large paint tank to reduce refills.

Benefits

• Strip fields faster and with fewer stops, so you finish jobs sooner and reduce downtime.
• Produce consistently brighter, cleaner lines that improve field appearance without damaging turf.
• Reduce paint waste and avoid soil contamination by controlling spray pressure and coverage precisely.
• Make line work easier and less tiring thanks to a comfortable high-back seat, adjustable steering, and seat-based controls.
• Spend less time on maintenance with an onboard purge tank and inline filter to keep the spray system running.

Features

• Front-wheel drive with rear steering for straighter, more accurate lines.
• Airless spray pump with adjustable pressure control (0–3000 psi) for a range of paint viscosities.
• Center-mounted spray head and low 30-inch seat height to improve sight lines while striping.
• Floating front swivel caster that follows ground contours to maintain consistent line width.
• Adjustable tilt steering column and high-back seat for easier access and operator comfort.
• Seat-based controls for ignition, throttle, and parking brake; foot pedals for forward/reverse, spray activation, steering lock, and spray head height.
• 2.5?gallon onboard purge tank and inline filter for field cleanup and clog prevention.
• Quick-release clamp and 25?foot hose for stencil work, tight curves, and hard-to-reach areas.
• Powered by a Honda GX390 engine with electric start and backup recoil start.
• Hydrostatic trans-axle for smooth speed control and reliable drive performance.

Specifications

• Model: NewRider 5000 (part number 10003033)
• Spray system: Airless pump, adjustable 0–3000 psi
• Paint tank capacity: 50 gallons (poly tank)
• Purge tank capacity: 2.5 gallons (onboard)
• Engine: Honda GX390 with electric start and recoil backup
• Drive: Front-wheel drive with rear steering; hydrostatic trans-axle
• Seat height: Low 30 inches; high-back operator seat
• Hose length: 25 feet
• Sight/placement: Center spray head positioning
• Coverage per tank: Up to 4 full football fields or up to 7 full-size soccer fields (typical, depending on paint and application)
• Controls: Seat-based ignition/throttle/parking brake; foot pedals for speed and spray functions
• Accessories: Inline filter, quick-release spray gun clamp
• Warranty: 36-month Equipment Protection plan
