Newstripe | NewRider 1700 Airless Riding Field Line Striper | 10004026

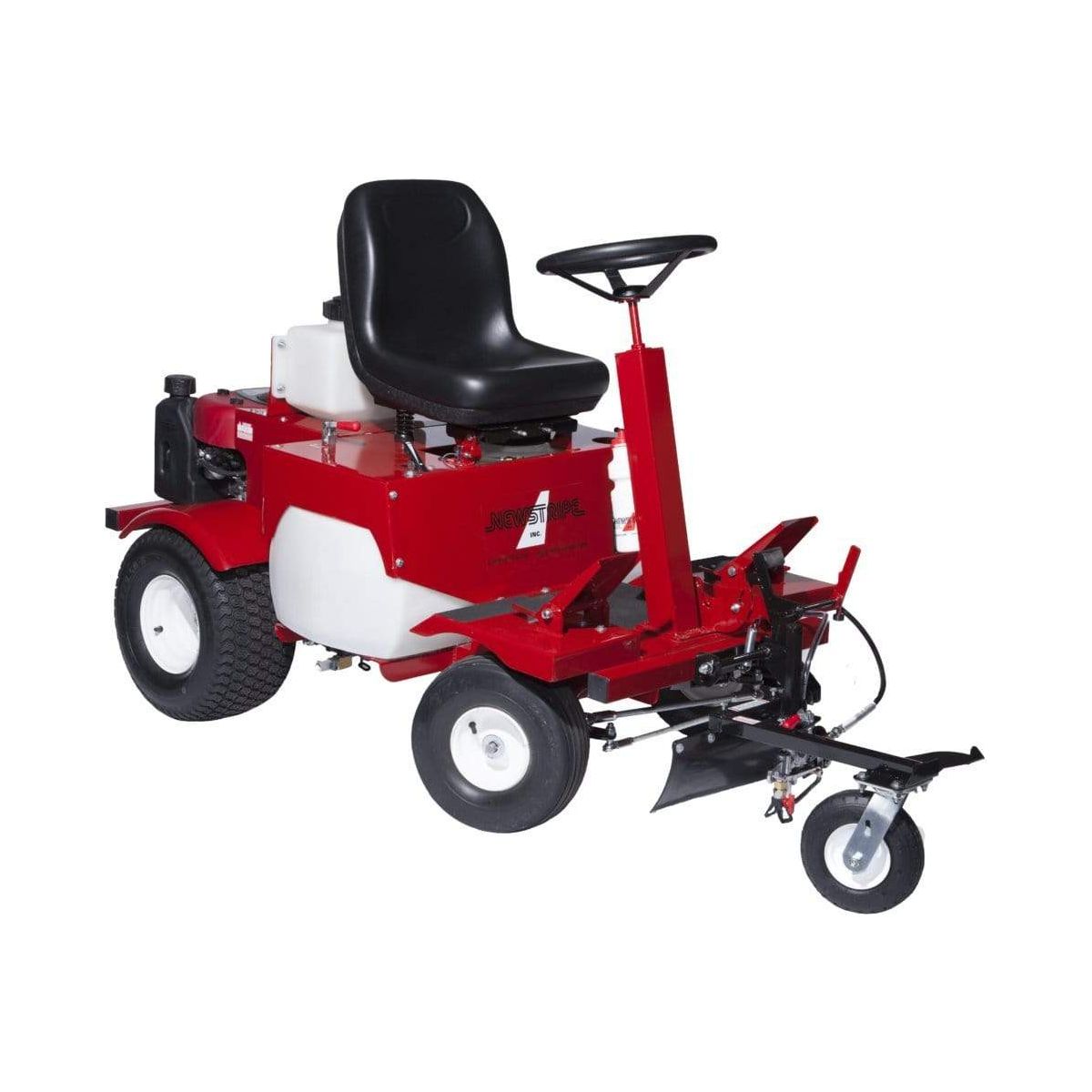

Newstripe NewRider 1700 Airless Riding Field Line Striper (Model 10004026)

Overview

The NewRider 1700 is a compact ride-on line striper built for clean, bright lines on natural and artificial turf. It uses an adjustable airless pump and a floating front swivel to maintain consistent stripe quality while keeping operators comfortable and productive during long jobs.

Benefits

• Finish fields faster: ride-on operation and hydrostatic drive let you cover large areas more quickly than walk-behind units.
• Save paint and money: adjustable airless pressure applies paint precisely to turf, reducing waste and avoiding soil contamination.
• Preserve turf health: airless application minimizes disturbance to grass and rubber infill on artificial surfaces.
• Work longer with less fatigue: high-back seating and intuitive controls keep operators comfortable during extended shifts.
• Reduce downtime: a 25-gallon tank and efficient pump let you stripe whole fields or multiple fields on a single fill.
• Clean and maintain in the field: the onboard purge tank and inline filter simplify end-of-day cleanup and help prevent clogs.

Features

• Adjustable 0–3000 psi airless pump for fine-tuning spray pressure.
• Floating front swivel caster to follow ground contours and keep line width consistent.
• Seat-mounted controls for ignition, throttle, and parking brake with foot pedals for forward/reverse and spray activation.
• Quick-release clamp for removing the spray gun for stenciling or tight curves.
• 25-foot hose for extended reach and maneuverability.
• Built-in 2.5-gallon purge tank and inline filter for fast field cleanup and clog prevention.
• Hydrostatic transaxle driven by an electric-start engine for smooth speed control.
• Line width adjustable between 2" and 6".
• Designed for use on both natural and artificial turf without disturbing rubber infill.

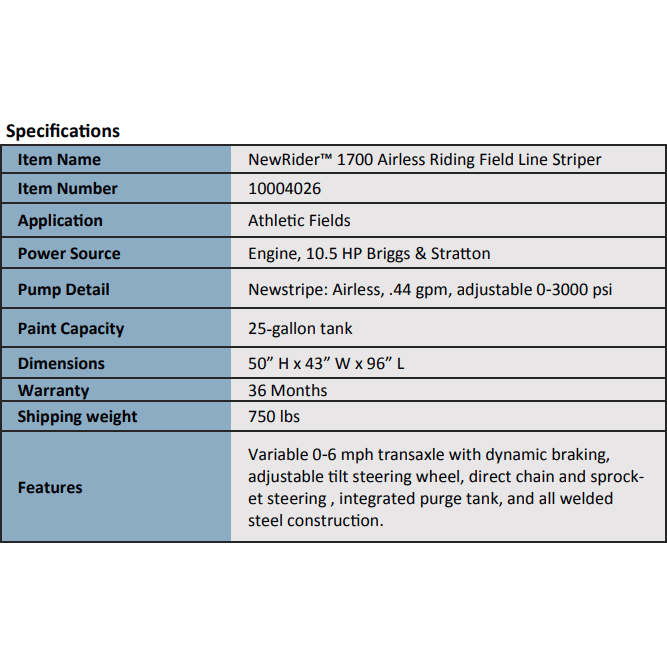

Specifications

• Model: NewRider 1700 (10004026)
• Pump pressure: 0–3000 psi (adjustable)
• Engine: 344 cc Briggs & Stratton OHV with electric start
• Drive: hydrostatic transaxle
• Paint tank: 25-gallon polyethylene
• Purge tank: 2.5 gallons
• Hose length: 25 feet
• Line width: adjustable 2"–6"
• Operational controls: seat-based ignition/throttle/parking brake; foot pedals for forward/reverse and spray
• Typical coverage per tank: can stripe an entire football field or up to four full-size soccer fields on a single 25-gallon fill
• Warranty: 36-month Equipment Protection plan
• Applications: natural grass and artificial turf (compatible with both thinned and non-thinned turf paints)
