RUiXU | 800A Busbar Pair (Orange & Black) – Compatible with Lithi2-16 Batteries (RX9MP) | RX9MP

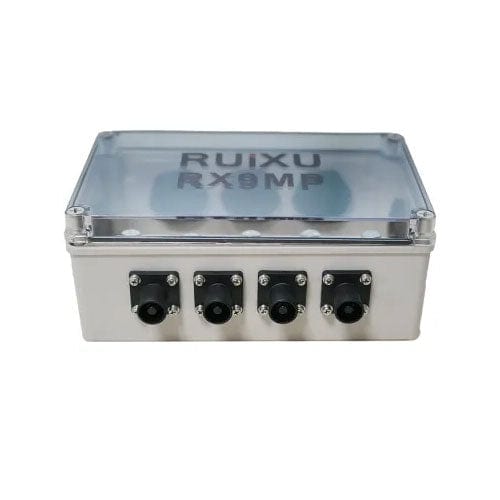

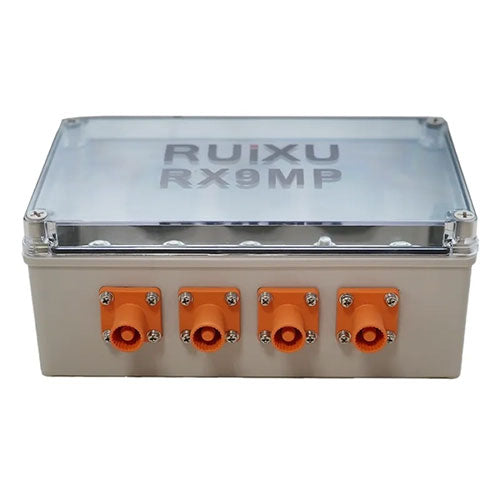

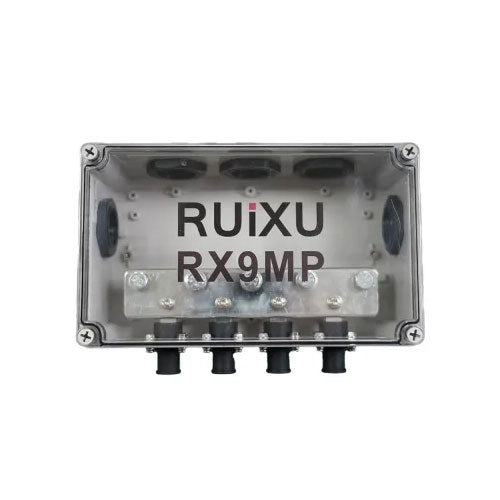

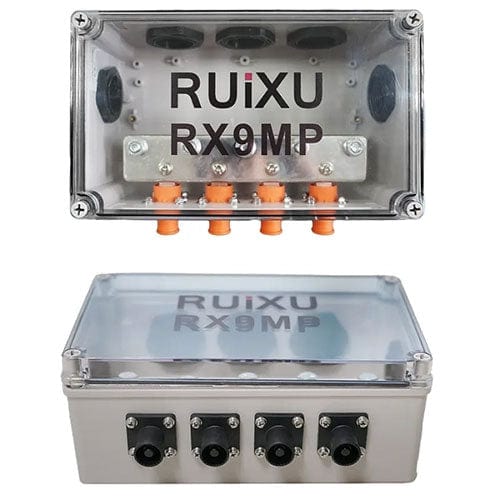

RUiXU RX9MP 800A Busbar for Lithi2-16 (Orange & Black)

The RUiXU RX9MP Busbar is a high-capacity 800A power distribution system designed specifically for RUiXU Lithi2-16 battery systems. Built for efficiency, durability, and safety, it ensures reliable power transfer across demanding off-grid, solar, and industrial energy setups.

Constructed with a copper-nickel plated plate and stainless steel studs and nuts, the RX9MP offers superior conductivity, corrosion resistance, and long-term performance. It features 5/16” stud posts and four pluggable battery pole connectors, enabling quick, secure, and maintenance-friendly installations.

For optimal performance, the RX9MP Busbar is recommended for use with the RUiXU PP140 battery cable, ensuring perfect compatibility and maximum electrical integrity.

Key Features

• Heavy-Duty Construction: Built from copper-nickel plated material with stainless steel studs and nuts for strength and corrosion resistance.

• 800A High Current Capacity: Designed to handle continuous high-current flow for off-grid, solar, and backup systems.

• Quick & Secure Connections: Equipped with 5/16” stud posts and four pluggable battery pole connectors for easy, tool-free installation.

• Enhanced Protection: Integrated waterproof sealing rings provide superior environmental protection against moisture and dust.

• Easy Installation: Includes mounting screws for stable wall installation in residential or commercial setups.

• Color-Coded Design: Features orange (positive) and black (negative) busbars for clear and safe polarity identification.

Applications

• Battery Bank Connections: Streamlines high-capacity battery interconnections for efficient power flow.

• Off-Grid Solar Energy Storage: Distributes energy seamlessly between solar arrays, batteries, and inverters.

• Backup Power & UPS Systems: Provides stable, low-resistance connections for emergency power setups.

• Industrial & Commercial Power Distribution: Handles large current demands in factories, data centers, and warehouse systems.

• Marine & RV Systems: Delivers reliable power for mobile and marine installations requiring heavy current capacity.

What’s Included

• (1) RUiXU RX9MP 800A Busbar for Lithi2-16 (Orange & Black)

• (1) Mounting Hardware Set

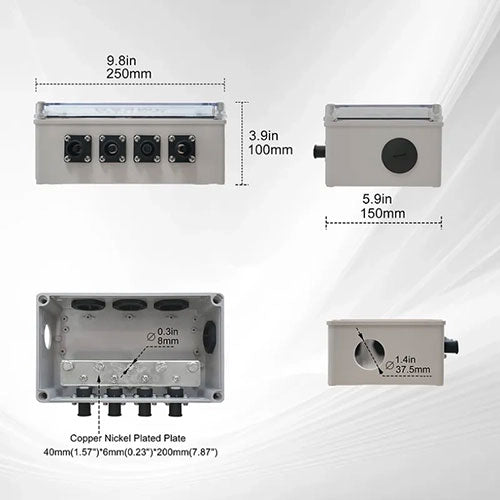

Specifications
Material: Copper-nickel plated plate with stainless steel studs and nuts
Dimensions: 9.84" × 5.9" × 3.93" (250 × 150 × 100 mm)
Rated Current: 800A
Stud Size: 5/16" (M8)
Connectors: 4 × pluggable battery pole connectors
Waterproof: Yes (sealed connection design)
Mounting: Includes wall-mounting screws
Compatibility: RUiXU Lithi2-16 battery system (recommended PP140 cable)
Shipping Restriction: Ships with battery orders only; contact us for standalone shipping rates.

Frequently Asked Questions
What is the purpose of the RX9MP Busbar?
It distributes DC power efficiently between battery banks, inverters, and energy storage components while reducing resistance and improving connection organization.

Is it compatible with other batteries?
The RX9MP is designed for RUiXU Lithi2-16 batteries, but it may also work with other compatible 48V systems requiring similar high-current performance.

Can it be used in solar or off-grid systems?
Yes. It’s ideal for solar, hybrid, and off-grid energy setups requiring high-efficiency DC power distribution.

Does it resist corrosion?
Yes. The nickel-plated copper construction ensures excellent corrosion resistance for both indoor and sheltered outdoor use.

Is installation difficult?
No. The RX9MP includes pre-drilled mounting holes and all necessary hardware for quick, secure installation.
