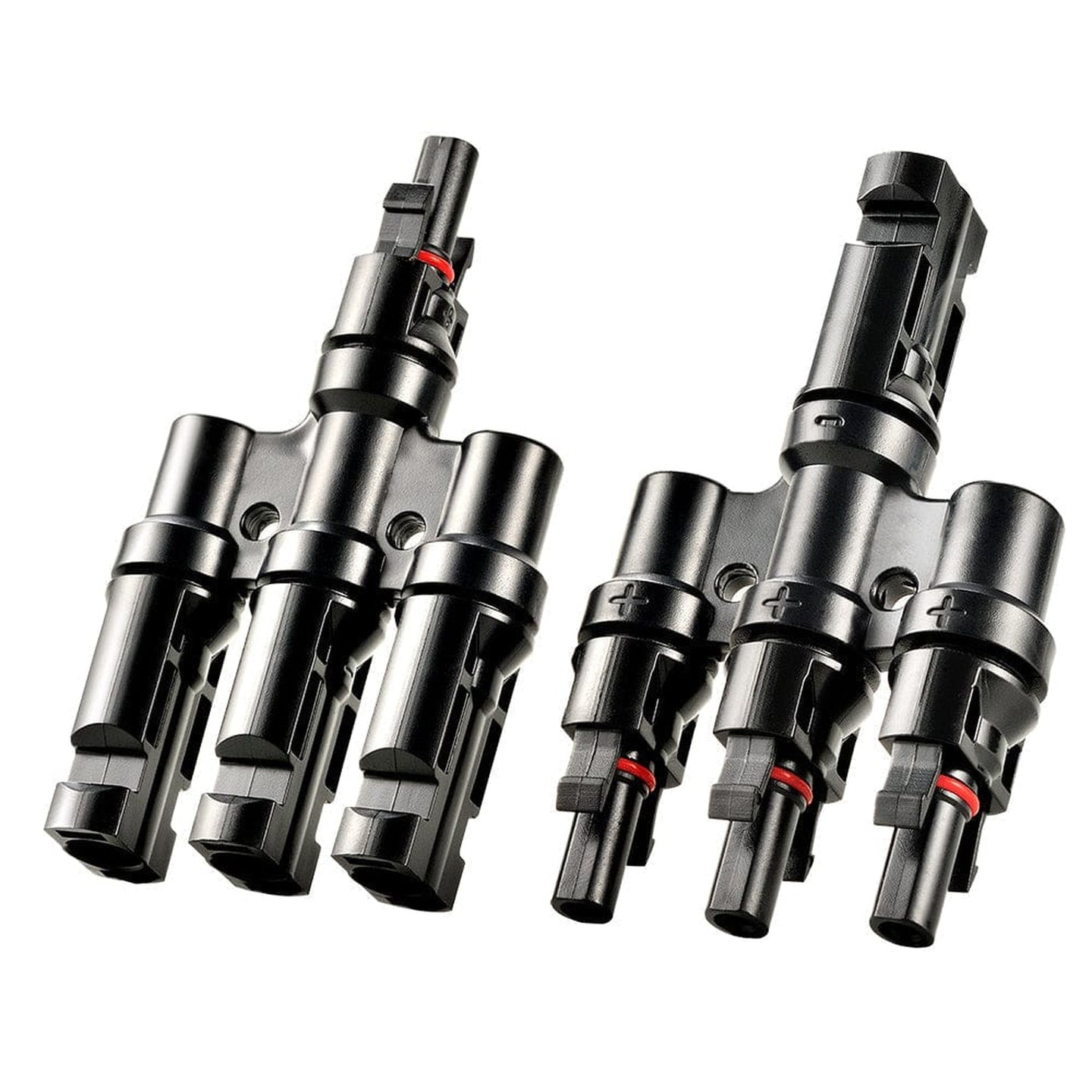

3 to 1 Y Branch Parallel Connectors

Overview

Simplify your solar setup with Y Branch Parallel Connectors 3 to 1, designed to enable quick, efficient, and safe parallel wiring. Suitable for off grid, residential, or mobile solar systems, these weatherproof connectors allow you to link three solar panels in parallel to increase system current without changing voltage.

These connectors provide the reliability and performance needed for demanding environmental conditions, making them suitable for both new builds and upgrades.

Benefits

• Connect up to three solar panels in parallel, ideal for expanding solar power systems with minimal effort
• Compatible with all standard solar connectors for easy integration into existing or new photovoltaic systems
• Designed to withstand extreme weather conditions, dust, and water with an IP67 rating
• Tool free assembly allows easy connection and disconnection with a secure plug and play design
• Low contact resistance enhances conductivity, reducing energy loss and improving system efficiency

Features

• Quick three to one parallel wiring for solar panels
• Universal compatibility with standard solar connectors
• Heavy duty weather protection meeting high mechanical requirements
• Tool free assembly for easy installation
• Engineered for optimized conductivity with low contact resistance

Specifications

• Rated current: 30 amps
• Maximum voltage: 1000 VDC
• Waterproof rating: IP67
• Wire range: 10 AWG, 12 AWG
• Insulation material: PPO and PA
• Contact material: Tinned copper
• Temperature range: minus 40 degrees Celsius to plus 90 degrees Celsius
• Safety class: II
