Rich Solar | OffGrid Battery Kit 800Ah 12V + SKU | RS-B12800

Unmatched Power Superior Efficiency Built for Serious Off Grid Demands

Overview

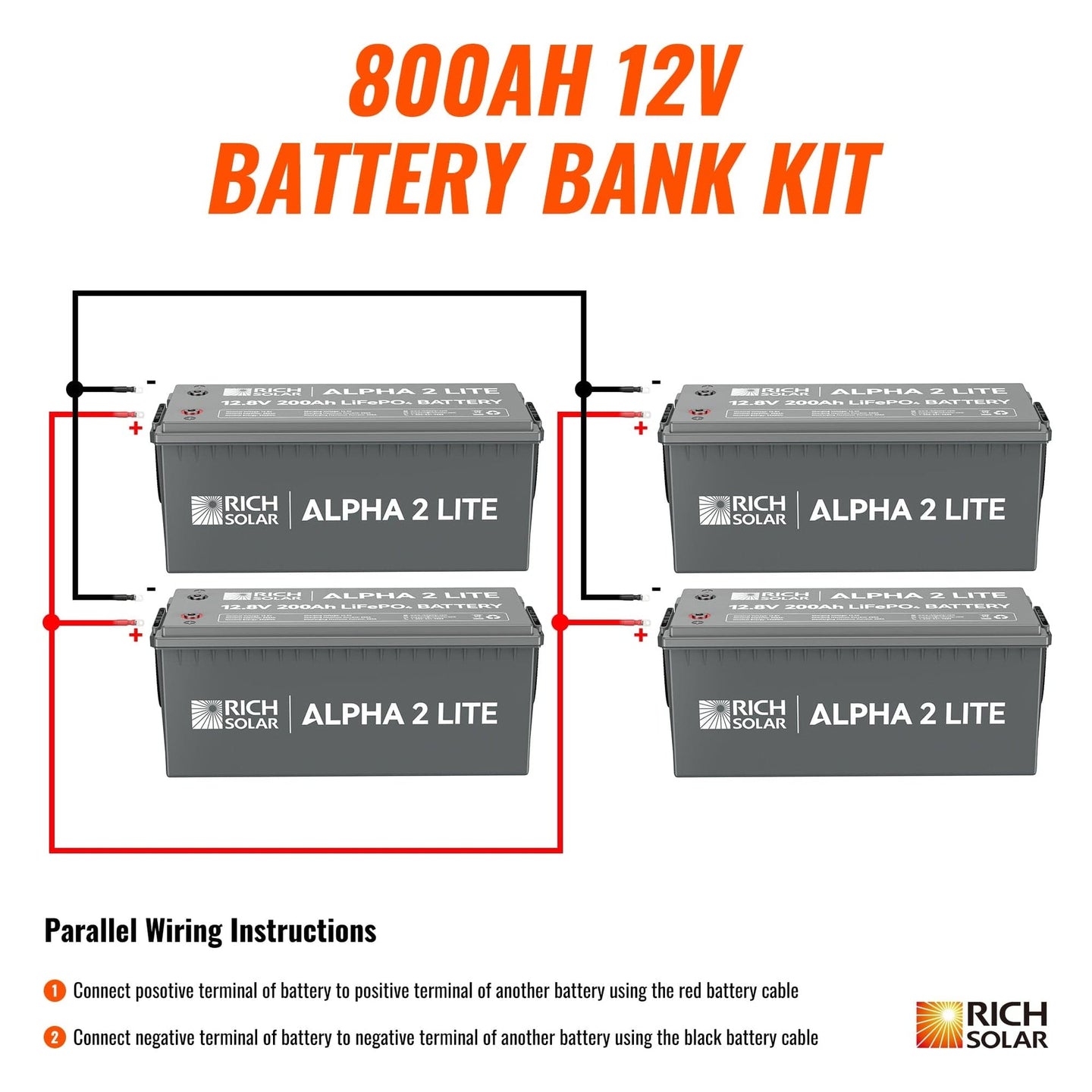

The 800Ah 12V LiFePO4 Off Grid Battery Kit includes four ALPHA 2 LITE 12V 200Ah batteries connected in parallel to provide a 10.2kWh deep cycle lithium battery bank. It is suitable for powering cabins, van builds, RVs, or backup systems, delivering a robust and reliable energy storage solution.

The ALPHA 2 LITE is a durable 12V 200Ah LiFePO4 battery constructed with premium lithium iron phosphate cells for high efficiency, stable output, and enhanced safety. Using four batteries in parallel offers large capacity, long cycle life, and low maintenance, making it suitable for demanding off grid or backup power needs.

Benefits

• Massive 800Ah Capacity (10.2kWh) supports extended off grid living large inverter loads or solar systems
• Long lasting LiFePO4 chemistry with high grade lithium iron phosphate cells provides longer lifespan better safety and improved thermal performance
• Advanced Battery Management System protects against overcharging over discharging overcurrent short circuits and temperature extremes
• Low maintenance no watering no fumes offers dependable power when needed
• Stable voltage output ensures consistent power delivery for inverters and electronics

Features

• Each LiFePO4 cell is individually fused to prevent damage from cell failure allowing continued battery operation
• Includes removable carry handle for convenient transport
• Lightweight design for ease of installation and handling
• Short circuit protection
• Overcharge and overdischarge protection
• Excessive heat protection
• Advanced Battery Management System operation with specified overcharge and overdischarge detection voltages and delay times
• 5 year warranty

Specifications

• Nominal Voltage: 12.8V
• Nominal Capacity per battery: 200Ah
• Minimum Capacity per battery: 199Ah
• Cycle Life: more than 4000 cycles
• Capacity: 200Ah per battery
• Energy: 2560 Watt Hours per battery
• Charge Voltage: 14.4V
• Continuous Discharge Current: 200A
• Self Discharge Rate: less than 5 percent per month
• Charge Temperature Range: 0°C to 55°C (32°F to 131°F)
• Discharge Temperature Range: -20°C to 60°C (-4°F to 140°F)
• Storage Temperature Range: -10°C to 45°C (14°F to 113°F) with maximum 90 percent relative humidity for periods longer than 3 months
• Battery Dimensions (LxWxH): 20.9 x 8.1 x 8.5 inches
• Weight: 52.9 pounds

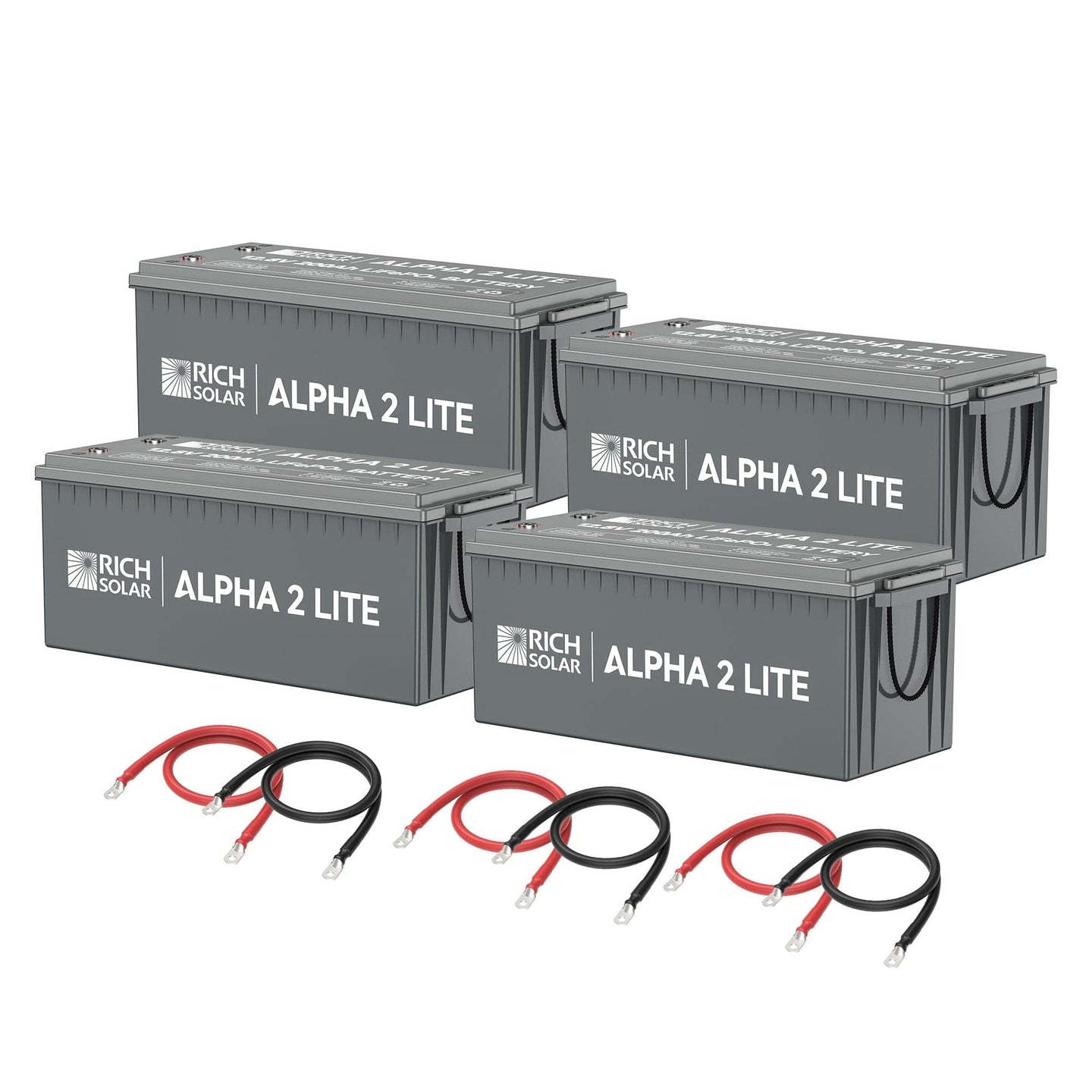

• Included items: 4 x 12V 200Ah LiFePO4 batteries 6 x 1 ft 2 AWG battery cables
