Rich Solar | OffGrid Battery Kit 600Ah 12V + SKU | RS-B12200x3

Massive Power Maximum Reliability Off Grid Ready

Overview

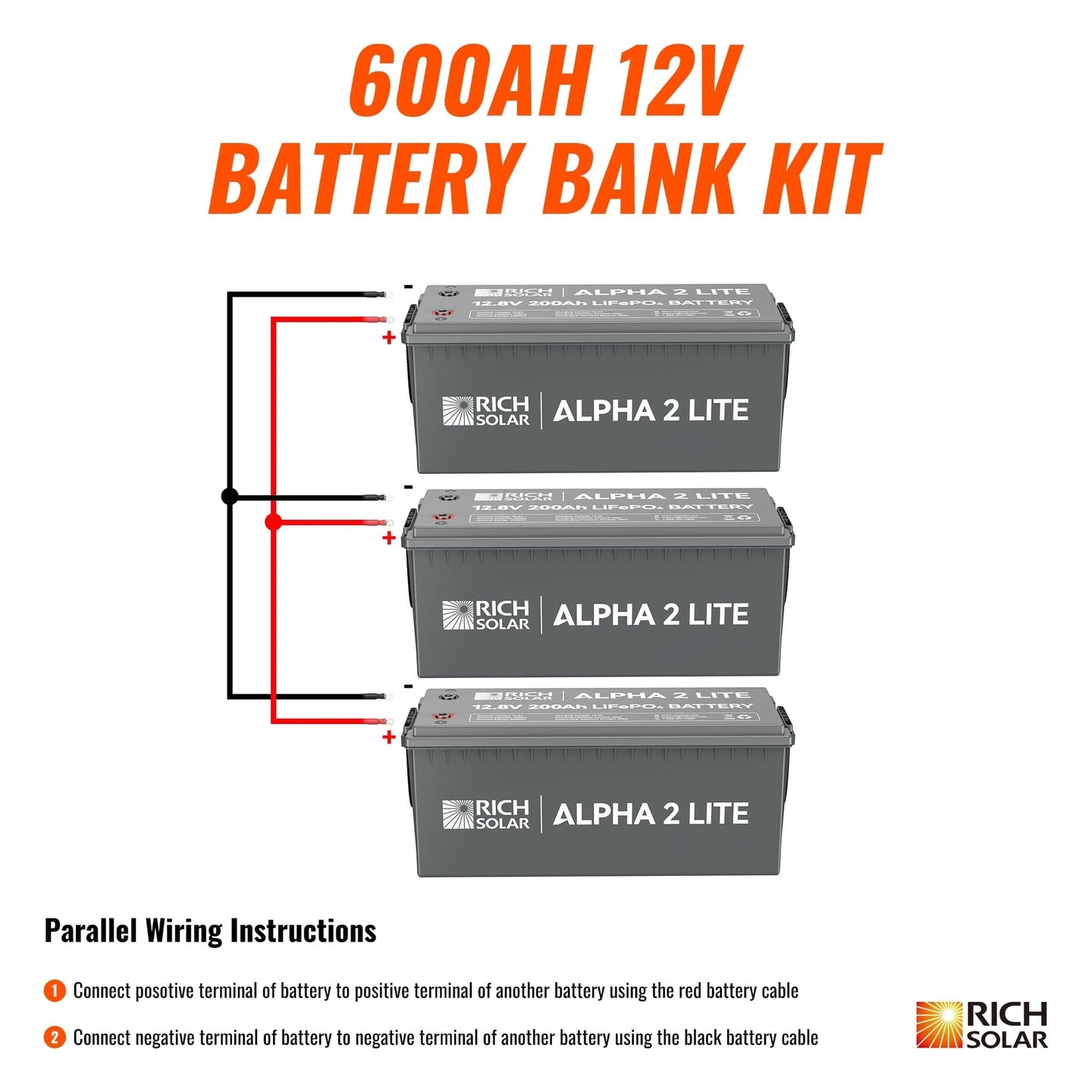

The 600Ah 12V LiFePO4 Off Grid Battery Kit includes three ALPHA 2 LITE 12V 200Ah lithium batteries connected in parallel to create a 7.6kWh deep cycle lithium battery bank. It is designed for off grid systems such as RVs campervans solar setups and backup energy storage systems. This kit offers reliable performance safety and long service life.

Each ALPHA 2 LITE battery uses premium lithium iron phosphate cells known for durability resistance to high temperatures and low maintenance requirements. The combined 600Ah battery bank delivers stable high capacity power for demanding energy applications.

Benefits

• High capacity power bank storing 600Ah at 12V providing 7.6kWh of usable energy
• LiFePO4 cells that ensure thermal stability low self discharge and a long lifespan exceeding 10 years
• Advanced battery management system protecting against overcharge over discharge overcurrent short circuits and temperature extremes
• Designed to withstand harsh environments suitable for permanent off grid use on RVs boats and solar installations
• Low maintenance operation with no water refills or regular servicing needed
• Individual fusing of each cell to maintain safety and allow continued battery function if a cell fails
• Lightweight with a removable carry handle for easier handling

Features

• 600Ah nominal capacity at 12.8V with a total energy of 7.6kWh
• Cycle life greater than 4000 cycles
• Continuous discharge current up to 200A
• Charge voltage of 14.4V
• Low self discharge less than 5 percent per month
• Charge temperature range from 0°C to 55°C
• Discharge temperature range from -20°C to 60°C
• Storage temperature suitable for long term storage from -10°C to 45°C at 90 percent humidity maximum
• Physical dimensions 20.9 by 8.1 by 8.5 inches and weight of 52.9 pounds
• Over charge protection with detection voltage of 3.75V and recovery voltage of 3.55V
• Over discharge protection with detection voltage of 2.20V and recovery voltage of 2.70V
• Short circuit protection included

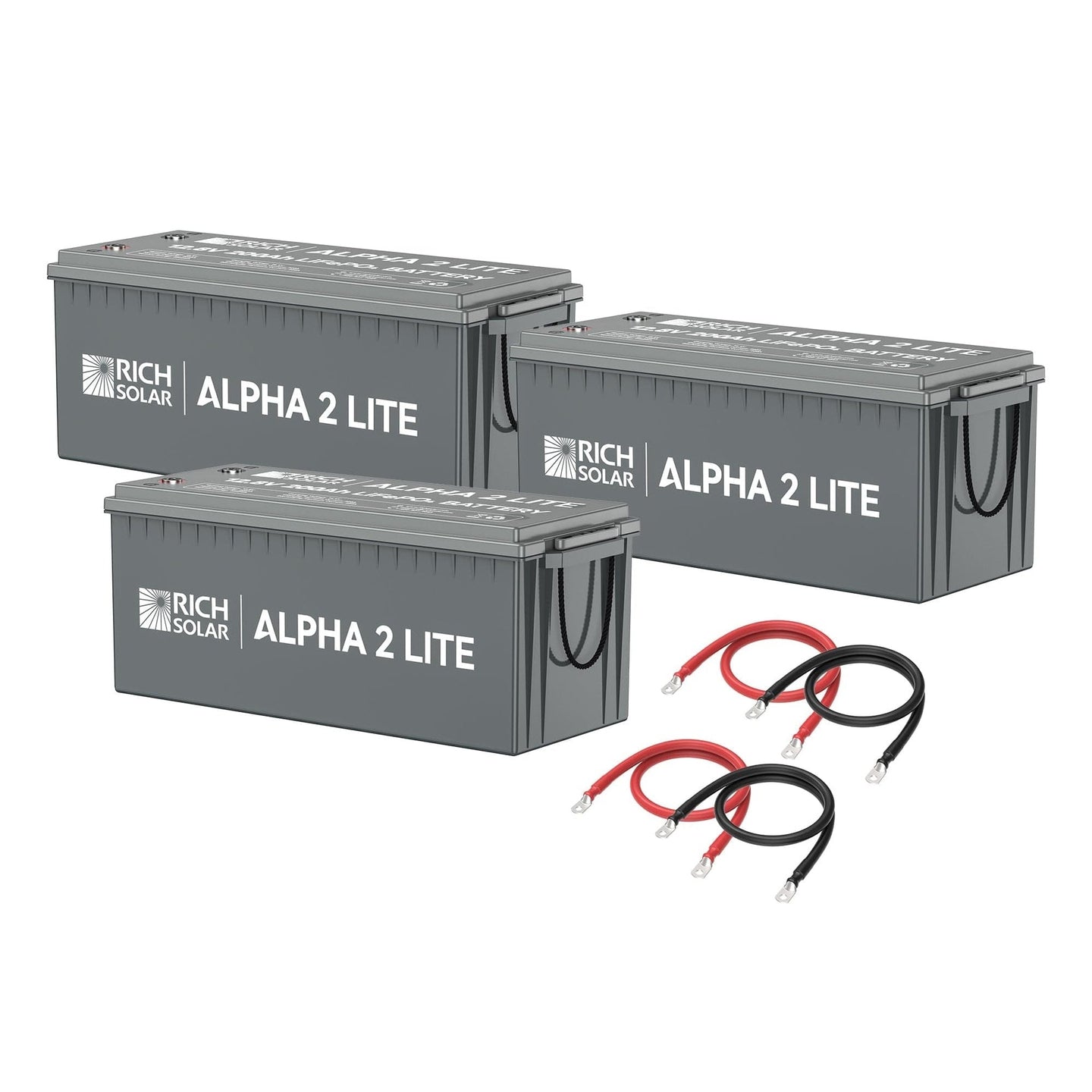

• Includes 3 batteries and 4 one foot 2 AWG battery cables

Specifications

• Nominal Voltage 12.8V per battery
• Nominal Capacity 200Ah per battery
• Minimum Capacity 199Ah
• Cycle Life over 4000 cycles
• Energy per battery 2560 Watt Hours
• Continuous Discharge Current 200A
• Self Discharge less than 5 percent per month
• Charge Temperature Range 0°C to 55°C
• Discharge Temperature Range -20°C to 60°C
• Storage Temperature -10°C to 45°C with 90 percent humidity max for more than 3 months
• Battery Dimensions 20.9 x 8.1 x 8.5 inches
• Weight 52.9 pounds
• Over Charge Detection Voltage 3.75V ± 0.03V
• Over Charge Detection Delay Time 1000ms ± 500ms
• Over Charge Recovery Voltage 3.55V (Min 3.40V Max 3.60V)
• Over Discharge Detection Voltage 2.20V ± 0.08V
• Over Discharge Detection Delay Time 1000ms ± 500ms
• Over Discharge Recovery Voltage 2.70V ± 0.10V
• Short Circuit Protection Yes
• Warranty 5 years
