Rich Solar | MPPT Solar Charge Controller 40 Amp BRAVO FLUSH 40 | RS-MPPT40FM

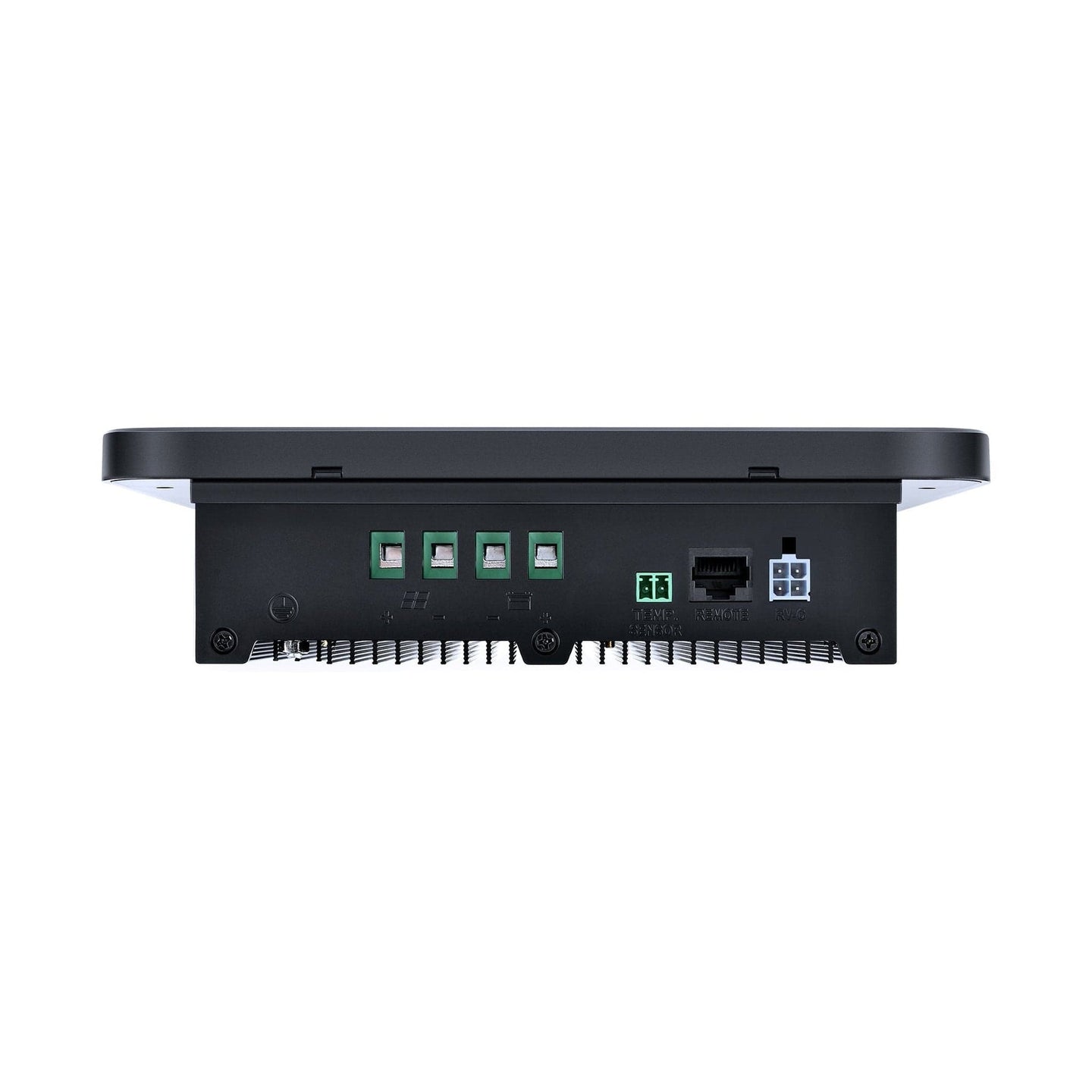

BRAVO FLUSH 40 | 40 Amp Flush Mount MPPT Solar Charge Controller | Premium 40A 12V/24V

Overview

The BRAVO FLUSH 40 is a reliable 40 Amp MPPT solar charge controller designed for flush mount installation in off-grid solar systems. It is compatible with 12V or 24V battery setups and incorporates advanced MPPT technology to optimize charging efficiency and preserve battery life for various battery types.

Benefits

• Maximizes solar energy harvesting with advanced MPPT algorithm
• Extends battery life by supporting multiple battery types and custom settings
• Ensures safe operation with comprehensive electronic protections
• Simple installation with common negative grounding and automatic system voltage detection
• Provides real-time status through LED indicators and a clear display interface
• Durable design with splash-proof rating and protective coatings
• Complies with recognized safety and electromagnetic compatibility standards

Features

• PV open circuit voltage up to 100 V
• Latest Maximum Power Point Tracking algorithm
• Unique multi-peak detection technology for improved solar power capture
• MPPT tracking efficiency greater than 99.5%
• Wide MPP voltage range for diverse solar panel configurations
• Common negative grounding for easier installation
• Supports nine different battery types including custom configurations
• Electronic protections against reverse polarity, overcharge, undercharge, short circuit, and thermal issues
• Automatic 12V or 24V system voltage detection
• LED bar indicators displaying solar and battery charging status
• Display interface shows solar parameters, battery charging data, battery type and temperature, custom settings, and fault codes
• Optional remote digital display meter and external battery temperature sensor available
• Splash proof rating of IP43 with rubber terminal protection
• Conformal coating on internal boards for enhanced durability
• Meets UL1741, EN/IEC 62109-1, EN61000-6-1/6-3, and FCC Part 15 Subpart B standards

Specifications

• Max PV Open Circuit Voltage: 100 VDC
• Max Normal Input PV Voltage: 92 VDC
• Max PV Input Current: 40 Amp
• Max PV Short Circuit Current: 45 Amp
• Max Conversion Efficiency: 98%
• Min Tracking Efficiency: 99.5%
• Nominal PV Power: 600W at 12V, 1200W at 24V
• Min Battery Start Charging Voltage: 5 VDC
• Soft Start Charging Voltage: 5 to 10 volts plus or minus 2
• Soft Start Charging Current: 20 Amp
• Max Bulk Charge Current: 40 Amp
• Controller Material: Plastic, PC
• Mounting: Surface Mounting
• IP Grade: IP43
• Net Weight: 1.87 pounds
• Operating Temperature Range: -13 to 122 degrees Fahrenheit
• Storage Temperature Range: -40 to 185 degrees Fahrenheit
• Operating Humidity Range: 0 to 85 percent relative humidity
