Rich Solar | LiFePO4 Battery 12V 100Ah ALPHA 1 PRO | RS-B121SP

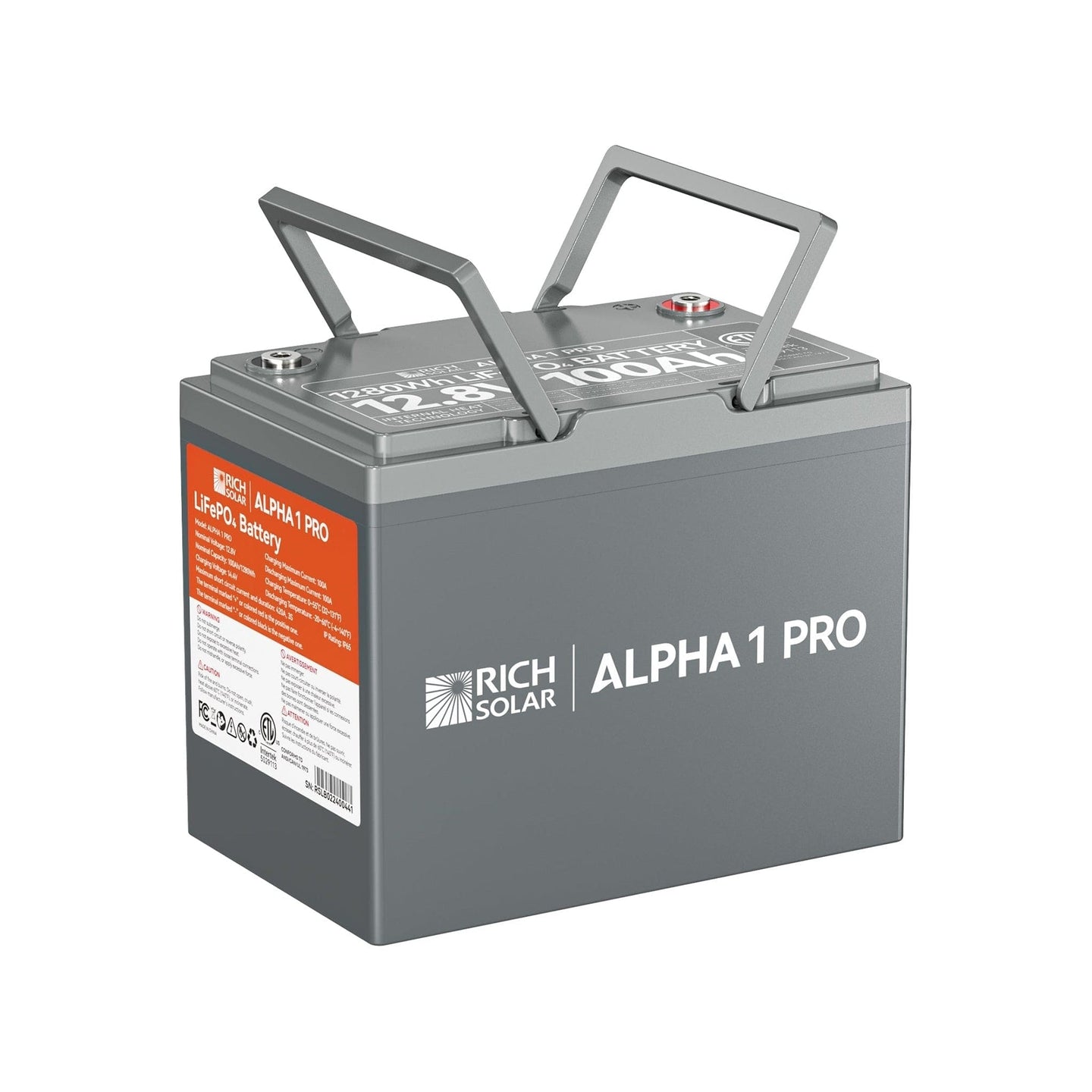

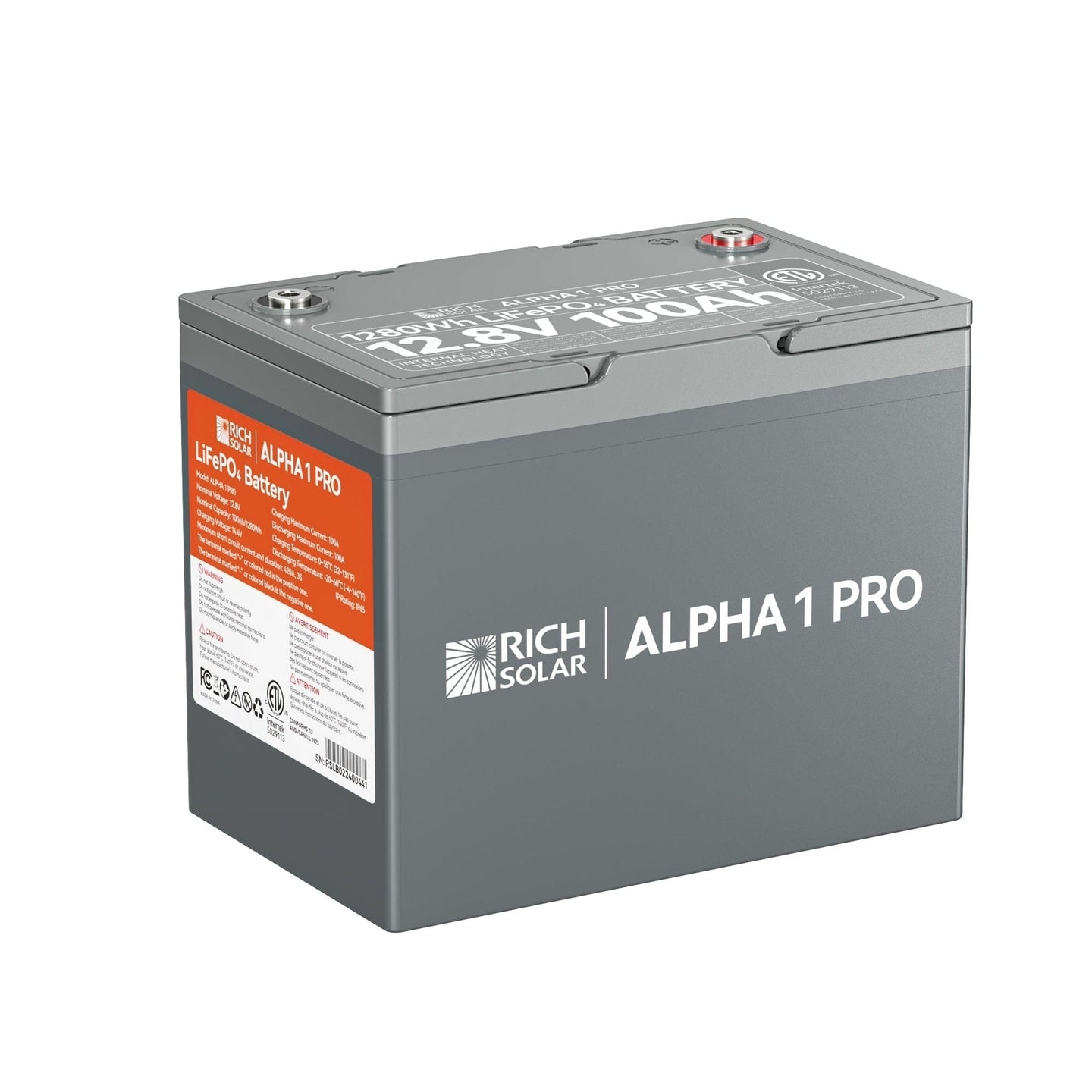

ALPHA 1 PRO 12V 100Ah LiFePO4 Battery

Overview

The ALPHA 1 PRO 12V 100Ah LiFePO4 Battery provides stable and durable power in a compact design. It is suitable for use in RVs, boats, solar systems, and off grid setups. The battery is certified to meet industry standards and is backed by a ten year warranty.

Benefits

• Safe and efficient lithium iron phosphate chemistry for consistent power and thermal stability
• High energy capacity of 1280 watt hours to support essential devices and systems
• Long lifespan with up to 7,000 charge cycles for extended use
• Expandable design supporting up to four batteries in parallel and series configurations
• Certified for safety with UL1973 compliance
• Ten year manufacturer warranty for added assurance

Features

• Cell type: lithium iron phosphate (LiFePO4)
• Nominal voltage: 12.8 volts
• Nominal capacity: 100 amp hours
• Nominal energy: 1280 watt hours
• Cycle life: 7000 cycles
• Maximum expansion: 4P4S (up to four batteries in parallel and series)
• Battery management system rated at 100 amps
• Maximum charging current: 100 amps
• Maximum continuous discharge current: 100 amps
• Maximum discharge current for 10 seconds: 110 amps
• Charge method: constant current / constant voltage (CC/CV)
• Charge voltage: 14.4 volts plus or minus 0.2 volts
• Recommended charge current: 50 amps (0.2 C rate)
• Charge temperature range: 0 to 55 degrees Celsius
• Discharge temperature range: minus 20 to 60 degrees Celsius
• Storage temperature range: minus 10 to 35 degrees Celsius
• Internal heating starts below 5 degrees Celsius
• Internal heating stops above 10 degrees Celsius
• External power draw for self heating: 100 watts
• Protection class: IP65
• Housing material: flame retardant ABS plastic
• Battery weight: 24 pounds
• Battery size: 10.2 by 6.6 by 8.3 inches (Group 24 size)
• Certifications include UL1973, FCC, UN38.3, and ETL

Specifications

• Cell Type: LiFePO4 Battery
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Nominal Energy: 1280Wh
• Cycle Life: 7000 cycles
• Maximum Expansion (Parallel and Series): 4P4S
• BMS Current: 100A
• Maximum Charging Current: 100A
• Maximum Continuous Discharge Current: 100A
• Maximum Discharge Current 10 Seconds: 110A
• Charge Method: CC/CV
• Charge Voltage: 14.4V ± 0.2V
• Recommended Charge Current: 50A (0.2C)
• Charge Temperature Range: 0°C to 55°C
• Discharge Temperature Range: -20°C to 60°C
• Storage Temperature Range: -10°C to 35°C
• External Power Draw for Self Heating: 100W
• Internal Heating Starts Below: 5°C
• Internal Heating Stops Above: 10°C
• Net Weight: 24.0 lb

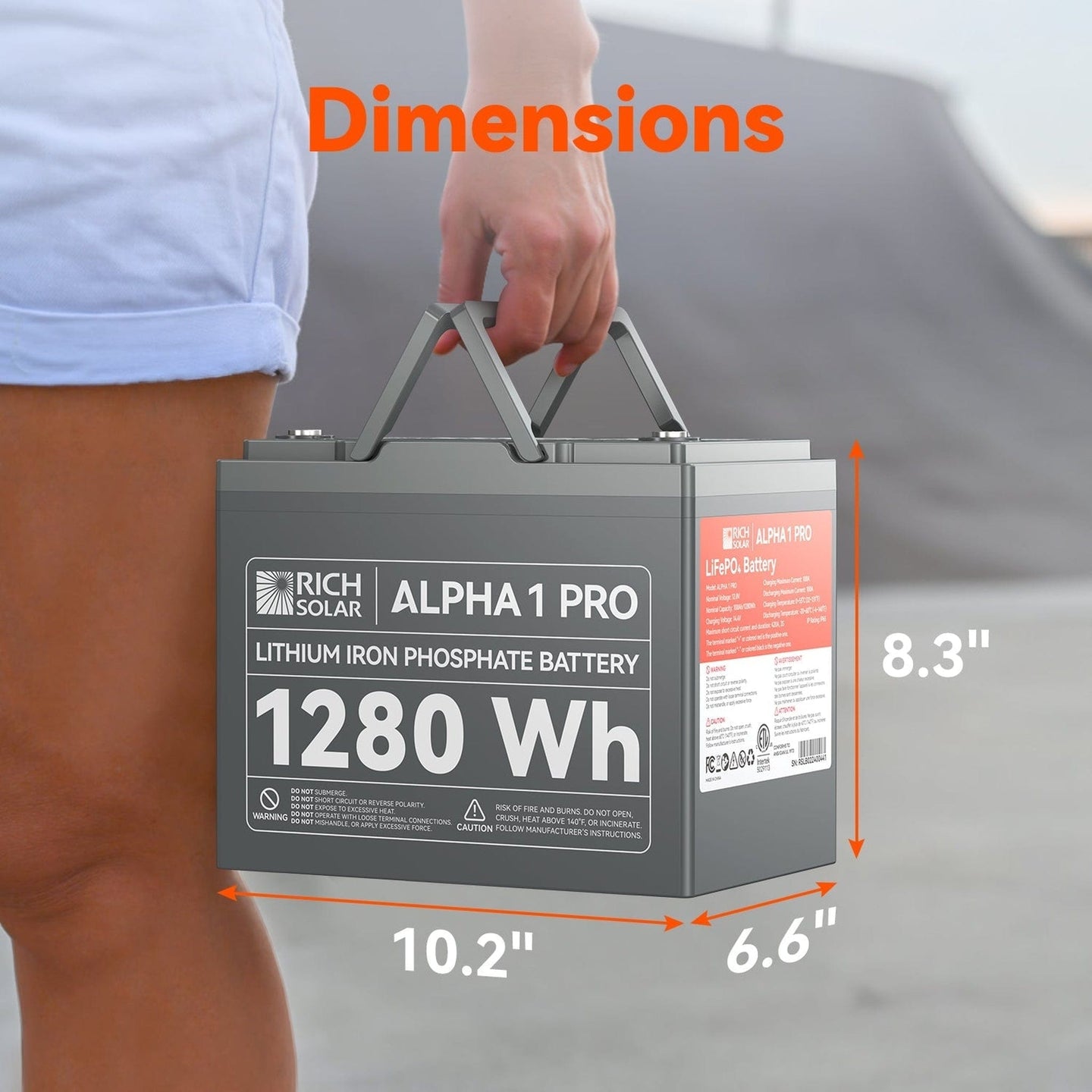

• Dimensions (L x W x H): 10.2 x 6.6 x 8.3 inches
• Housing Material: ABS flame retardant plastic
• Protection Class: IP65
• Warranty: 10 Years
• Certifications: UL1973, FCC, UN38.3, ETL
