Rich Solar | Inline Fuse Holder Waterproof Choose Amp 10A, 15A, 20A, 30A | RS-SC10F

Inline Fuse Holder Waterproof Replacement Inline Fuse Holder Choose Amp 10A 15A 20A 30A

Overview

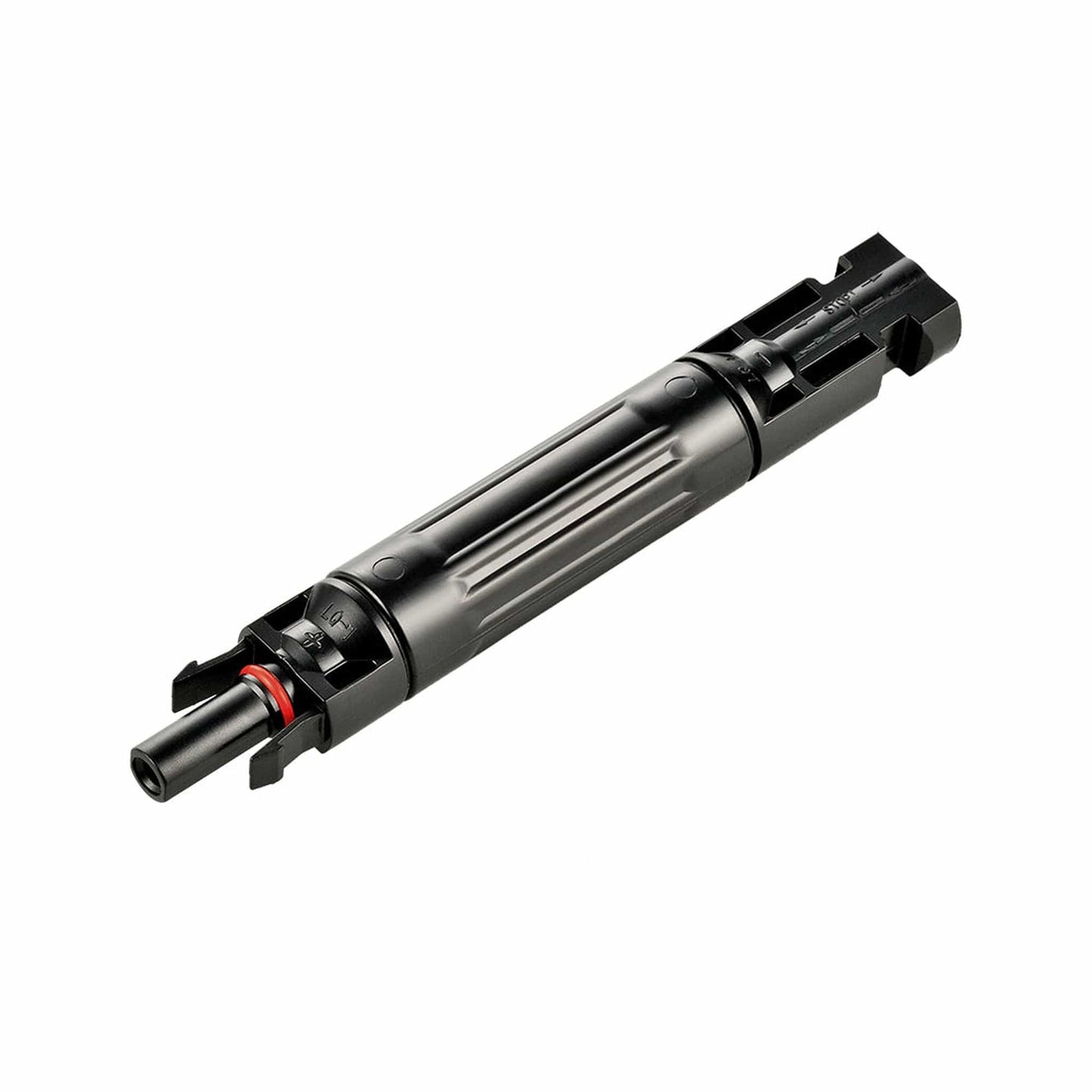

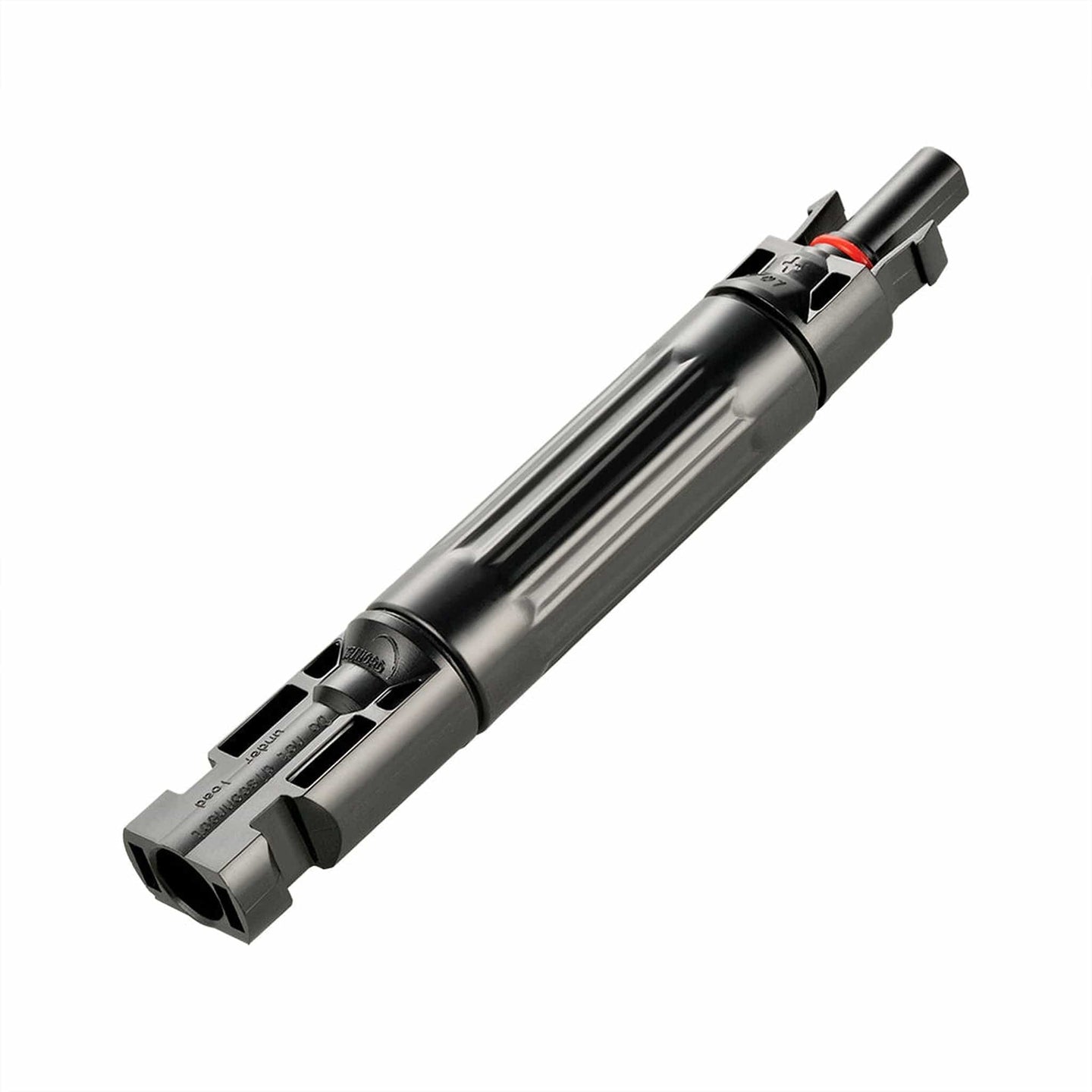

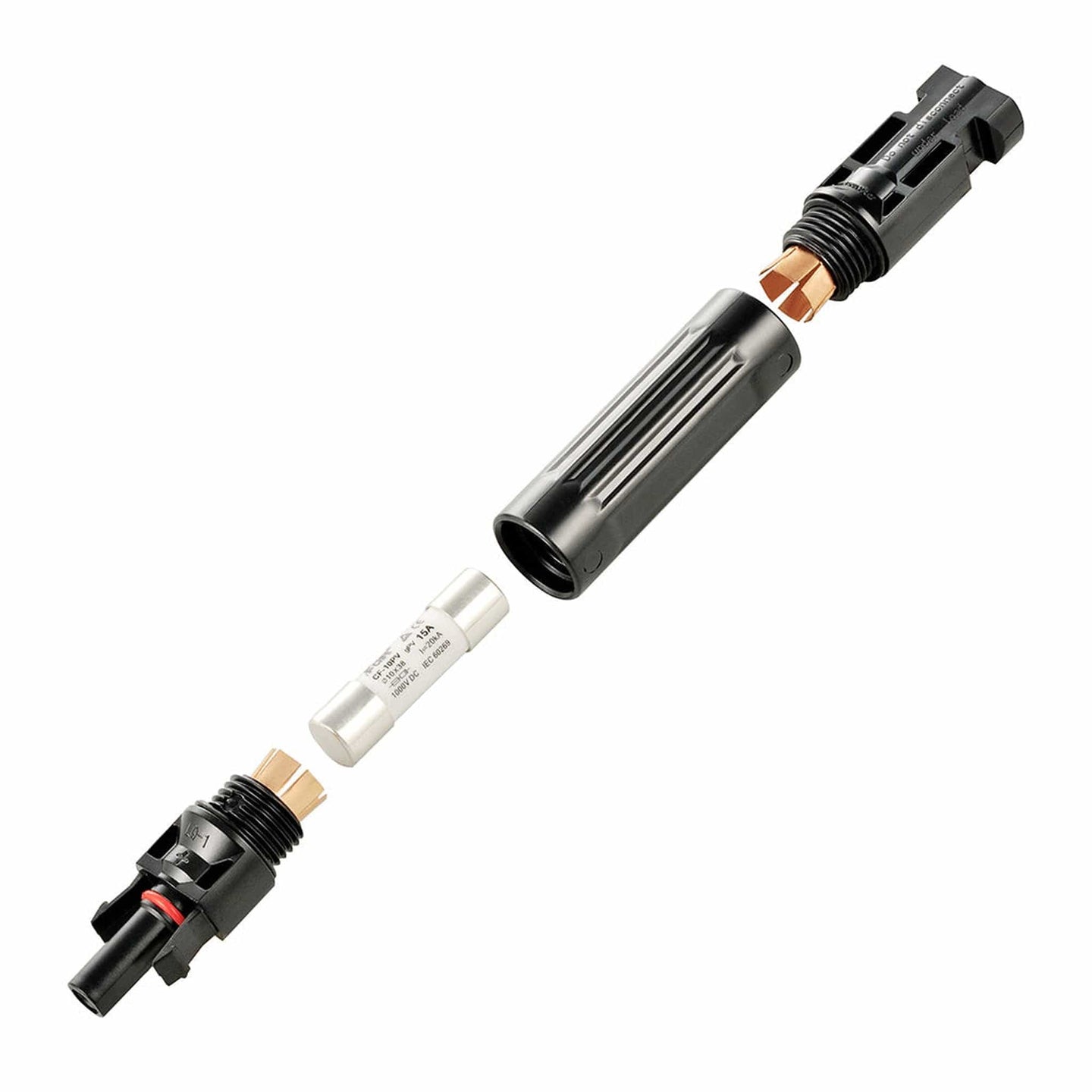

Protect your solar power system with this inline fuse holder, designed for durability and reliability in outdoor environments. The waterproof IP67-rated housing and multiple amp options of 10A, 15A, 20A, and 30A provide protection from current surges to maintain safe and continuous solar power flow.

Benefits

• Versatile amp choices allow you to select the fuse rating that fits your system requirements
• Simple plug-and-play solar connector leads enable easy installation
• Waterproof design with IP67 rating protects components in harsh weather conditions
• Compatible with PV cables of various insulation diameters for broad system compatibility
• Supports high current loads with consistent performance and added safety

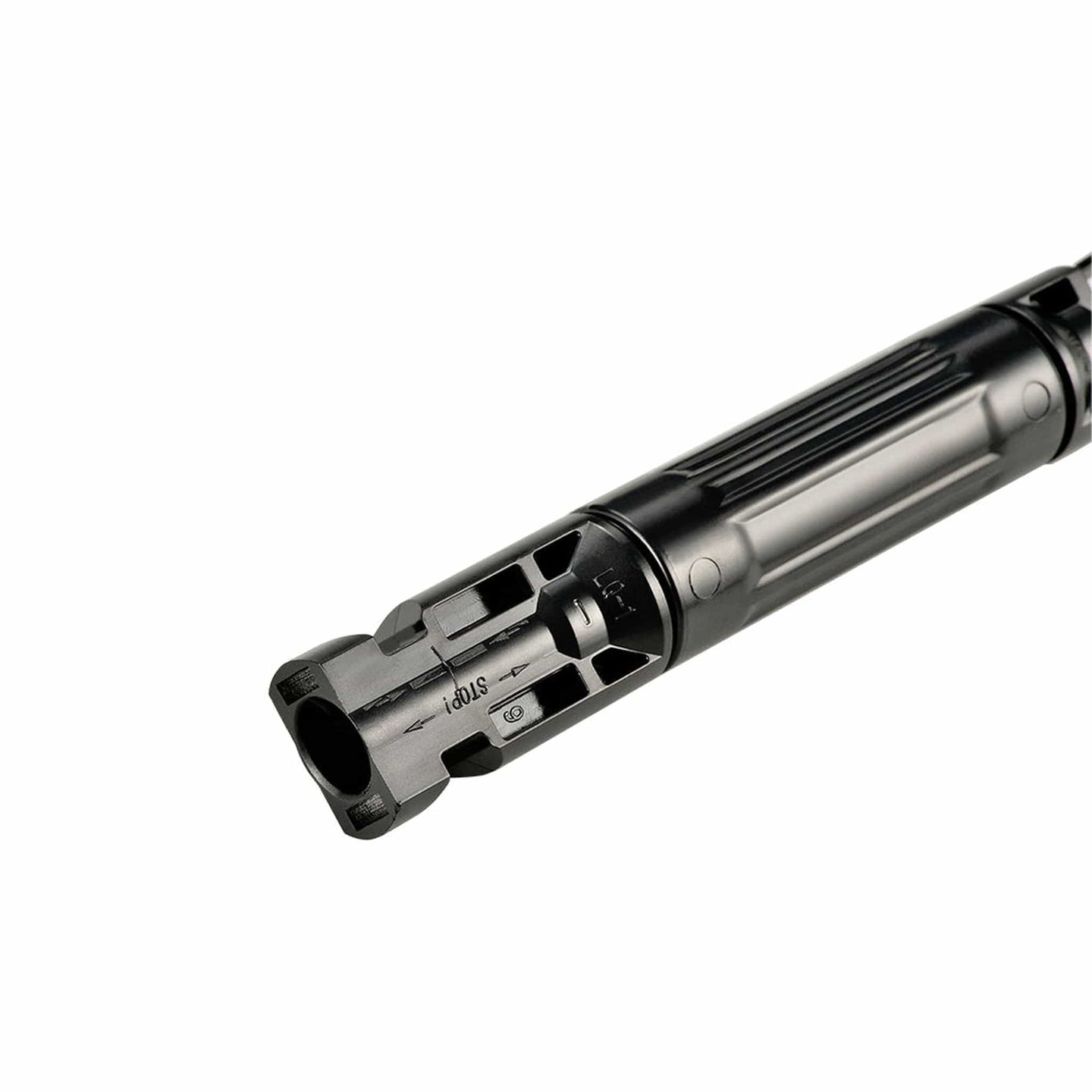

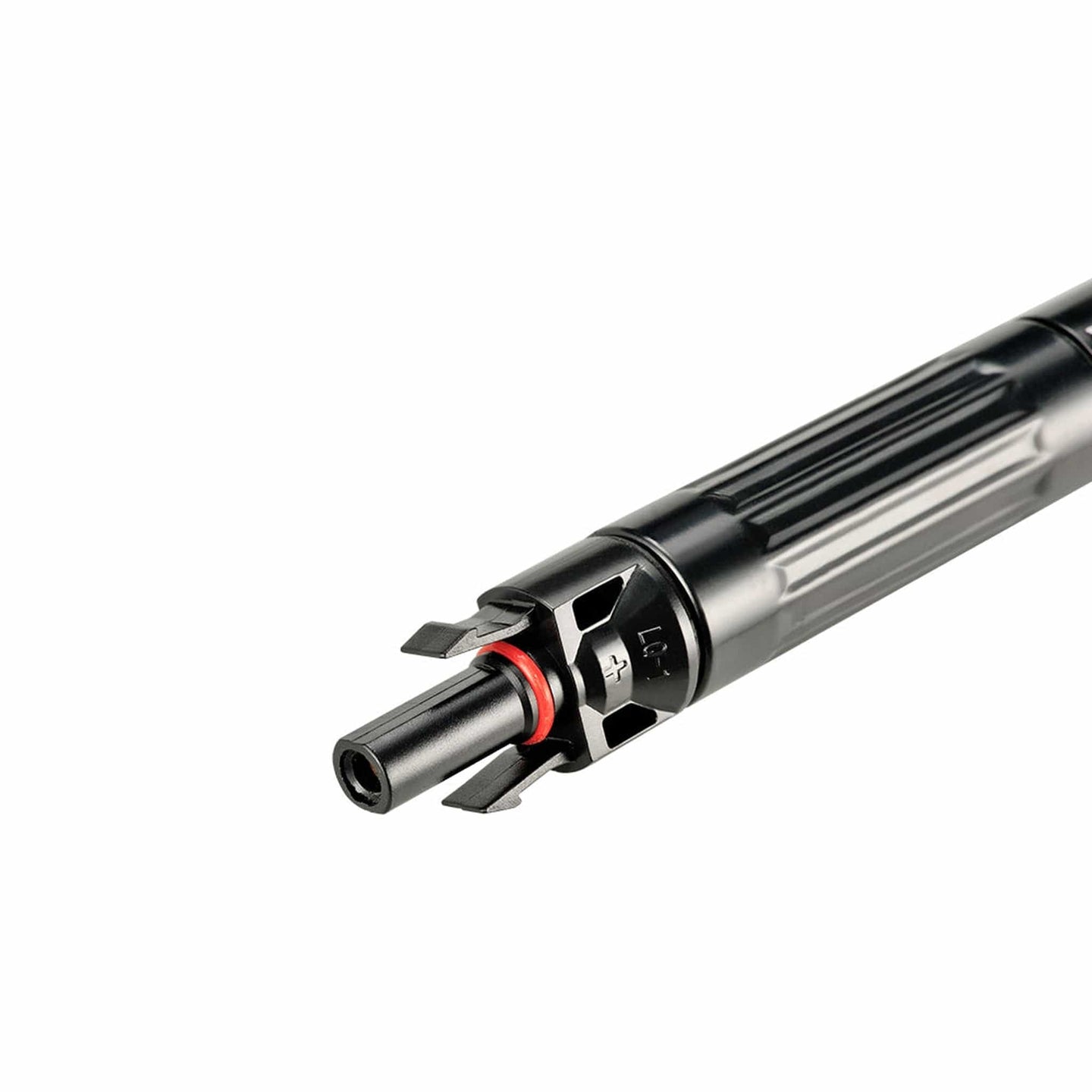

• Automatic locking male and female connectors secure reliable connections
• Constructed from high-grade PPO insulation with a touch-safe connector design
• Provides single-circuit protection to prevent damage from excessive current

Features

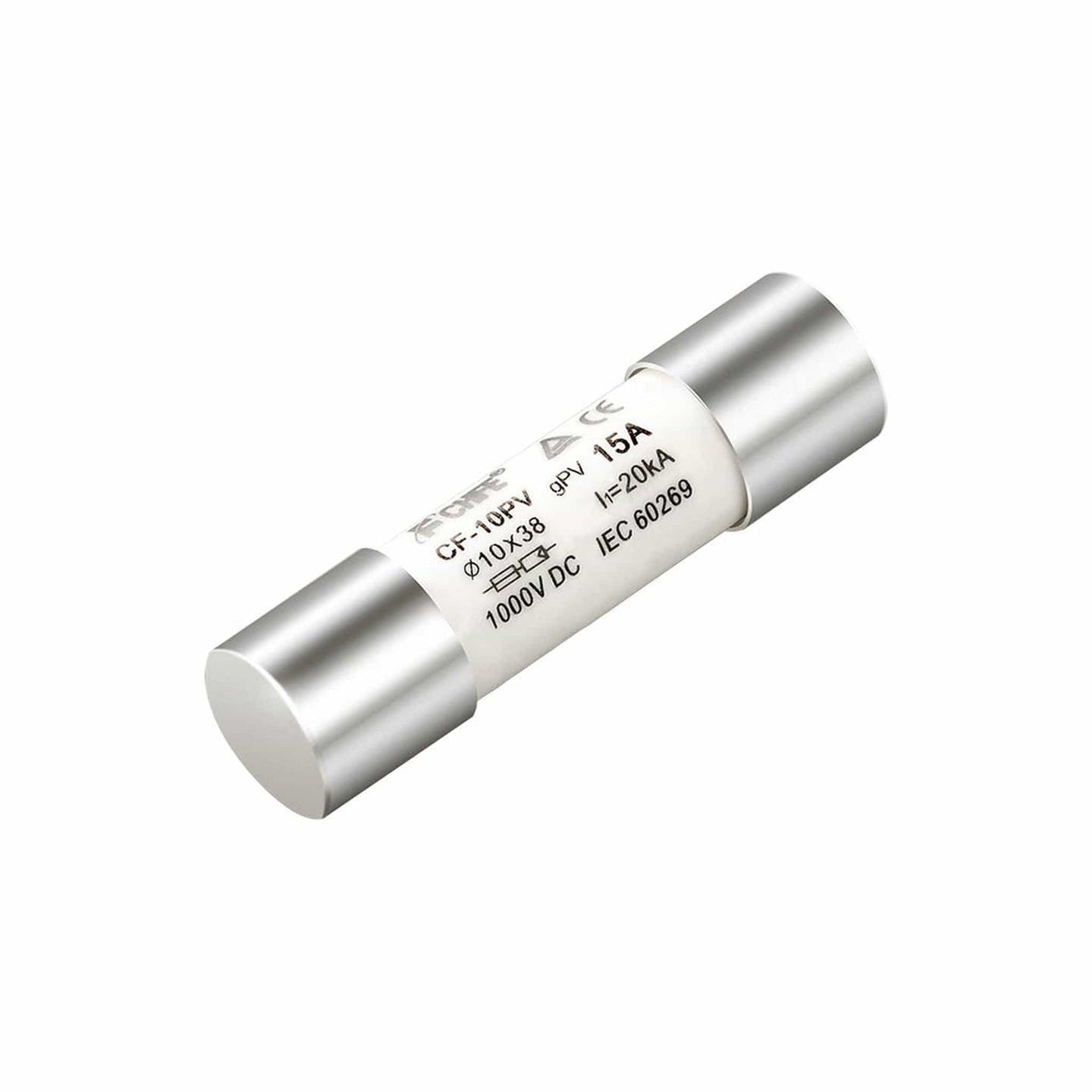

• Rated Current options: 10A, 15A, 20A, 30A
• Degree of Protection: IP67
• Rated Voltage: 1000 V DC
• Flame Class: UL94-V0
• Test Voltage: 6000 V at 50Hz for 1 minute
• Safety Class: II
• Overvoltage Category: CAT III
• Suitable Connector: Solar Connector
• Contact Resistance of Plug Connector: 1 milliohm
• Insertion Force and Withdrawal Force: less than or equal to 50N and greater than or equal to 50N respectively
• Contact Material: Copper with silver plating
• Insulation Material: PPO
• Operating Temperature Range: minus 40 to plus 125 degrees Celsius

Specifications

• Rated Current: 10A, 15A, 20A, or 30A
• Degree of Protection: IP67
• Rated Voltage: 1000 V DC
• Flame Class: UL94-V0
• Test Voltage: 6000 V (50Hz, 1 minute)
• Safety Class: II
• Overvoltage Category: CAT III
• Suitable Connector: Solar Connector
• Contact Resistance: 1 milliohm
• Insertion Force: up to 50 Newtons
• Withdrawal Force: minimum 50 Newtons
• Contact Material: Copper silver plated
• Insulation Material: PPO
• Temperature Range: minus 40 to plus 125 degrees Celsius
