Rich Solar | Battery Cables 4AWG + SKU | RS-4A1F5

Heavy Duty 4 Gauge 5/16” Battery Cables – Pure Copper Power for Solar, Inverters, and Vehicle DC Systems

Overview

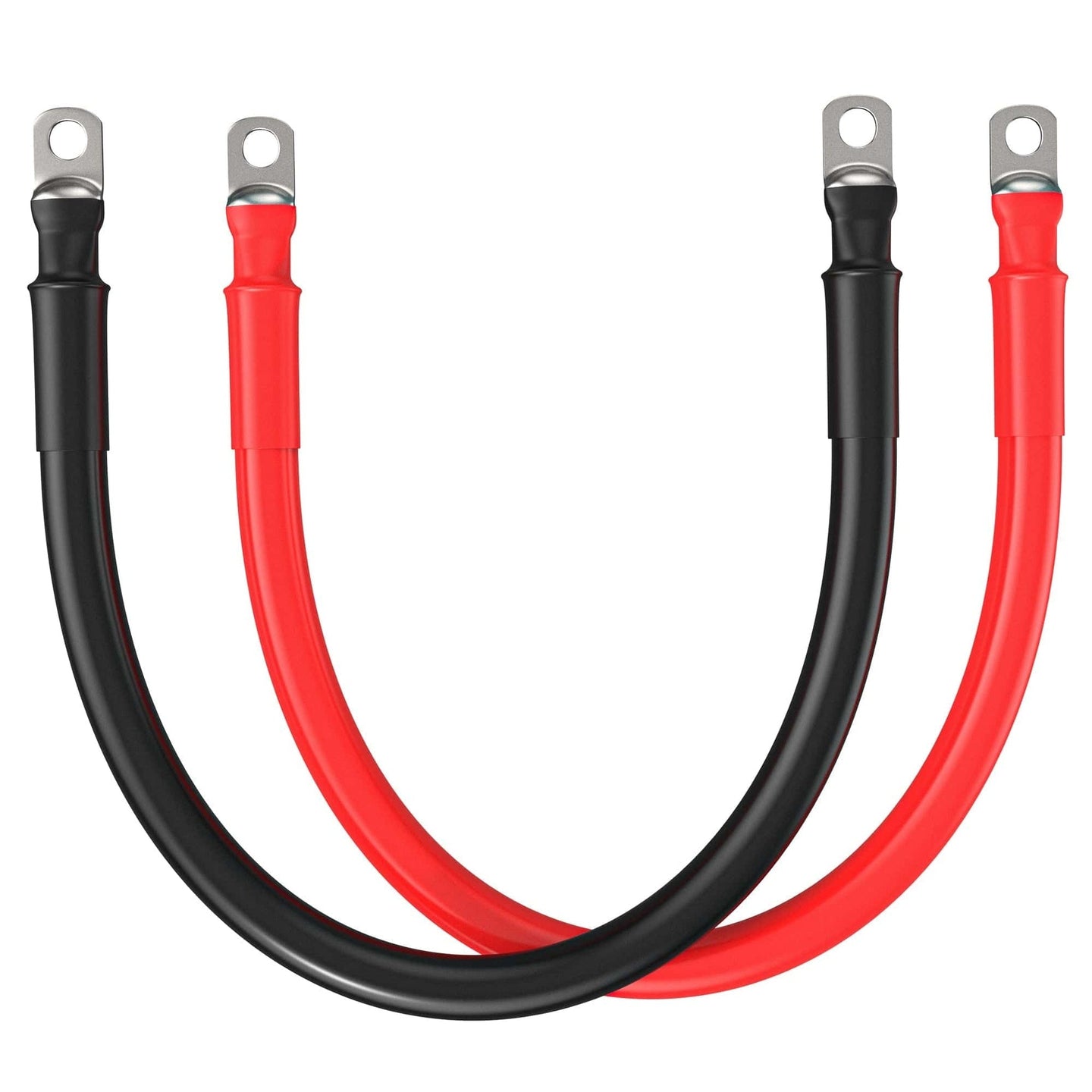

These 4 Gauge 5/16” Battery Cables are designed for reliable performance and durability in DC power applications. Each set includes a red and a black cable made from 100 percent pure copper with 665 ultra fine strands. The cables feature 5/16 inch ring terminals on both ends and are protected by industrial grade heat shrink tubing.

They are suitable for use in solar systems, inverters, automotive projects, RVs, campers, motorcycles, trailers, marine vehicles, golf carts, and similar equipment. The cables provide consistent power delivery in demanding environments.

Benefits

• Excellent conductivity and low resistance for efficient power transfer
• Durable construction with heavy duty PVC insulation resistant to moisture and flame
• Pre crimped and heat shrunk ends ensure corrosion free long term connections
• Flexible design allows for easy installation in tight spaces
• Available in multiple lengths to fit various setups
• Compliant with ROHS and UL standards for safety and quality
• Lifetime crimp guarantee for added reliability

Features

• 100 percent pure copper conductor made from 665 strands for flexibility and enhanced current flow
• Heavy duty PVC insulation rated for 90°C MTW and 105°C UL and CSA use
• Voltage rating up to 600 volts
• Heat shrink tubing with a 3 to 1 shrink ratio at 90°C for secure terminal protection
• Heat shrink temperature range from minus 55°C to plus 135°C
• Dielectric strength of 500 volts per mil (197 kV per cm)
• Tensile strength of 1500 pounds per square inch
• Volume resistivity of 10 to the 14th power ohm centimeters

Specifications

• Wire gauge: 4 AWG
• Conductor type: Pure copper, 665 strands
• Lug size: 5/16 inch ring terminals on both ends
• Colors: Red and black pair
• Lengths available: 1 foot, 1.5 feet, 2 feet, 3 feet, 4 feet, 5 feet, 6 feet, 8 feet, 10 feet
• Insulation type: PVC
• Warranty: Lifetime crimp guarantee
