Rich Solar | Battery Cables 4/0 AWG + SKU | RS-4/0A1F3

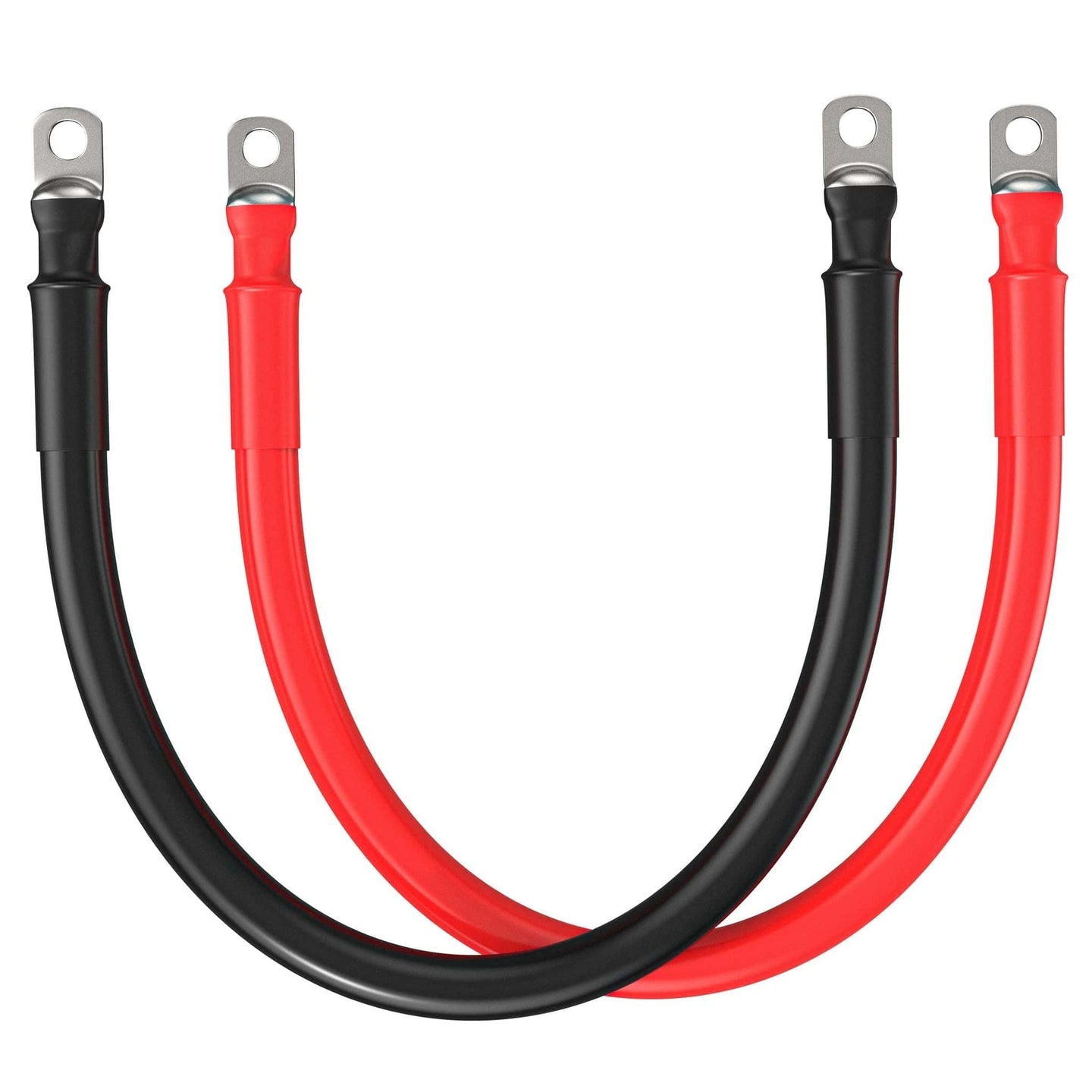

4/0 Gauge 3/8" Battery Cables | Pair of 4/0 AWG Red and Black with 3/8" Lugs | Choose Cable Length: 1ft, 2ft, 3ft, 4ft, 5ft, 6ft

Overview

These 4/0 gauge 3/8" battery cables are designed for demanding DC applications, providing reliable current capacity and long-term durability. Each pair includes one red and one black 4/0 AWG cable with factory-installed 3/8" lugs at both ends. They are available in various lengths and suit solar systems, off-grid installations, automotive, RVs, and heavy-duty inverter or battery connections.

Benefits

• Maximum conductivity with 100 percent pure copper.
• Durable PVC insulation rated up to 600 volts.
• Rated for temperatures up to 90 degrees Celsius MTW, UL and CSA rated 105 degrees Celsius.
• Resistant to flame and moisture, VW-1 rated.
• ROHS compliant and UL approved.
• Professionally cut, crimped, and heat shrunk for easy installation.
• UL certified and includes a lifetime crimp warranty.

Features

• Heat shrink with a 3 to 1 shrink ratio at 90 degrees Celsius.
• Operating temperature range from minus 55 to 135 degrees Celsius.
• Dielectric strength of 500 volts per mil.
• Volume resistivity of 10 to the 14th ohm-centimeters.
• Tensile strength of 1500 psi.

Specifications

• Gauge: 4/0 AWG Red and Black pair.
• Lug size: 3/8 inch terminals pre-installed on both ends.
• Available lengths: 1 foot, 2 feet, 3 feet, 4 feet, 5 feet, 6 feet.
