Rich Solar | Battery Cables 2AWG + SKU | RS-2A1F5

Heavy Duty 2 Gauge 5/16 Inch Battery Cables Built for Power Reliability and Versatility

Overview

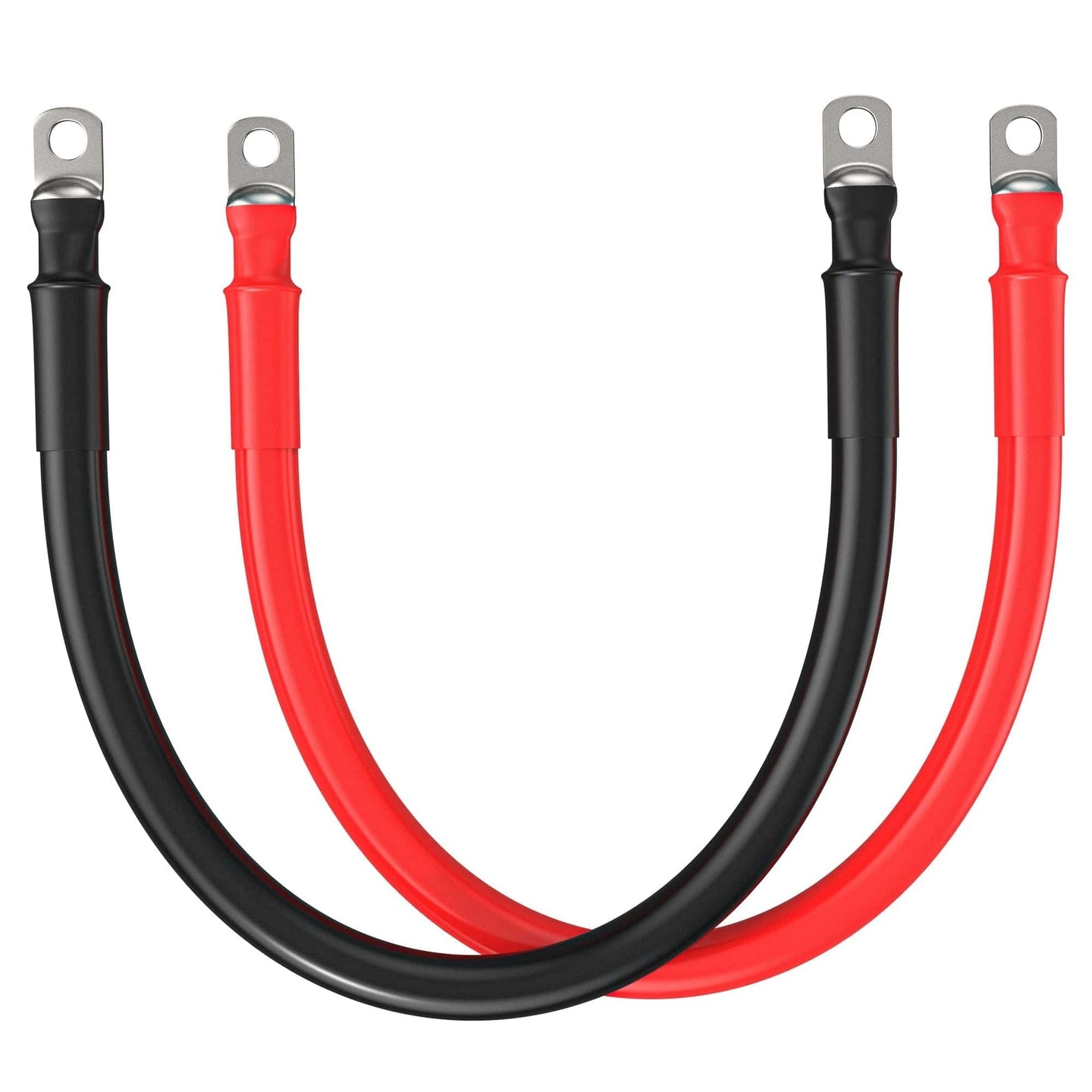

Upgrade your DC wiring with 2 Gauge 5/16 Inch Battery Cables designed for high performance power transfer in automotive RV marine off grid solar and inverter setups. Each set includes one red and one black 2 AWG pure copper cable factory crimped and heat shrunk with durable 5/16 Inch lugs on both ends and ready to install out of the box.

These cables are suitable for replacing or extending wiring in solar systems power inverters campers RVs travel trailers golf carts and car audio amplifiers. They provide excellent current carrying capacity long lasting durability and straightforward installation for various DC power applications.

Benefits

• Reliable high performance power transfer
• Ready to use with factory crimped and heat shrunk lugs
• Durable construction suitable for multiple applications
• Flexible design for easy routing in tight spaces
• Clear color coding with red and black cables

Features

• 100 Percent pure copper conductor with 665 strands for maximum conductivity and minimal voltage drop
• Heavy duty PVC insulation rated to 90 degrees Celsius MTW and 105 degrees Celsius UL and CSA
• Voltage rating up to 1000 volts
• VW 1 flame retardant and moisture resistant
• ROHS compliant and UL approved
• Professionally crimped 5/16 Inch copper lugs on both ends with protective heat shrink for corrosion resistance and mechanical durability
• Flexible and tough for easy handling without sacrificing strength or performance

Specifications

• Shrink ratio 3 to 1 at 90 degrees Celsius
• Operating temperature range from minus 55 to plus 135 degrees Celsius
• Dielectric strength 500 volts per mil
• Volume resistivity 10 to the power 14 ohm centimeters
• Tensile strength 1500 PSI
• Wire gauge 2 AWG
• Conductor type pure copper with 665 strands
• Lug size 5/16 Inch ring terminals pre installed on both ends
• Cable colors red and black pair
• Available lengths 1 foot 1.5 feet 2 feet 3 feet 4 feet 5 feet 6 feet 8 feet 10 feet
• Insulation PVC industrial grade jacket
• Lifetime crimp guarantee
