Aerates Ponds/Lakes Up To 9 Acres

Improves Water Clarity & Quality

Oxygenates Entire Water Column

Programmable Timer

Available In 115V or 230V

2 Year Warranty

Applications

HOA’s

Golf Courses

Recreational Ponds & Lakes

Retention Ponds

Industrial Retention Ponds

Farm Ponds

Ski Parks

Aquaculture Ponds

Zoological Display

Specs

Aeration System	ProLake³ 3.10
Item Number	PL-3.10
Maximum Pond Size	Up To 10 Acres
115V or 230V Compressor	3

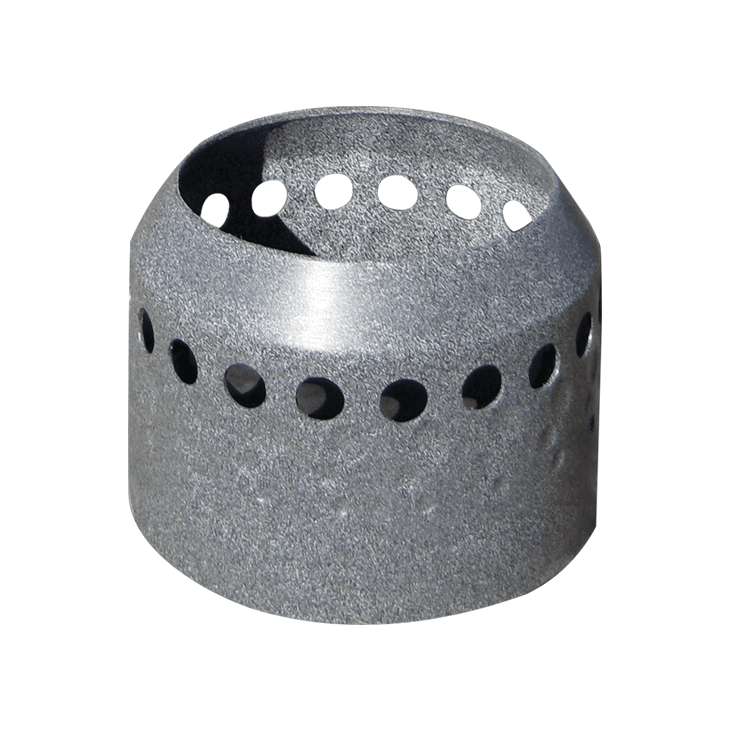

Duraplate™ Diffusers	10
Maximum Diffuser Depth	50 Feet
Max CFM	Up To 15.9
AMPS	12.9/3 ½ HP 115V Compressors
Watts	655
Alpine™ 1/2" Weighted Airline	Not Included
Programmable Timer	Not Included
Manifold	3-4 Port
Pressure Gauge	1
Cooling Fan	1
Level-Aer™ Equipment Pad (Suggested)	Not Included
Decibels/Operational Sound	50/60 DB
1” ASTM Cert. Acoustical Sound-Deadening Foam	Included

Dimensions

Cabinet	24"W x 24"L x 16"T
Alpine™ ½" Weighted Airline	1/2" ID x 1" OD
Level-Aer™ Equipment Pad	30" x 30" x 3"

Description

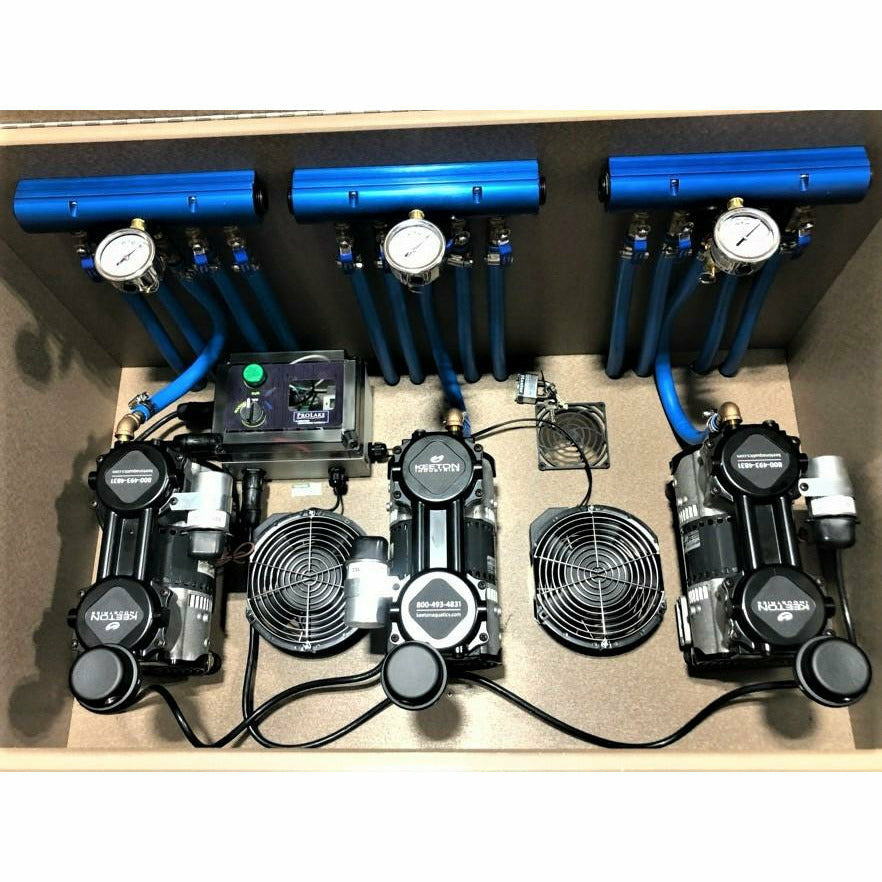

ProLake³ Aeration Systems are designed to clean and clear ponds and lakes measuring up to 9 surface acres. ProLake³ systems offer two powerful ½ horsepower compressors capable of delivering 10.6 cubic feet of air per minute to our non-clogging, self-cleaning Duraplate™ diffusers. We top it all off with high volume cooling blowers, a programmable timer and fully adjustable, brushed aluminum manifolds. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.

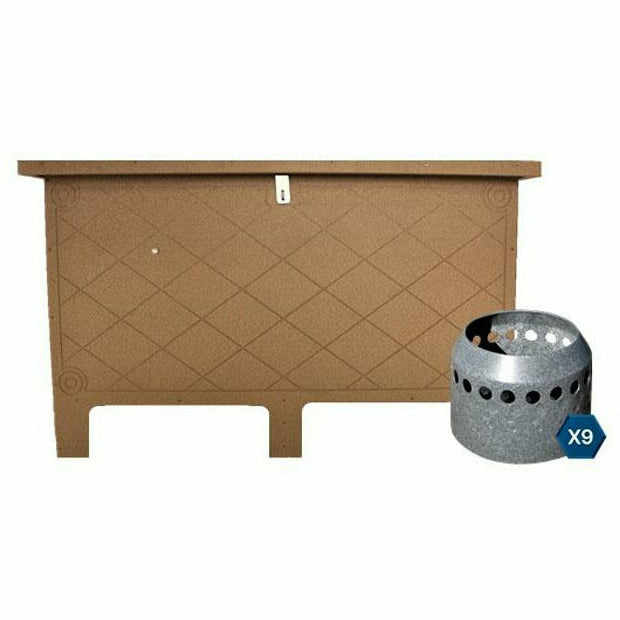

ProLake³ 3.9

3 = Number of Compressors Included In The System
9 = Number of Diffusers Included In The System

Keeton Industries

Keeton Industries | 9-Acre ProLake³ Diffused Pond Aerator

SKU PL-3.9

Regular price: $9,187.18
Sale price: $7,809.10

Aerates Ponds/Lakes Up To 9 Acres

Improves Water Clarity & Quality

Oxygenates Entire Water Column

Programmable Timer

Available In 115V or 230V

2 Year Warranty

Applications

HOA’s

Golf Courses

Recreational Ponds & Lakes

Retention Ponds

Industrial Retention Ponds

Farm Ponds

Ski Parks

Aquaculture Ponds

Zoological Display

Specs

Aeration System	ProLake³ 3.10
Item Number	PL-3.10
Maximum Pond Size	Up To 10 Acres
115V or 230V Compressor	3
Duraplate™ Diffusers	10
Maximum Diffuser Depth	50 Feet
Max CFM	Up To 15.9
AMPS	12.9/3 ½ HP 115V Compressors
Watts	655
Alpine™ 1/2" Weighted Airline	Not Included
Programmable Timer	Not Included
Manifold	3-4 Port
Pressure Gauge	1
Cooling Fan	1
Level-Aer™ Equipment Pad (Suggested)	Not Included
Decibels/Operational Sound	50/60 DB
1” ASTM Cert. Acoustical Sound-Deadening Foam	Included

Dimensions

Cabinet	24"W x 24"L x 16"T
Alpine™ ½" Weighted Airline	1/2" ID x 1" OD
Level-Aer™ Equipment Pad	30" x 30" x 3"

Description

ProLake³ Aeration Systems are designed to clean and clear ponds and lakes measuring up to 9 surface acres. ProLake³ systems offer two powerful ½ horsepower compressors capable of delivering 10.6 cubic feet of air per minute to our non-clogging, self-cleaning Duraplate™ diffusers. We top it all off with high volume cooling blowers, a programmable timer and fully adjustable, brushed aluminum manifolds. All housed in a durable, sound-deadening cabinet. The result is a high-end, energy efficient aeration system that will keep your pond clean and problem free for many years to come.

ProLake³ 3.9
