Important Manufacturer Note from Scott Aerator:


Please note that 115V units are only compatible with power cords up to 100ft in length from the main breaker to the fountain.  If you are needing a longer power cord length, please go up to our 230V units to avoid amperage drops.

L6-20 plug is required by the 230V and a 20 amp double pole breaker.



Quick Facts

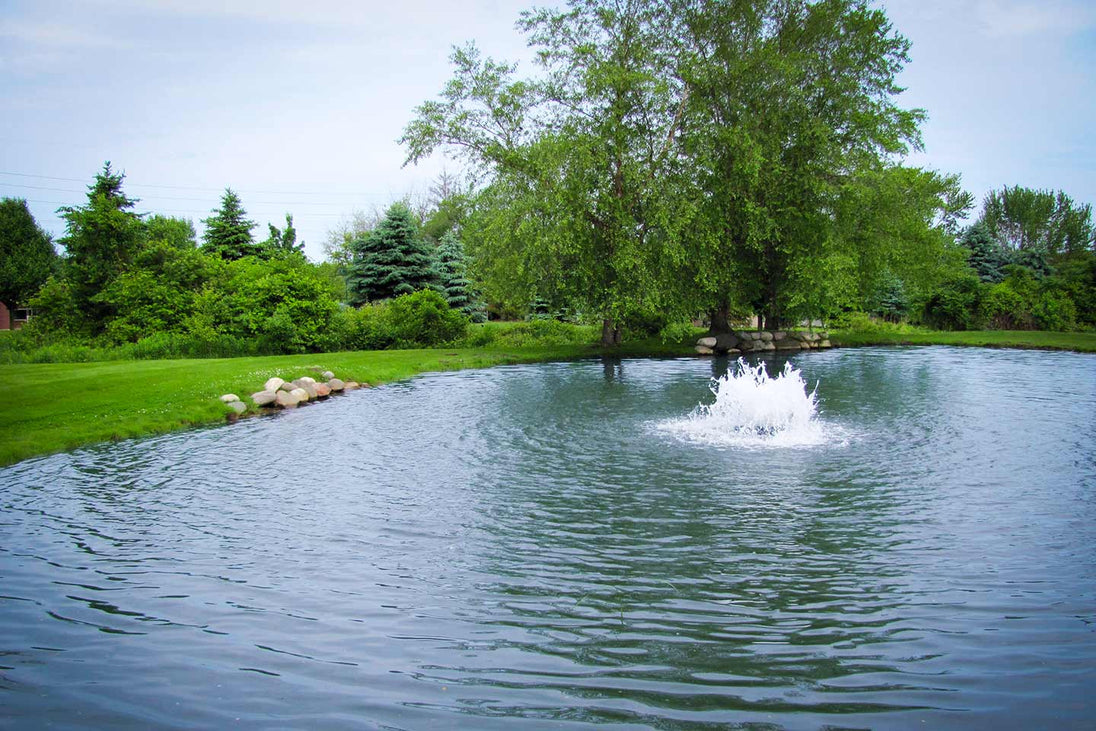

  • Floating aerator for pond or lake
  • Available in 6 sizes
  • 115V or 230V for 1 HP and below, 230V required for 1.5 HP and above
  • High flow rates with powerful aeration
  • Easy installation
  • Maintenance free
  • 4-Season Operation
  • 5 Year Warranty

Warranty



Motor & Pump 5 Years
Non-Electric Fountain Components 1 Year
Power Cable 1 Year
Light Fixtures & Brackets 2 Years
Light Transformer 1 Year
Fountain Timers 1 Year



 Motor Size Pond Size Aerated
1/2 HP 1 acre
3/4 HP 1.25 acre
1 HP 1.5 acre
1.5 HP 2 acres
2 HP 2.5 acres
3 HP 3 acres



Specs

Flow Rates

 Motor Size Flow Rate
1/2 HP 400 gal/min
3/4 HP 450 gal/min
1 HP 500 gal/min
1.5 HP 600 gal/min
2 HP 700 gal/min
3 HP 800 gal/min



Required Pond Depth

Motor Size

Min. Pond Depth
1/3 HP 32"
1/2 HP 34"
1 HP 36"
1.5 HP 38"
2 HP 42'
3 HP 50"



Amp Draw & Average Hourly Cost

Motor

Size

Amp

Draw

Avg.

Cost/kWh
1/2 HP 115V 10 $0.07
1/2 HP 230V 5 $0.07
3/4 HP 115V 11.5 $0.09
3/4 HP 230V 8.2 $0.10
1 HP 115V 11.5 $0.12
1 HP 230V 8.2 $0.13
1.5 HP 230V 10.6 $0.20
3 HP 230V 14 $0.33

 *Average cost is calculated using the U.S. national average cost per killowatthour. Rates will vary regionally.



Cable Size & Max Distance From Fountain to Breaker

Scott Aerator

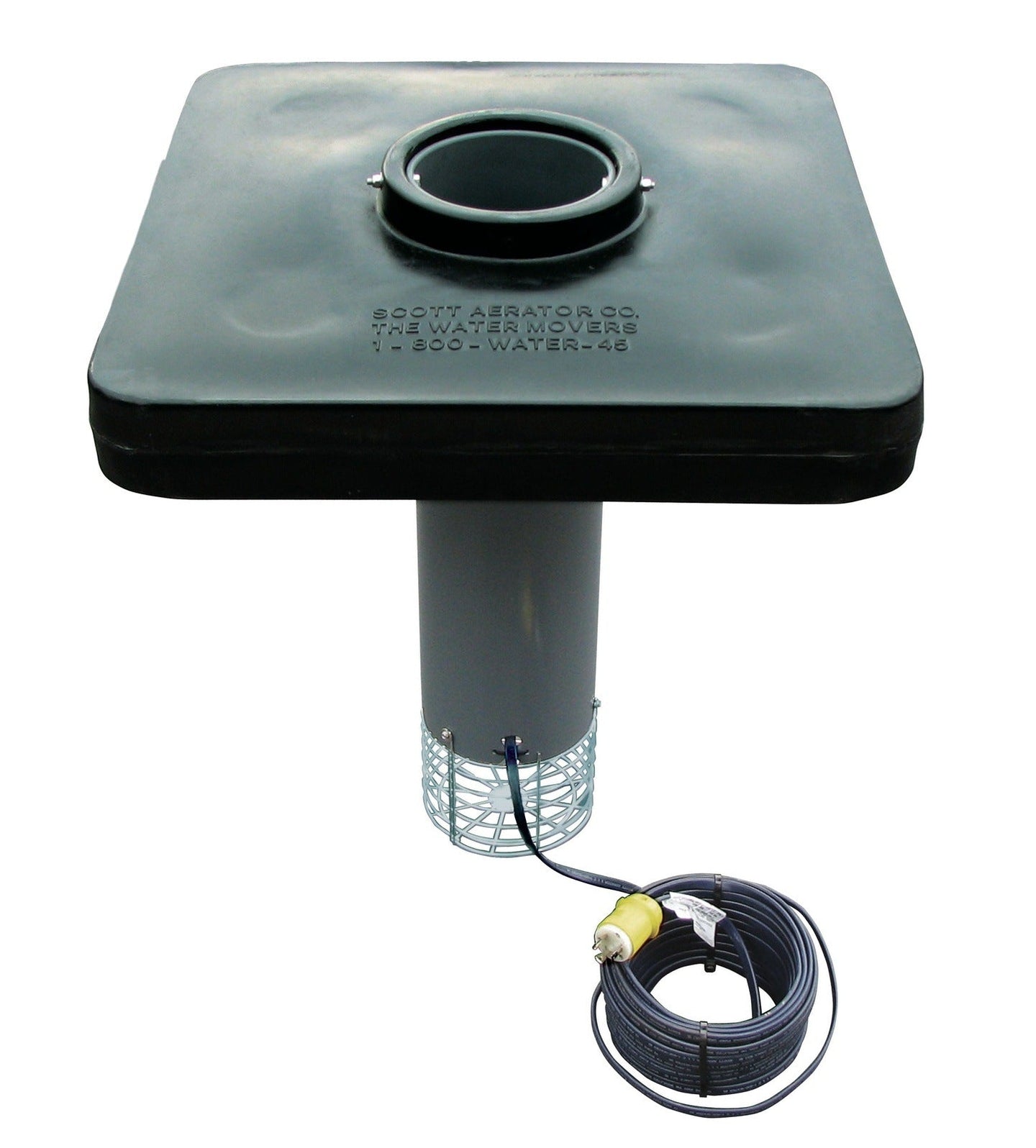

Scott Aerator | Boilermaker Floating Aerator

SKU 14030
$2,099.56
$1,784.63

Important Manufacturer Note from Scott Aerator:


Please note that 115V units are only compatible with power cords up to 100ft in length from the main breaker to the fountain.  If you are needing a longer power cord length, please go up to our 230V units to avoid amperage drops.

L6-20 plug is required by the 230V and a 20 amp double pole breaker.



Quick Facts

  • Floating aerator for pond or lake
  • Available in 6 sizes
  • 115V or 230V for 1 HP and below, 230V required for 1.5 HP and above
  • High flow rates with powerful aeration
  • Easy installation
  • Maintenance free
  • 4-Season Operation
  • 5 Year Warranty

Warranty



Motor & Pump 5 Years
Non-Electric Fountain Components 1 Year
Power Cable 1 Year
Light Fixtures & Brackets 2 Years
Light Transformer 1 Year
Fountain Timers 1 Year



 Motor Size Pond Size Aerated
1/2 HP 1 acre
3/4 HP 1.25 acre
1 HP 1.5 acre
1.5 HP 2 acres
2 HP 2.5 acres
3 HP 3 acres



Specs

Flow Rates

 Motor Size Flow Rate
1/2 HP 400 gal/min
3/4 HP 450 gal/min
1 HP 500 gal/min
1.5 HP 600 gal/min
2 HP 700 gal/min
3 HP 800 gal/min



Required Pond Depth

Motor Size

Min. Pond Depth
1/3 HP 32"
1/2 HP 34"
1 HP 36"
1.5 HP 38"
2 HP 42'
3 HP 50"



Amp Draw & Average Hourly Cost

Motor

Size

Amp

Draw

Avg.

Cost/kWh
1/2 HP 115V 10 $0.07
1/2 HP 230V 5 $0.07
3/4 HP 115V 11.5 $0.09
3/4 HP 230V 8.2 $0.10
1 HP 115V 11.5 $0.12
1 HP 230V 8.2 $0.13
1.5 HP 230V 10.6 $0.20
3 HP 230V 14 $0.33

 *Average cost is calculated using the U.S. national average cost per killowatthour. Rates will vary regionally.



Cable Size & Max Distance From Fountain to Breaker
