Product Description

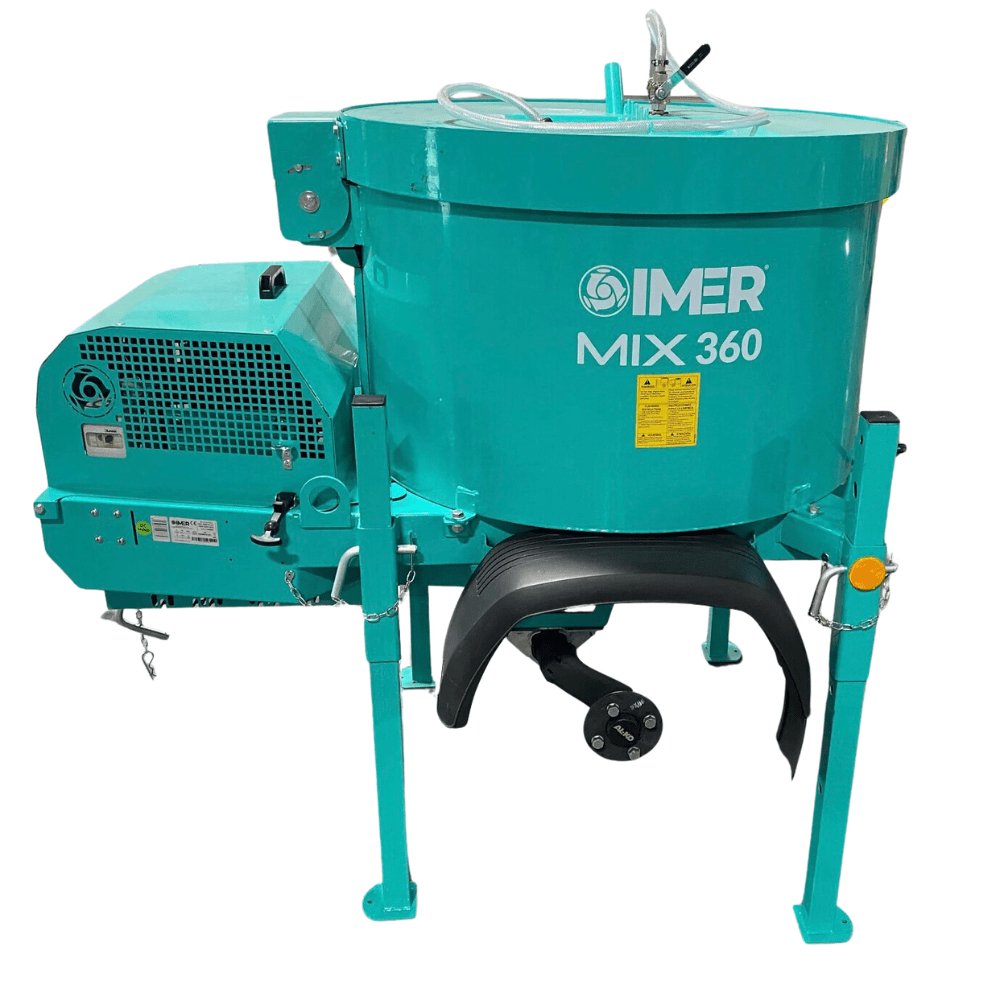

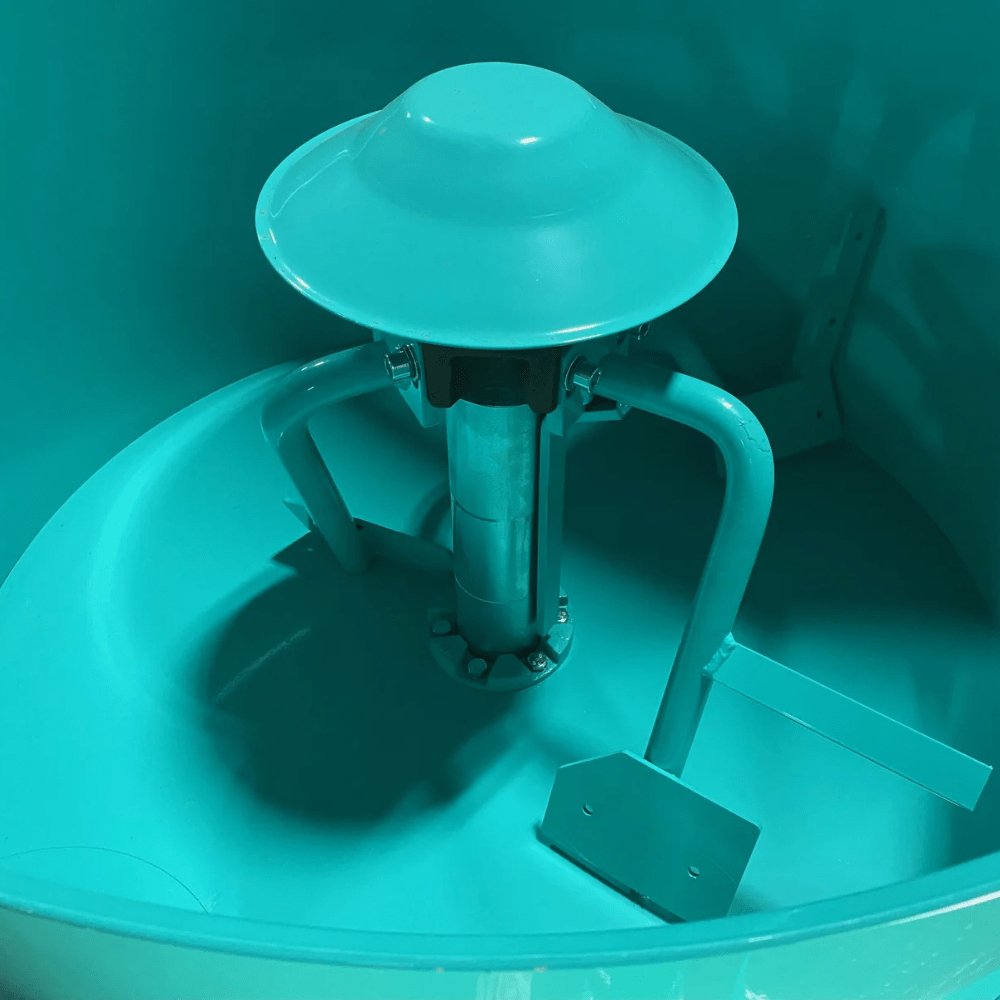

The IMER Mix 360 (Mortarman) is a towable vertical shaft mixer built on concrete batch plant design principles. Its paddles rotate through the mix instead of lifting and dropping it like a conventional mortar mixer, which gives it the power to mix very low slump materials such as dry pack mortar, refractory cement, and ultra-high-performance concrete (UHPC).

Available Versions

Electric Part # 1194662: 5.5 HP, 240V/60Hz, single phase
Gas Part # 1194661: 13 HP Honda GXV390

Key Features

  • 12 cu ft drum with 9 cu ft batch output
  • Batch plant-style mixing action for stiff, low slump, and dry materials

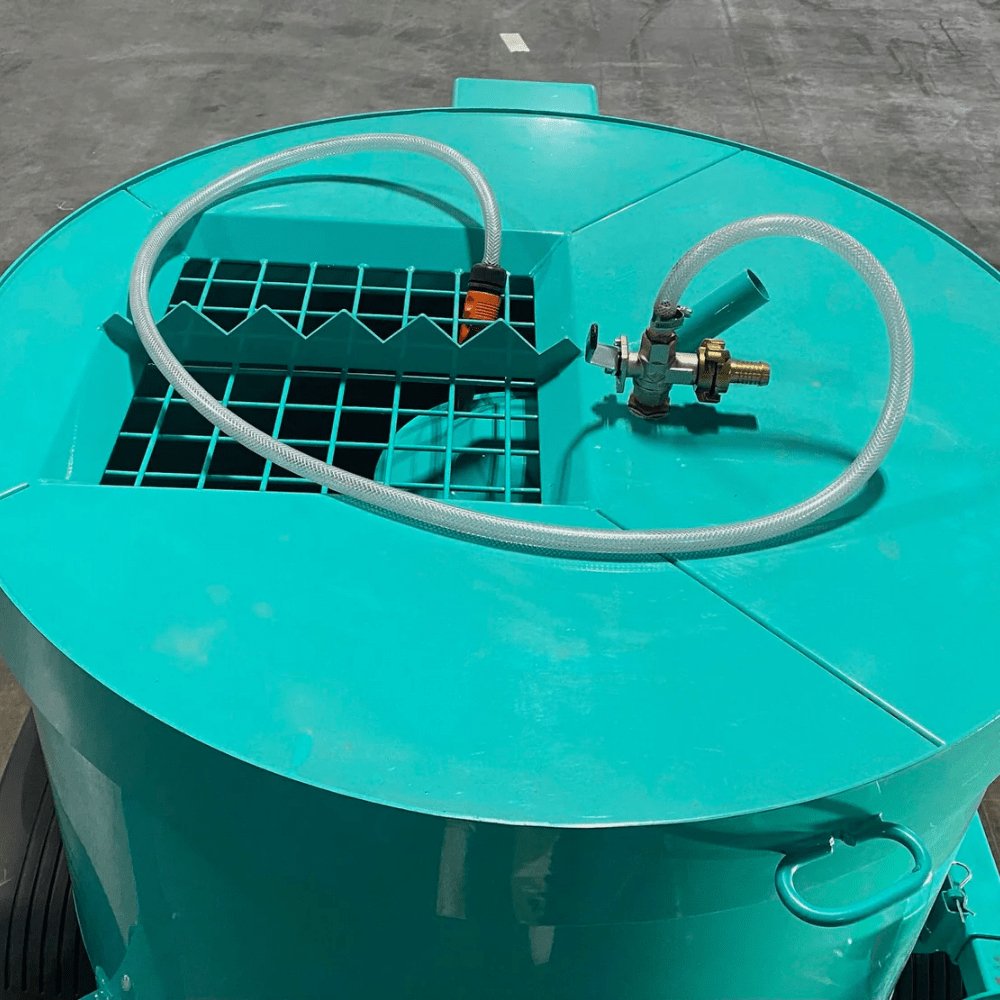

  • Auto-shutdown safety grate for jobsite safety
  • Adjustable leg heights and a 30" maximum discharge height

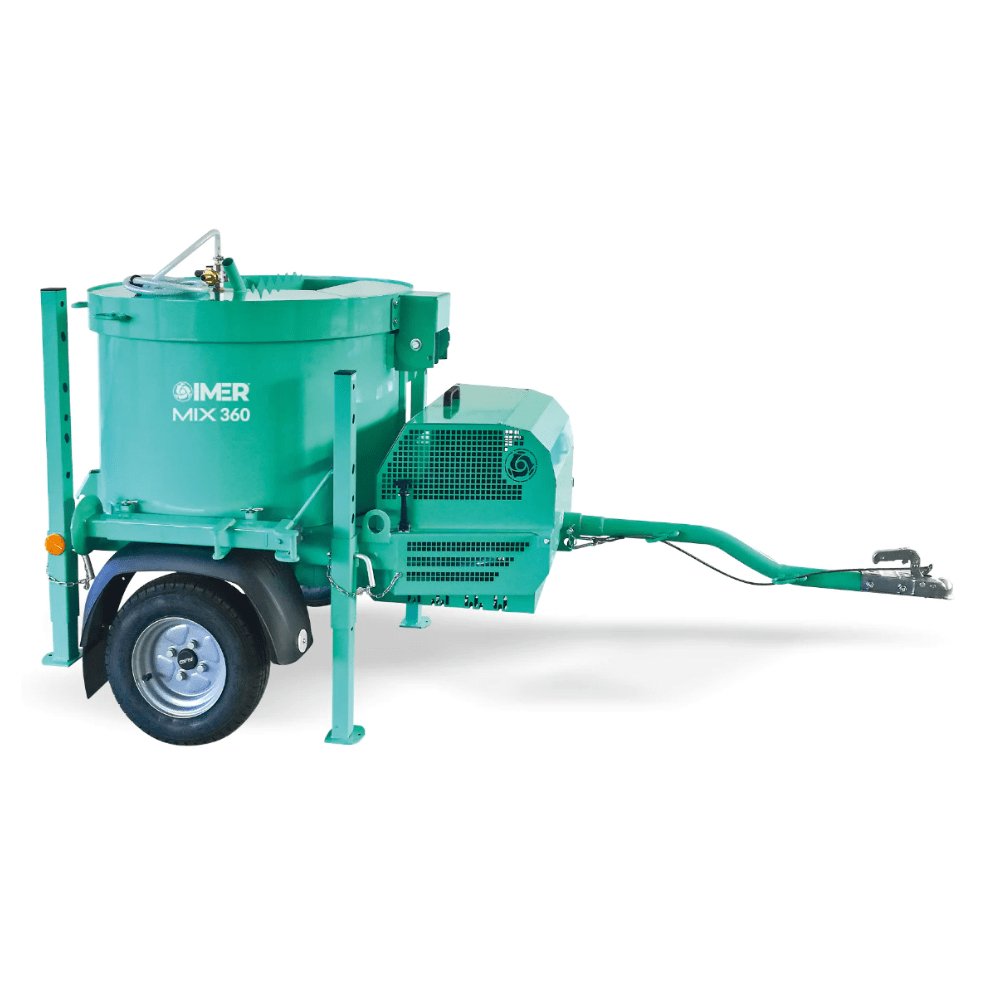

  • Towable with tow bar and torsion bar suspension on 18" wheels
  • Electric or Honda gas power

Specifications

Brand IMER
Model Mix 360 (Mortarman)
Part Numbers 1194662 (electric), 1194661 (gas)
Drum Capacity 12 cu ft
Batch Output 9 cu ft
Max. Aggregate Size 3/8"
Discharge Height (Max / Min) 30" / 18"
Electric Motor 5.5 HP, 240V/60Hz, single phase

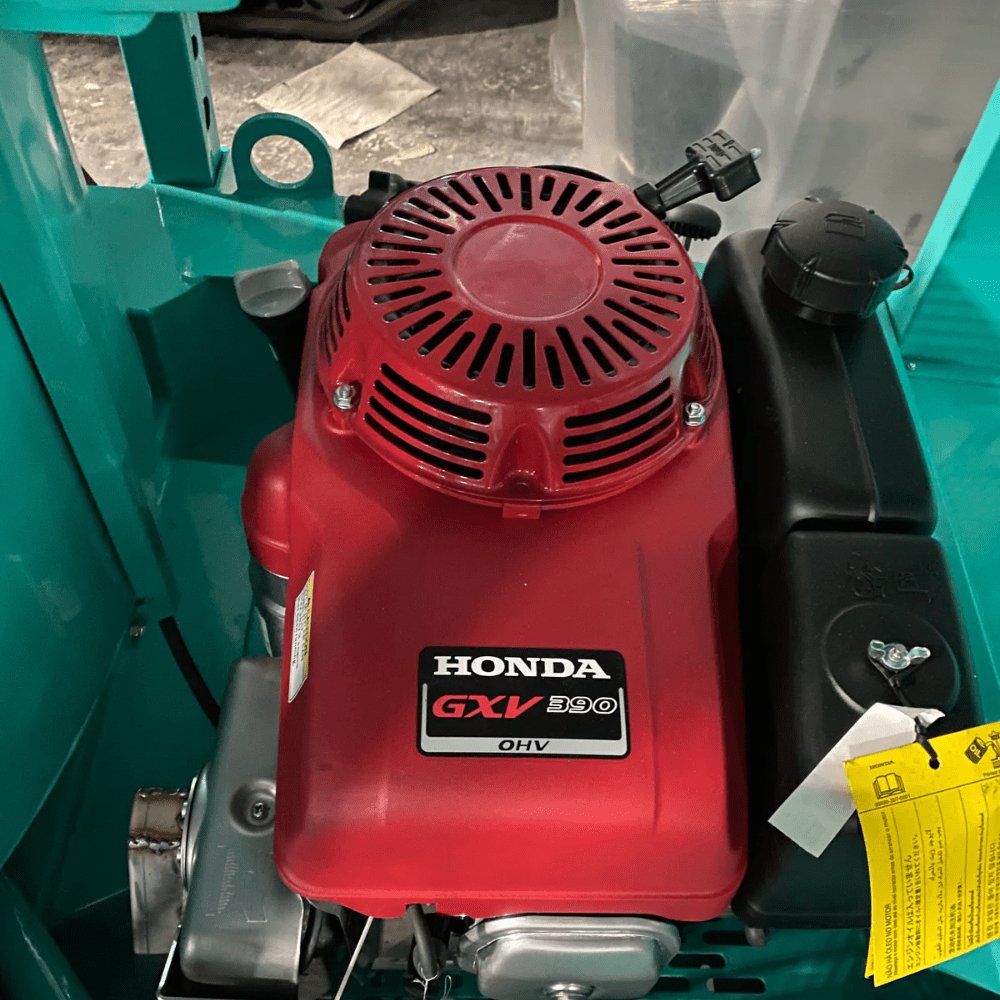

Gas Engine 13 HP Honda GXV390
Wheel Size 18"
Dimensions (W x L x H) 44" x 59" x 58"
Weight 787 lb electric / 794 lb gas

Standard Equipment

  • Auto-shutdown safety grate
  • Adjustable leg heights
  • Tow bar
  • Torsion bar suspension

Applications

  • Dry pack mortar
  • Refractory cement
  • Ultra-high-performance concrete (UHPC)
  • Mortar, grout, and stucco for masonry and precast work

Power note: The electric version requires a 240V single-phase circuit. Confirm towing regulations before towing on public roads.
