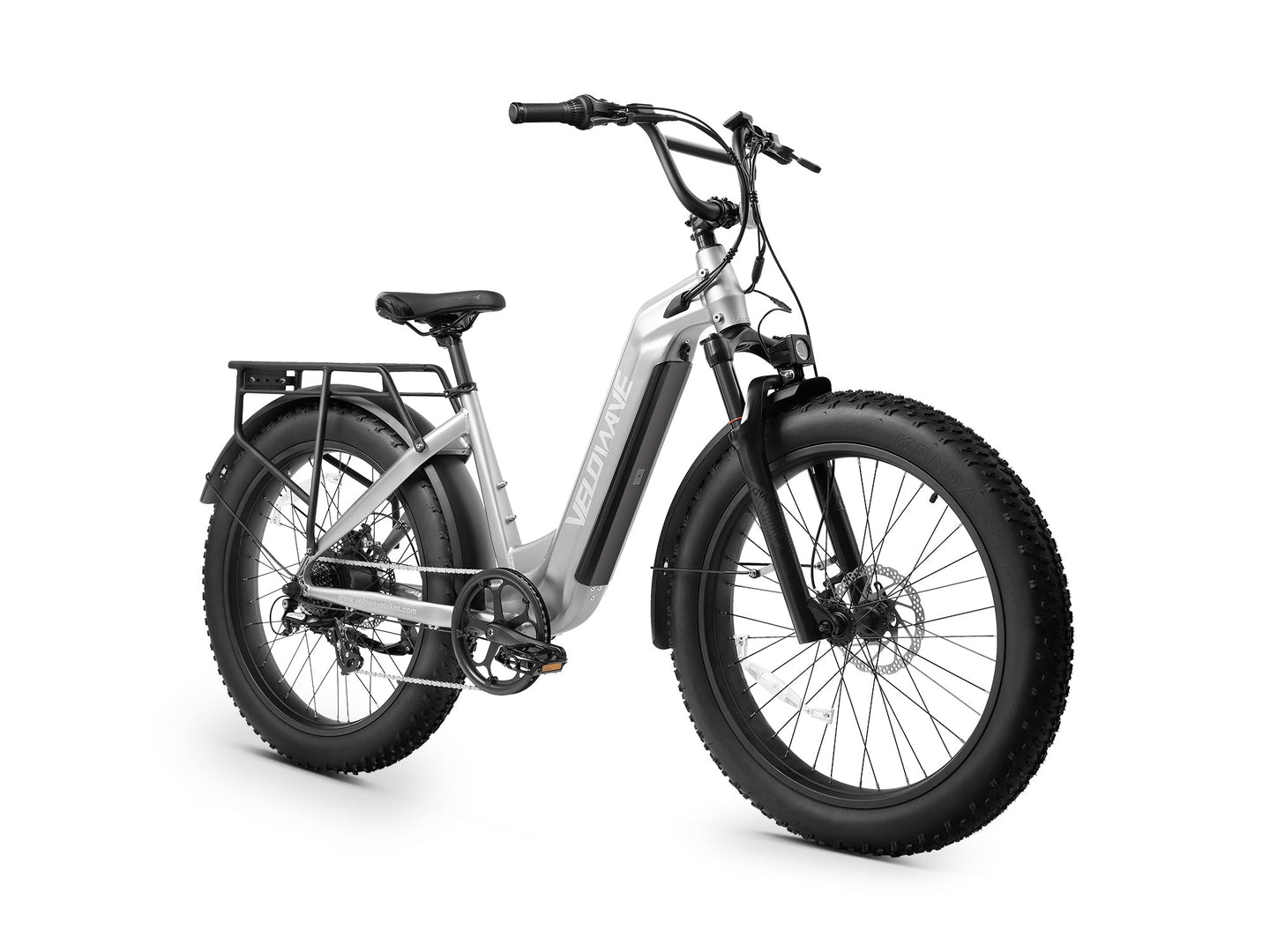

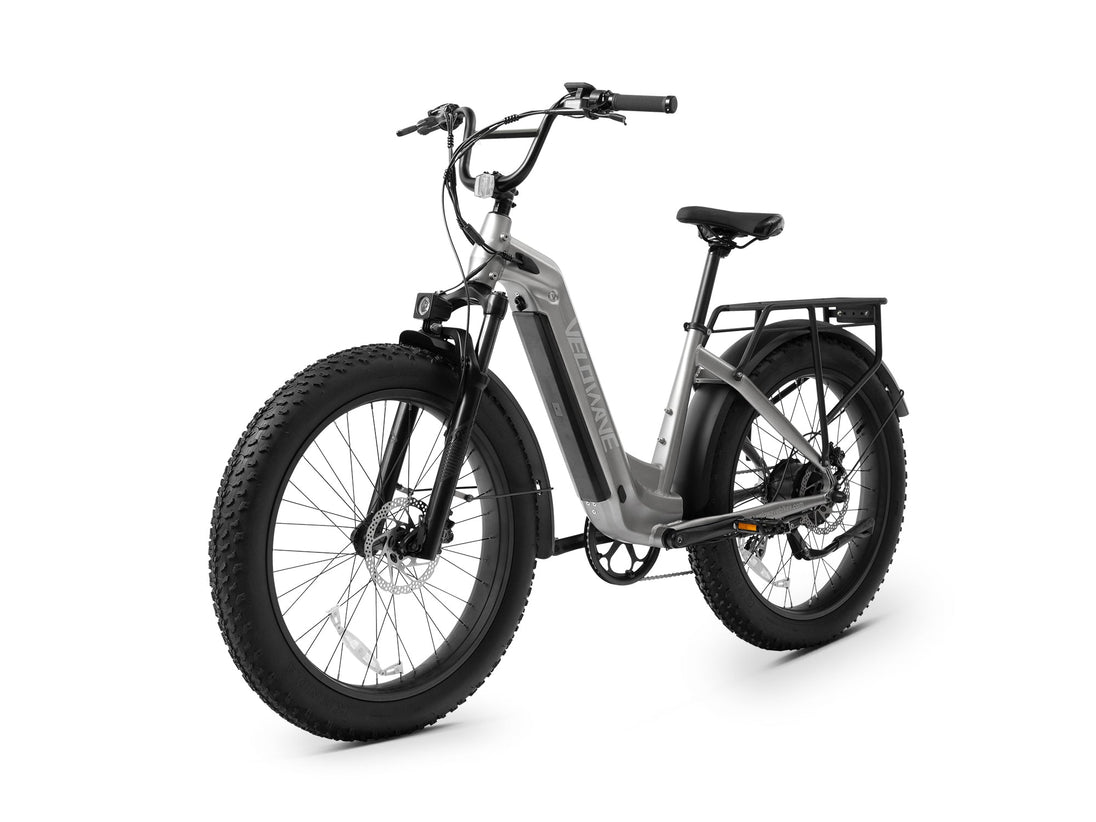

Velowave Ranger ST 2.0 Step-Through Fat Tire Electric Bike 750W

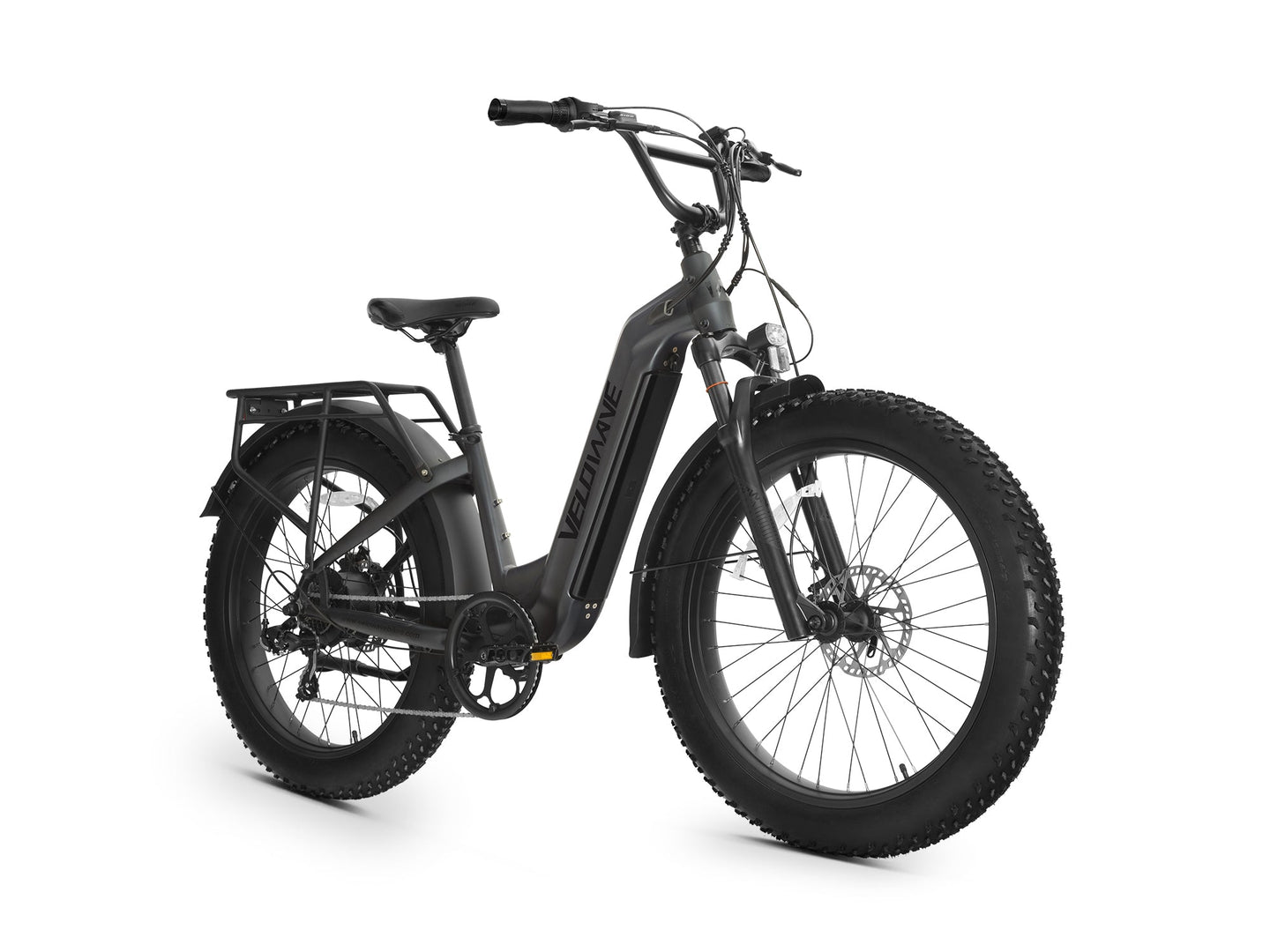

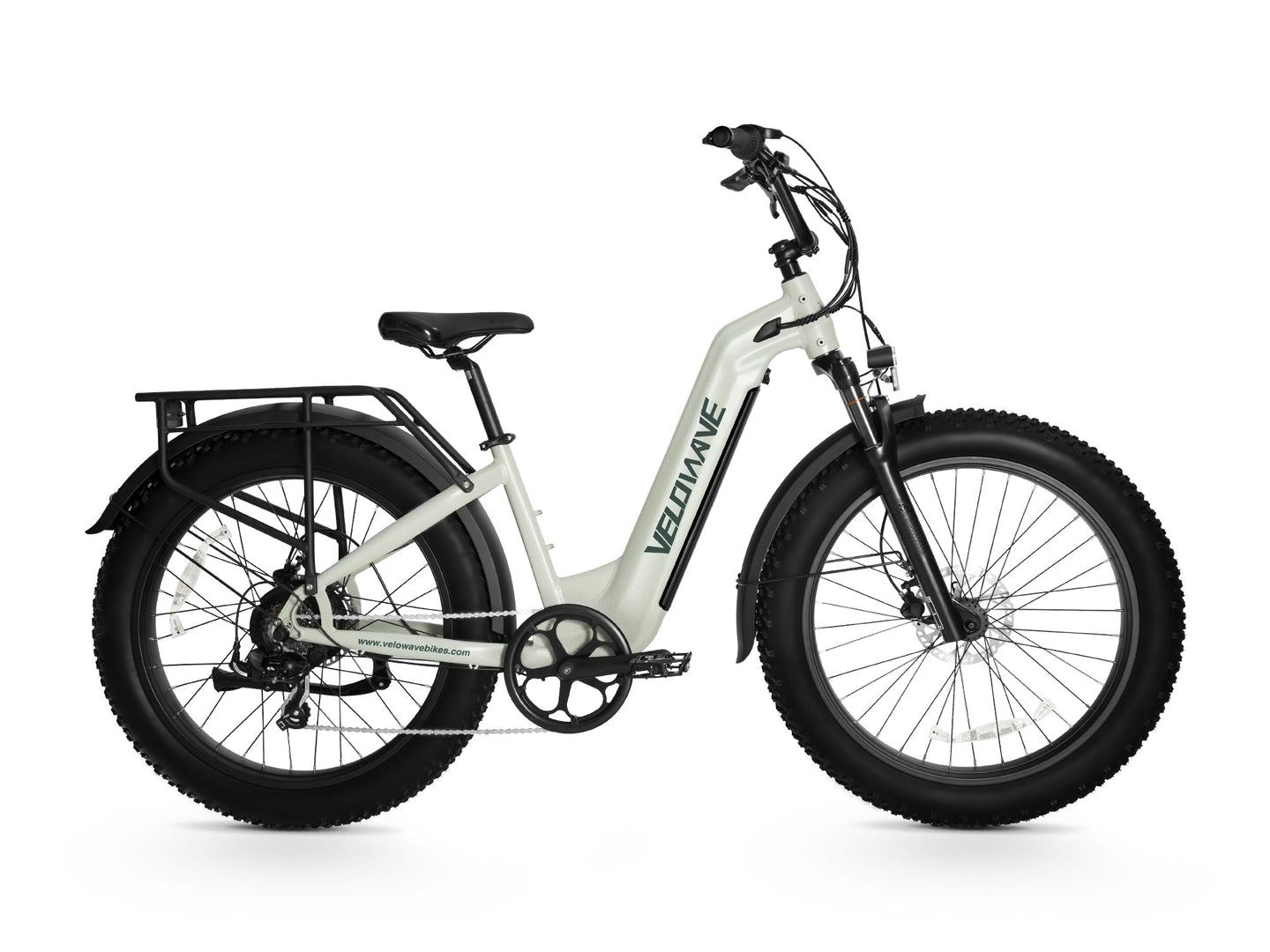

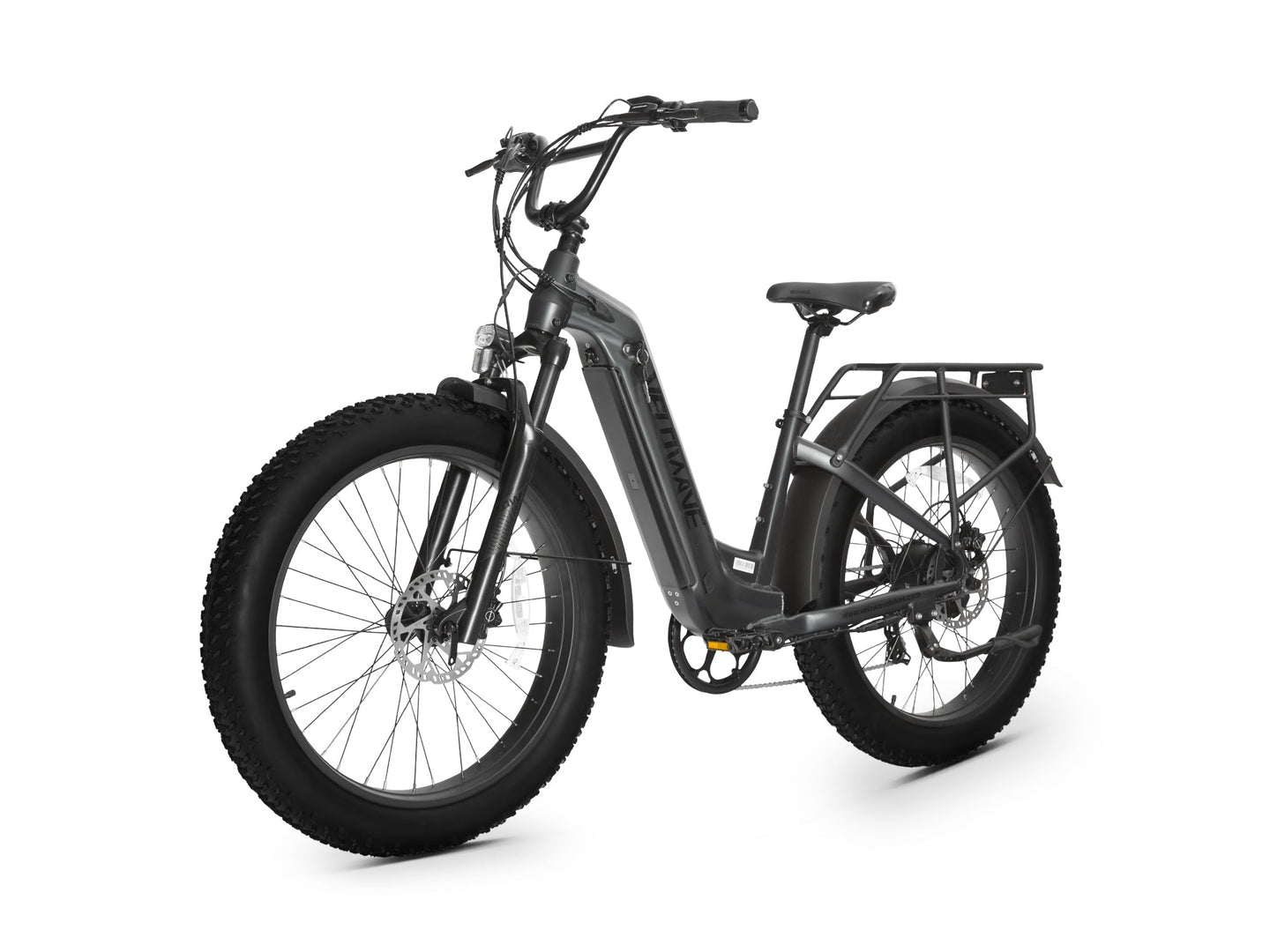

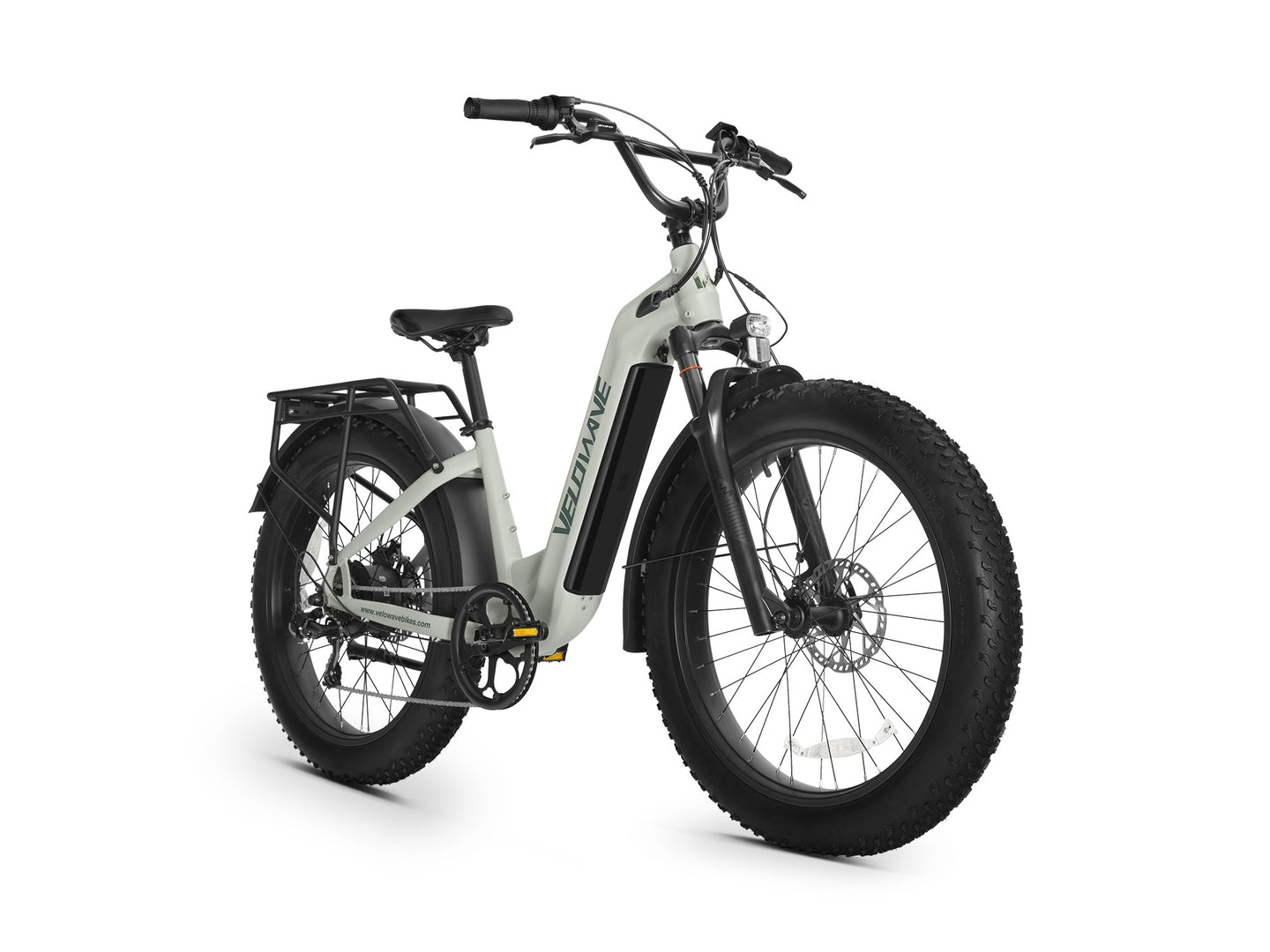

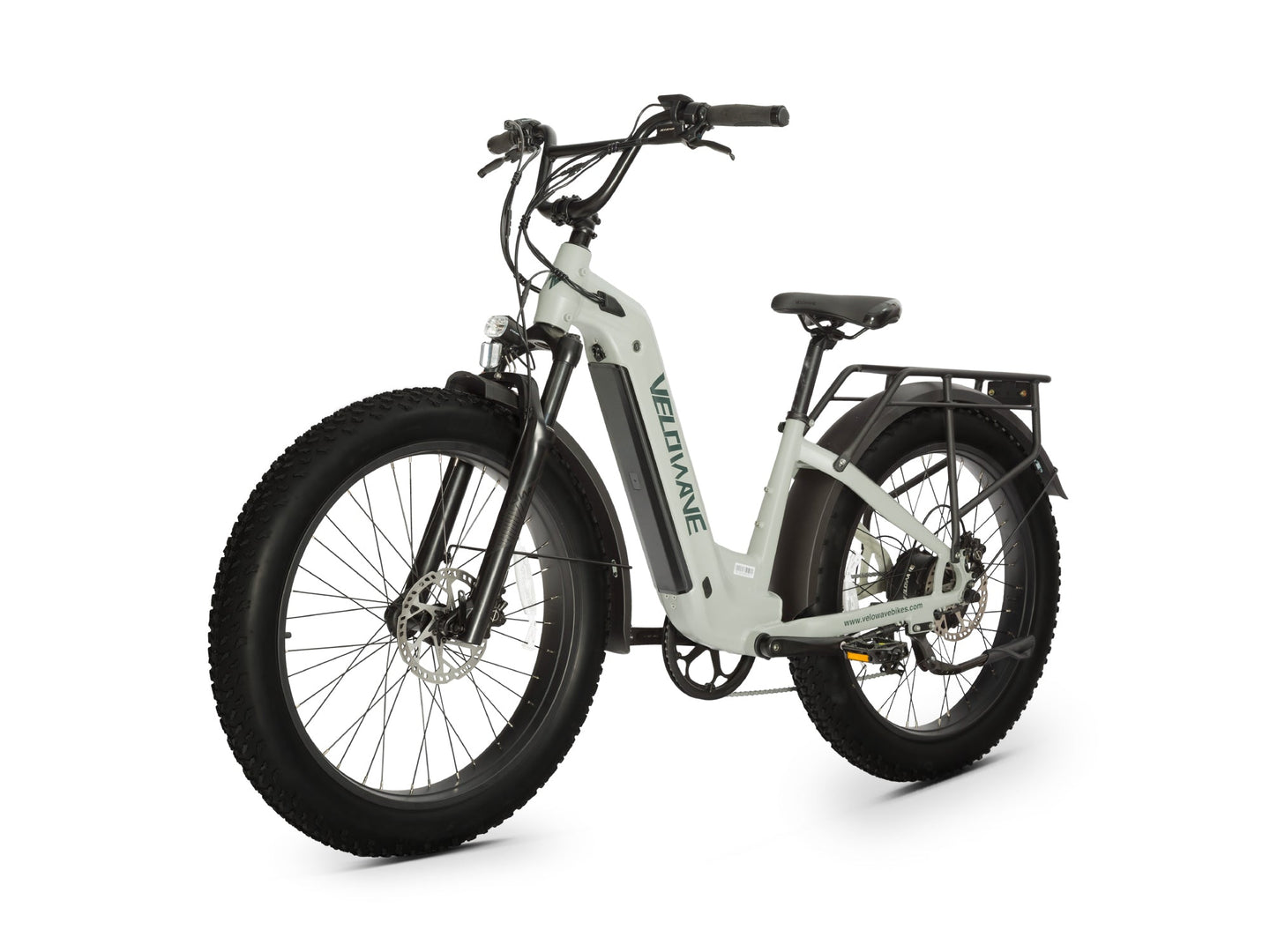

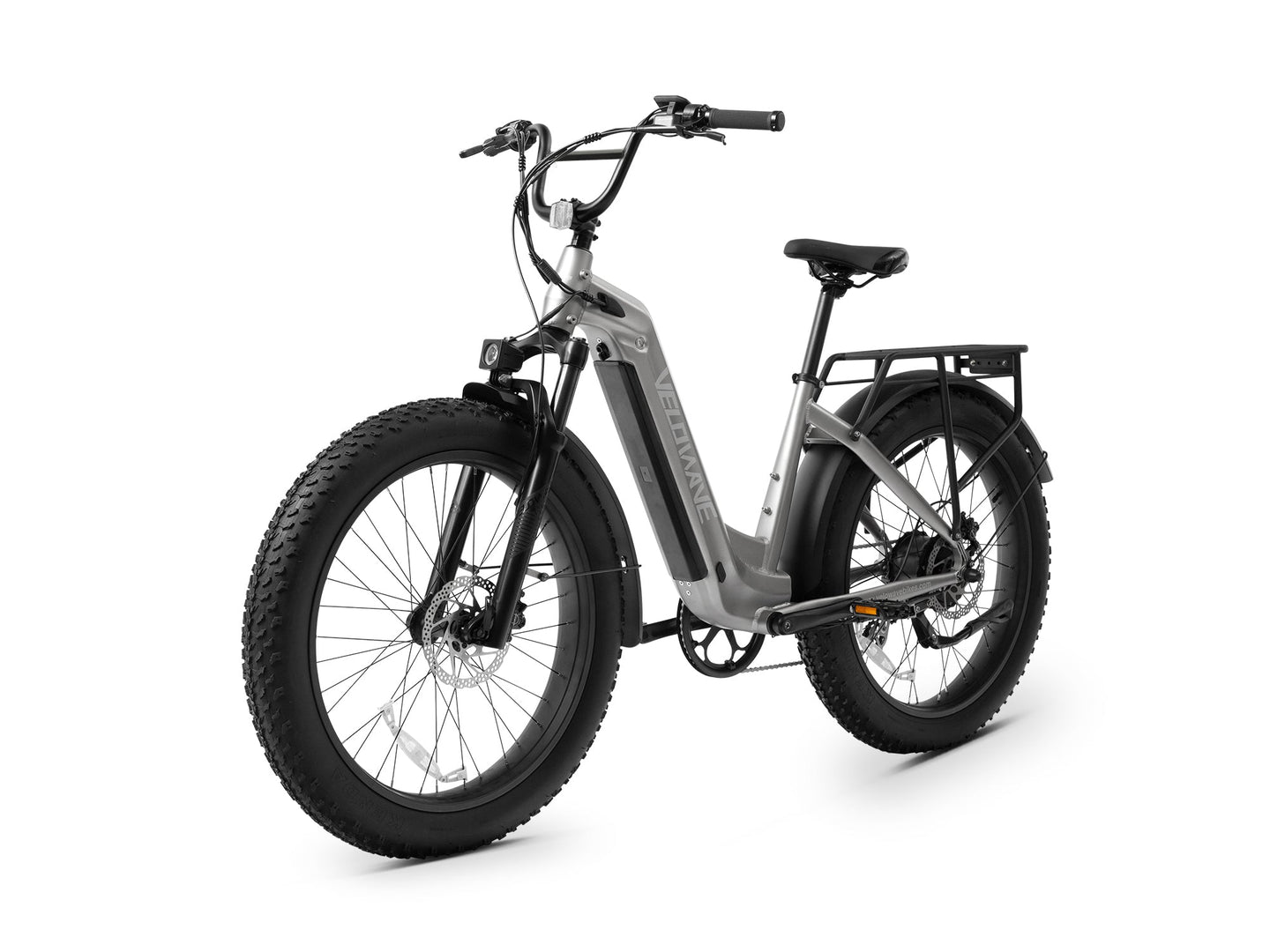

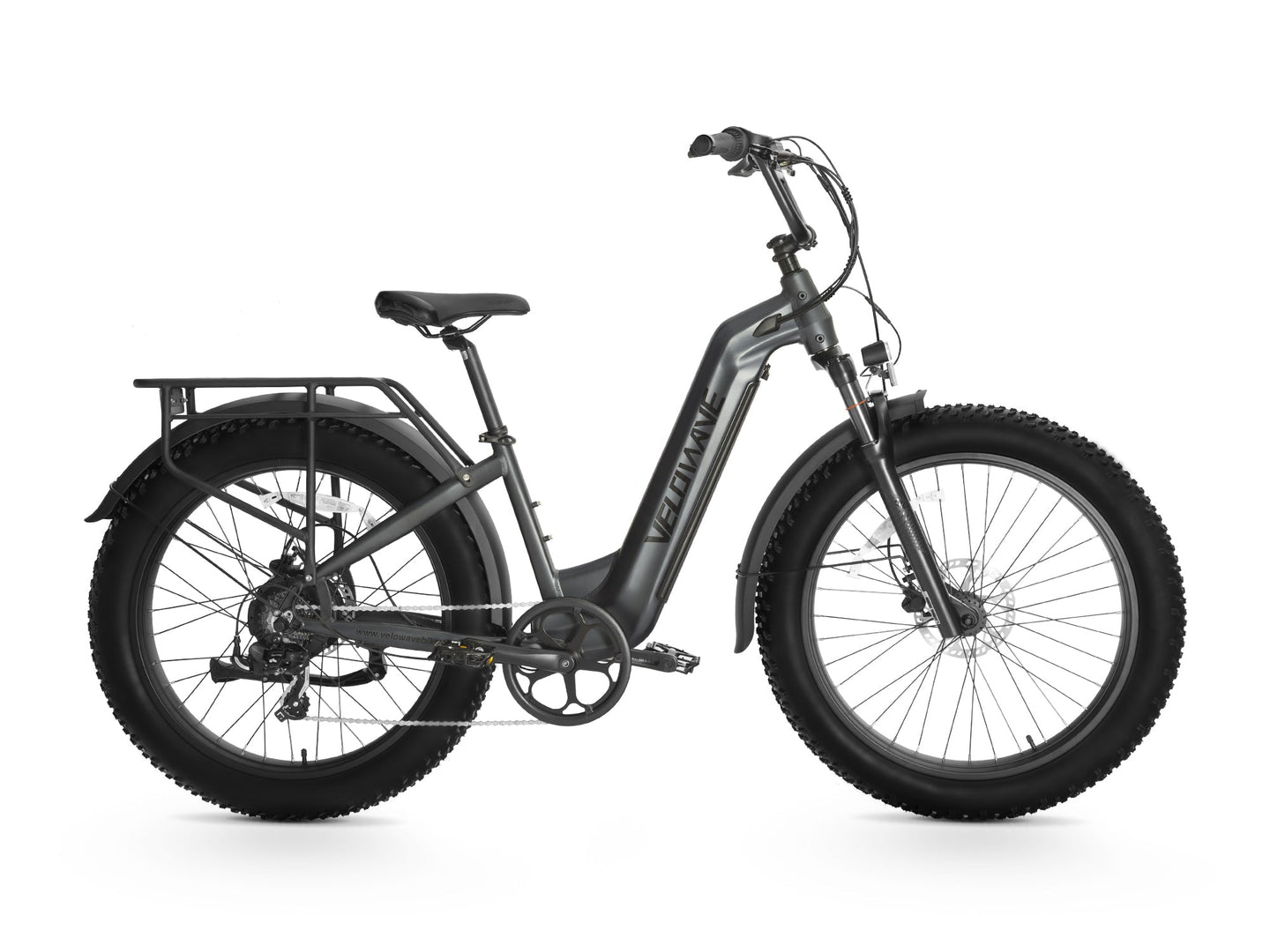

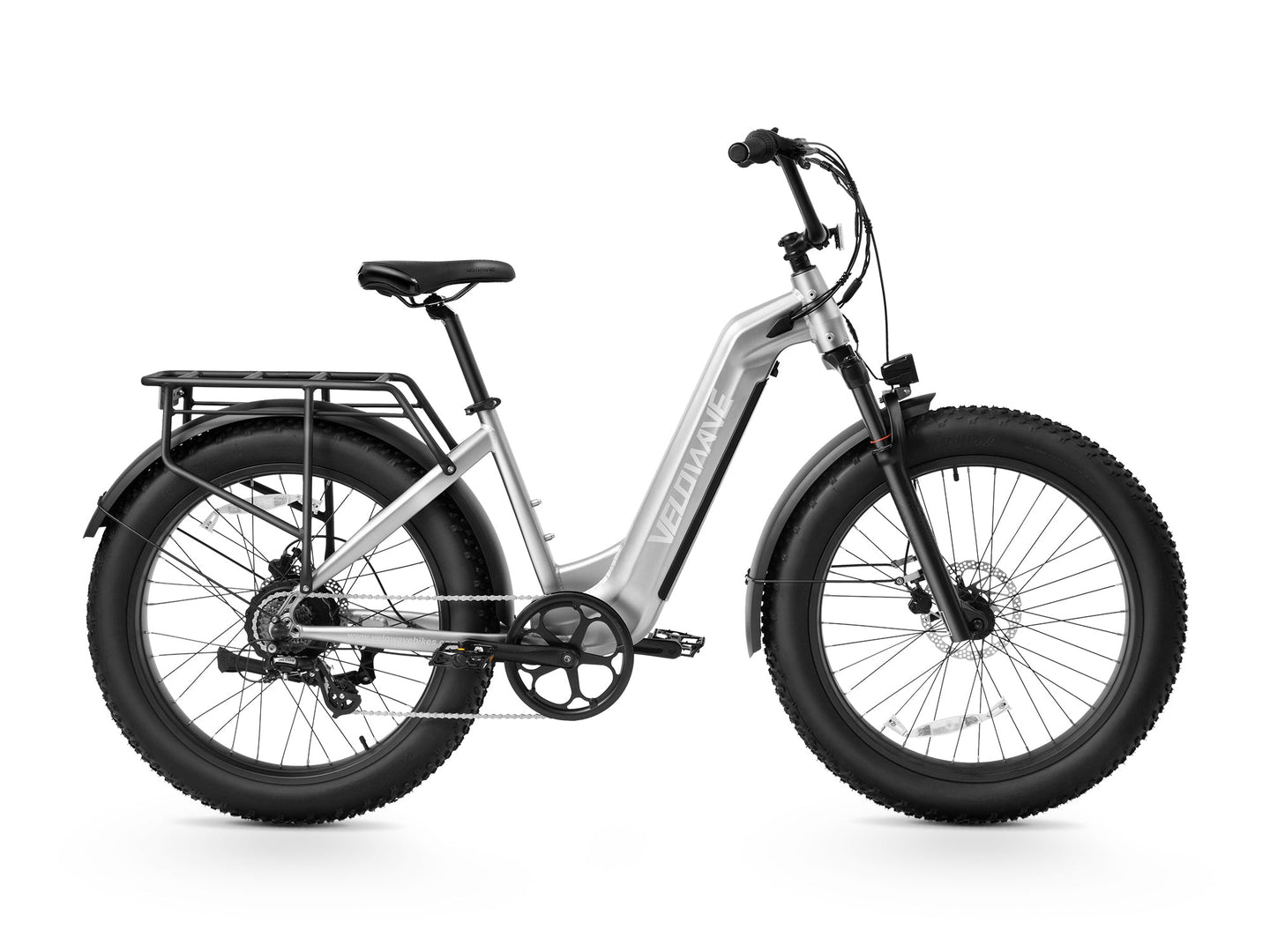

The Ranger ST 2.0 delivers the same 750W geared hub motor power and 26x4-inch fat tire capability as the standard Ranger, wrapped in a step-through frame that makes mounting and dismounting effortless for riders of all ages and mobility levels. Hit 28 MPH on pedal assist, cruise at 20 MPH on throttle, and cover up to 90 miles per charge from the 48V 15Ah LG battery. The low standover height of 457mm means confident foot-down stops without compromising frame strength or ride quality.

The 6061 aluminum step-through frame handles a 300 lb payload while keeping the internally-routed cables and removable battery clean and protected. Hydraulic disc brakes with 180mm rotors and power-cut-off bring you to a confident stop. Rear rack and fenders come included, making this a commuter-ready e-bike right out of the box.

Features

• Step-Through Frame Design - Low 457mm standover height for easy on/off access, ideal for commuters and riders with limited mobility

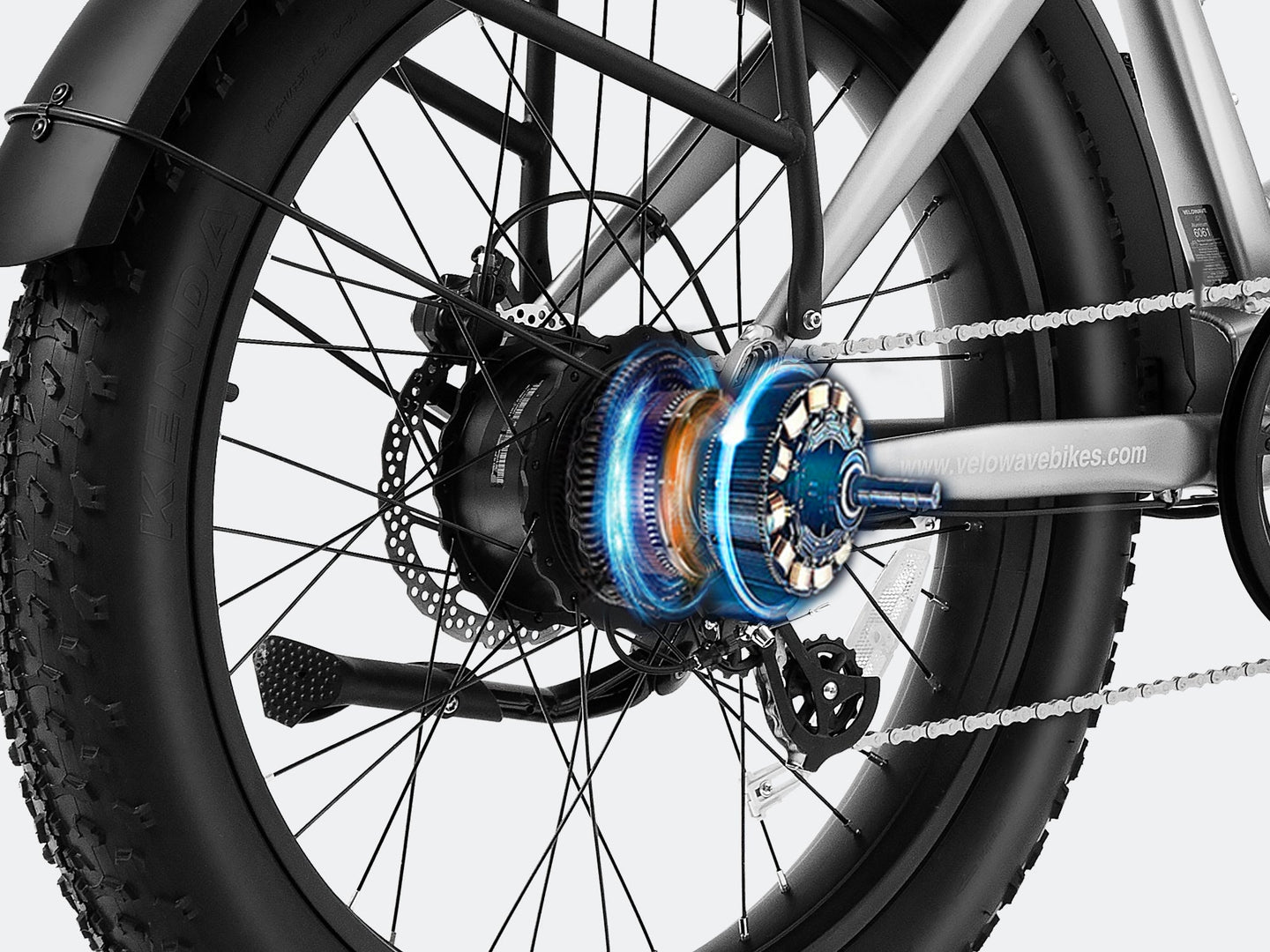

• 750W Geared Hub Motor - Peak 1200W with 80Nm torque for strong hill climbing and acceleration up to 28 MPH

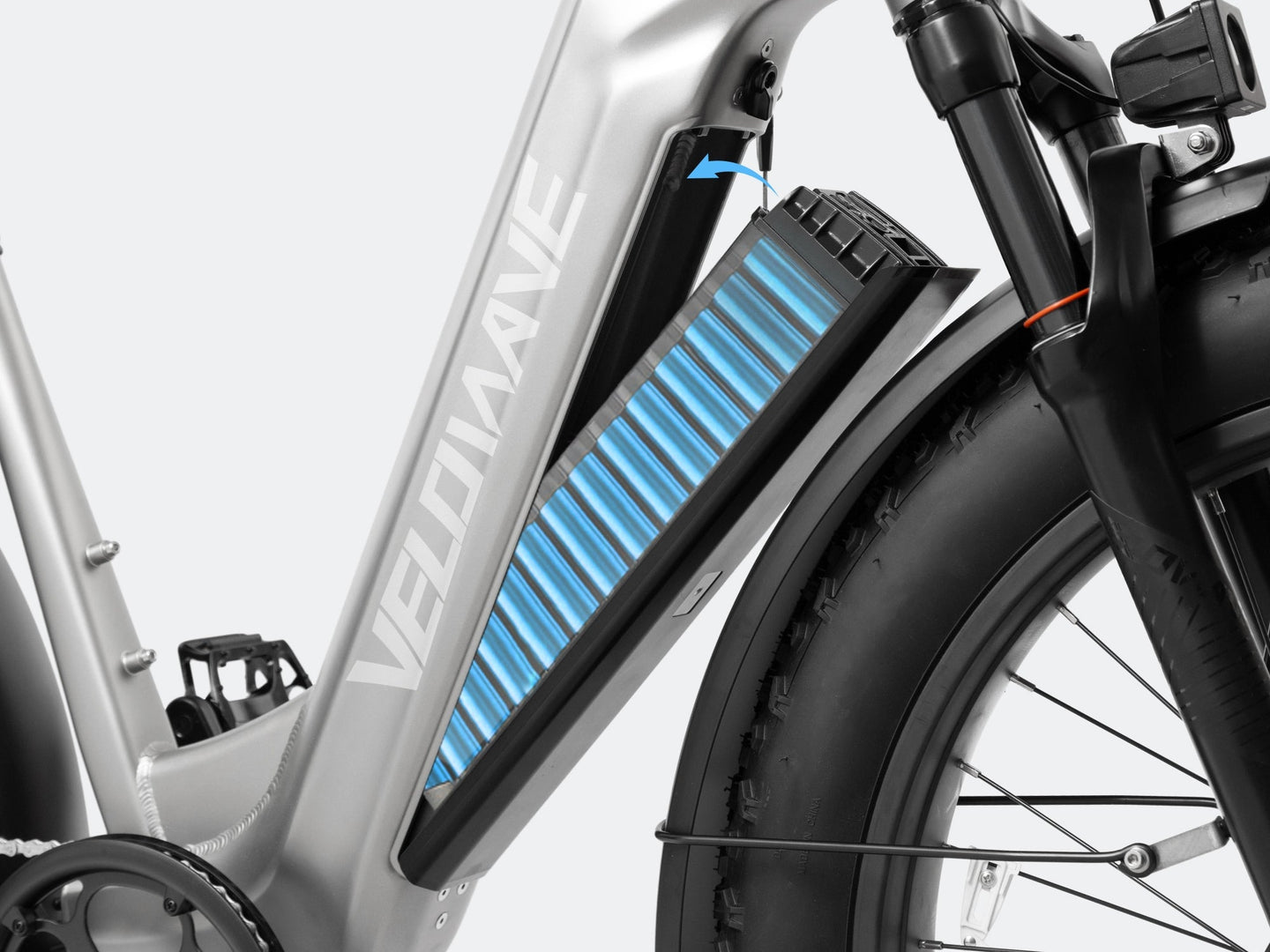

• 48V 15Ah LG Battery (720Wh) - Removable and lockable with up to 90 miles range on pedal assist
• 26" x 4.0" Kenda Fat Tires - Anti-skid, wear-resistant traction across snow, sand, gravel, and city streets
• Hydraulic Disc Brakes - 180mm rotors with power-cut-off for responsive, safe braking
• Shimano 7-Speed Drivetrain - RevoShift and 14-28T freewheel for smooth shifting across terrain changes
• Hydraulic Suspension Fork - 60mm travel with lockout absorbs bumps on rough roads

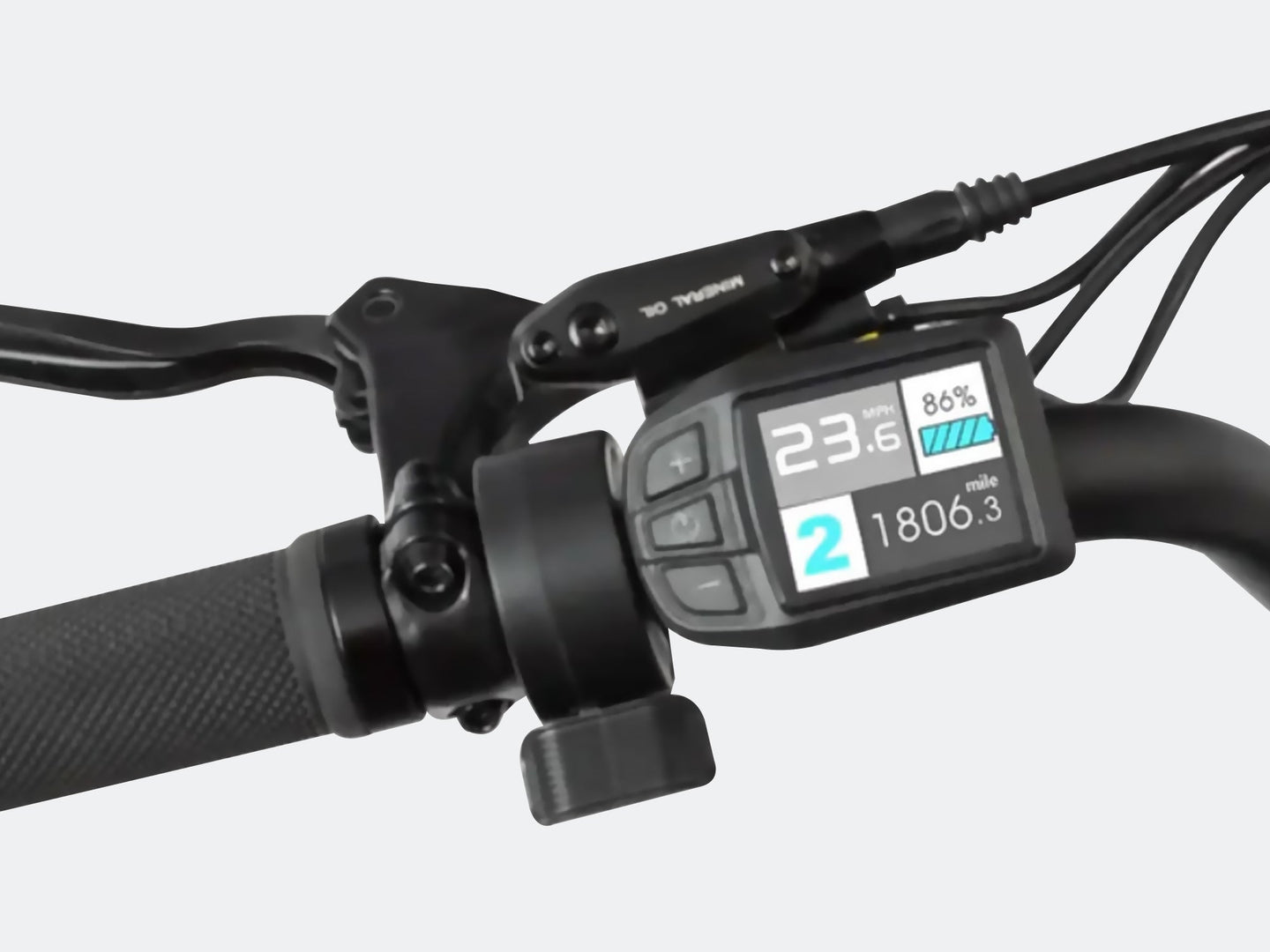

• Color Display - Real-time speed, battery, distance, and PAS level monitoring
• Rear Rack and Fenders Included - Ready for commuting and cargo from day one
• 300 lb Payload Capacity - Strong enough for heavier riders plus gear

Specifications

• Class: Class 3 (28 MPH pedal assist, 20 MPH throttle)
• Motor: Geared Hub Motor, Rated 750W, Peak 1200W, 80Nm Torque
• Battery: 48V 15Ah (720Wh), LG Cells, Removable Internal
• Charger: 48V 2A, Approx. 8 Hour Charge, UL Listed
• Range: Avg. 65 Miles PAS / Up to 90 Miles Level 1 / 30 Miles Throttle
• Pedal Assist: 5 Levels, Speed Sensor
• Throttle: Thumb Throttle
• Display: Multifunctional Color-Screen
• Frame: 6061 Aluminum Step-Through, Internal Routing
• Fork: Hydraulic Suspension, 60mm Travel, Lockout
• Tires: Kenda 26" x 4.0" Fat Tires
• Rims: Aluminum 26" 36H Front and Rear
• Brakes: Hydraulic Disc, 180mm Rotors, Power-Cut-Off
• Shifter: Shimano 7-Speed RevoShift
• Derailleur: Shimano ARDTY500D 7-Speed
• Crankset: 52T, 170mm Alloy Crank
• Freewheel: Shimano 14-28T, 7-Speed
• Chain: KMC 124 Link, 7-Speed
• Front Light: 48V 10W LED, 30 LUX
• Handlebar: Aluminum, 31.8mm, 720mm Width
• Net Weight: 76.94 lbs / 34.9 kg (with battery)
• Gross Weight: 100.53 lbs / 45.6 kg
• Battery Weight: 8.82 lbs / 4 kg
• Max Payload: 300 lbs / 136 kg
• Standover Height: 457mm
• Seat Height: 819-1009mm
• Wheelbase: 1172mm
• Product Size: 1930 x 740 x 1210mm
