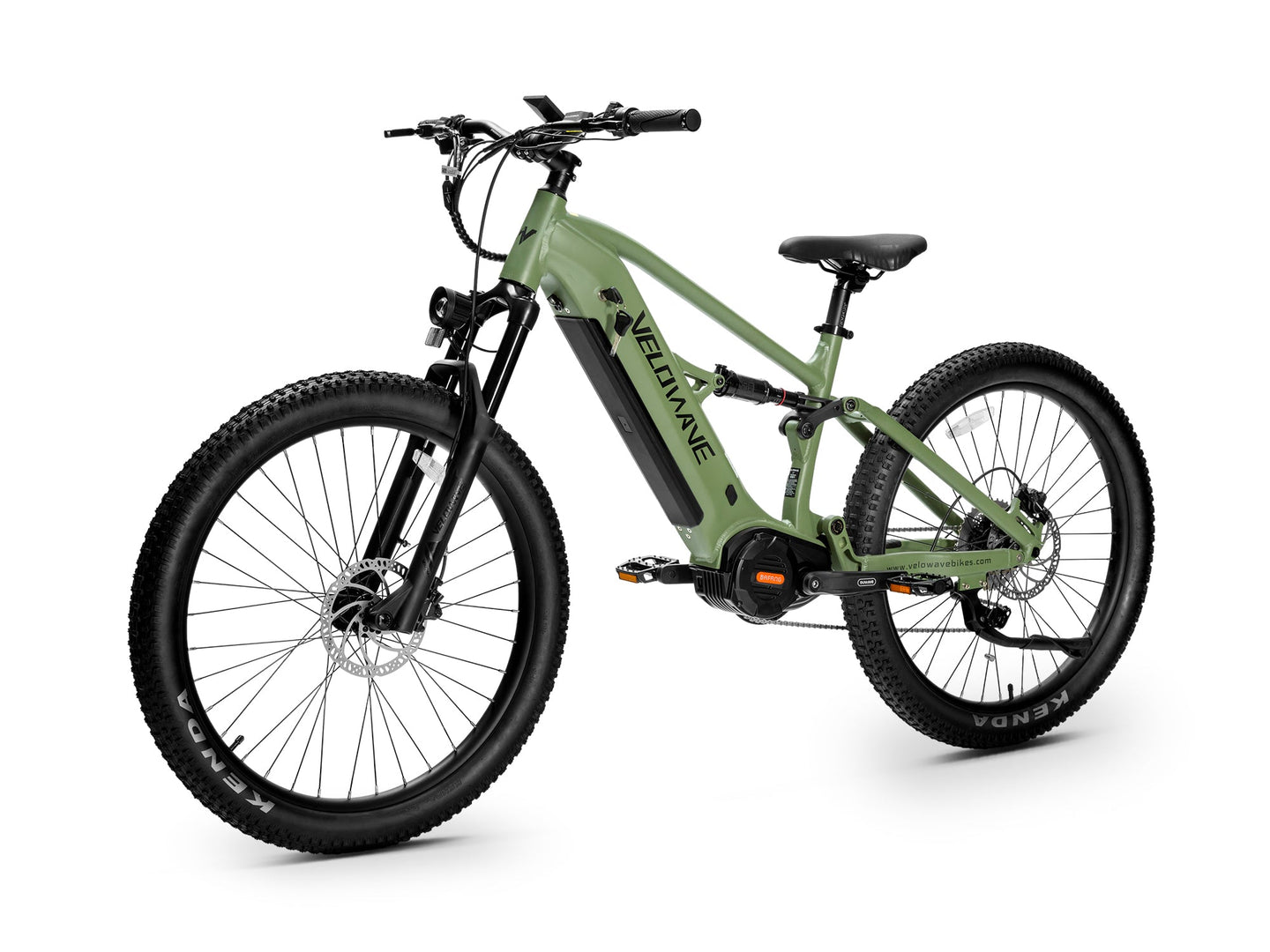

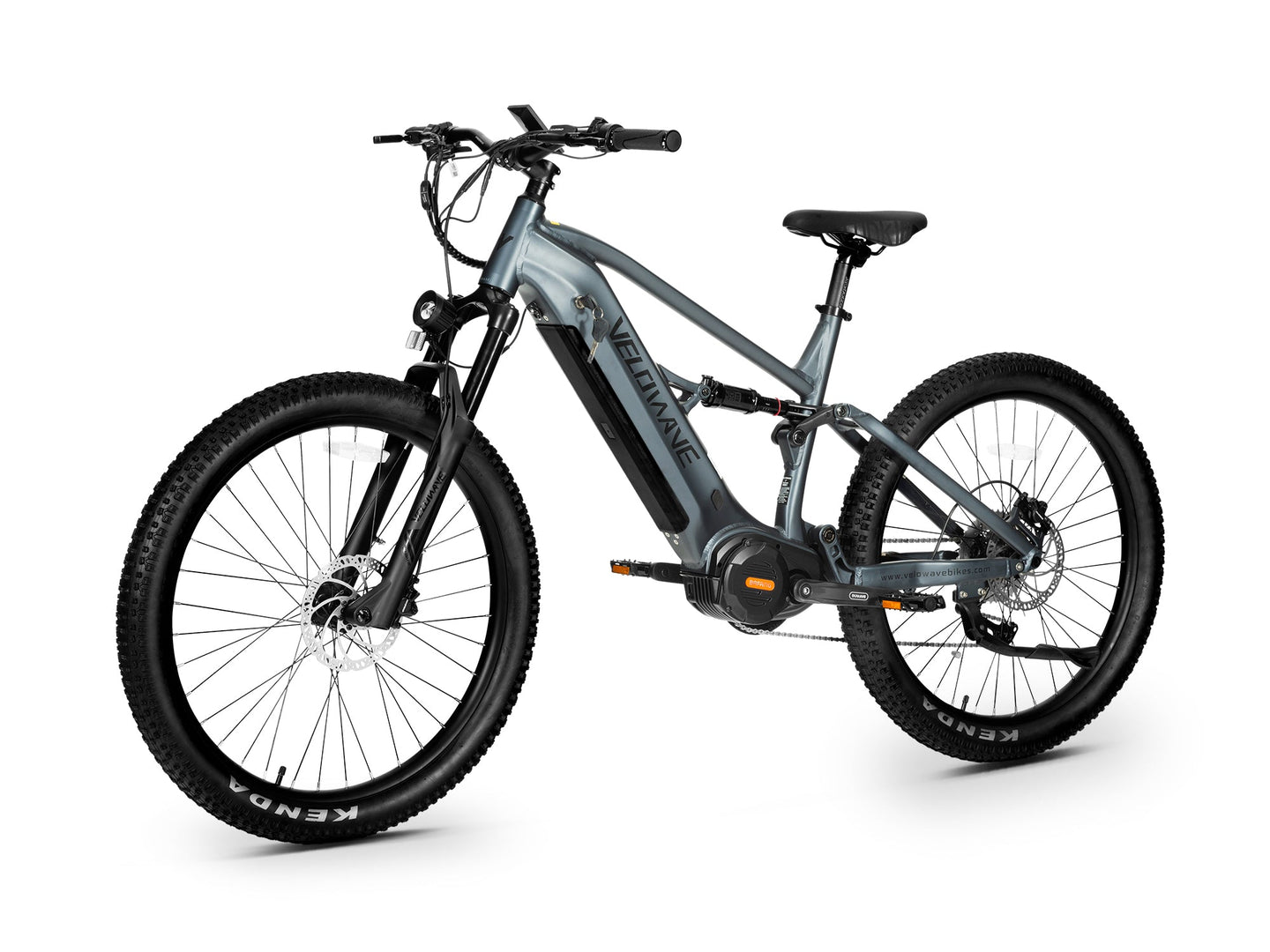

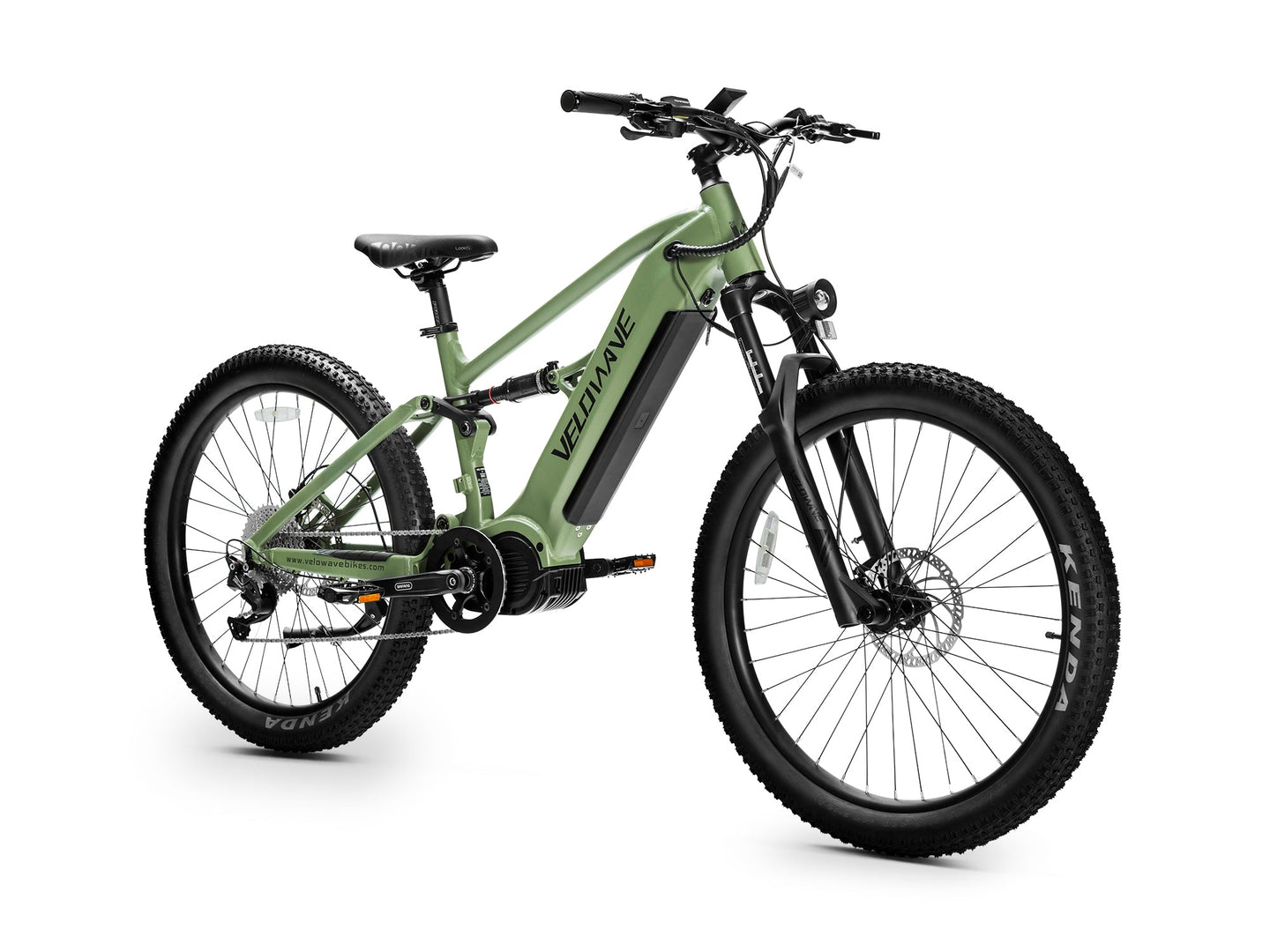

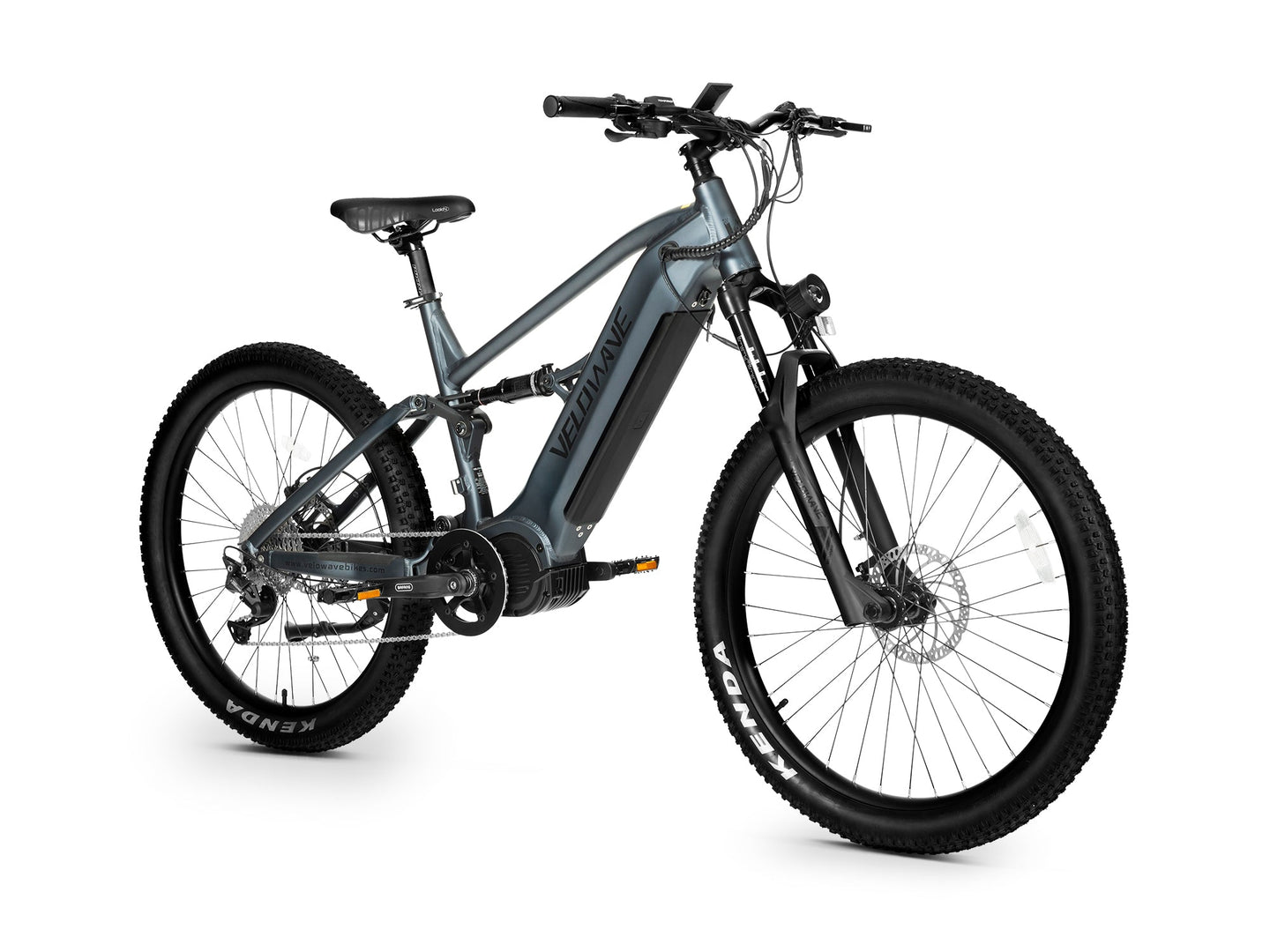

Velowave Forest XM Full Suspension Electric Mountain Bike 1000W

The Forest XM is the trail-focused counterpart to the Brawny XM, sharing the same 1000W motor (1200W peak, 160Nm torque) and Rockshox rear suspension but trading fat tires for 27.5" x 2.8" Kenda mountain bike tires. The narrower tires roll faster on singletrack and hard-packed trails while still providing enough volume for serious off-road grip. With 140mm of air suspension fork travel up front and Rockshox rear suspension with external rebound adjustment, the Forest XM delivers 133mm of total frame travel for a planted, controlled ride over roots, rocks, and drops.

The 48V 20Ah LG battery (960Wh) delivers up to 85 miles on PAS and 60 miles on throttle with a 7-hour charge time. A Shimano 10-speed drivetrain with Deore derailleur and 11-42T cassette provides massive gear range for technical climbing, while Tektro hydraulic disc brakes with 180mm rotors and power-cut-off handle high-speed descents with confidence. The torque sensor and 6-level PAS system keep power delivery smooth and predictable across all terrain. At 76 lbs, it is 6 lbs lighter than the fat-tire Brawny.

Features

• 1000W Motor (1200W Peak, 160Nm) - Serious climbing power and trail performance from the same motor as the Brawny XM
• Full Suspension with Rockshox Rear - 140mm air fork + 44mm Rockshox rear shock with rebound adjustment for 133mm frame travel

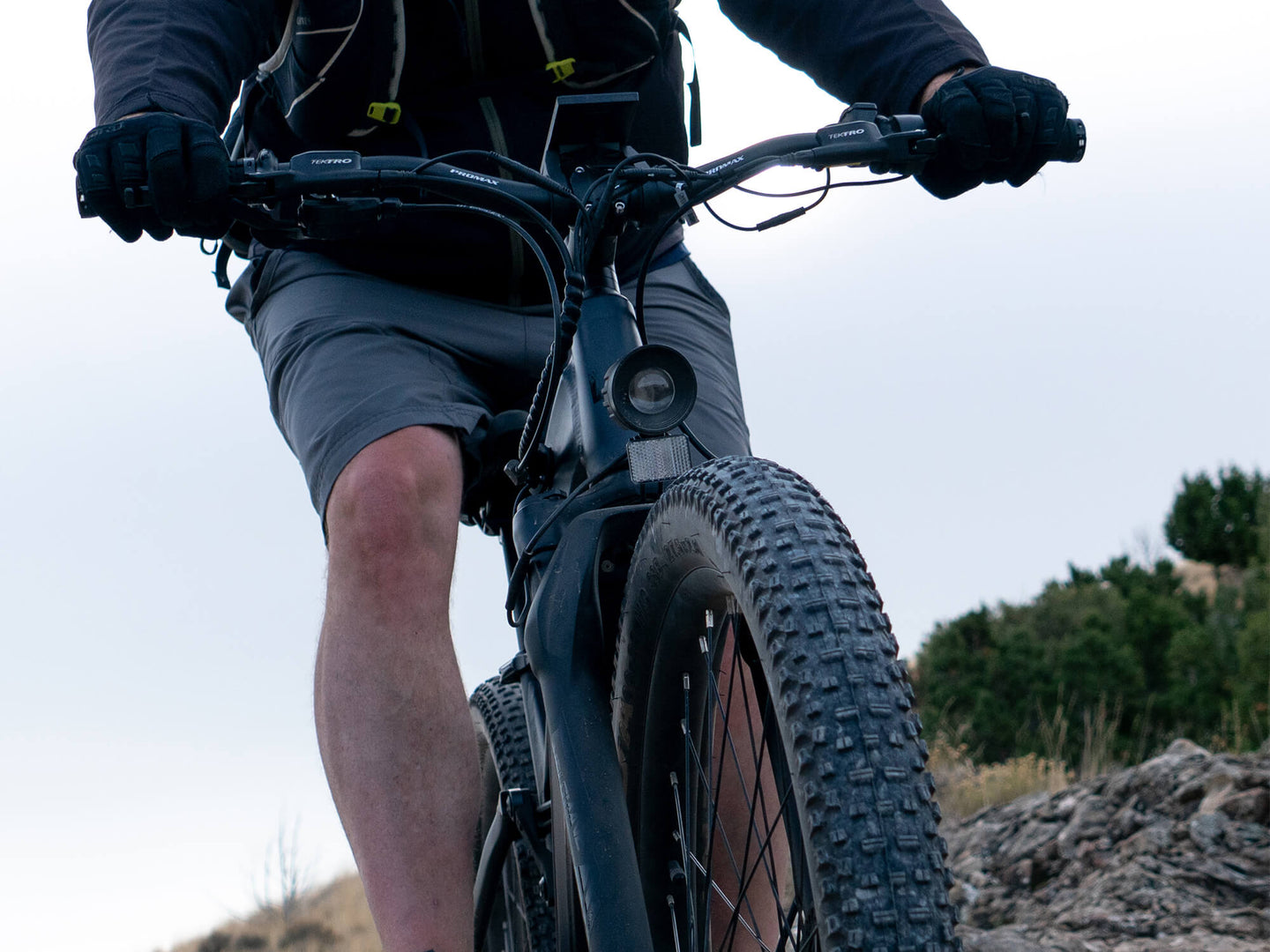

• 27.5" x 2.8" Kenda Mountain Tires - Faster rolling than fat tires with strong off-road grip for singletrack and technical terrain
• 48V 20Ah LG Battery (960Wh) - Up to 85 miles PAS range with 7-hour charging
• 37 MPH Top Speed - Off-road class for high-speed trail riding
• Torque Sensor with 6-Level PAS - Proportional assist across six levels for precise control on technical terrain

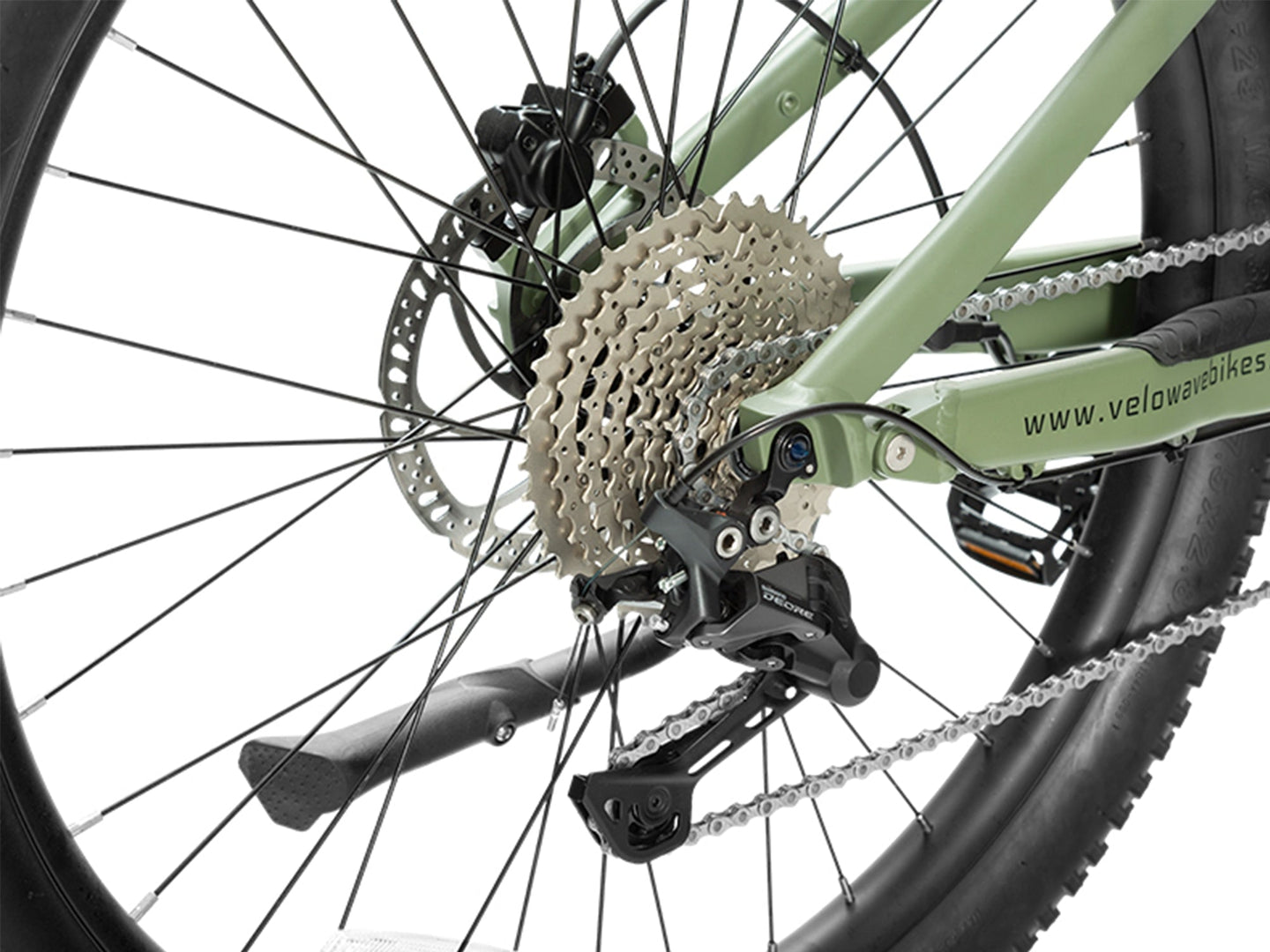

• Shimano 10-Speed Drivetrain - Deore RD-M4120 with 11-42T cassette for wide-range climbing and descending gears
• Tektro Hydraulic Disc Brakes - 180mm rotors with power-cut-off for confident stopping on steep descents
• 76 lbs Total Weight - 6 lbs lighter than the Brawny XM for more agile trail handling
• 385 lb Payload Capacity - Strong enough for heavier riders on aggressive terrain

Specifications

• Class: Off-Road (37 MPH pedal assist, 20 MPH throttle)

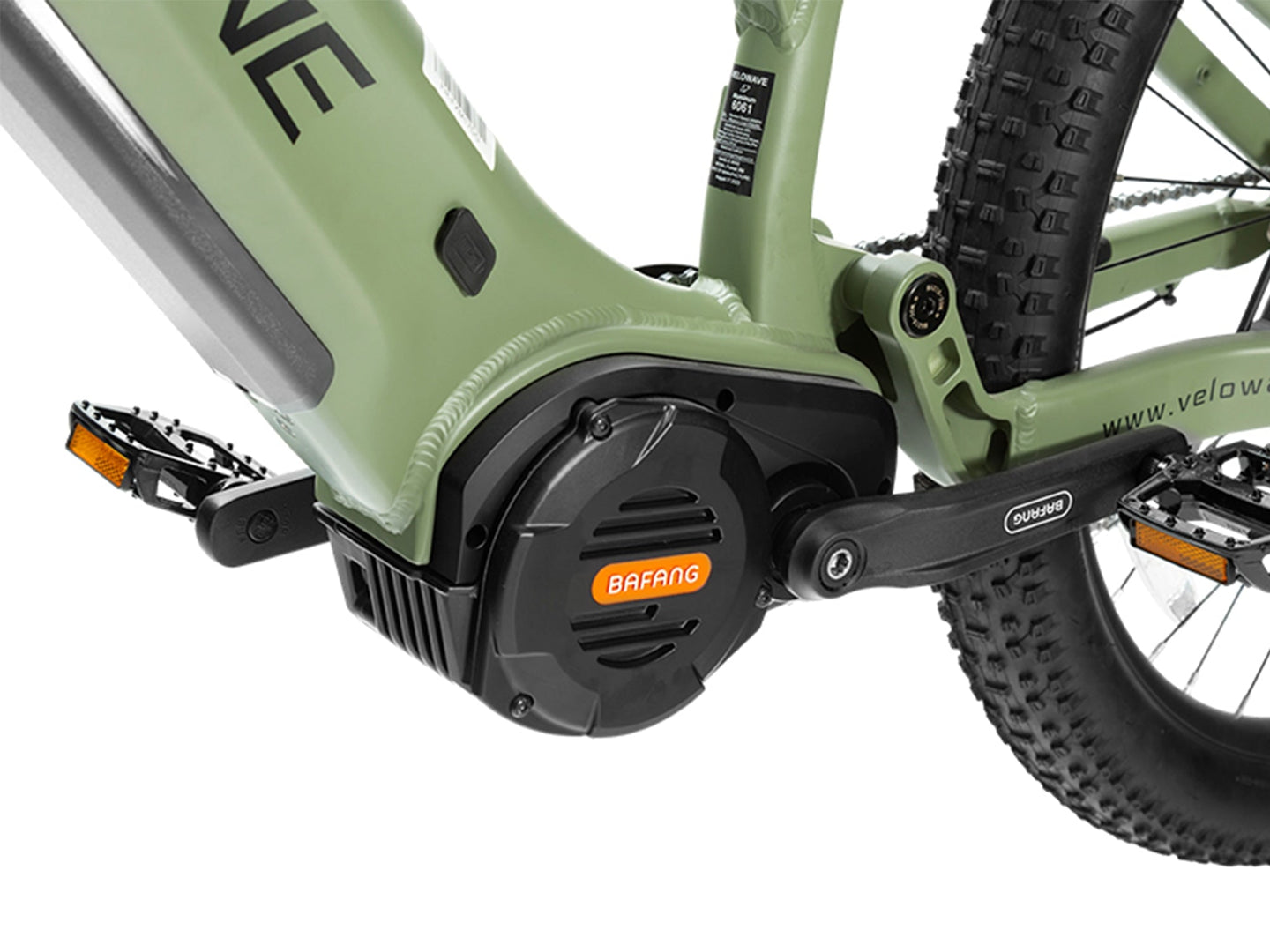

• Motor: 1000W (Peak 1200W), 160Nm Torque

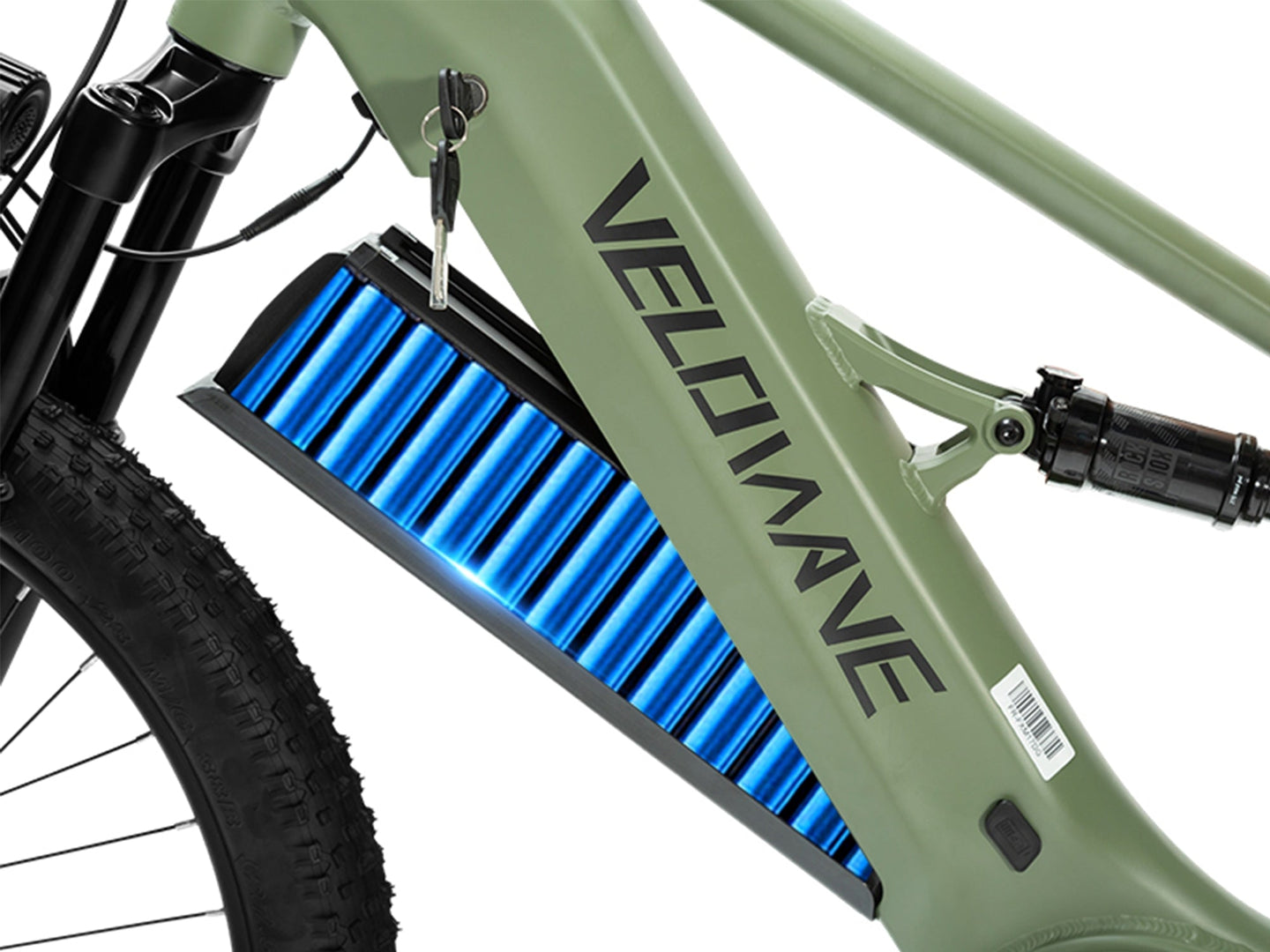

• Battery: 48V 20Ah (960Wh), LG Cells, Removable Internal
• Charger: 48V 3A, Approx. 7 Hour Charge
• Range: Avg. 75 Miles PAS / Up to 85 Miles Level 1 / 60 Miles Throttle
• Pedal Assist: 6 Levels, Torque Sensor
• Throttle: On Demand from Complete Stop

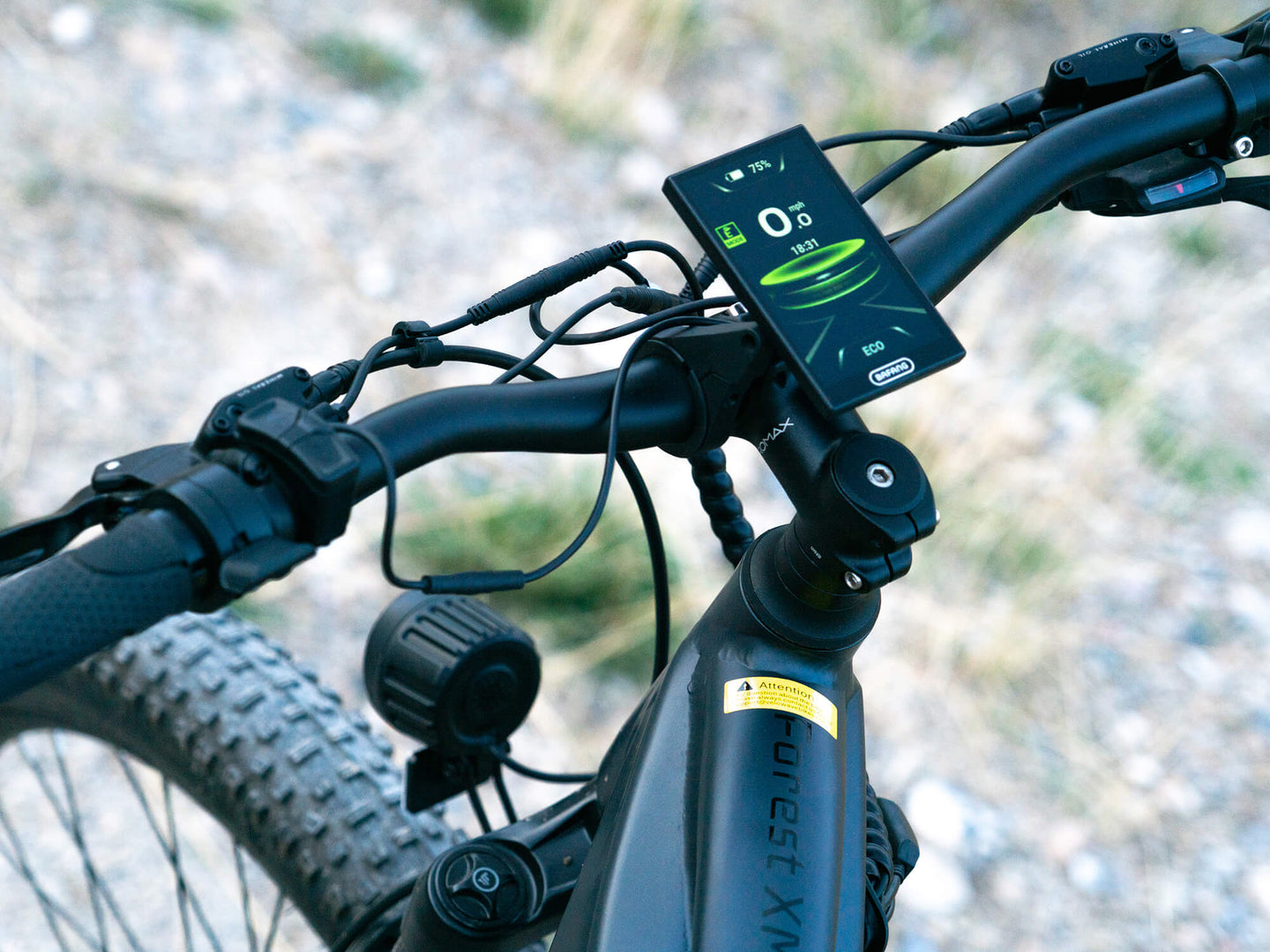

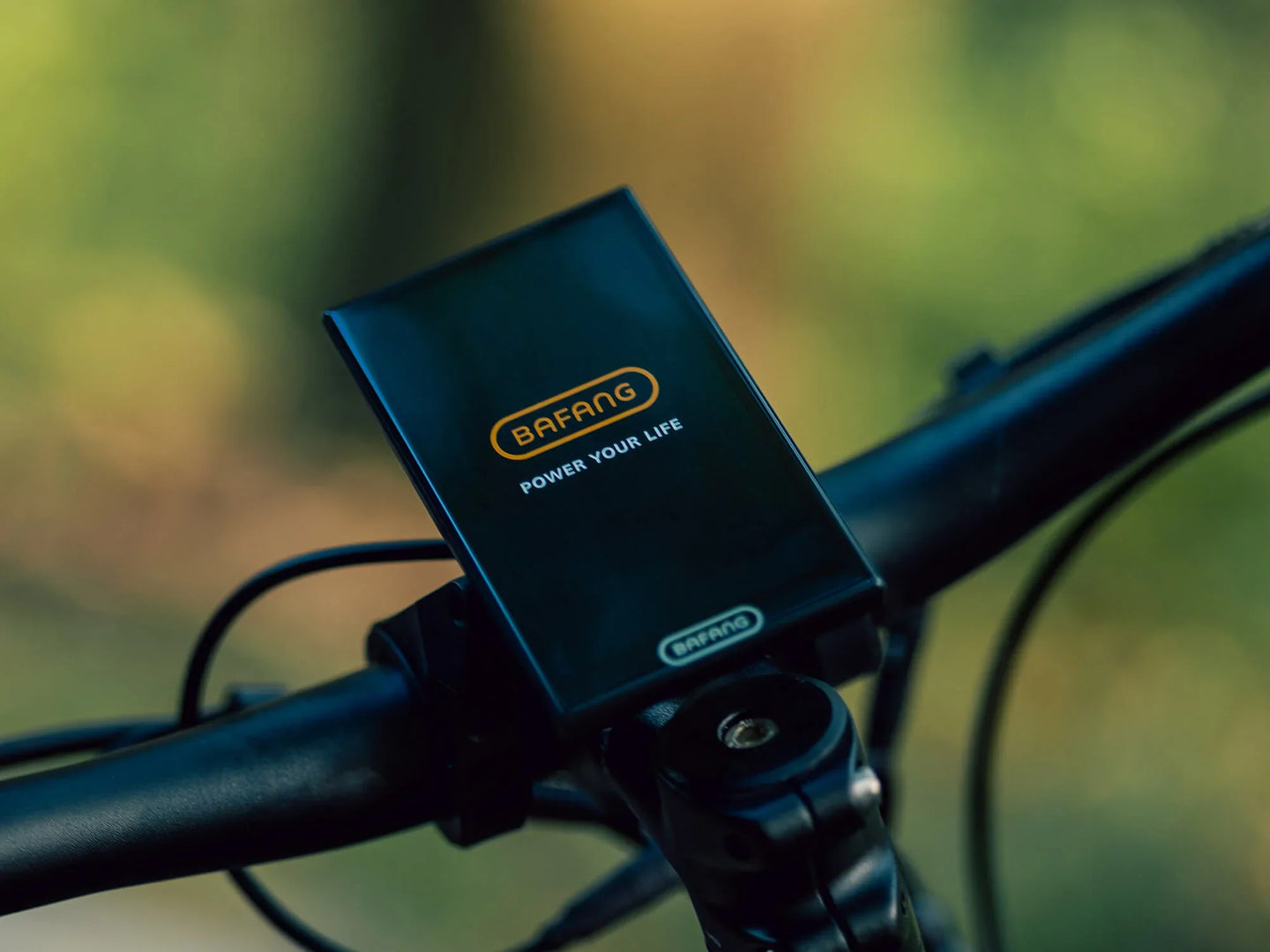

• Display: TFT Smart Color Display with Backlight
• Frame: 6061 Aluminum Alloy, Internal Battery, Full Suspension, 133mm Frame Travel
• Fork: Air Suspension, 140mm Travel, Lockout

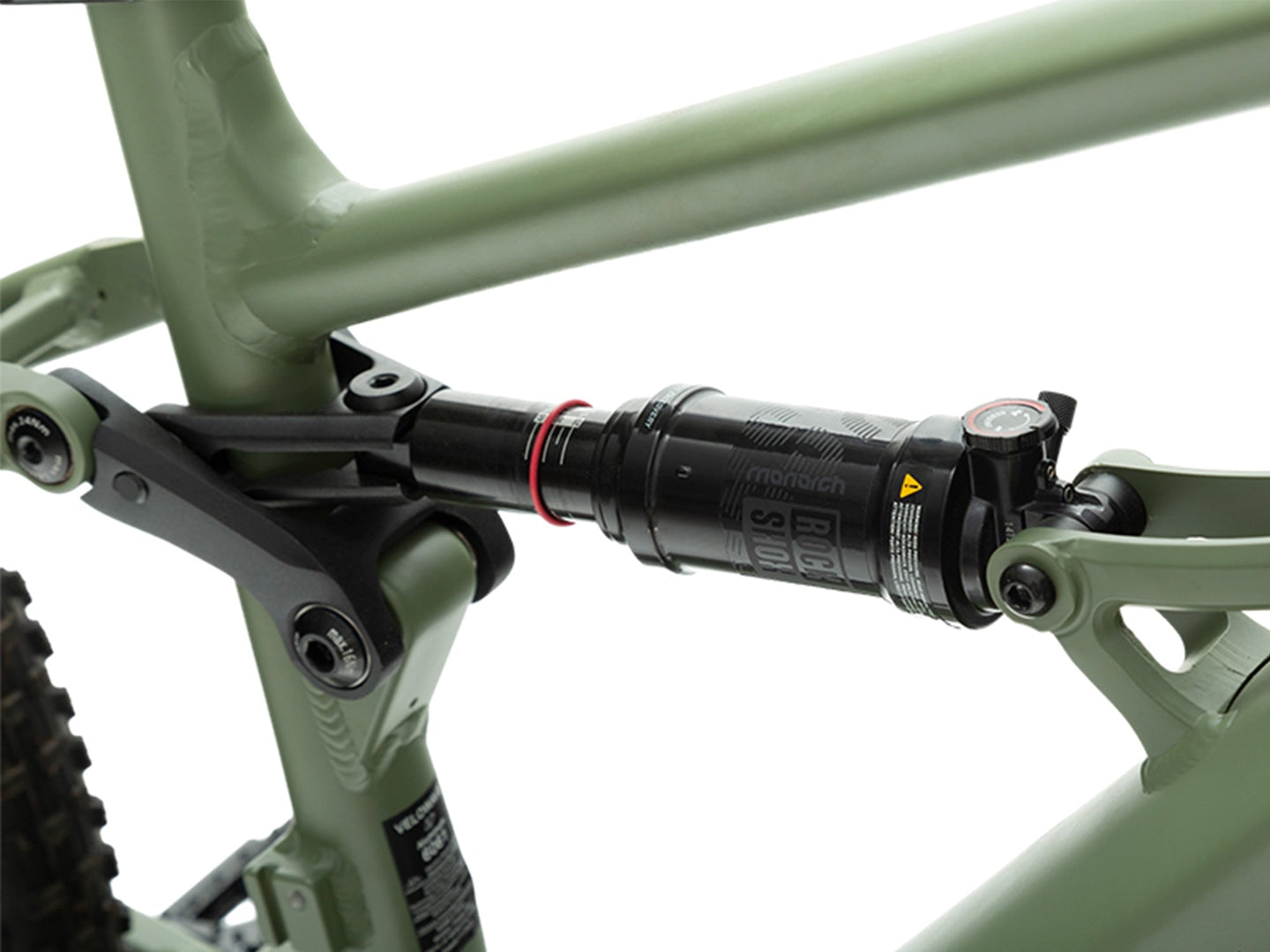

• Rear Suspension: Rockshox RS-MNR-R-C4, 184x44 Air Spring, 44mm Travel, External Rebound
• Tires: Kenda 27.5" x 2.8"
• Rims: Aluminum 27.5" 36H Front and Rear
• Brakes: Tektro Hydraulic Disc, 180mm Rotors, Power-Cut-Off
• Shifter: Shimano 10-Speed Thumb Shift
• Derailleur: Shimano Deore RD-M4120 10-Speed
• Crankset: 170mm w/ 40T
• Cassette: Shimano 11-42T, 10-Speed
• Chain: KMC 134 Link, 10-Speed
• Front Light: 48V LED, 80 LUX
• Tail Light: Rear Blinking Light
• Net Weight: 76 lbs / 34.5 kg (with battery)
• Gross Weight: 103 lbs / 46.5 kg
• Battery Weight: 11.4 lbs / 5.15 kg
• Max Payload: 385 lbs / 175 kg
• Fenders: Not Included
• Rear Rack: Not Included
• Frame Size: 17"
• Standover Height: 754mm
• Seat Height: 866-1021mm
• Wheelbase: 1303mm
• Product Size: 2043 x 1135 x 745mm
