Velowave | Brawny XM Full Suspension Fat Tire Electric Bike 1000W | FR-BXM17OG

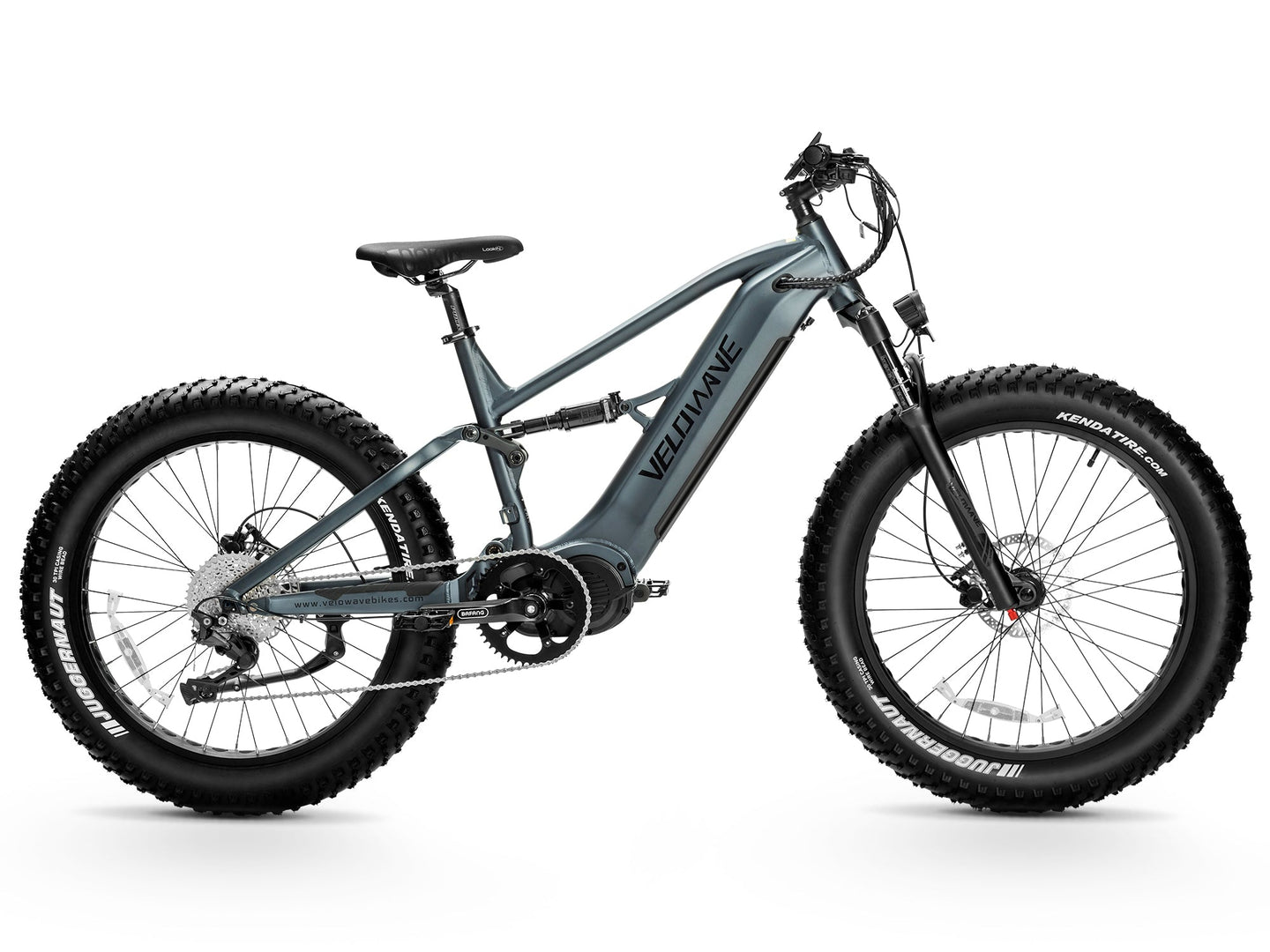

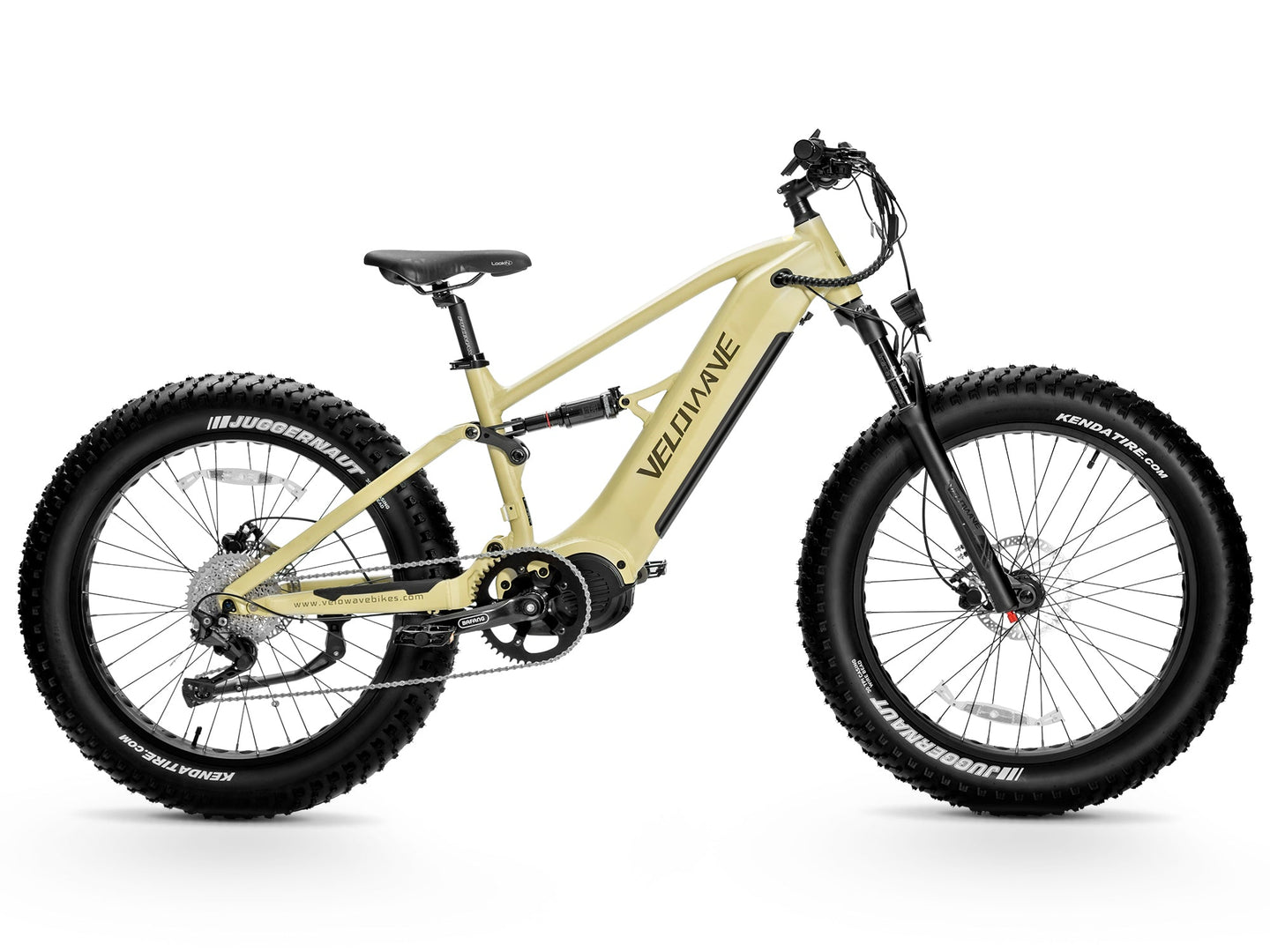

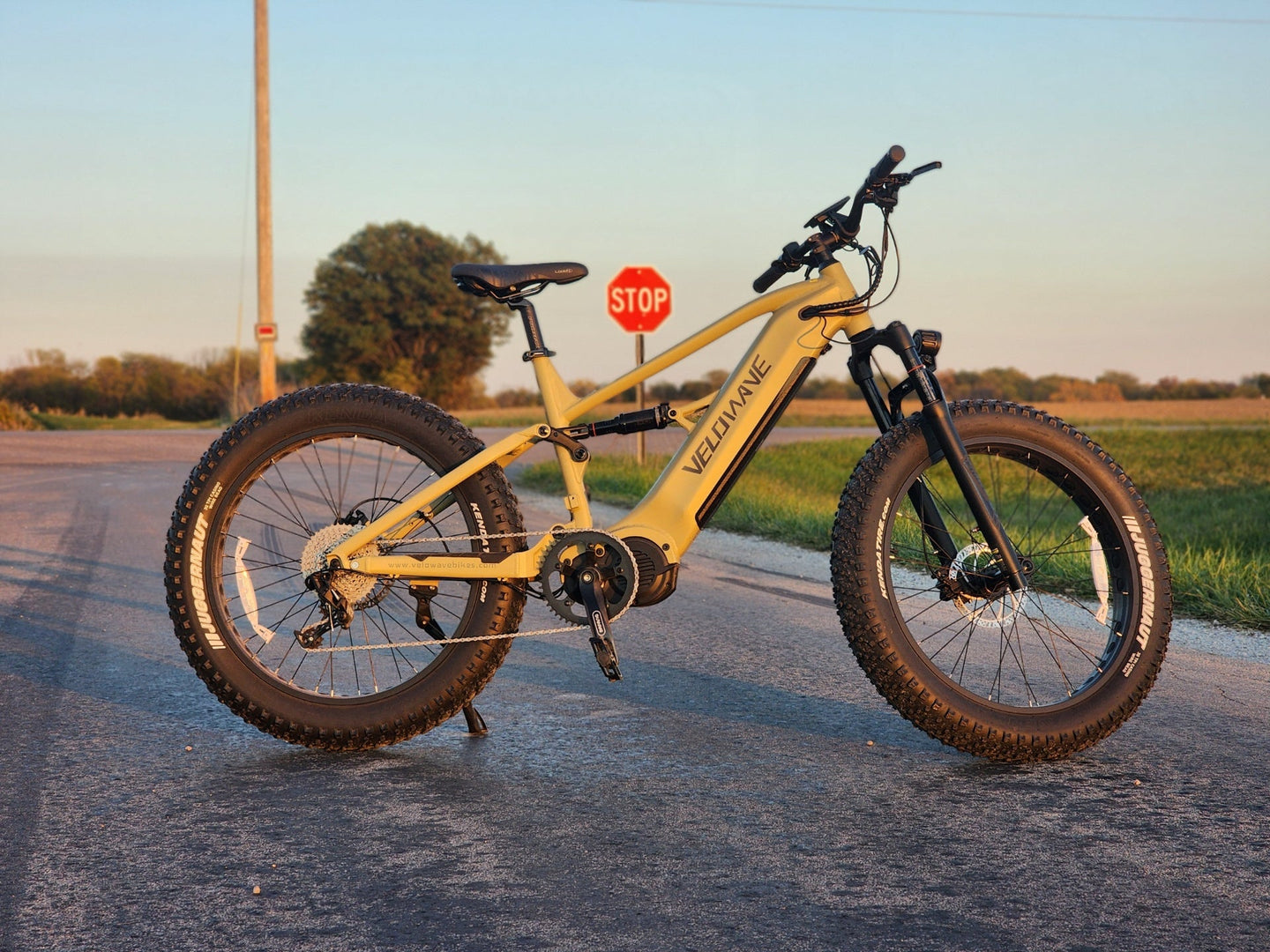

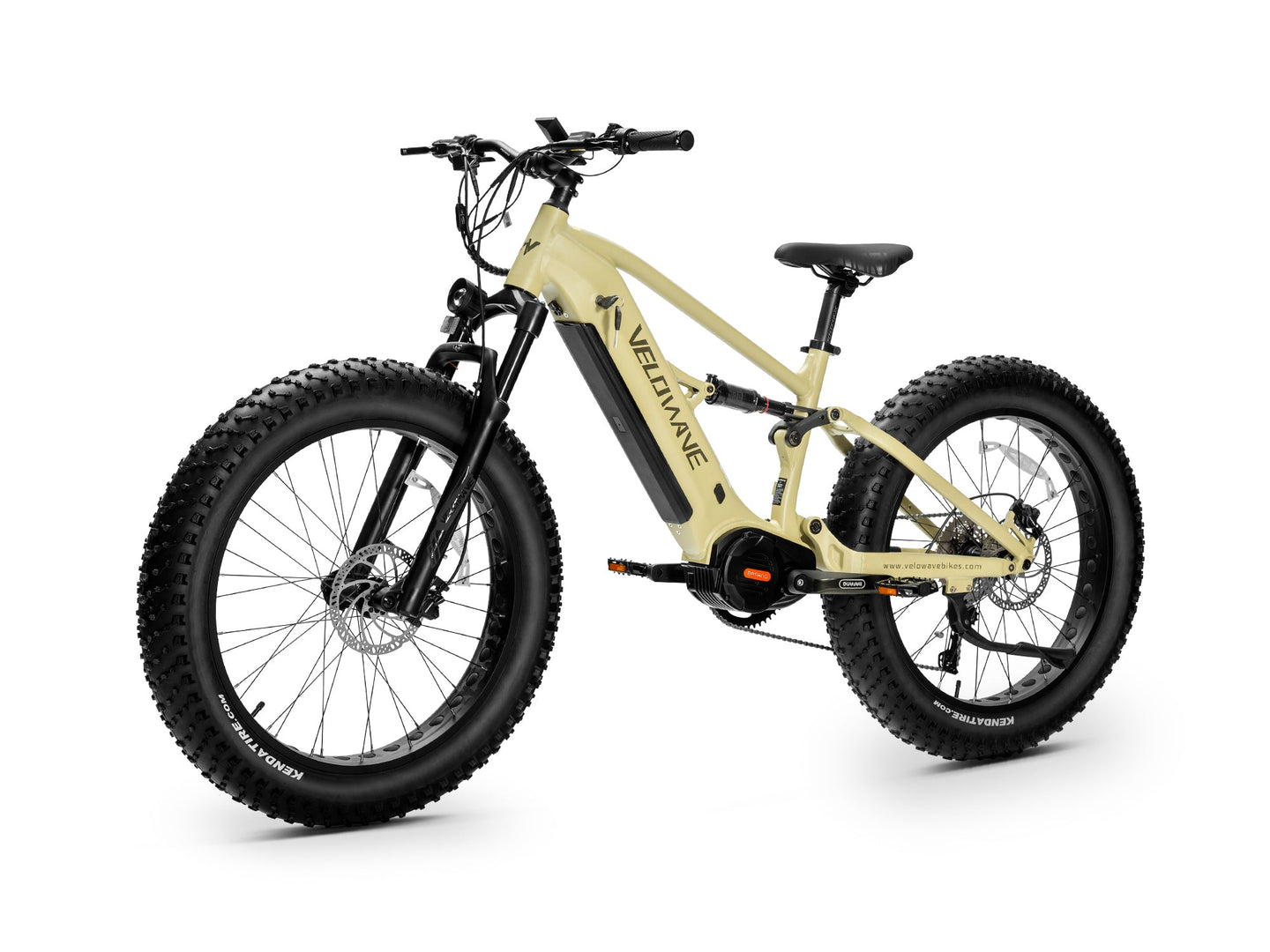

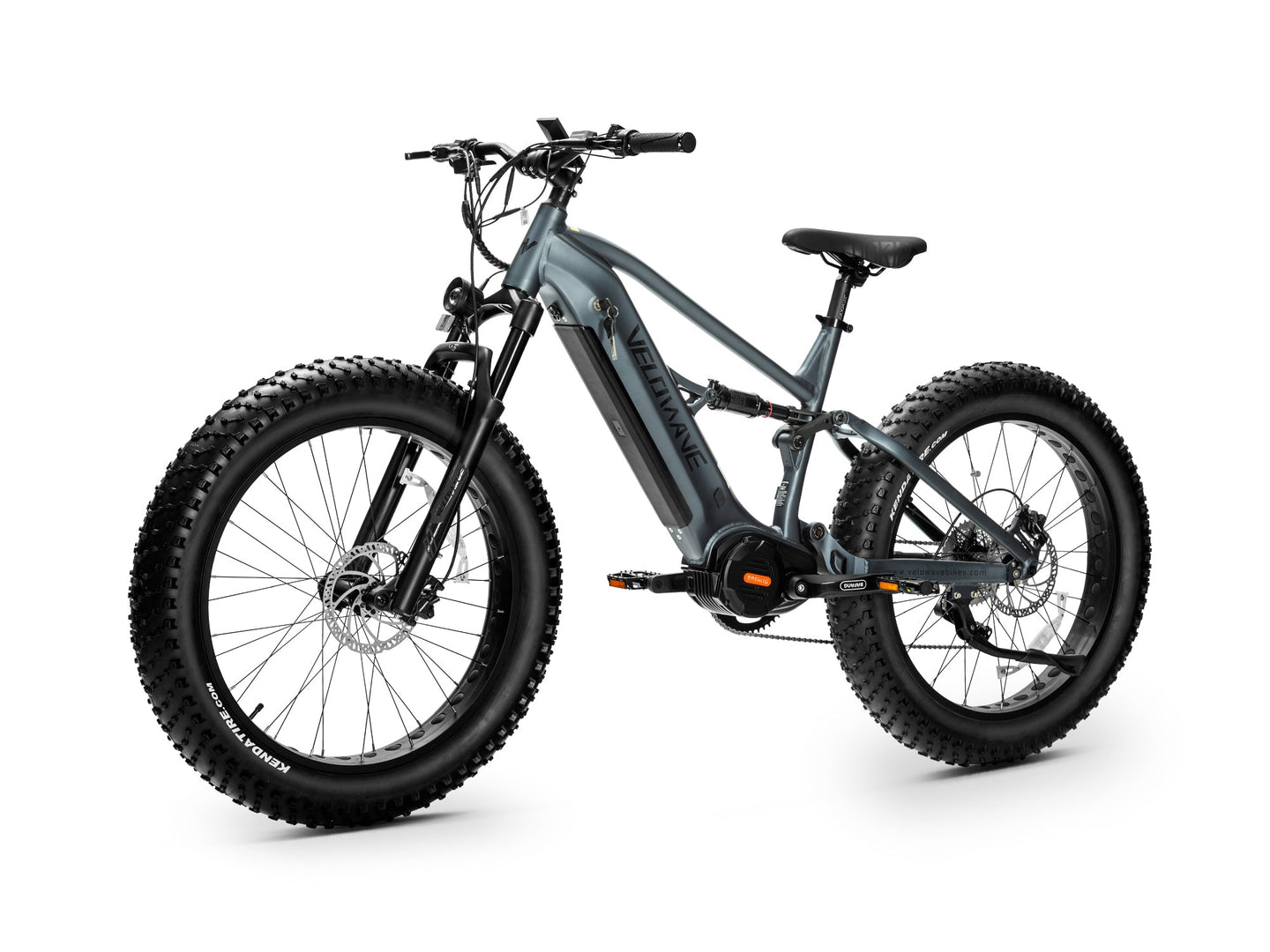

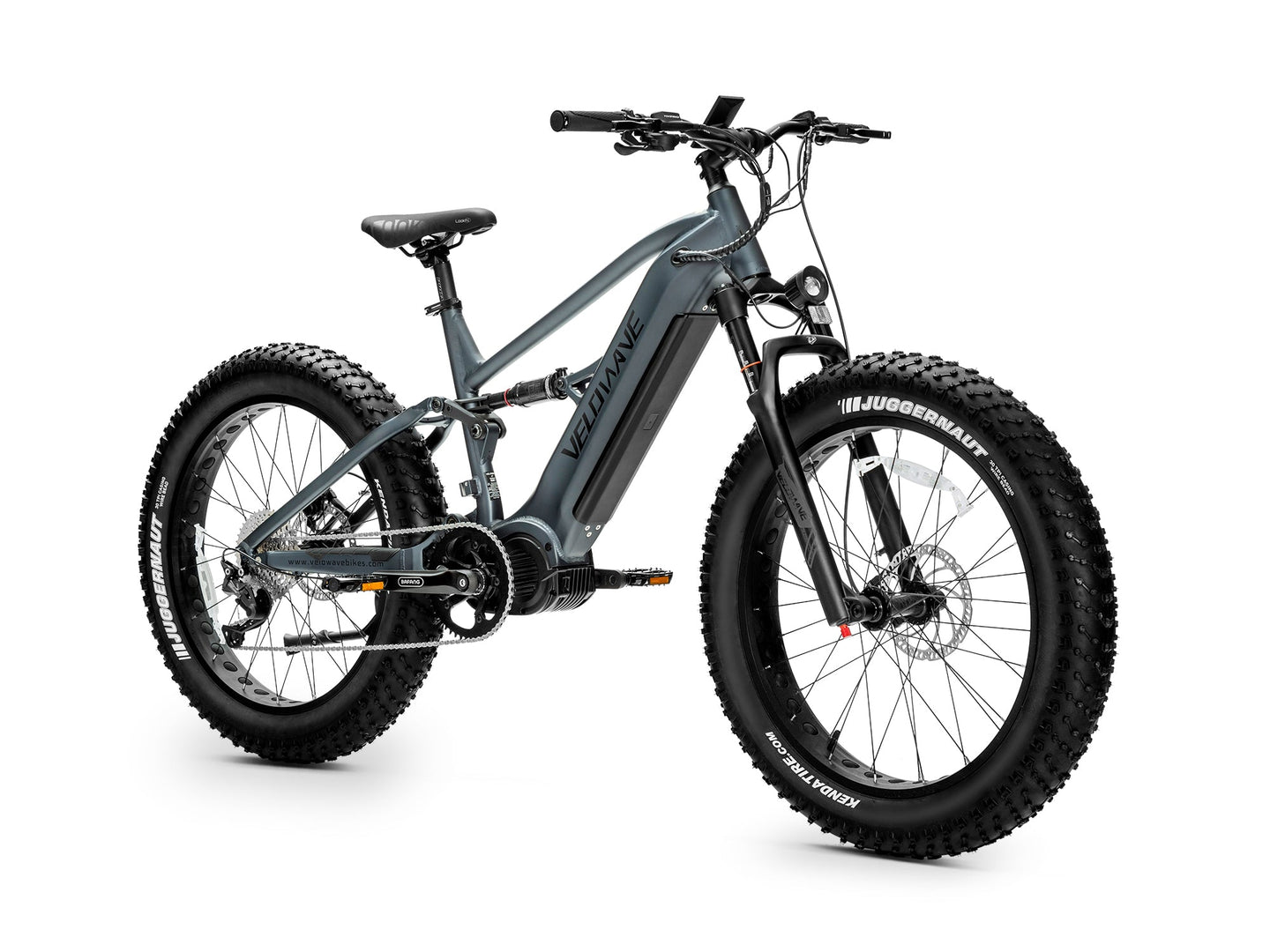

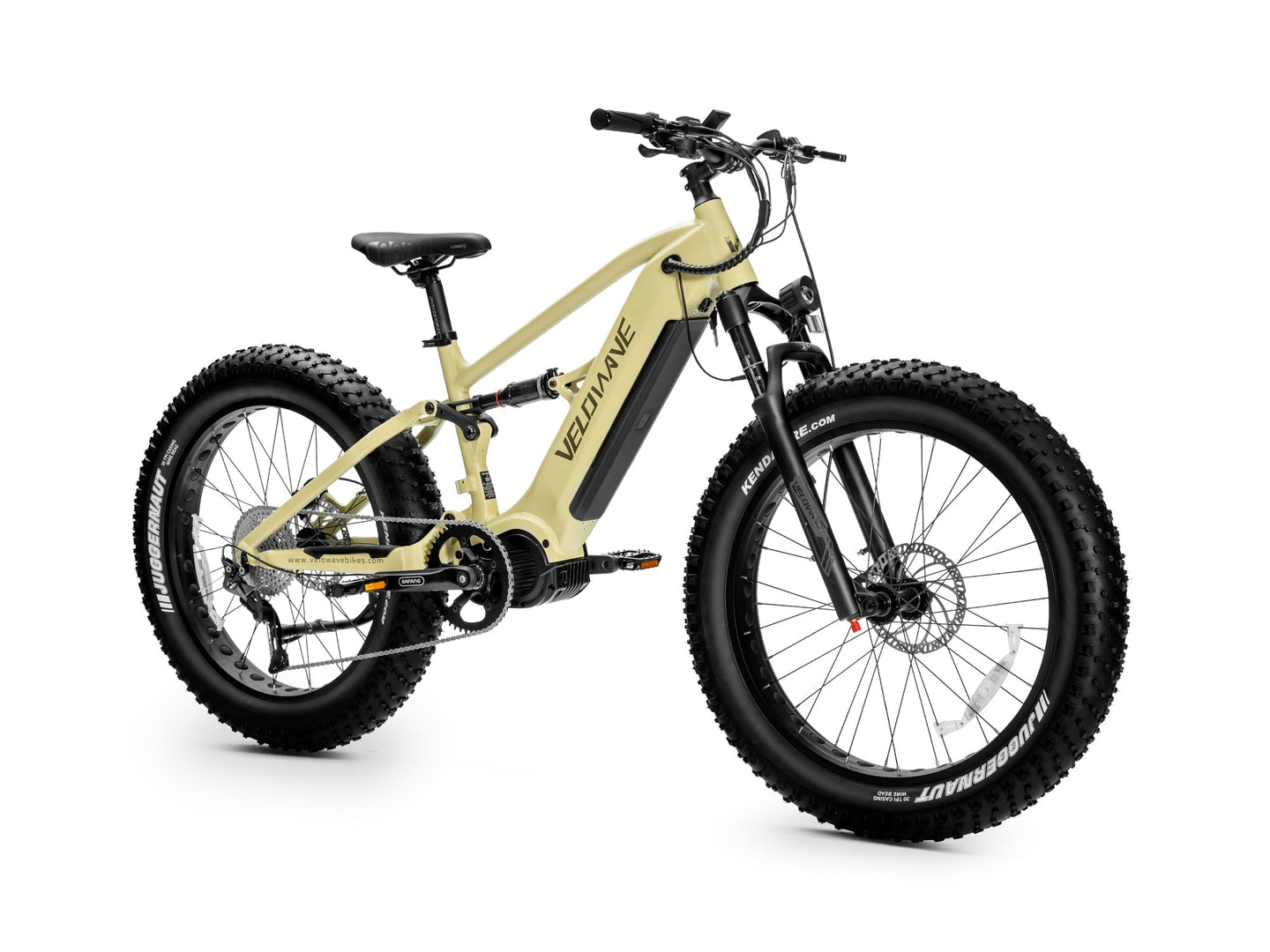

Velowave Brawny XM Full Suspension Fat Tire Electric Bike 1000W

The Brawny XM is the most powerful bike in the Velowave lineup. A 1000W motor peaking at 1200W delivers 160Nm of torque - double the output of the Ranger series - through a torque sensor that keeps power delivery smooth and controlled even at these output levels. With 37 MPH on pedal assist and up to 85 miles of range from the 48V 20Ah LG battery (960Wh), this is an off-road class e-bike built for riders who want serious performance on trails, fire roads, and rugged terrain.

Full suspension separates the Brawny from everything else Velowave makes. An air suspension fork with 100mm travel and lockout handles the front, while a Rockshox RS-MNR-R-C4 rear shock provides 44mm of additional travel with external rebound adjustment - totaling 139mm of combined frame travel. The 26" x 4.8" Kenda fat tires (the widest in the lineup) pair with Tektro hydraulic disc brakes and a Shimano 10-speed drivetrain with Deore derailleur. A TFT color display and 6-level pedal assist round out a package that is purpose-built for off-road performance. No fenders or rack - this bike is about trail capability, not commuting.

Features

• 1000W Motor (1200W Peak, 160Nm) - The most powerful Velowave motor with double the torque of the Ranger for extreme hill climbing and loaded riding
• Full Suspension with Rockshox Rear Shock - 100mm front fork travel + 44mm Rockshox rear with external rebound adjustment for 139mm total frame travel
• 48V 20Ah LG Battery (960Wh) - Up to 85 miles on PAS, 60 miles on throttle, removable with 7-hour charge time
• 26" x 4.8" Kenda Fat Tires - Widest tires in the Velowave lineup for maximum off-road traction and stability
• 37 MPH Top Speed - Off-road class rating for high-speed trail riding on pedal assist
• Torque Sensor with 6-Level PAS - Proportional power delivery across six levels for fine-tuned control
• Shimano 10-Speed Drivetrain - Deore RD-M4120 derailleur with 11-42T cassette for massive gear range
• Tektro Hydraulic Disc Brakes - 180mm rotors with power-cut-off for confident high-speed stopping
• TFT Smart Color Display - Easy-read screen with backlight for trail and low-light conditions
• 385 lb Payload Capacity - Handles heavier riders and gear for loaded trail riding

Specifications

• Class: Off-Road (37 MPH pedal assist, 20 MPH throttle)

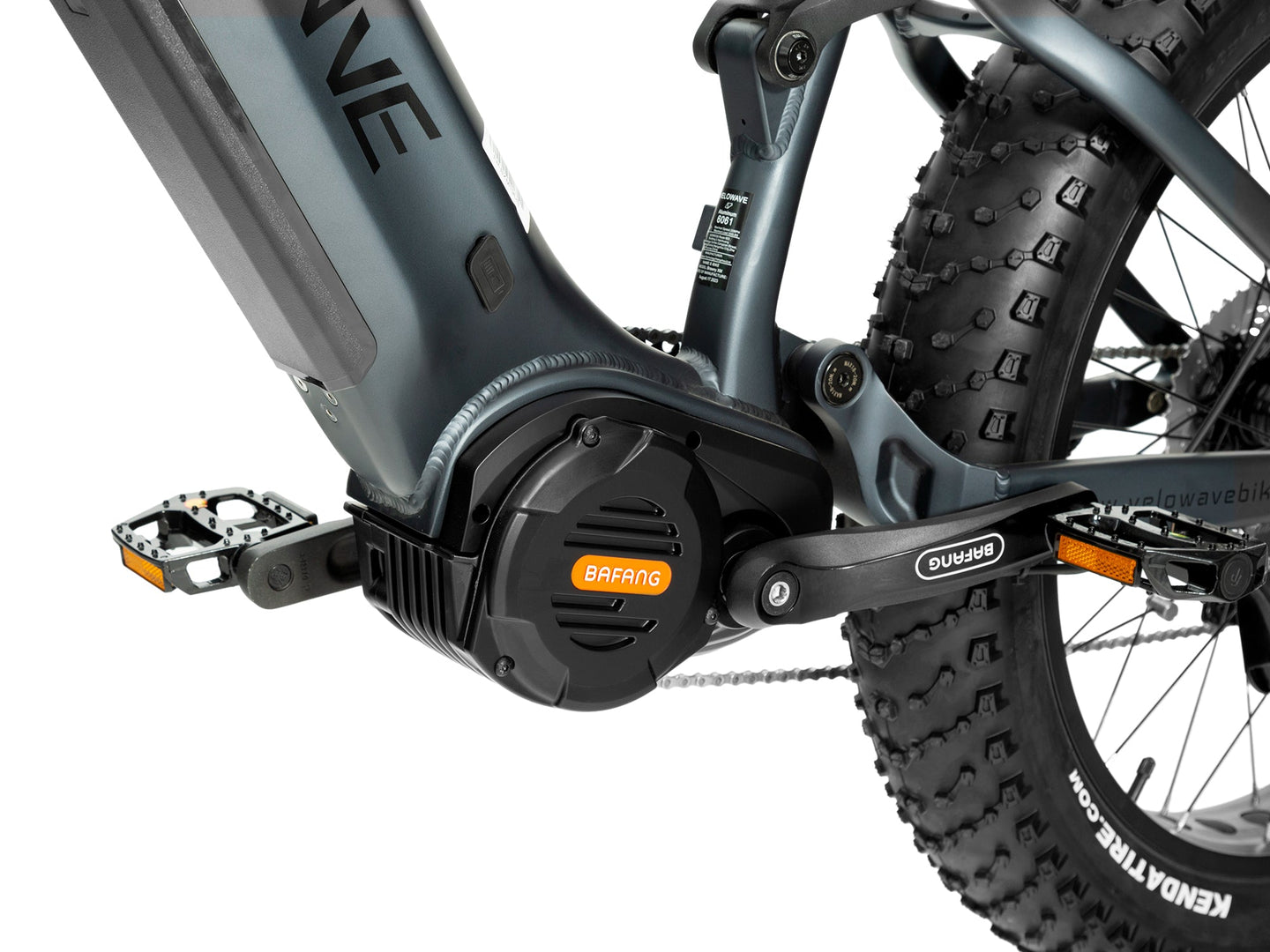

• Motor: 1000W (Peak 1200W), 160Nm Torque

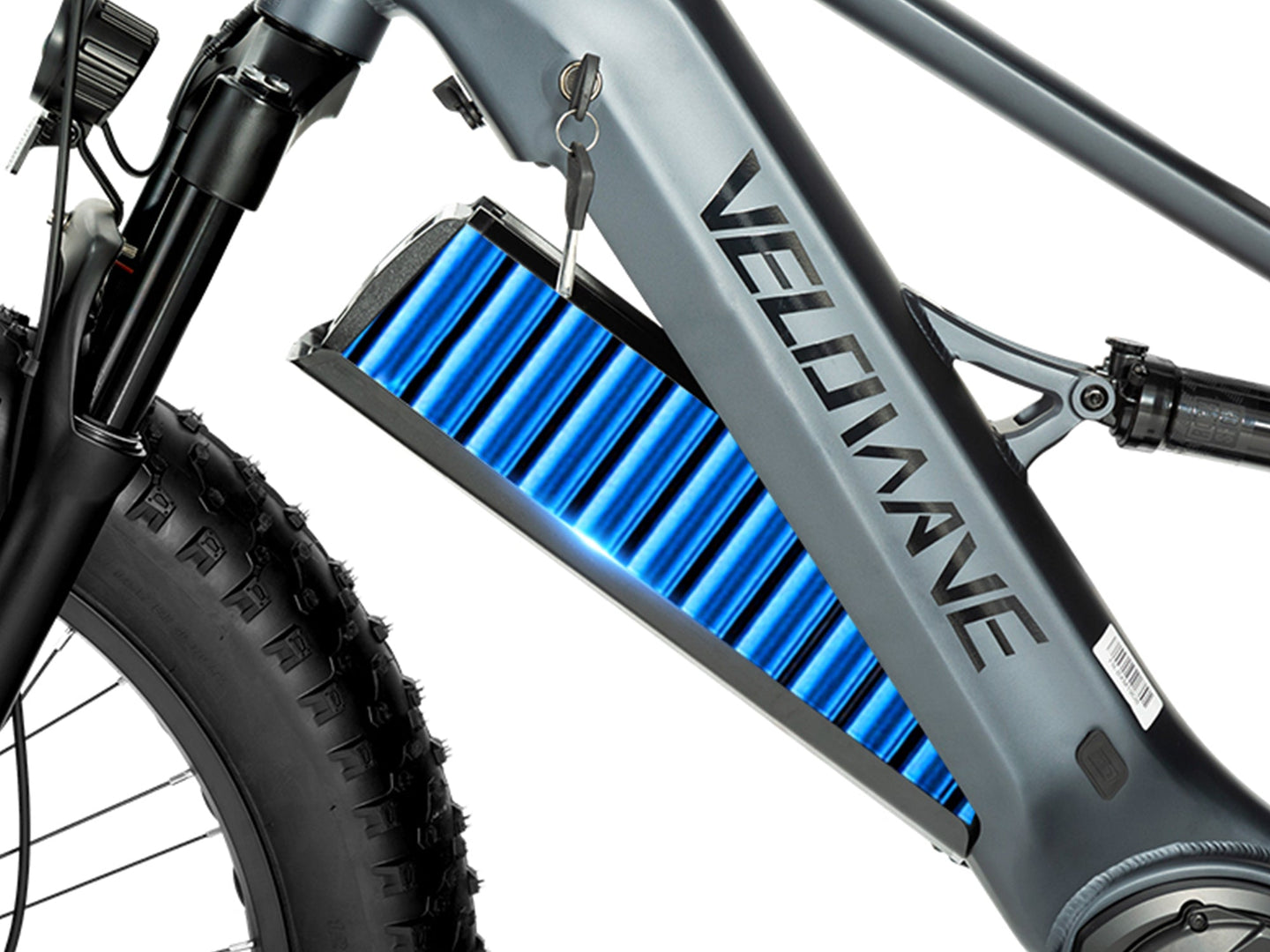

• Battery: 48V 20Ah (960Wh), LG Cells, Removable Internal
• Charger: 48V 3A, Approx. 7 Hour Charge
• Range: Avg. 75 Miles PAS / Up to 85 Miles Level 1 / 60 Miles Throttle
• Pedal Assist: 6 Levels, Torque Sensor
• Throttle: On Demand from Complete Stop
• Display: TFT Smart Color Display with Backlight
• Frame: 6061 Aluminum Alloy, Internal Battery, Full Suspension, 139mm Frame Travel
• Fork: Air Suspension, 100mm Travel, Lockout

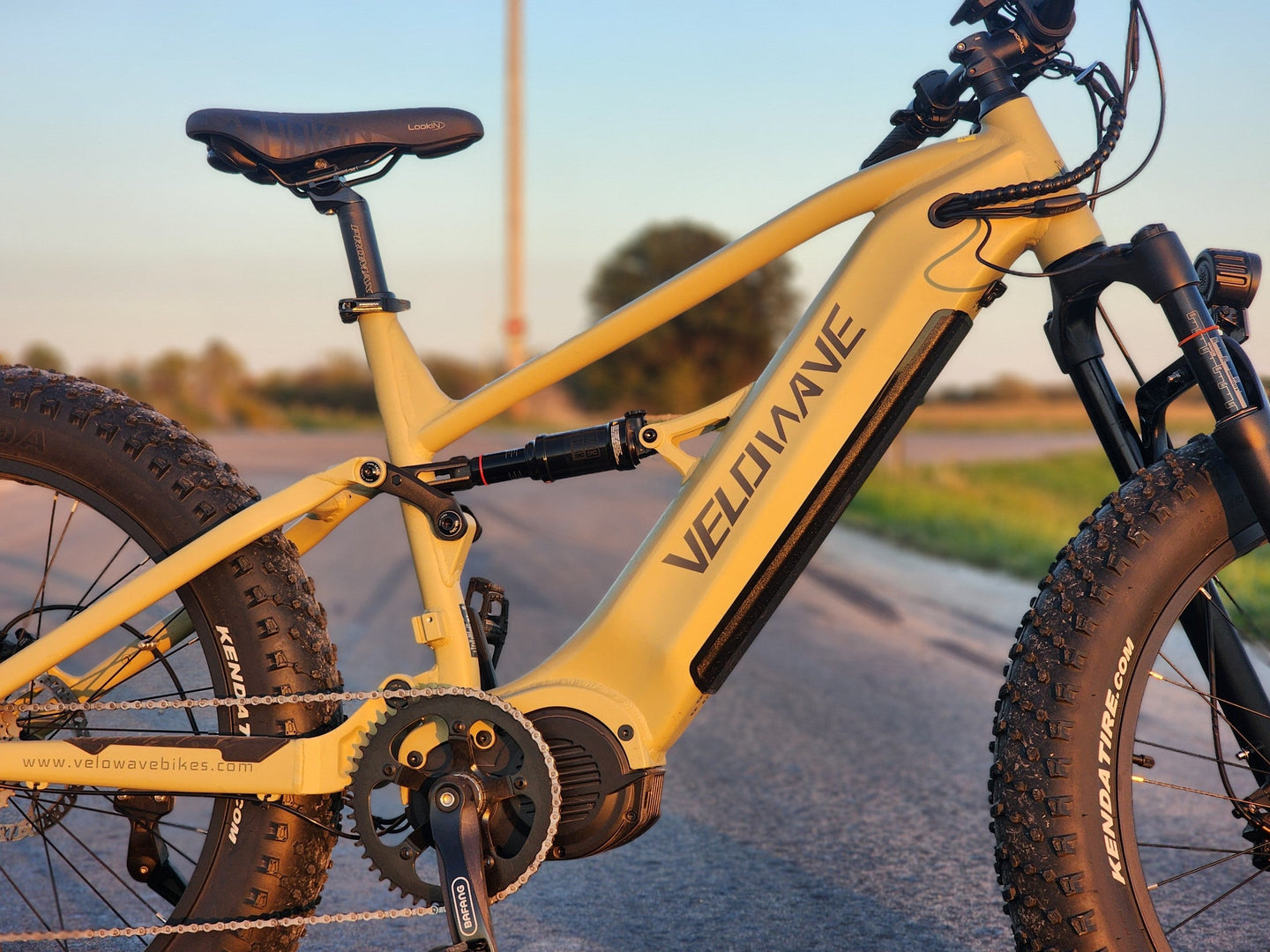

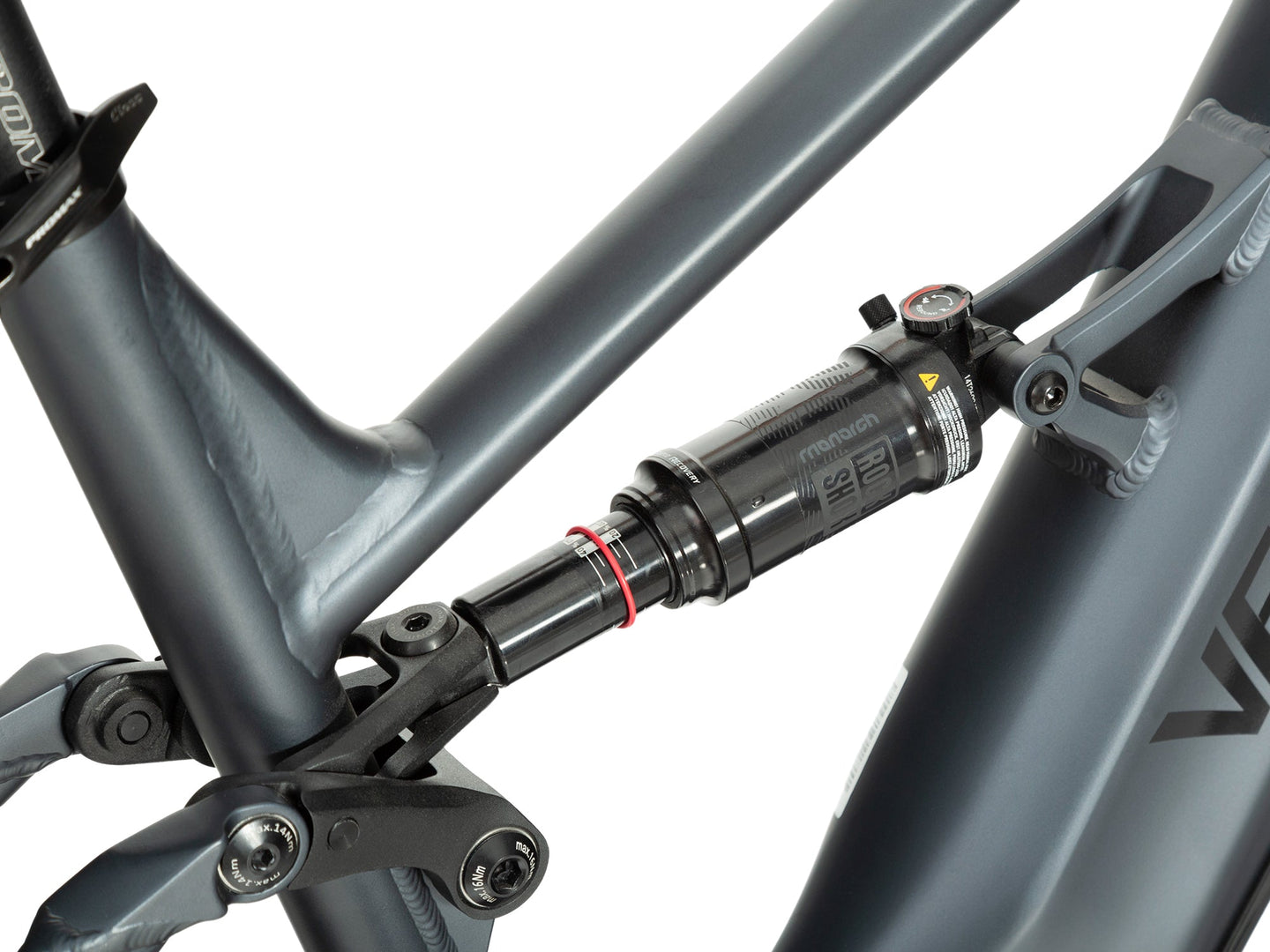

• Rear Suspension: Rockshox RS-MNR-R-C4, 184x44 Air Spring, 44mm Travel, External Rebound
• Tires: Kenda 26" x 4.8" Fat Tires
• Rims: Aluminum 26" 36H Front and Rear
• Brakes: Tektro Hydraulic Disc, 180mm Rotors, Power-Cut-Off
• Shifter: Shimano 10-Speed Thumb Shift

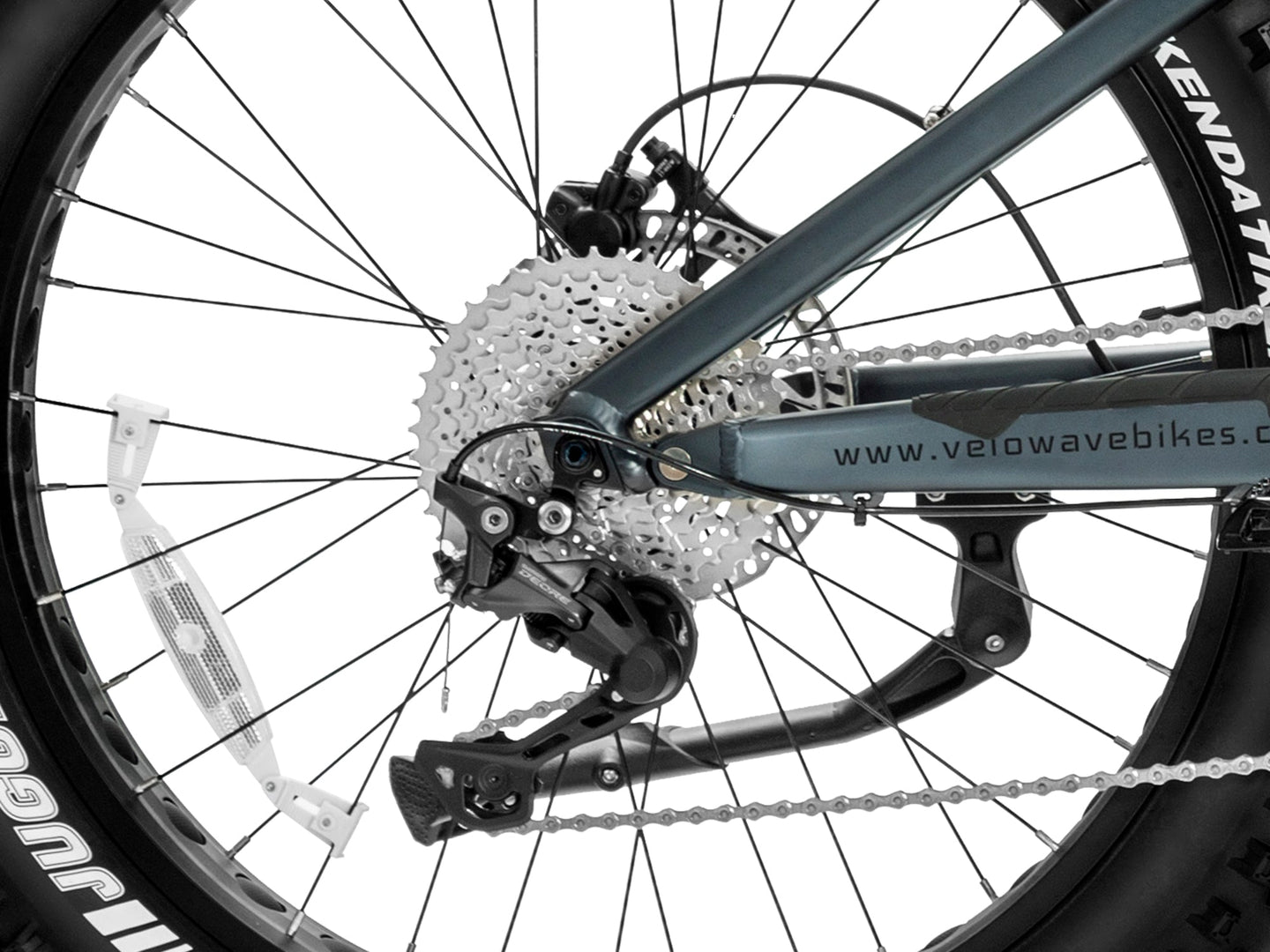

• Derailleur: Shimano Deore RD-M4120
• Crankset: 170mm w/ 48T
• Cassette: Shimano 11-42T, 10-Speed
• Chain: KMC 134 Link, 10-Speed
• Front Light: 48V LED, 80 LUX
• Tail Light: Rear Blinking Light
• Net Weight: 82 lbs / 37.2 kg (with battery)
• Gross Weight: 111 lbs / 50.5 kg
• Battery Weight: 11.4 lbs / 5.15 kg
• Max Payload: 385 lbs / 175 kg
• Fenders: Not Included
• Rear Rack: Not Included
• Frame Size: 17"
• Standover Height: 774mm
• Seat Height: 841-1040mm
• Wheelbase: 1318mm
• Product Size: 2100 x 1158 x 745mm
