Rich Solar | Waterproof Circuit Breaker 30A/40A/60A/80A/100A/120A/150A/200A/250A | RS-CB30

Durable Protection for DC Electrical Systems

Overview

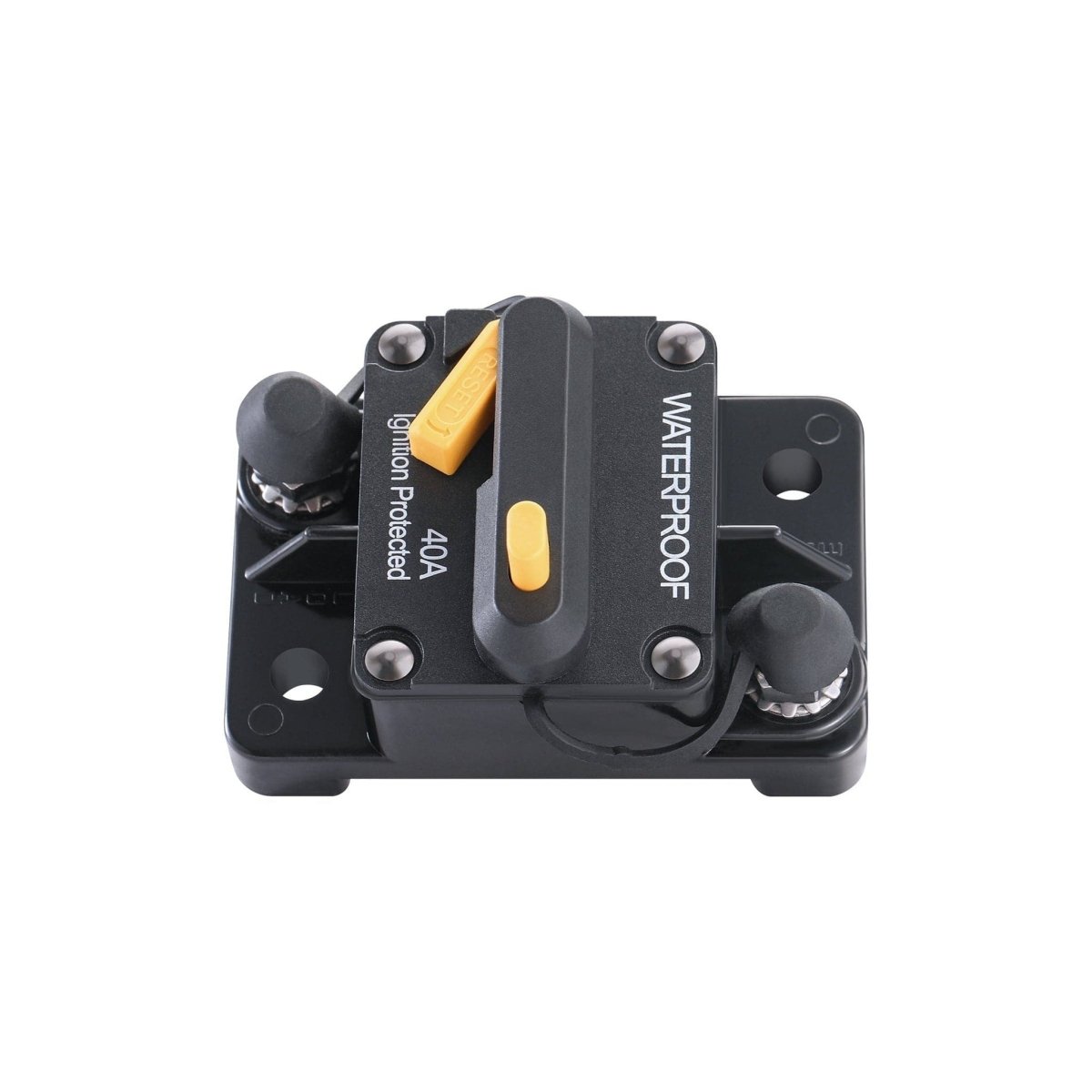

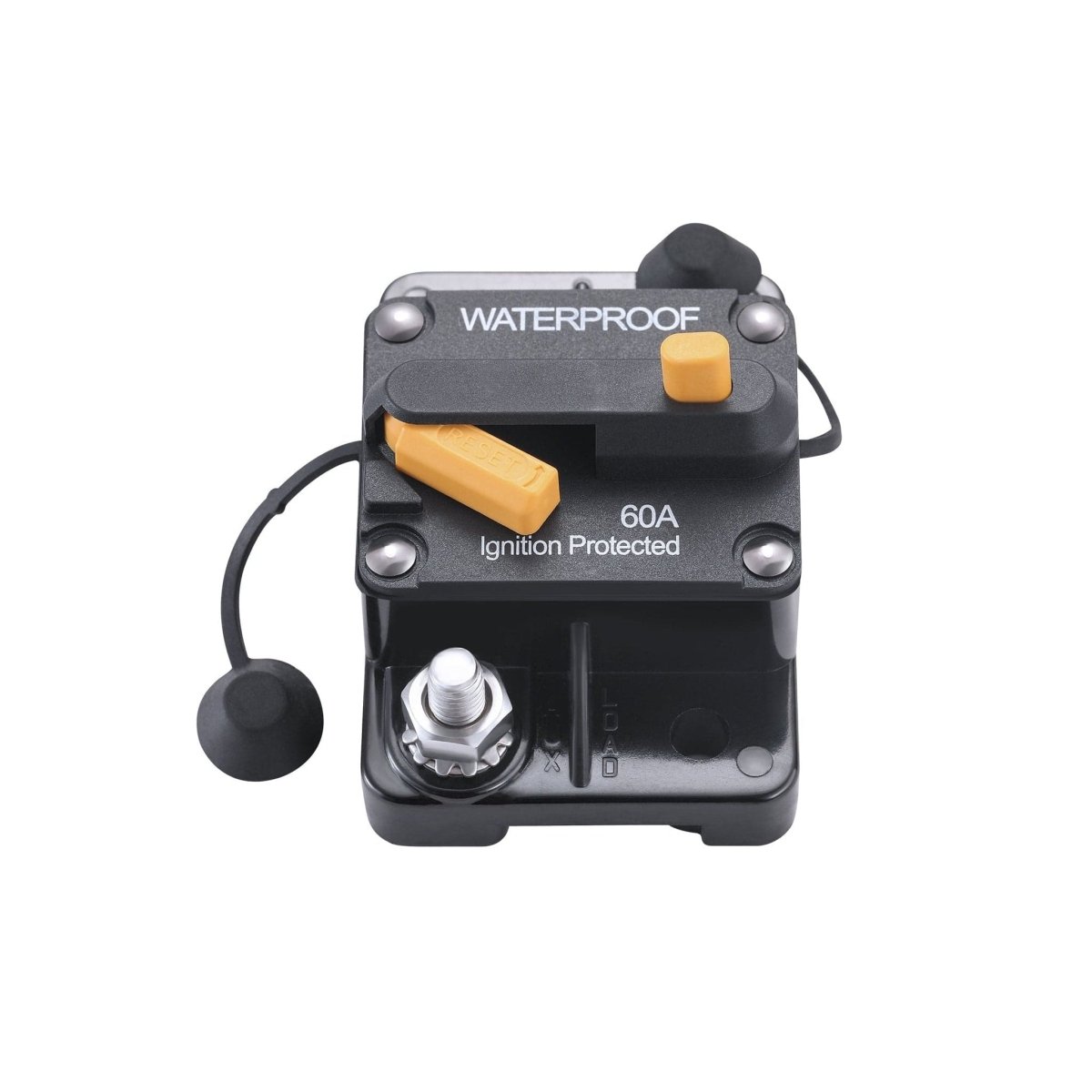

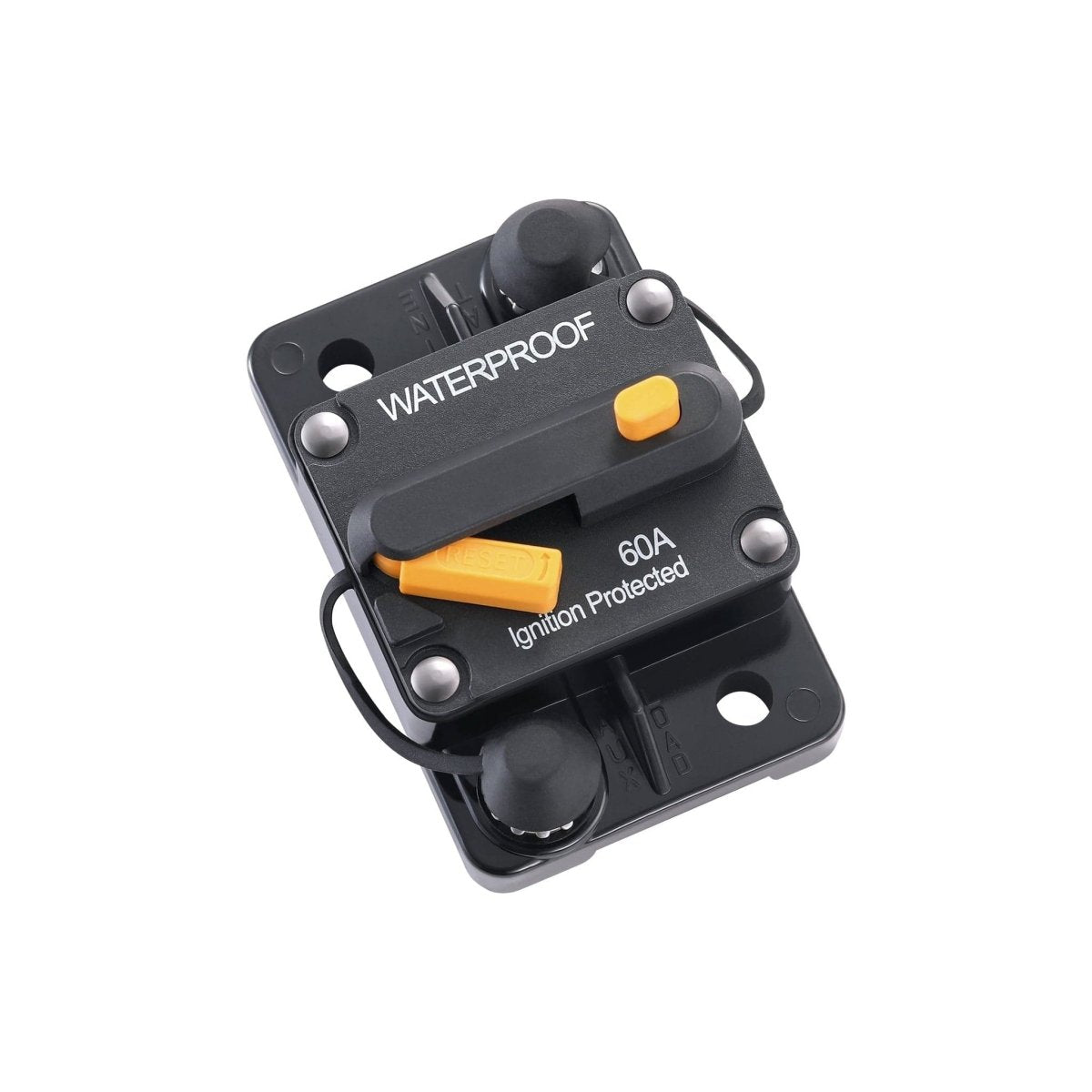

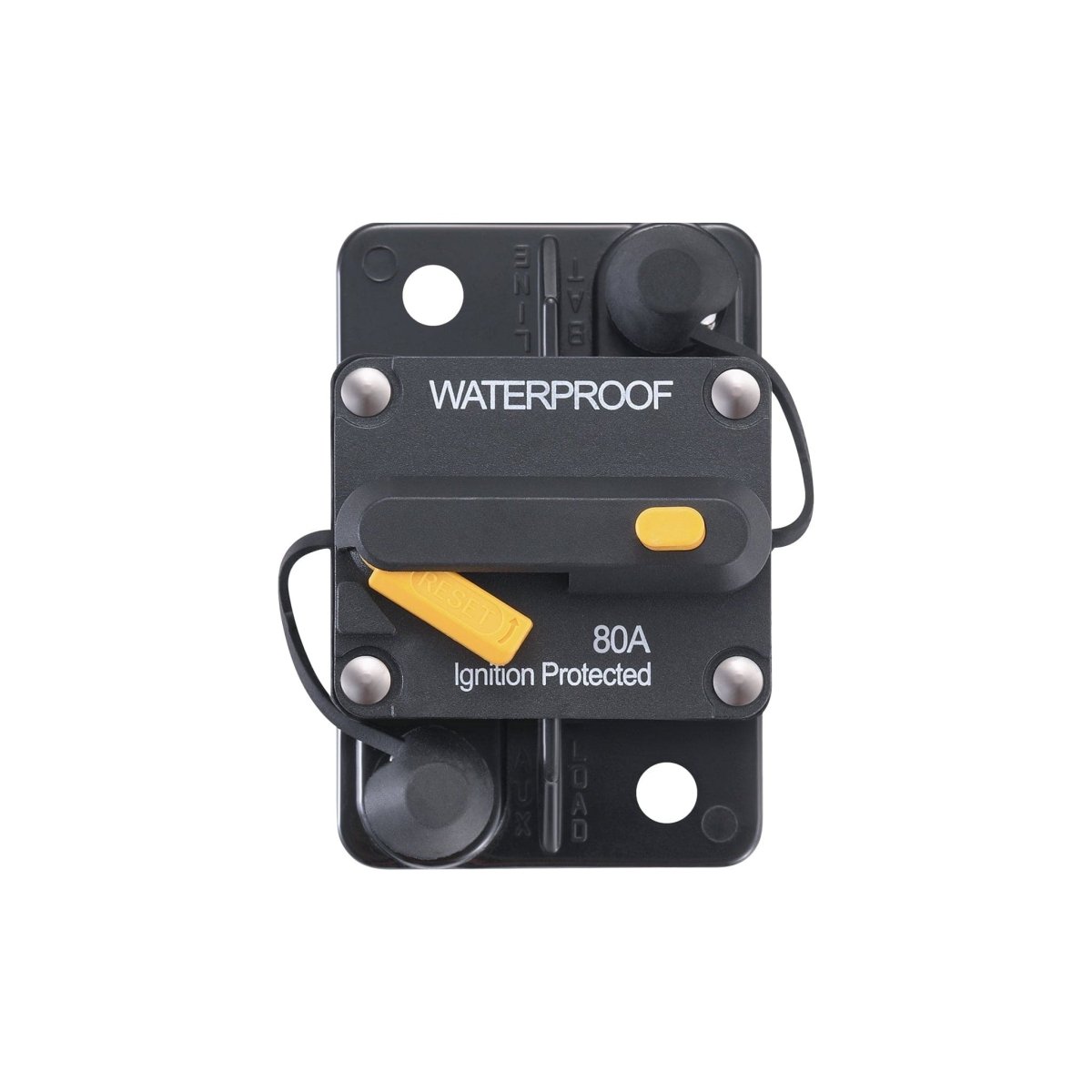

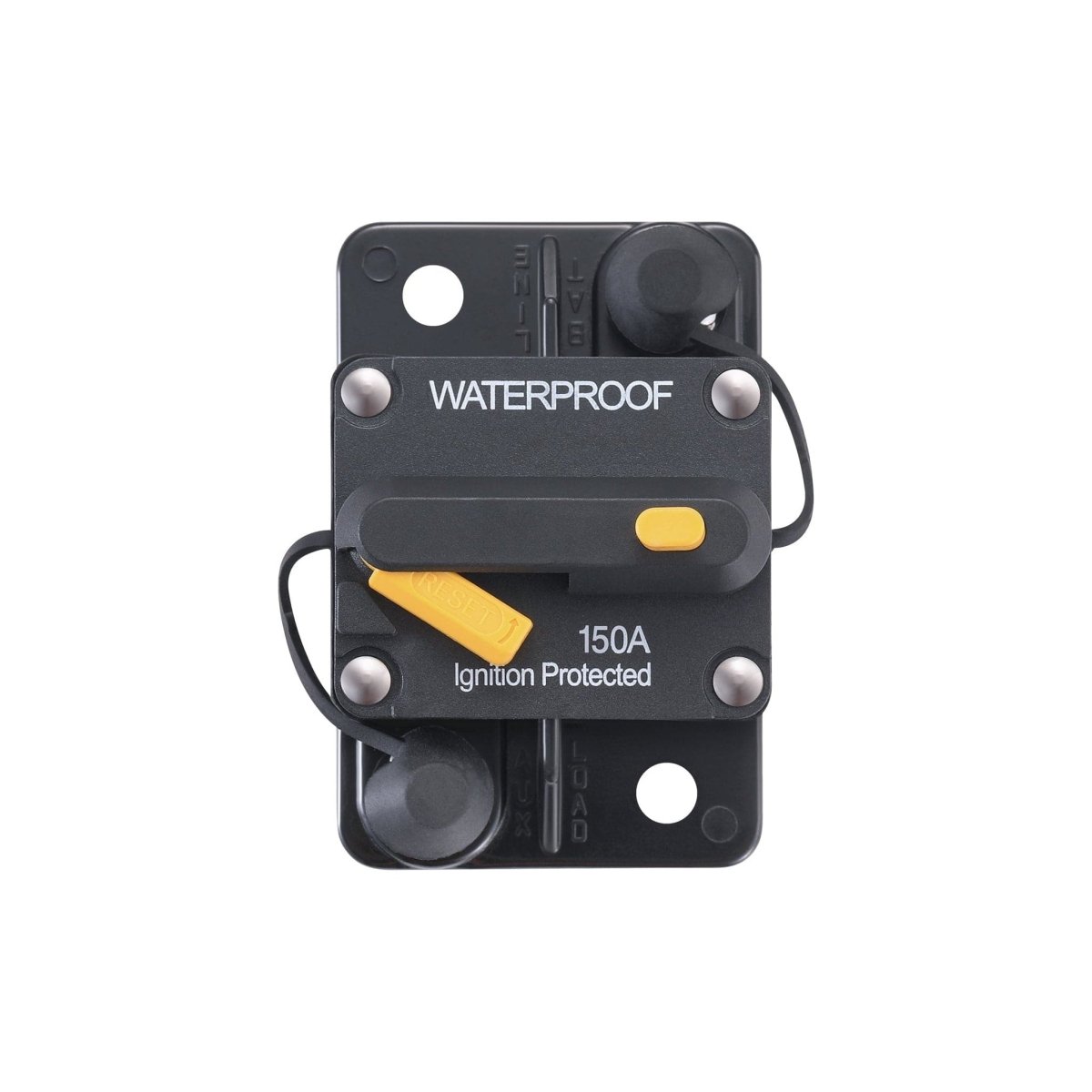

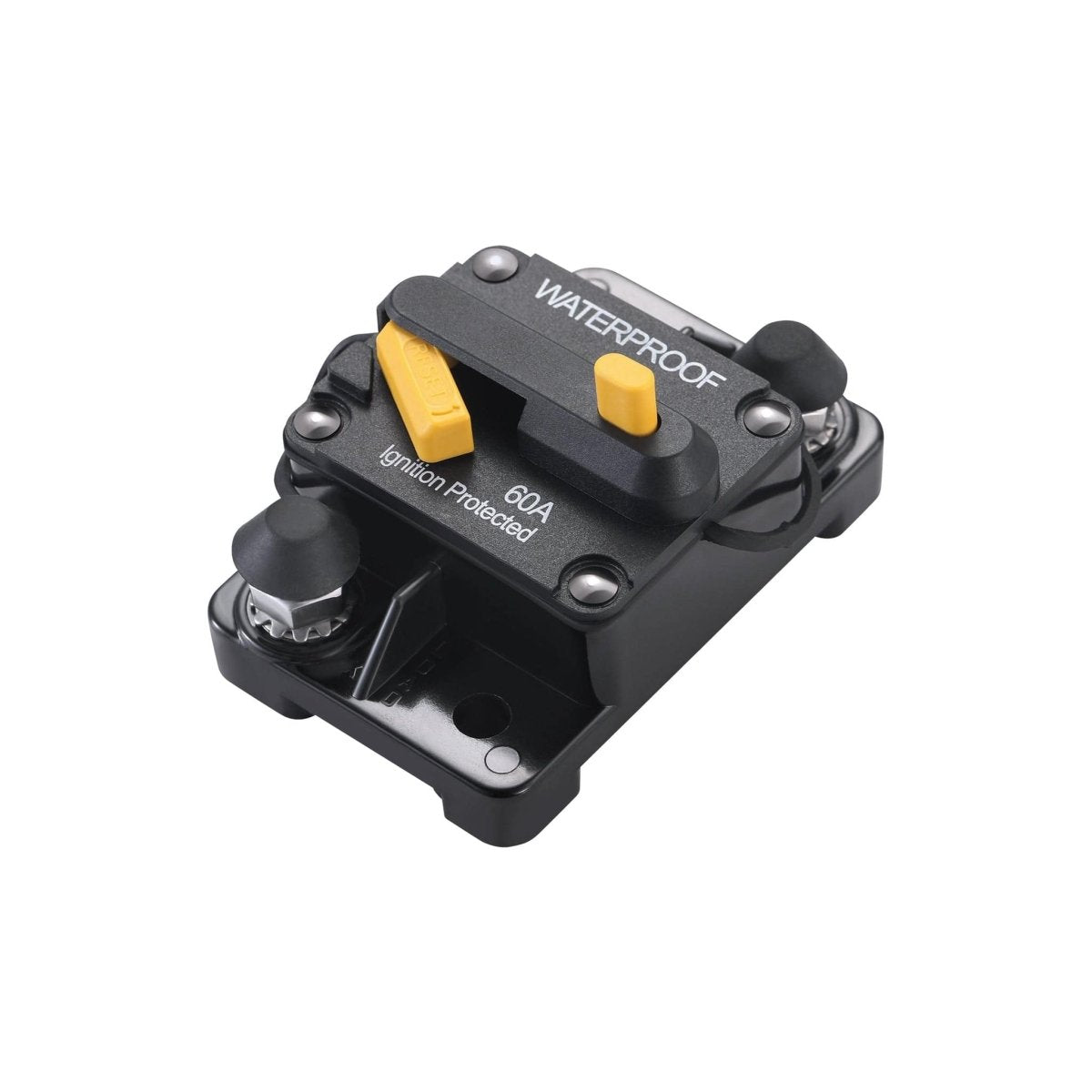

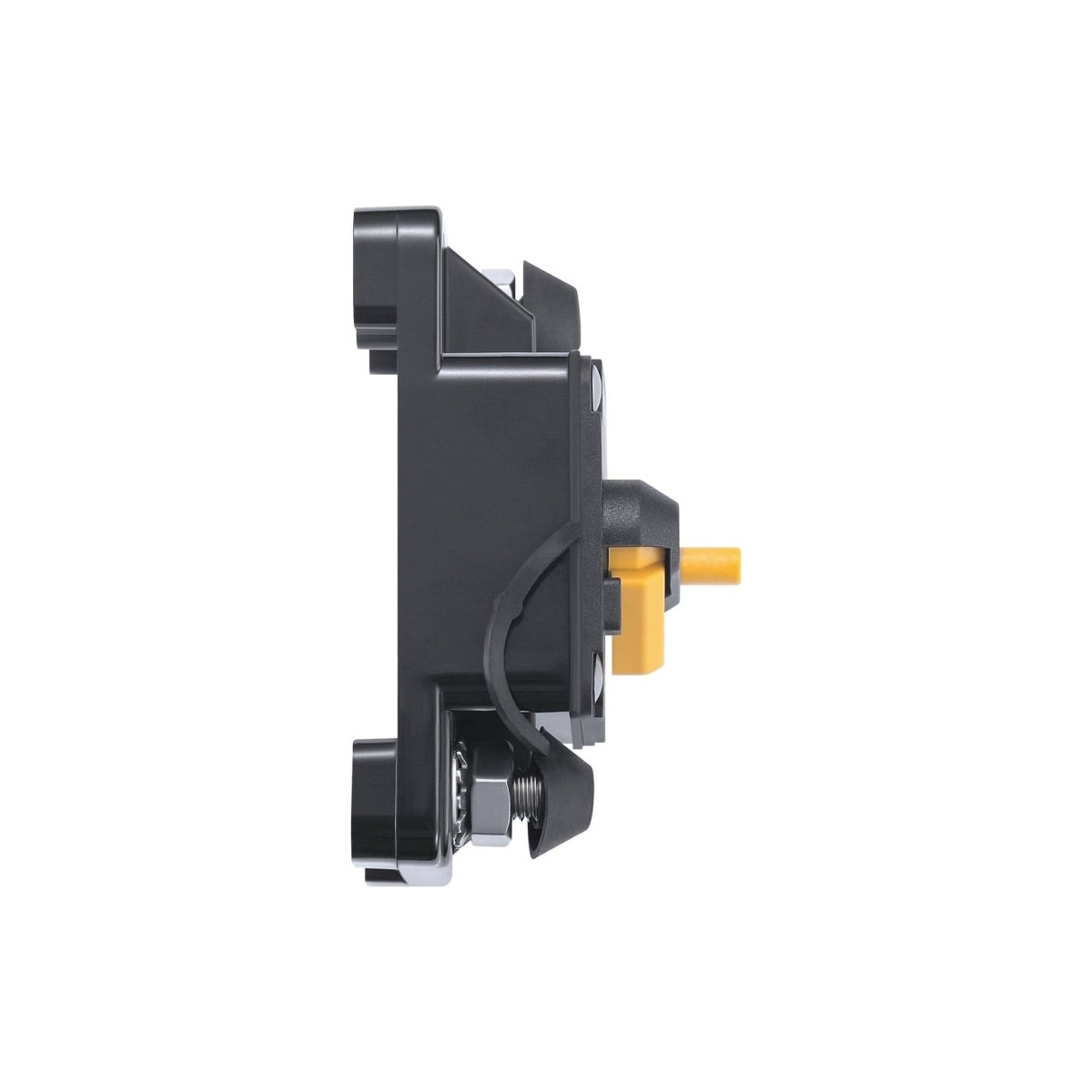

The Single Pole Waterproof Circuit Breaker is built for safety and reliability across various DC applications. It offers current ratings from 30A to 250A and provides thermal overcurrent protection for auxiliary and accessory circuits in challenging conditions.

Benefits

• Suitable for truck bus RV and marine electrical systems
• Applicable for battery chargers and DC audio systems
• Commonly used in compartment and bilge area installations

Features

• Thermal type that automatically resets or can be manually reset after a fault
• Single pole design for compactness and ease of installation
• Waterproof housing to endure harsh and wet environments
• Wide amp ratings available including 30A 40A 60A 80A 100A 120A 150A 200A and 250A
• Durable construction resistant to vibration moisture and corrosion

Specifications

• Rating: 25-250A 30VDC and 48VDC
• Interrupt rating: 3000A at 30VDC
• Operating temperature: -25°F (-32°C) to 180°F (82°C)
• Storage temperature: -30°F (-34°C) to 300°F (149°C)
• Materials: Black UL-rated 94V0 thermoset plastic with thermoplastic elastomer stud insulators for covered units with surface-mount bases
• Marking: Standard amp ratings and part numbers with custom markings available
• Termination: 1/4-28 or 3/8-16 threaded studs
• Torque rating: Maximum 50 in-lbs (5.6 N·m)
• Mounting torque: Panel or surface mount options at 50 in-lbs maximum, threaded insert option at 25 in-lbs maximum
• Ingress protection: IP67
• Compliance: SAE J1625 ABYC E-11 CE SAE J1171 ignition protected
