Rich Solar | Solar Kit 50W Panel + 20A MPPT Controller + Wiring & Mounting Brackets | RS-K502

Rich Solar 50 Watt Solar Kit with 50W Panel 20A MPPT Controller Wiring and Mounting Brackets

Overview

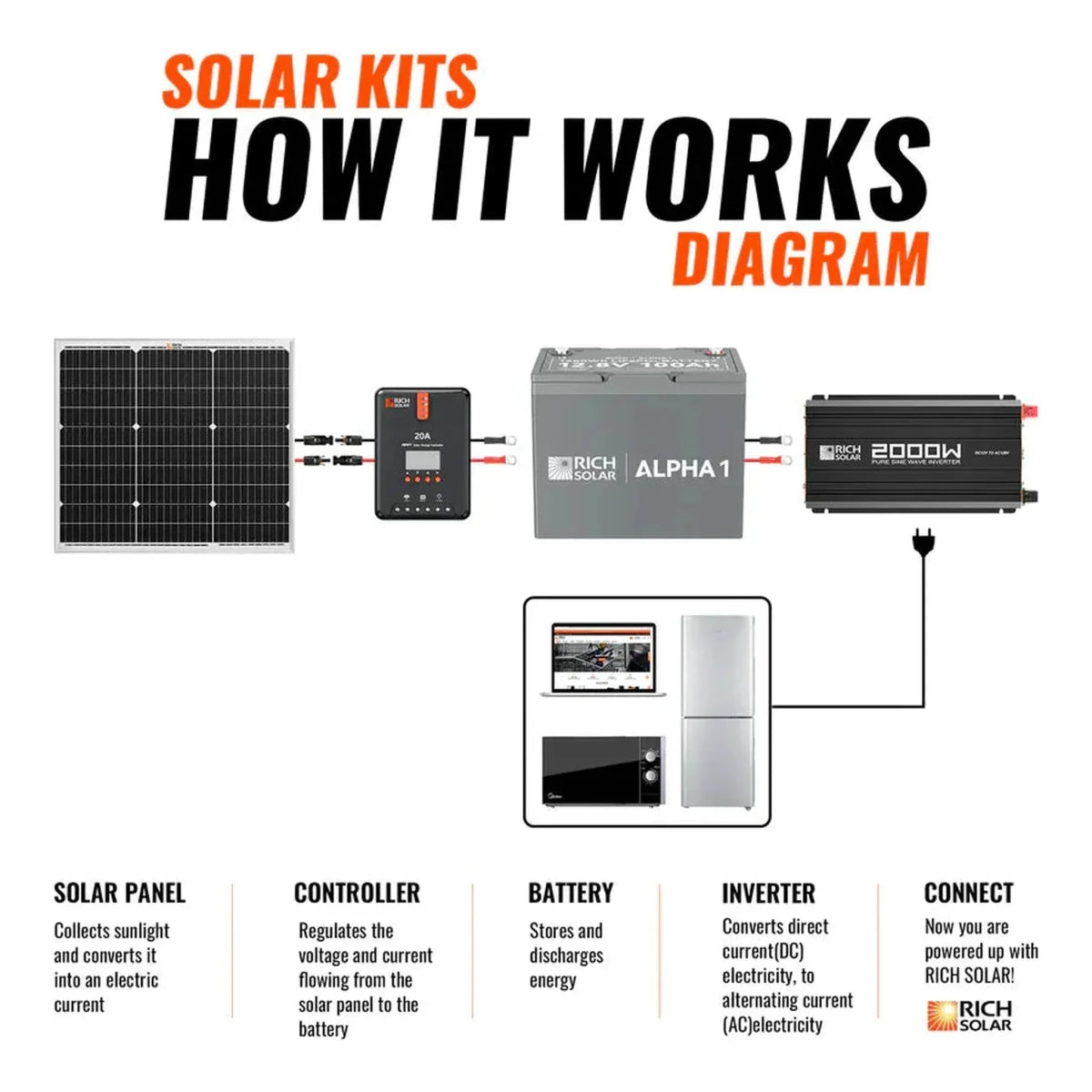

The Rich Solar 50 Watt Solar Kit provides a simple solution for powering small devices and maintaining batteries. Designed for straightforward DIY installation, this kit offers reliable off-grid solar power for applications such as RVs, boats, sheds, and remote equipment. The kit includes a high-efficiency 50 watt solar panel, a 20 amp MPPT charge controller, wiring, and mounting brackets.

Benefits

• Supports 12 volt off-grid power systems
• Compact and easy to install for DIY users
• Durable components built to withstand various environmental conditions
• Charge controller supports multiple battery types including sealed, gel, flooded, and lithium
• Efficient power conversion for better battery charging
• Protection features to prevent damage from wiring errors and electrical faults

Features

• 50 watt monocrystalline solar panel with strong tempered glass and aluminum frame
• IP67 rated for water and dust resistance
• 20 amp MPPT charge controller with automatic 12 volt or 24 volt system recognition
• High tracking efficiency up to 99 percent and peak conversion efficiency of 98 percent
• Electronic protections including reverse polarity, overcharging, over-discharging, overload, short circuit, and reverse current
• LCD display and LED indicators for system status and error codes
• Load control functions and ability to charge deeply discharged lithium batteries
• Die-cast aluminum housing for heat dissipation
• RS232 port compatible with Bluetooth module

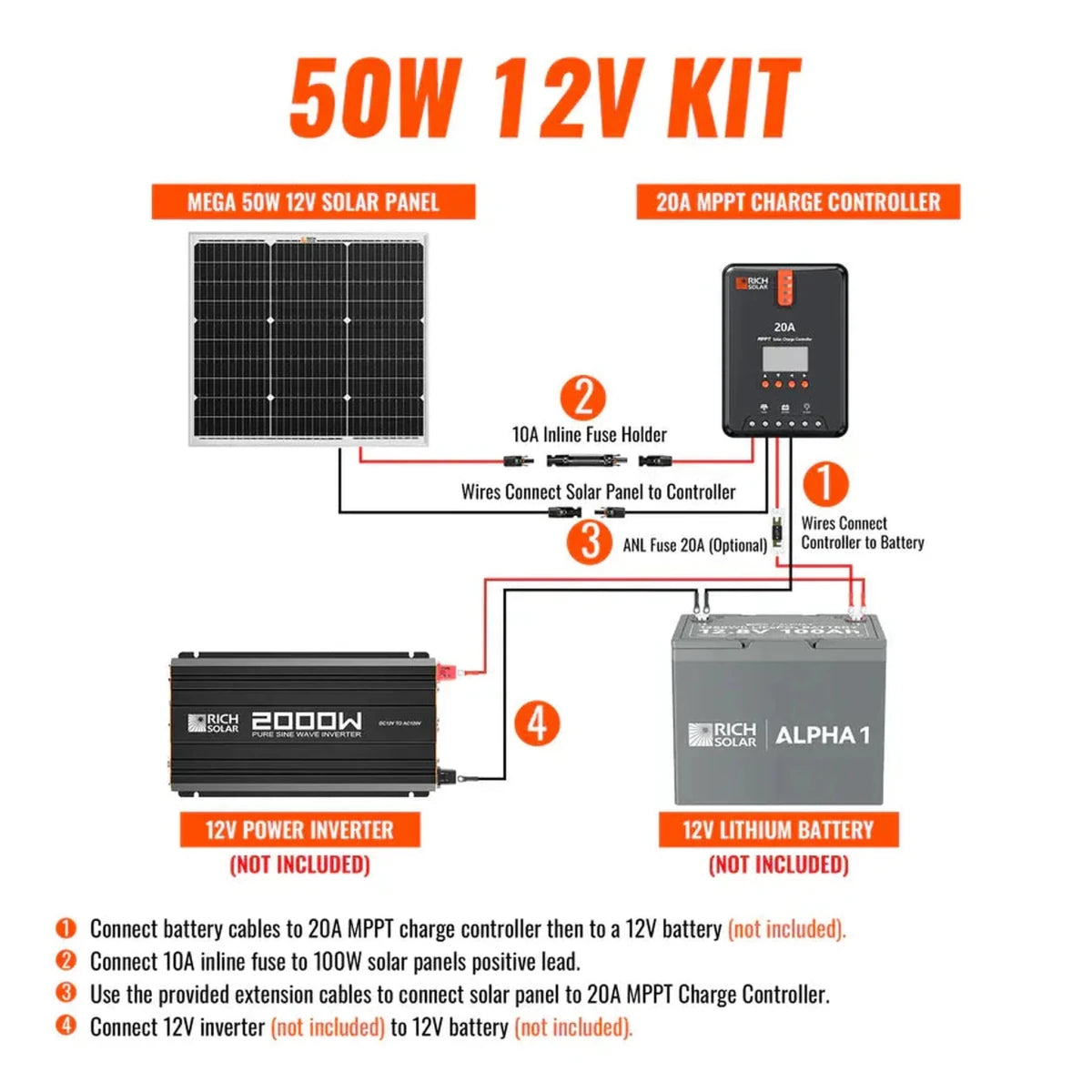

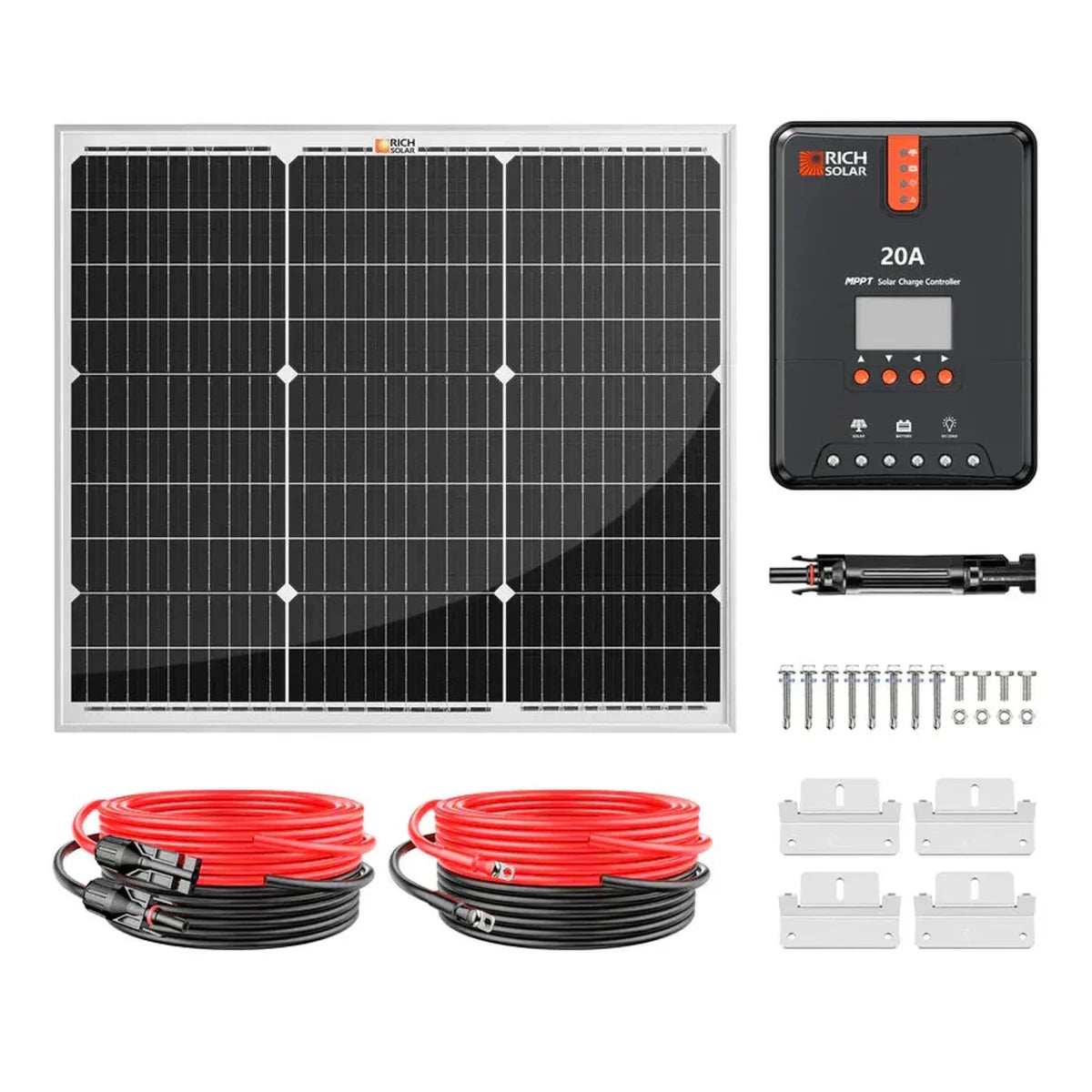

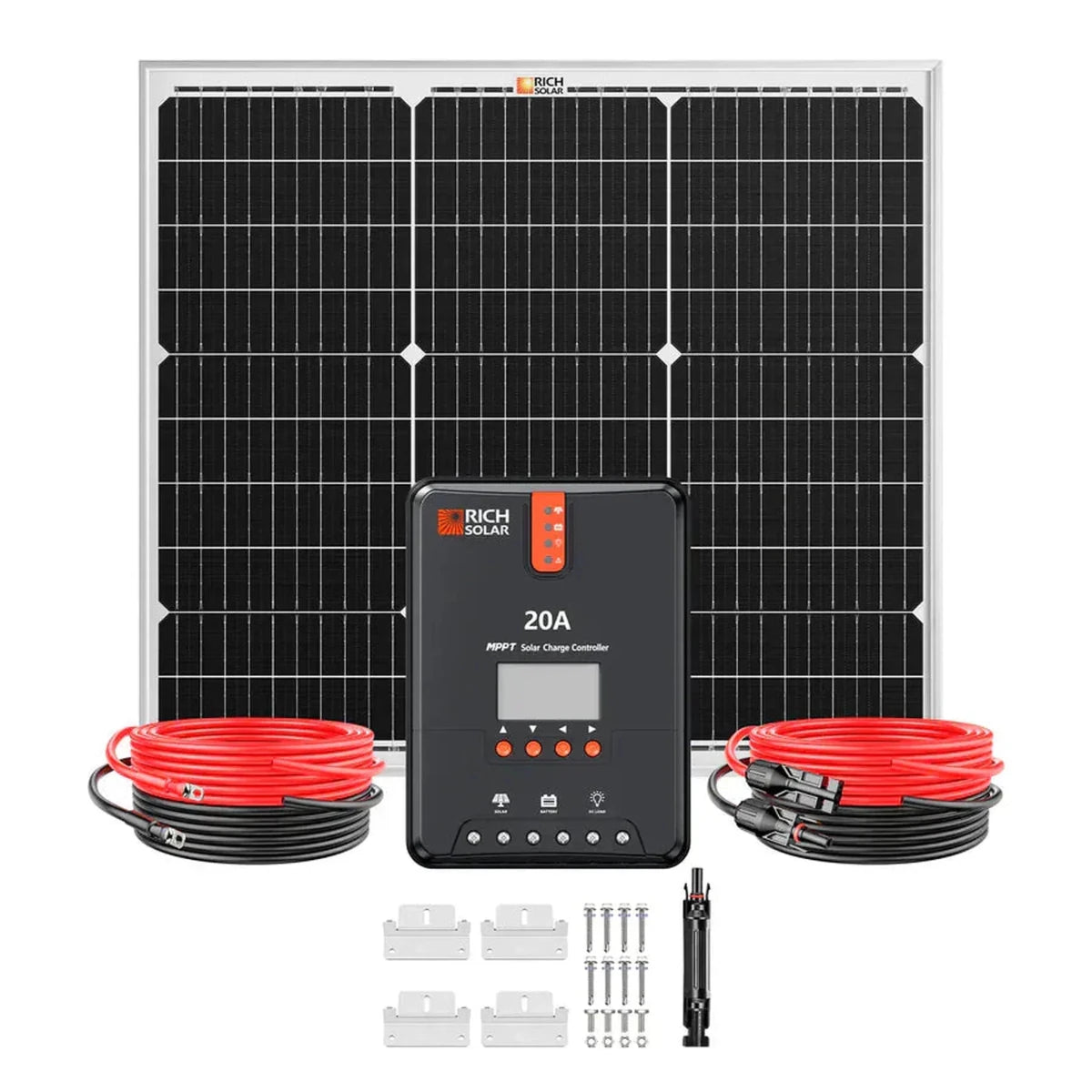

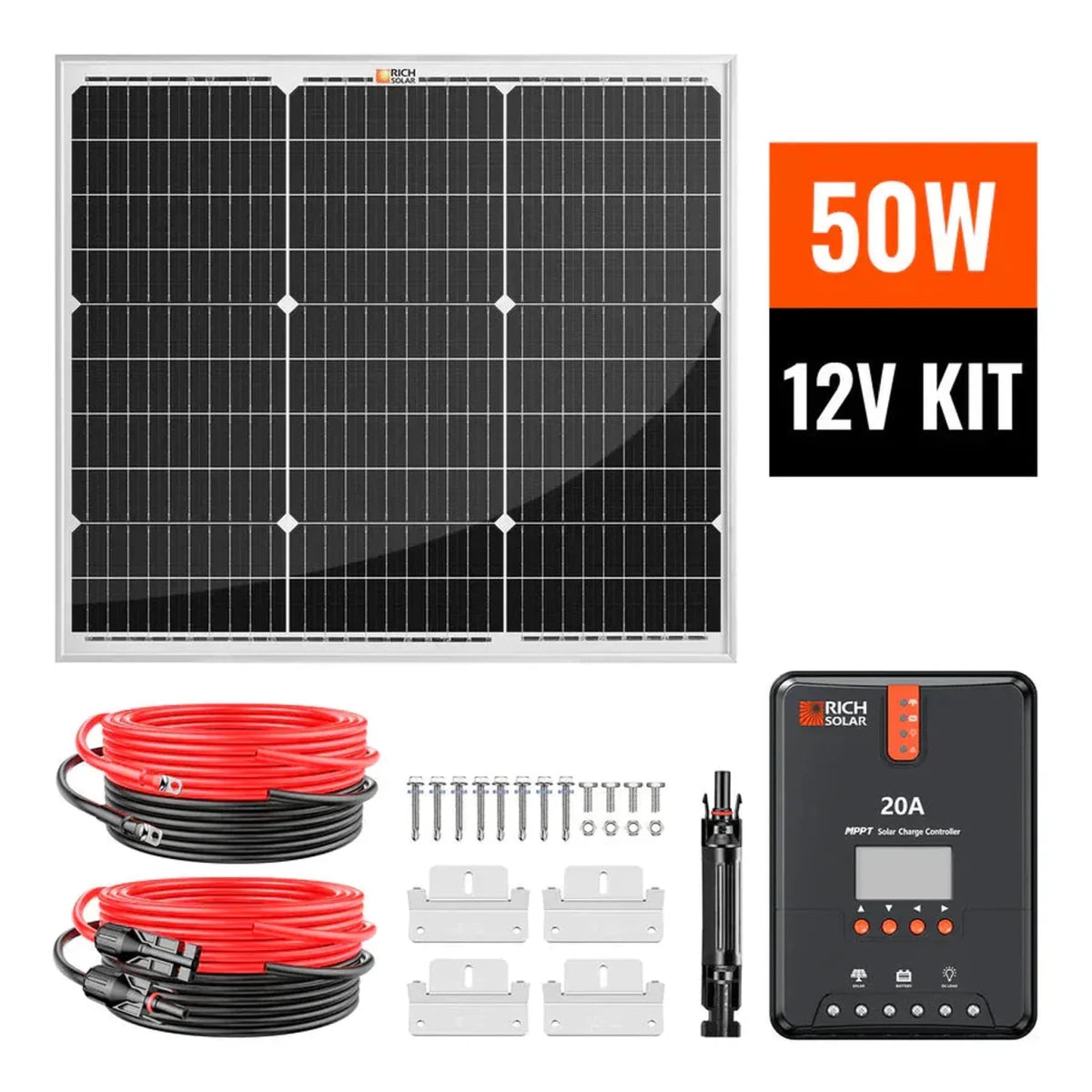

• Includes 50 watt solar panel, 20 amp MPPT controller, solar cables, battery cables, mounting Z brackets, and 10 amp inline fuse holder with fuse

Specifications

• Solar Panel Warranty: 25 year power output, 10 year workmanship
• Charge Controller Warranty: 2 years
• Solar Panel Maximum Power: 50 watts
• Solar Panel Maximum Power Voltage: 17.6 volts
• Solar Panel Maximum Power Current: 2.84 amps
• Solar Panel Open Circuit Voltage: 20.8 volts
• Solar Panel Short Circuit Current: 3.13 amps
• Solar Panel Maximum System Voltage: 1000 volts DC
• Solar Panel Maximum Series Fuse Rating: 10 amps
• Charge Controller Nominal Voltage: 12 or 24 volts DC (auto recognition)
• Charge Controller Max Solar Input Voltage: 100 volts DC
• Charge Controller Max PV Input Short Circuit Current: 25 amps
• Charge Controller Rated Battery Current: 20 amps
• Charge Controller Rated Load Current: 20 amps
• Charge Controller Max Battery Voltage: 32 volts
• Charge Controller Discharge Circuit Voltage Drop: 0.15 volts or less
• Solar Panel Dimensions: 22.8 x 20.5 x 1.2 inches
• Solar Panel Weight: 8 pounds
• Charge Controller Dimensions: 8.27 x 5.94 x 2.34 inches
• Charge Controller Weight: 3.08 pounds
