Rich Solar NOVA 3K12 3000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch UL458 Certified

Overview

The NOVA 3K12 is a 3000 watt 12 volt pure sine wave inverter with an integrated transfer switch. It provides reliable and clean power for RVs campers trailers and vans. This UL458 certified inverter ensures safety and efficiency when powering sensitive electronics appliances and tools from a 12 volt battery system.

Benefits

• Clean and stable pure sine wave output suitable for sensitive electronics including medical devices and servers
• High efficiency of 91 percent extends battery life with minimal energy loss and low standby consumption
• Seamless automatic transfer switch with transfer time under 20 milliseconds for uninterrupted power supply
• Durable design suitable for marine environments with optional drip shield and temperature-regulated cooling fan

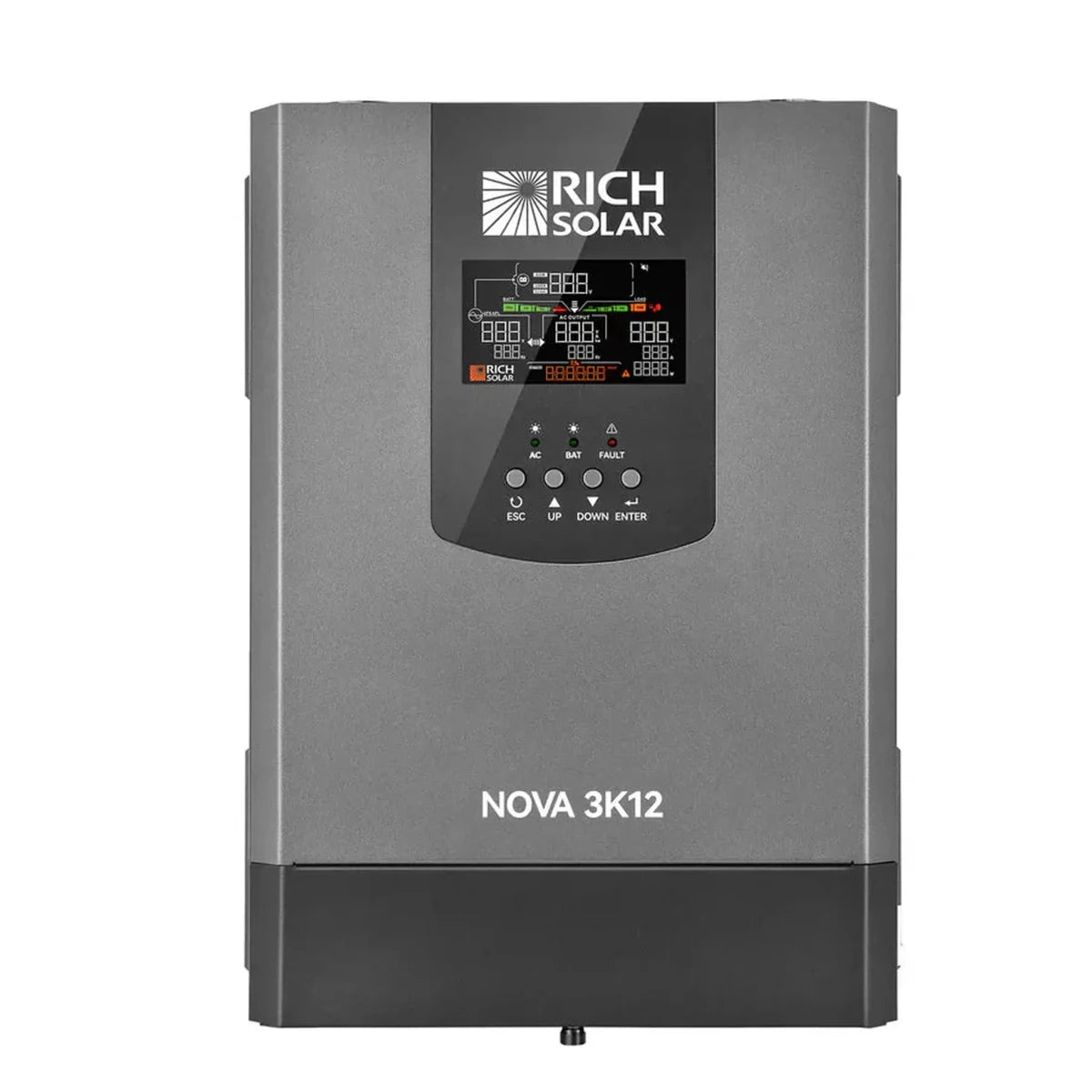

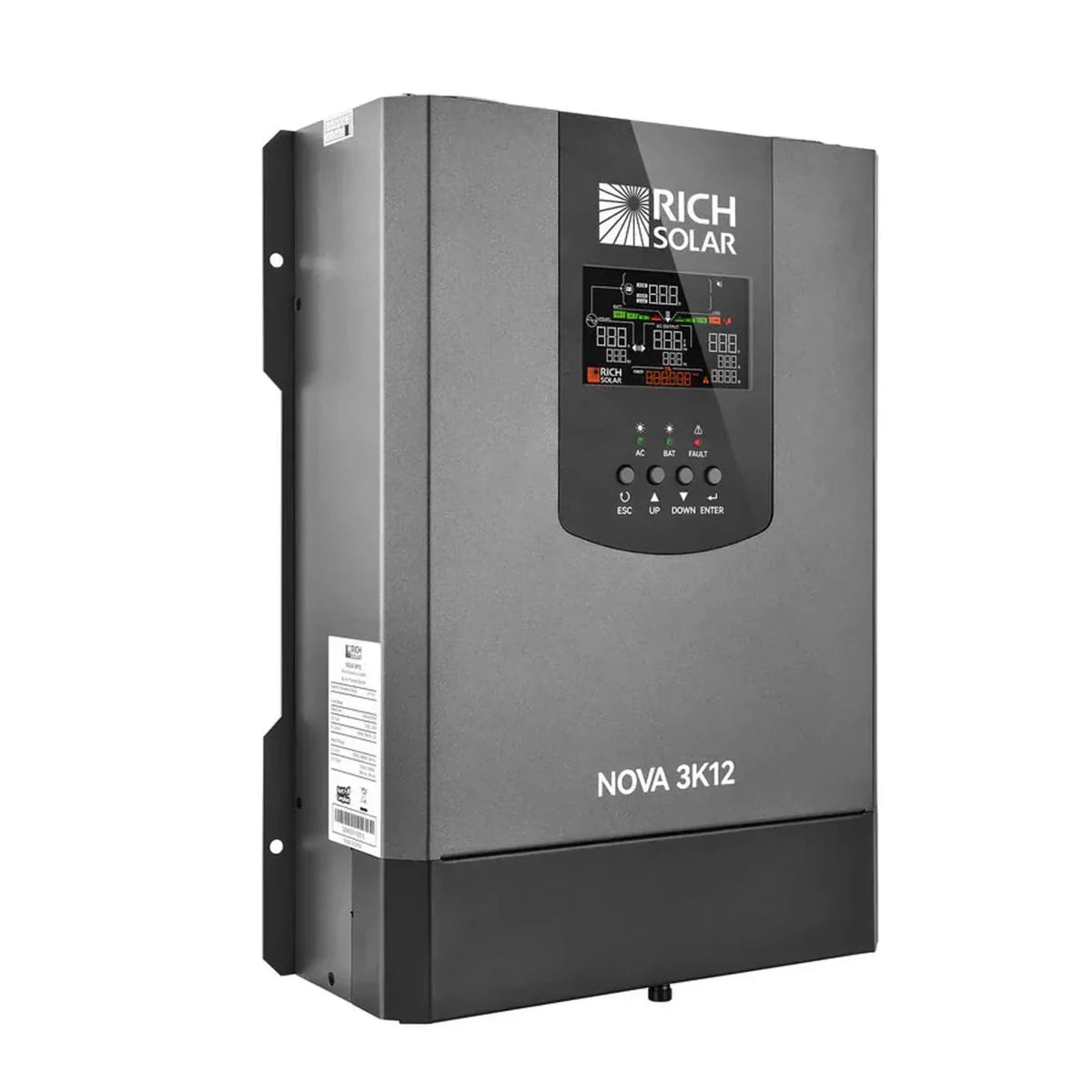

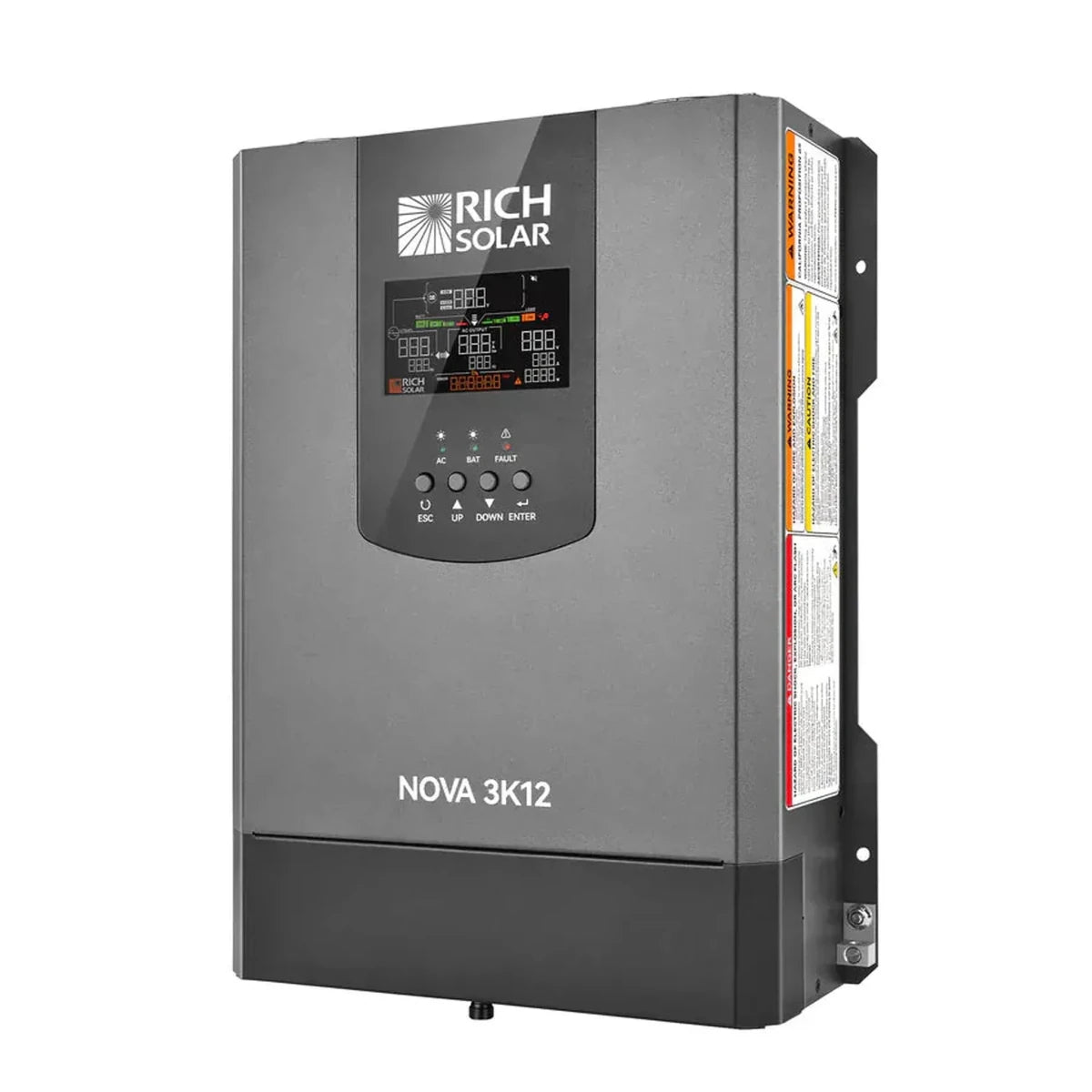

• Smart LCD display provides real-time voltage load and system status information
• Safety certified meeting UL standards compatible with 12 volt deep-cycle and lithium batteries with battery management system

Features

• Pure sine wave output with less than 5 percent total harmonic distortion
• 91 percent peak efficiency
• Automatic transfer switch with two modes: normal for appliances like fridges and tools and fast for computers and servers
• Advanced protection system including adjustable low voltage shutdown from 10.5 to 12.8 volts and protection against overload short circuit and overheat

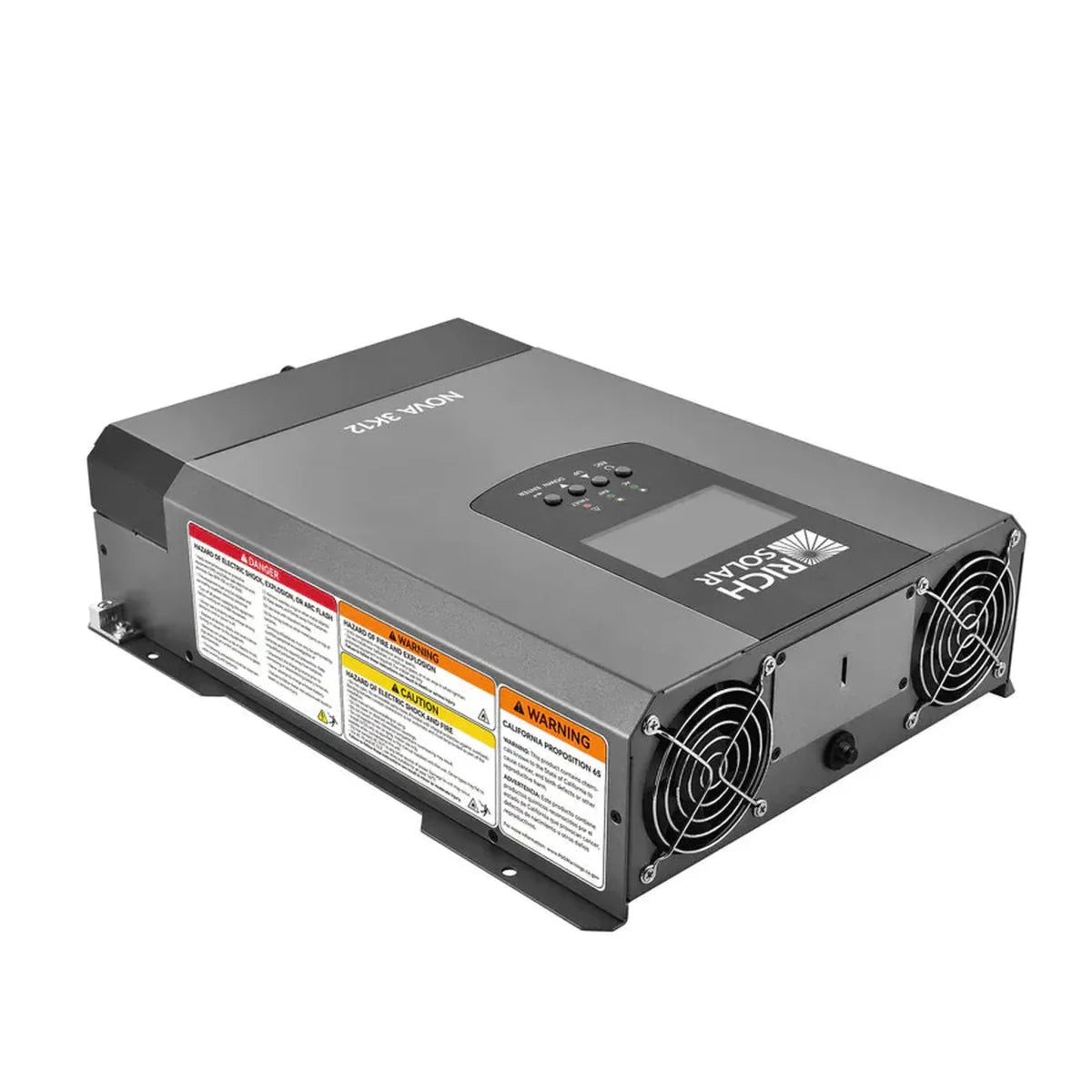

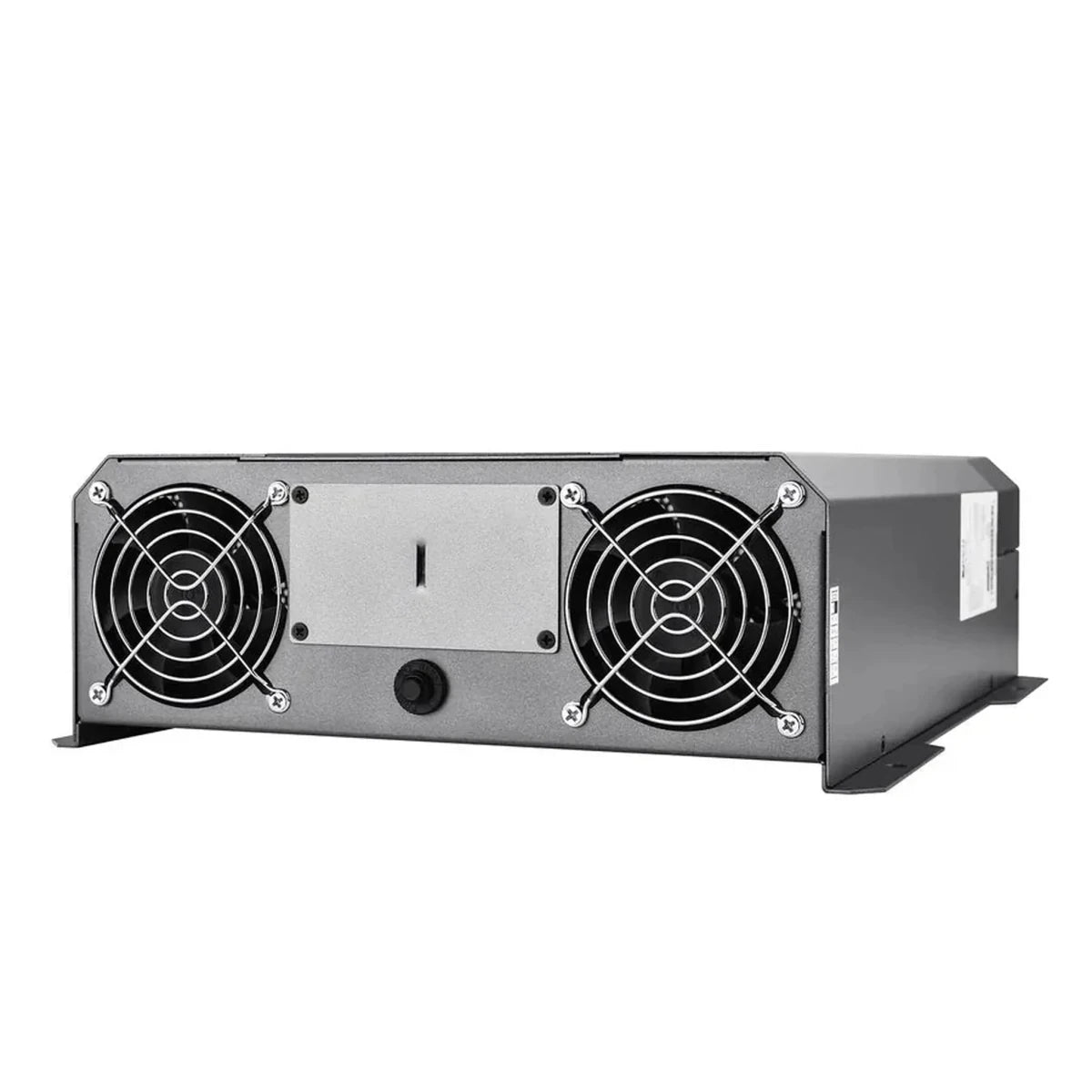

• Marine-grade construction with optional drip shield and temperature controlled fan

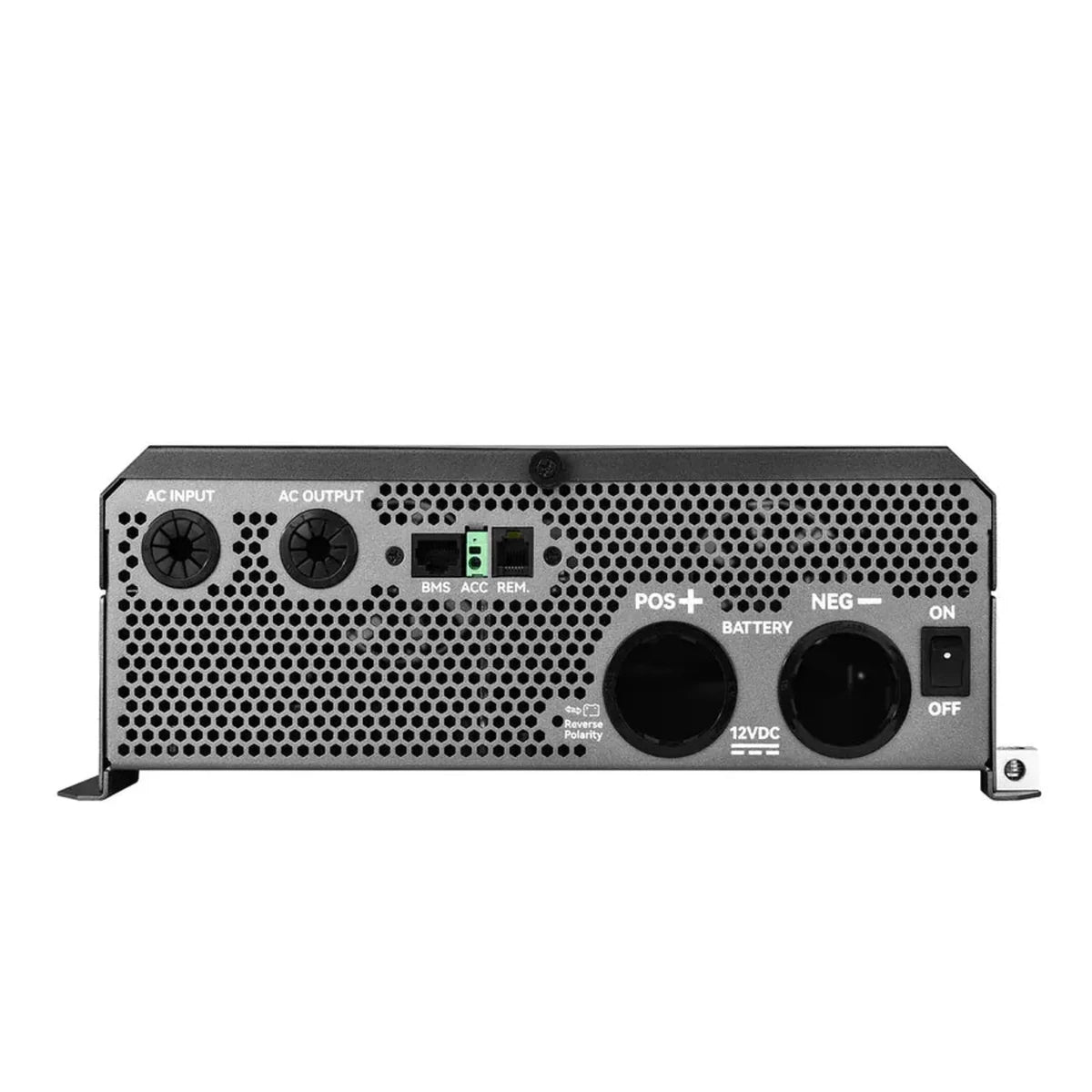

• RS232 and RS485 communication interfaces

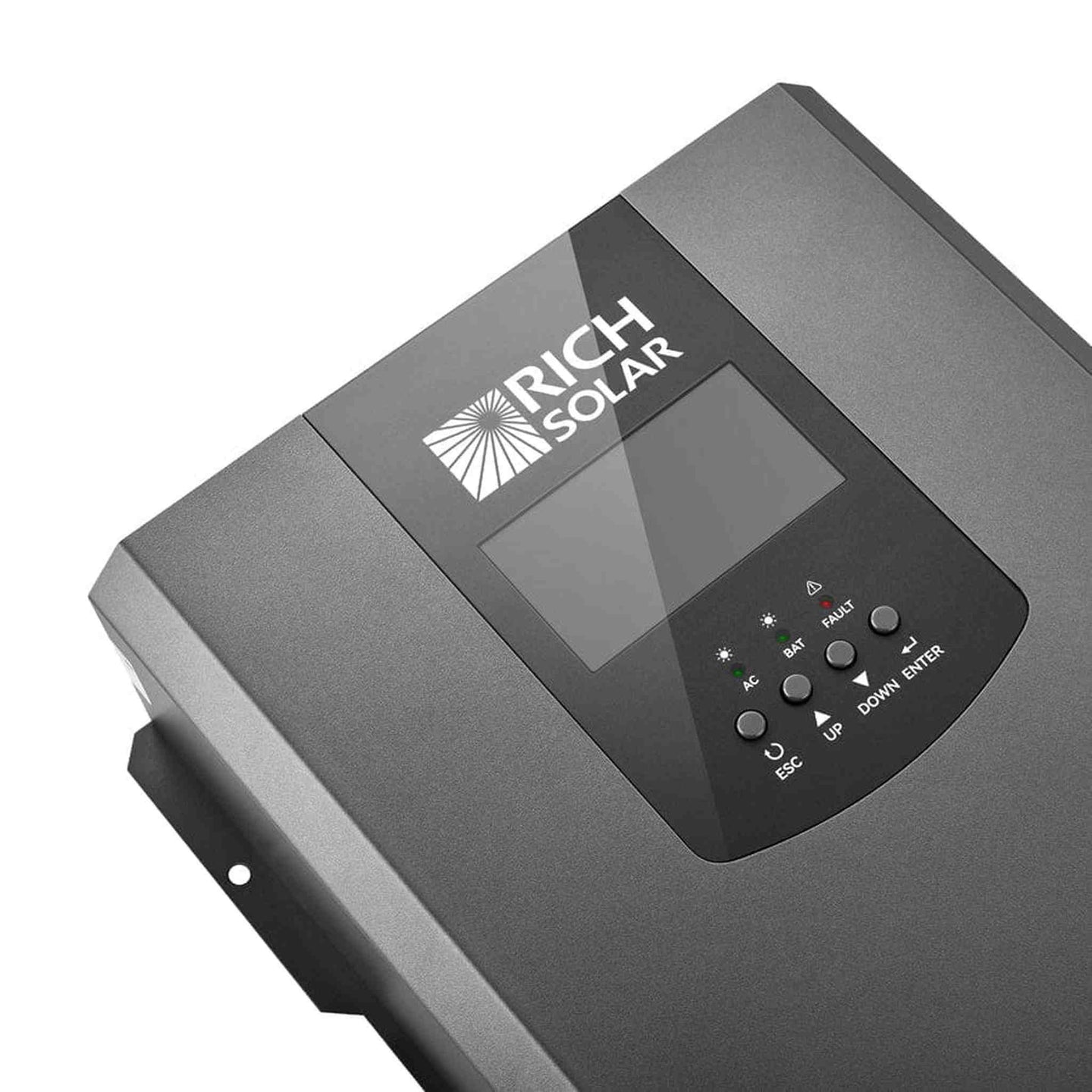

• LED indicators for line mode battery mode warnings and faults

Specifications

• Model: NOVA 3K12
• Rated output power: 3000 watts
• Peak power: 6000 watts for 5 seconds
• DC input voltage: 12 volts DC maximum 18 volts
• Communication: RS232 and RS485

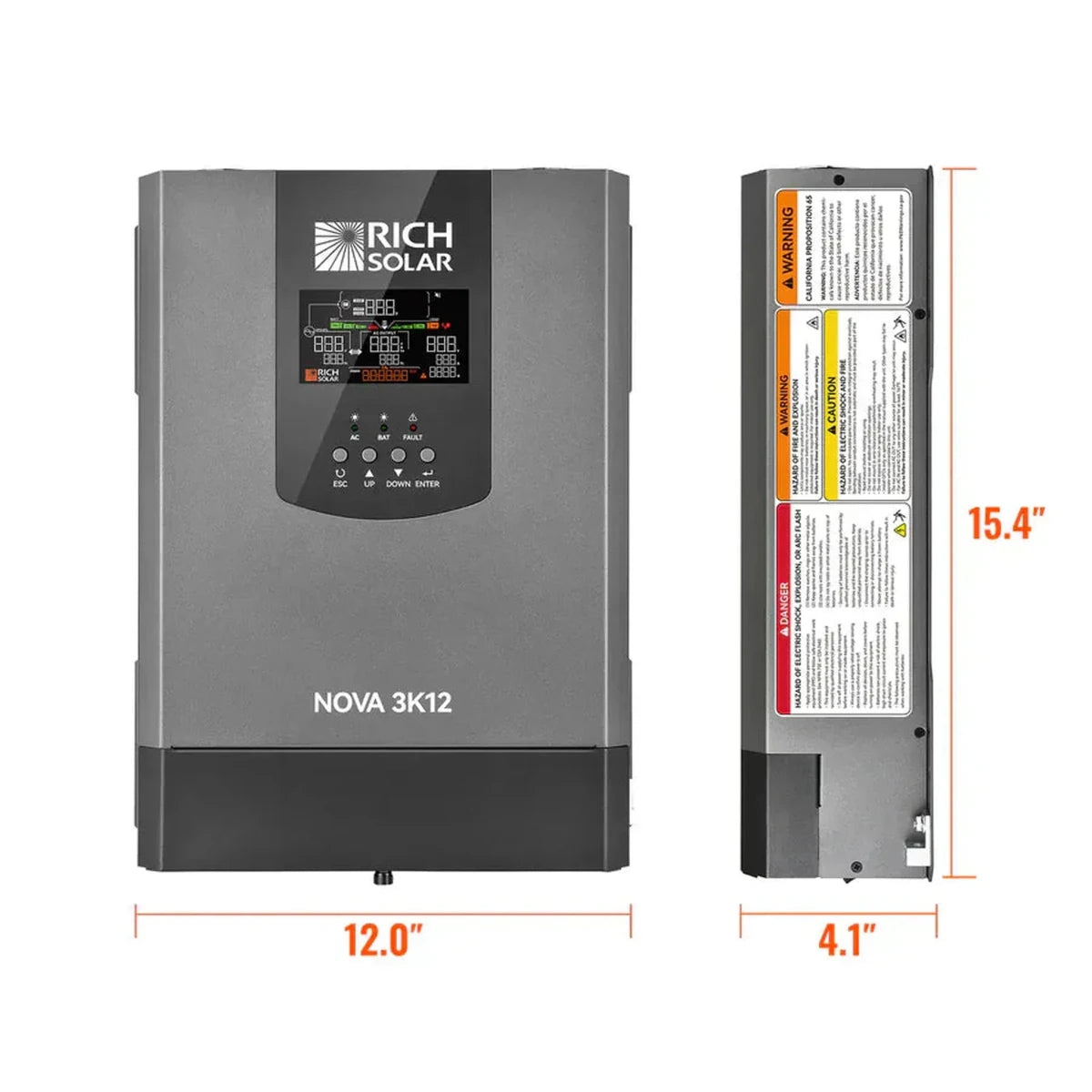

• Dimensions (L×W×H): 15.6 × 12.0 × 4.1 inches
• Net weight: 17.6 pounds
• AC input nominal voltage: 120 volts AC
• AC input operation range: 80 to 140 volts AC at full power
• AC input frequency: selectable 50 or 60 hertz
• AC input frequency range: 45 to 70 hertz
• AC output nominal voltage: 120 volts AC
• Voltage regulation (battery mode): 120 volts AC ± 5 percent
• Output frequency: selectable 50 or 60 hertz ± 1 percent
• Total harmonic distortion (battery mode): less than 5 percent
• Peak efficiency: 91 percent
• Waveform: pure sine wave
• Transfer time: 20 milliseconds or less
• Transfer modes: normal and fast
• Battery nominal DC voltage: 12 volts DC
• DC input power operating voltage range: 10 to 17 volts DC
• Battery compatibility: 12 volt deep-cycle batteries minimum 100 amp hours and LiFePO4 with battery management system
• Indicators line mode: green LED on
• Indicators battery mode: amber LED on
• Indicators warning with output: red LED flashing
• Indicators fault without output: red LED on
• Operating humidity: 5 to 95 percent relative humidity non-condensing
• Operating temperature: minus 40 to 160 degrees Fahrenheit minus 40 to 122 degrees Fahrenheit at full power
• Certificate compliance: UL458 FCC Part 15
