NOVA 2K12 | 2000W 12V Pure Sine Wave Inverter with Built-in Transfer Switch | UL458 Certified

Overview

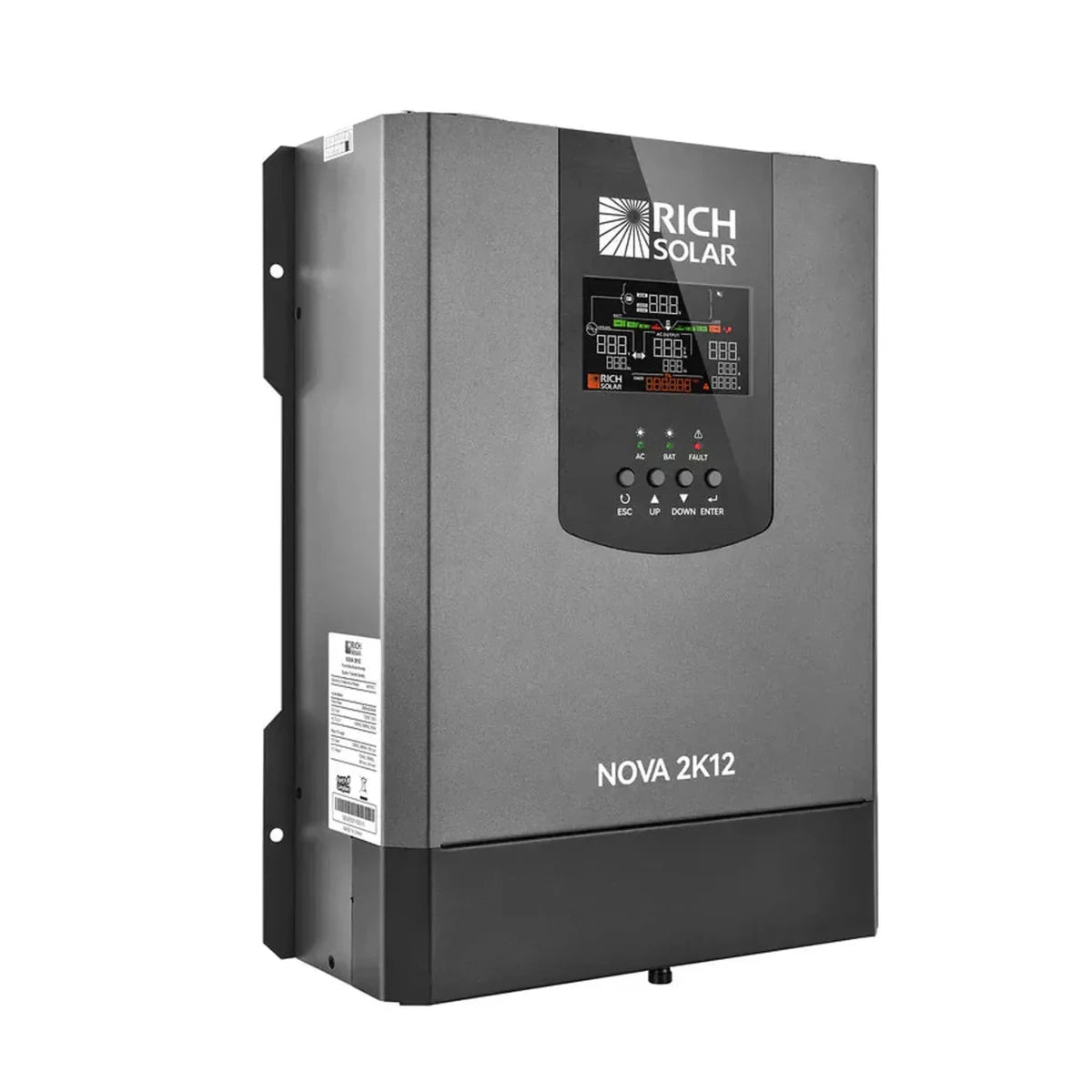

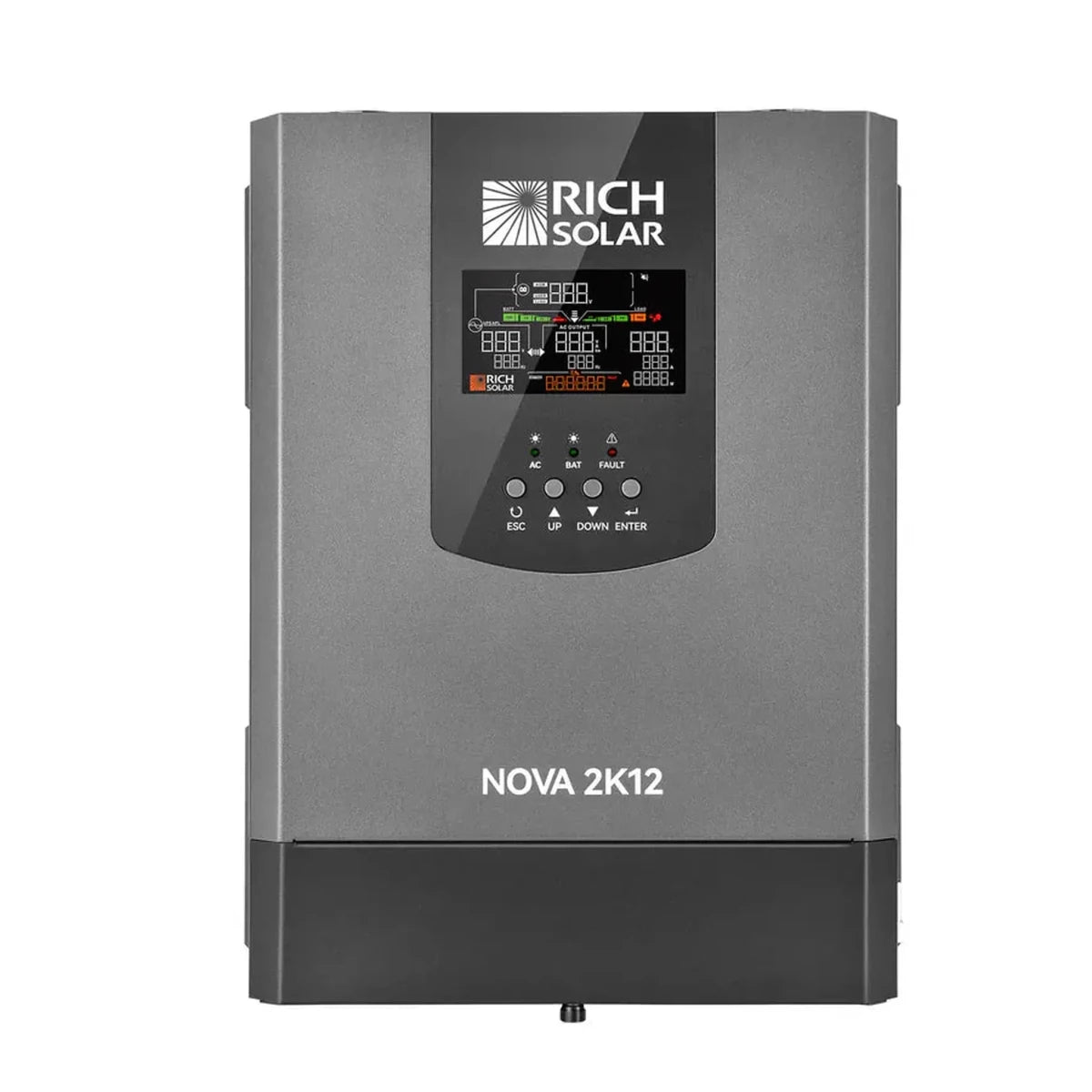

The NOVA 2K12 is a 2000 watt 12 volt pure sine wave inverter that provides clean and reliable AC power for mobile and off-grid use. It includes a built-in transfer switch for seamless backup power integration and safe operation of sensitive electronics. This UL458 certified inverter is suitable for RVs, campers, trailers, and vans.

Benefits

• Delivers stable power compatible with sensitive devices including medical equipment and servers
• High efficiency of ninety-one percent reduces energy loss and extends battery life
• Automatic transfer switch with transfer time under 20 milliseconds ensures uninterrupted power
• Advanced protection against low voltage, overload, short circuits, and overheating
• Designed for durability in harsh environments with optional drip shield and cooling fan

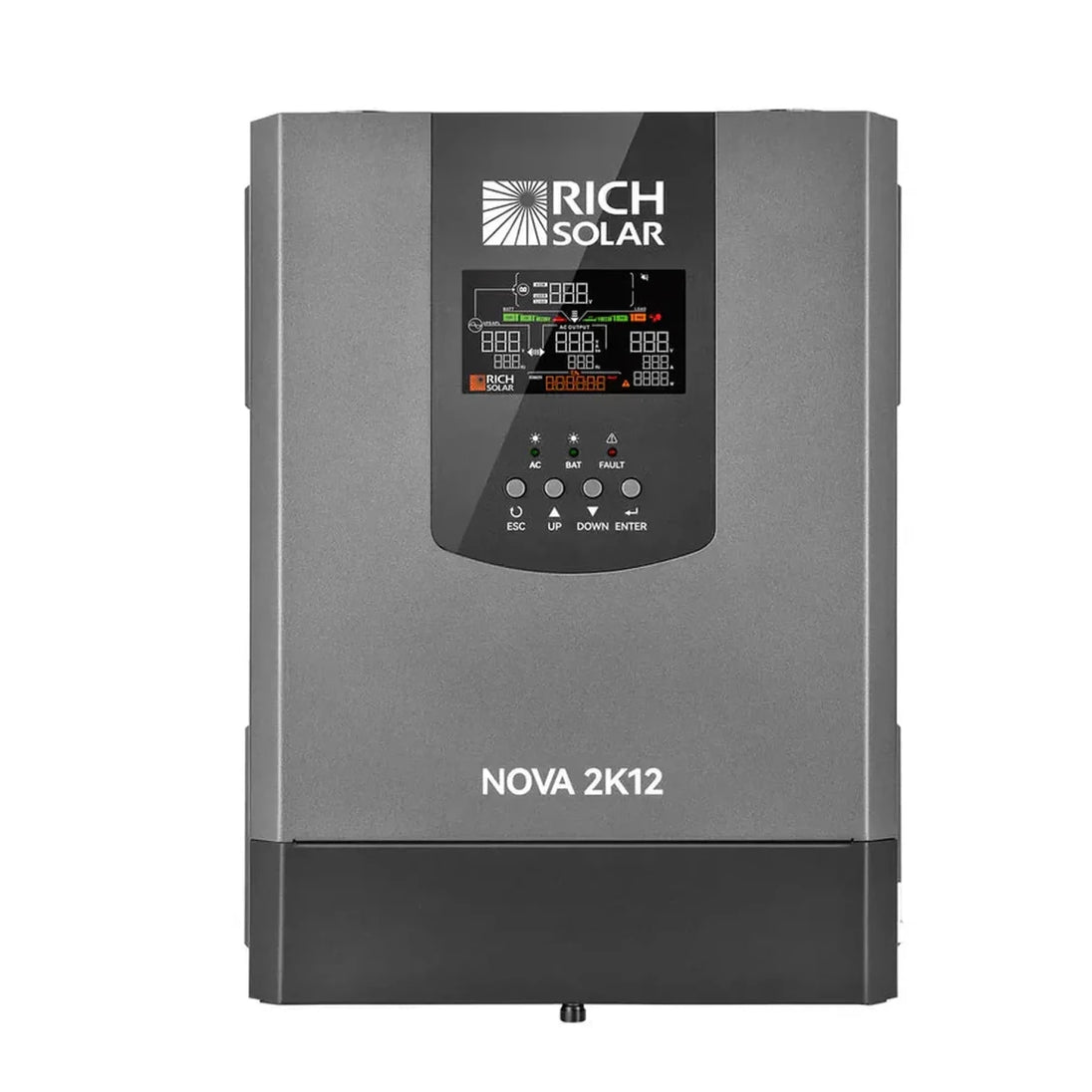

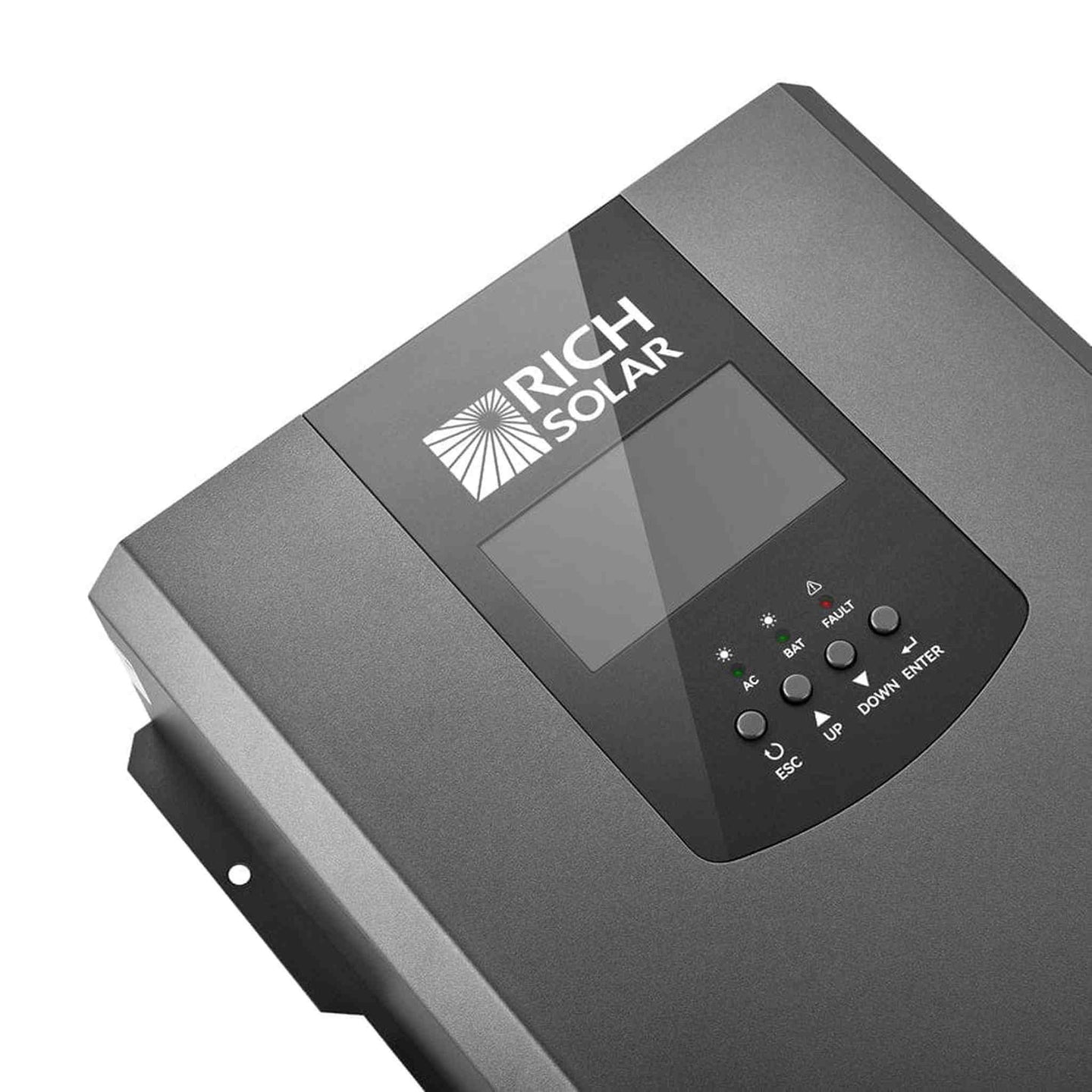

• Smart LCD display provides real-time information on voltage, load, and system status
• Complies with UL standards and supports 12 volt deep cycle and lithium batteries with battery management systems

Features

• Pure sine wave output with total harmonic distortion below five percent
• Ninety one percent peak efficiency
• Two transfer modes: normal for appliances and fast for computers and servers
• Adjustable low voltage shutdown between 10.5 and 12.8 volts

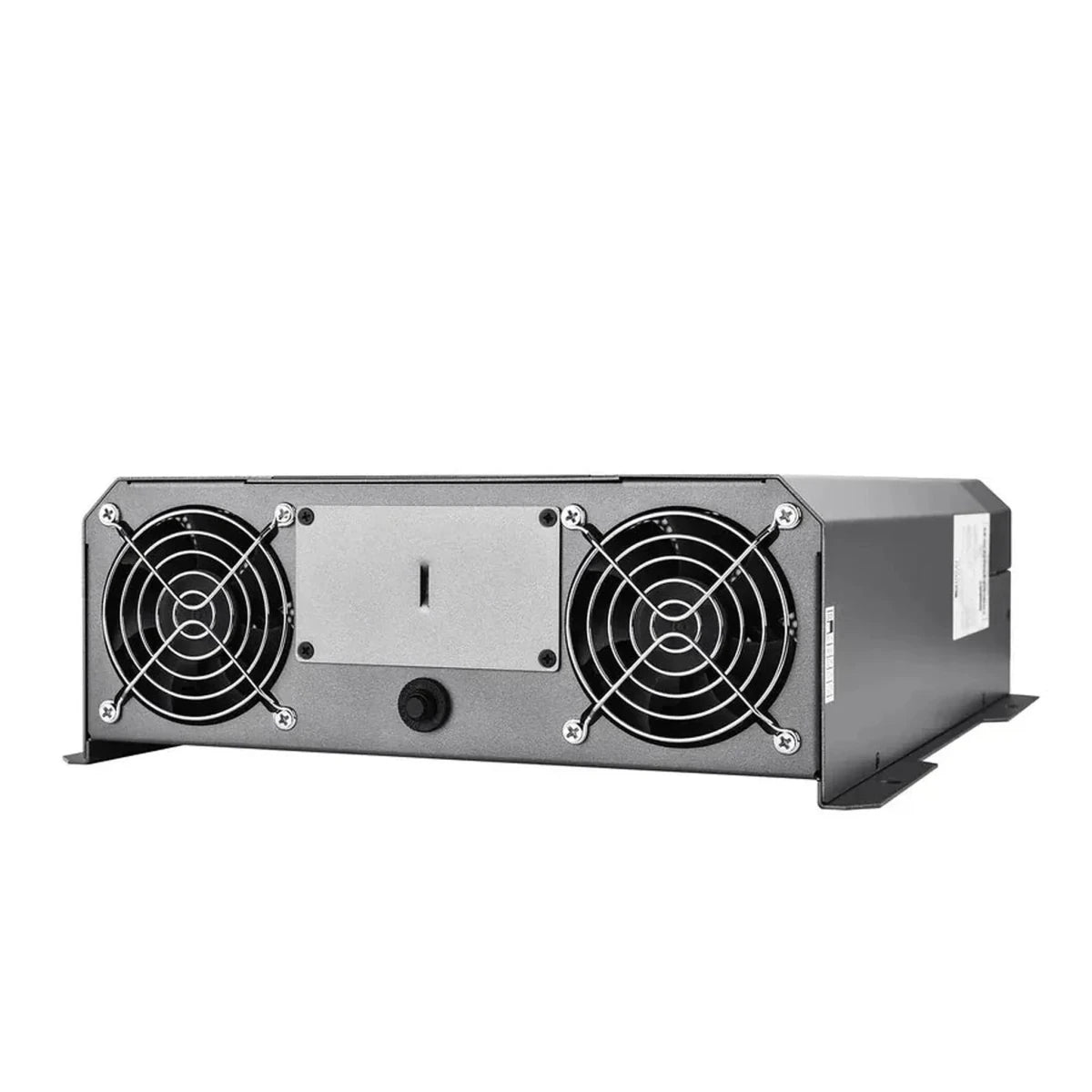

• Marine grade durability including optional drip shield and temperature regulated fan
• RS232 and RS485 communication interfaces
• Operating temperature range from minus forty to one hundred sixty degrees Fahrenheit with full power operation up to one hundred twenty two degrees Fahrenheit

Specifications

• Model: NOVA 2K12
• Rated output power: 2000 watts
• Peak power: 4000 watts for five seconds
• DC input voltage: 12 volts DC, maximum 18 volts
• Communication: RS232 and RS485

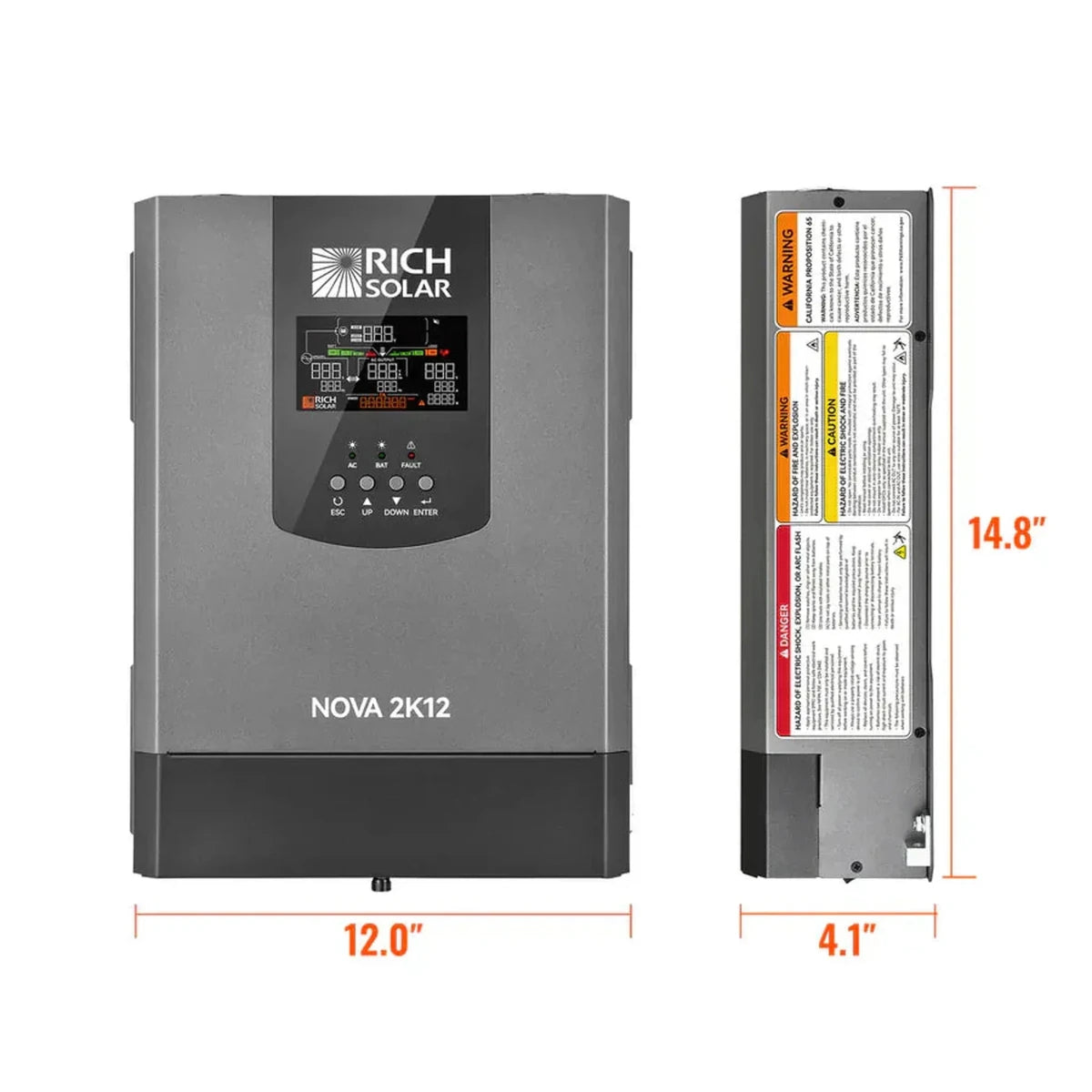

• Dimensions: 14.8 by 12.0 by 4.1 inches
• Net weight: 15.9 pounds
• AC input nominal voltage: 120 volts AC
• AC input operation range: 80 to 140 volts AC at full power
• AC input frequency: selectable 50 or 60 hertz
• AC input frequency range: 45 to 70 hertz
• AC output nominal voltage: 120 volts AC
• Voltage regulation in battery mode: 120 volts AC plus or minus 5 percent
• Output frequency: selectable 50 or 60 hertz plus or minus 1 percent
• Total harmonic distortion in battery mode: less than 5 percent
• Waveform: pure sine wave
• Transfer time: twenty milliseconds or less
• Transfer modes: normal and fast
• Battery nominal DC voltage: 12 volts DC
• DC input power operating voltage range: 10 to 17 volts DC
• Battery compatibility: 12 volt deep cycle batteries with minimum 100 amp hour capacity, and lithium iron phosphate batteries with battery management system
• Indicators line mode: green LED on
• Indicators battery mode: amber LED on
• Indicators warning with output: red LED flashing
• Indicators fault without output: red LED on
• Operating humidity: 5 to 95 percent relative humidity non condensing
• Operating temperature: minus 40 to 160 degrees Fahrenheit, minus 4 to 122 degrees Fahrenheit at full power
• Certifications and compliance: UL458 and FCC Part 15
