Rich Solar | MPPT Solar Charge Controller 40 Amp BRAVO 40 | RS-MPPT40P

High Efficiency Power Management for Off Grid Systems

Overview

The BRAVO 40 MPPT Solar Charge Controller is a 40 amp controller designed for 12 volt or 24 volt systems. It provides efficient charging with advanced safety measures and customizable options. Using MPPT technology, it delivers over 99.5 percent tracking efficiency and up to 98 percent charge conversion efficiency. It is suitable for solar setups in RVs, cabins, boats, and off grid homes.

Benefits

• Intelligent solar tracking with updated MPPT algorithm
• More than 99.5 percent tracking efficiency and up to 98 percent charge efficiency
• Automatic adaptation to 12 volt or 24 volt DC systems
• Battery protection with reverse discharge prevention
• Custom battery settings with multiple type selections
• Supports Lead Acid and various Lithium battery types
• Protection against overvoltage, overcurrent, and overload
• Charging data is stored reliably with proprietary technology
• Common negative grounding system design
• Splash proof with rubber protected connectors
• Large LCD shows real time solar, battery, and system information
• Multiple peak detection and charge management for improved performance
• Hardened enclosure with transparent LED indicators
• Automatic recovery capability for fully discharged batteries

Features

• True MPPT with latest algorithm for precise solar tracking
• Tracking Efficiency over 99.5 percent and Charge Efficiency up to 98 percent
• Self adjusts between 12 volt and 24 volt DC systems
• Reverse discharge protection to safeguard batteries
• Customizable battery type settings with 8 plus 1 options
• Compatible with Lead Acid types including Gel, AGM, WET, Crystal, Calcium
• Compatible with Lithium types including LiFePO4, LTO, LCO
• Overvoltage, overcurrent, and overload protection built in
• Internal charging data storage technology
• Common negative grounding design
• Splash proof IP43 rating with rubber masked connectors

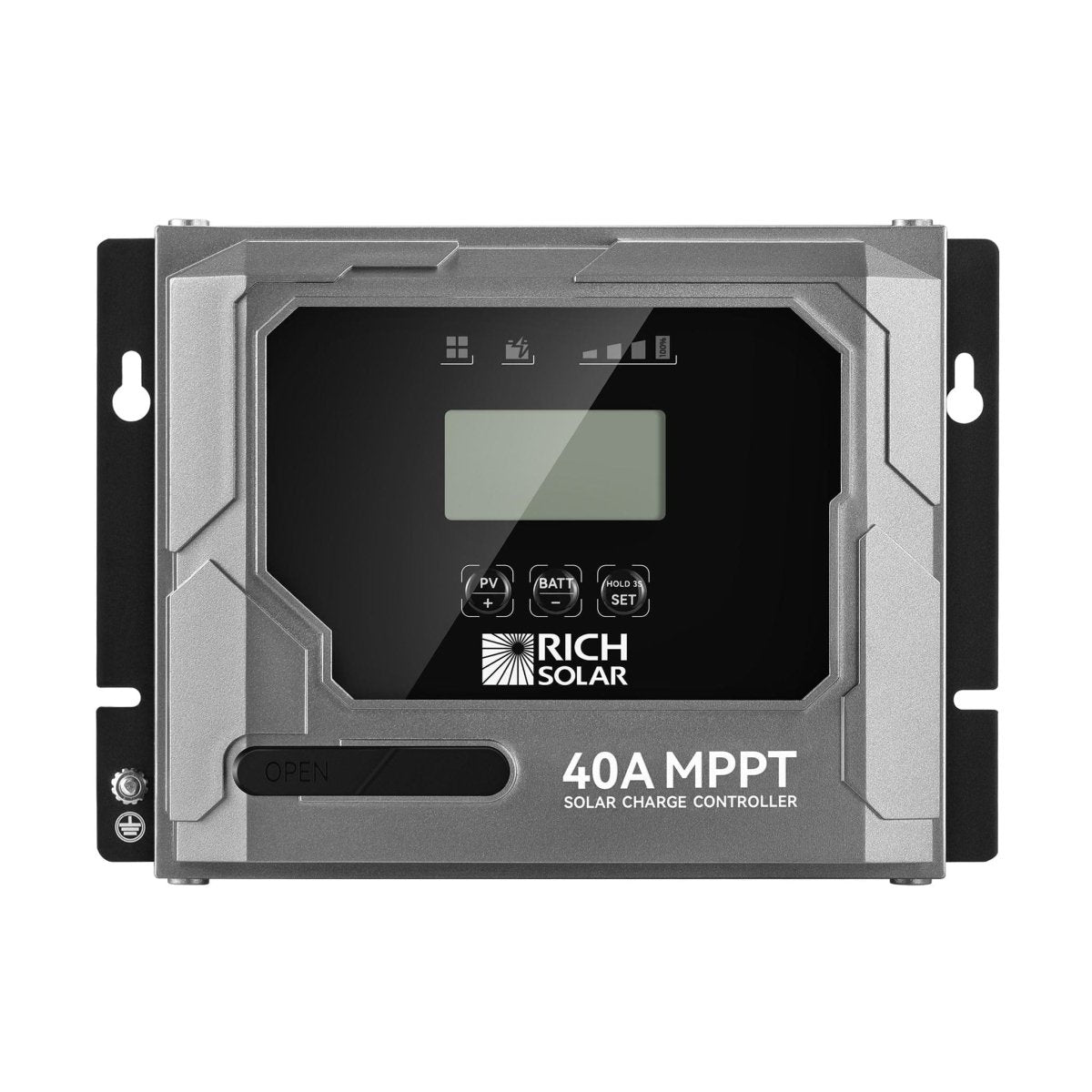

• Large LCD display for real time data on solar and battery status
• Multiple peak detection and advanced charge management system
• Housing enclosure with transparent LED bar indicators
• Automatic recovery for fully discharged Lead Acid and Lithium batteries

Specifications

• System Nominal Voltage: 12 volt or 24 volt automatic
• Maximum PV Open Circuit Voltage: 100 volts
• Charging Technology: MPPT
• Maximum PV Charging Current: 40 amps
• Maximum Recommended PV Input Power: 600 watts at 12 volts, 1200 watts at 24 volts
• Battery Type Preset: Crystal, Gel, AGM, WET, Calcium, LCO, LFP, LTO
• Housing Case Color: Black and grey
• IP Grade: IP43 for internal PCBA and IP22 for connection area
• Net Weight: 1.17 kilograms or 2.58 pounds
• Dimensions (Length x Width x Height): 195 by 142 by 74 millimeters, or 7.7 by 5.5 by 2.9 inches
