Rich Solar | Lithium Battery Bank 24V 800AH 20.4kWh | RS-B24100x8

Regular price: $6,399.99

Regular price: $6,399.99

FREE SHIPPING i Free shipping to the contiguous United States on every order. The price you see is the price you pay — no extra shipping or freight fees added at checkout.

Authorized RICH SOLAR Dealer

Manufacturer Warranty Included

✓Authorized Online Dealer
✓Free Shipping · No Sales Tax (excluding MI)
✓Lowest Price Guarantee
✓Ships in 1–2 business days · 4–7 day transit
✓Questions? Call us at (734) 228-0441

Use code: SPRING5 (5% OFF)

Quantity

Product Description

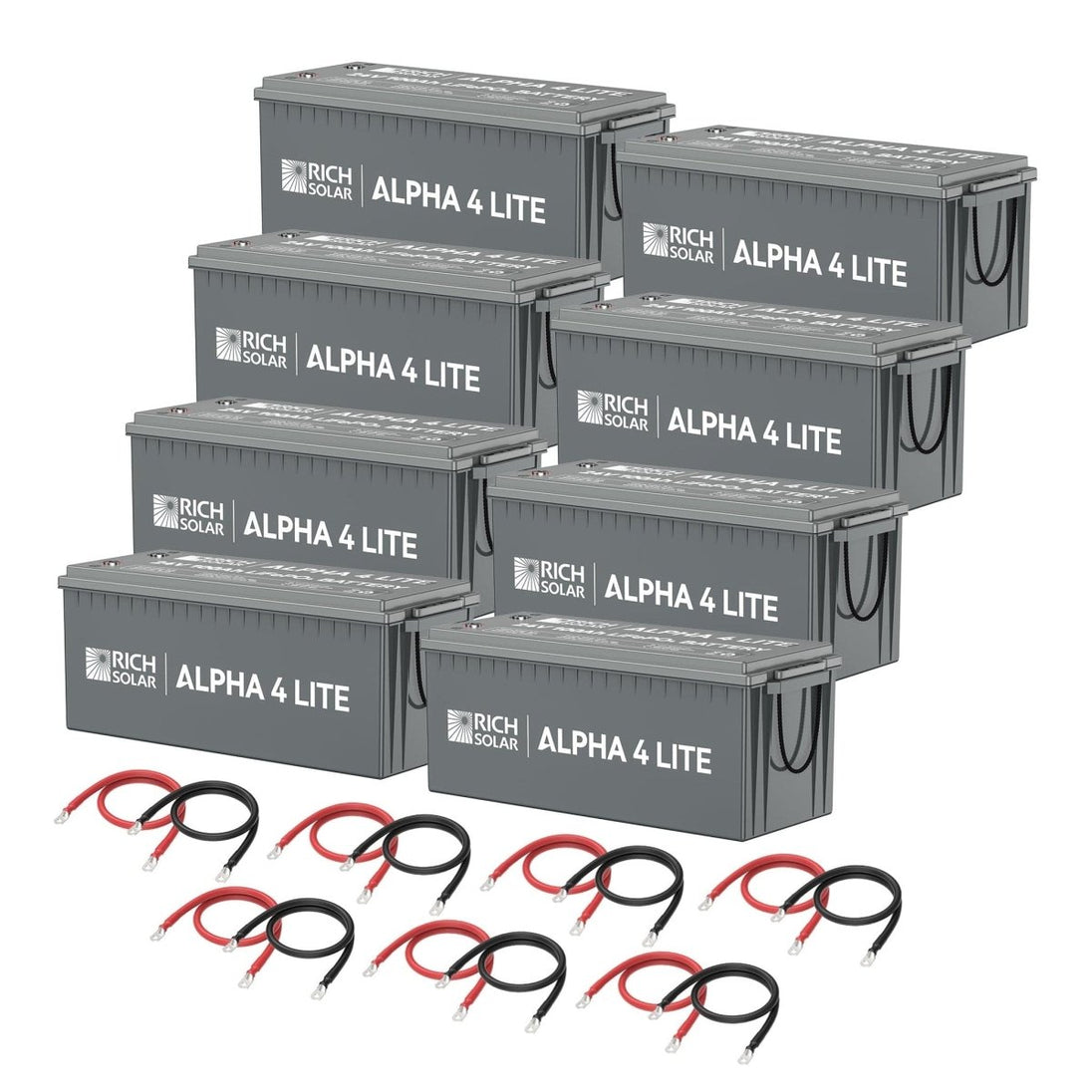

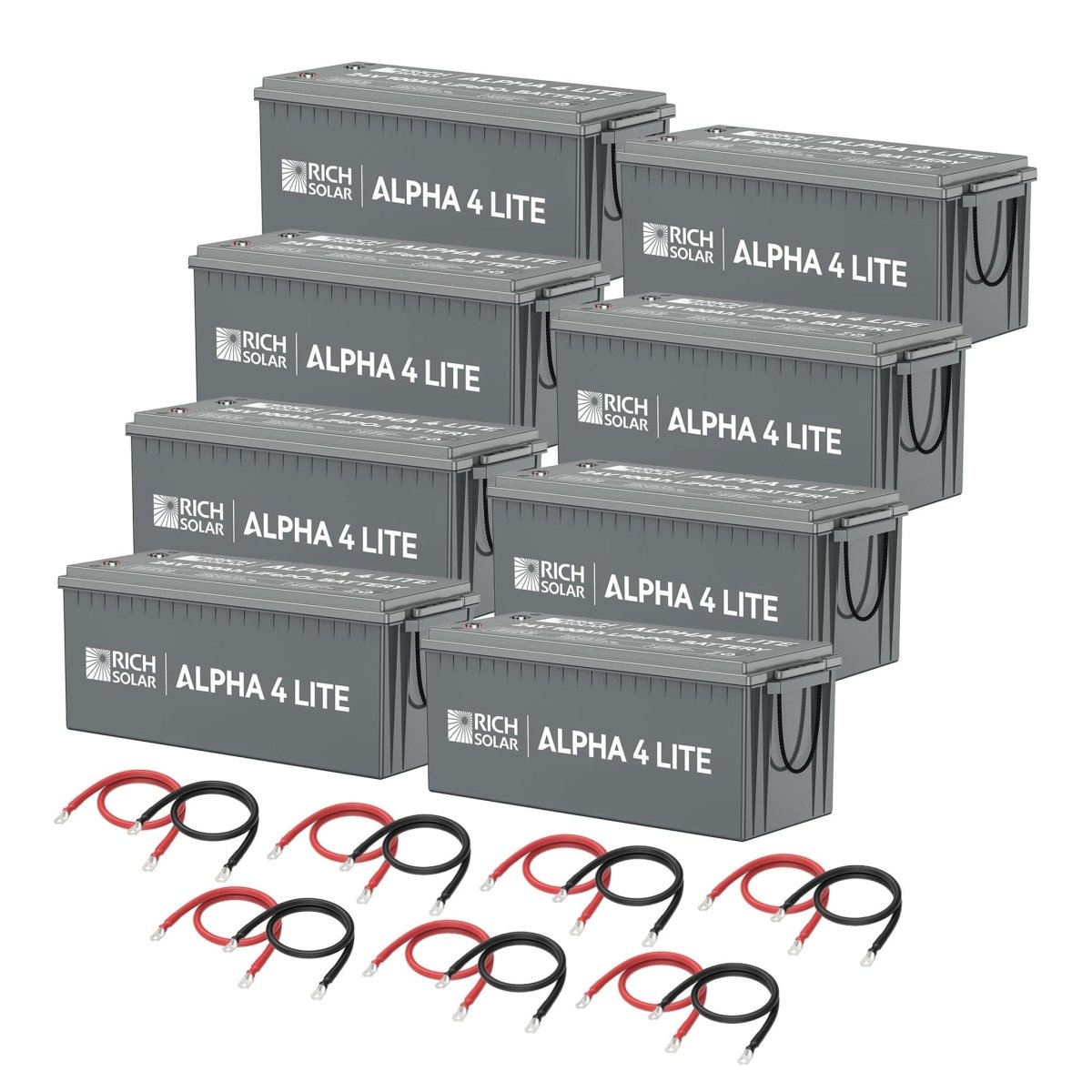

ALPHA 4 LITE Lithium Battery Bank

Overview

The ALPHA 4 LITE is a reliable 24V 800Ah 20.4kWh lithium battery bank using RICH SOLAR’s LiFePO4 cells. It is designed to withstand extreme temperatures and repeated deep discharge cycles. This battery bank suits off-grid, backup, and renewable energy storage applications, including off-grid cabins, mobile setups, and whole-home backup systems.

Benefits

Long service life exceeding 10 years with proper maintenance
Requires minimal maintenance
Delivers stable and reliable energy output
Lightweight and easy to handle
Environmentally friendly with no heavy metals
Includes lifetime customer support

Features

Extensive number of charge and discharge cycles
Integrated smart Battery Management System (BMS)
Wide operating temperature range
High performance in elevated temperatures
Protection against overcharging and over-discharging
Short circuit and overcurrent protection
Temperature-based disconnect to protect battery
Minimal self-discharge rate
Each LiFePO4 cell is individually fused for safety and reliability
Removable carry handle for convenience

Specifications

Nominal Voltage: 25.6V
Nominal Capacity: 100Ah per battery
Minimum Capacity: 99.5Ah
Cycle Life: Over 4000 cycles
Charge Voltage: 28.8V
Maximum Charge Current: 100A
Maximum Discharge Current: 100A
Self-Discharge: Less than 5 percent per month
Charge Temperature: 0°C to 55°C (32°F to 131°F)
Discharge Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -10°C to 45°C (14°F to 113°F), up to 3 months at 90% relative humidity max
Battery Dimensions (L × W × H): 20.9 × 8.1 × 8.5 inches
Weight: 52.9 pounds per unit
Includes 8 batteries and 14 of 1-foot 2 AWG battery cables
BMS Overcharge Detection Voltage: 3.75V ± 0.05V per cell
BMS Overcharge Detection Delay: 1000ms ± 500ms
BMS Overcharge Recovery Voltage: 33.55V ± 0.05V
BMS Overdischarge Detection Voltage: 2.20V ± 0.08V per cell
BMS Overdischarge Detection Delay: 1000ms ± 500ms
BMS Overdischarge Recovery Voltage: 2.70V ± 0.10V
Short Circuit Protection: Yes
Warranty: Five years
