Rich Solar | Lithium Battery Bank 24V 600AH 15.3kWh | RS-B24100x6

ALPHA 4 LITE Lithium Battery Bank

Overview

The ALPHA 4 LITE is a durable and efficient 24V 600Ah 15.3kWh lithium battery bank made with premium LiFePO4 cells by RICH SOLAR. Designed to perform under extreme conditions and support deep discharge cycles, it is suitable for off-grid power systems, home backups, and mobile use.

Ideal for powering remote locations or preparing for power outages, the ALPHA 4 LITE delivers reliable, long-lasting energy with low maintenance requirements.

Note: This battery bank is not intended to replace starting batteries.

Benefits

• Long cycle life with high charge and discharge capacity
• Over ten years of operation with appropriate care
• Minimal maintenance needed
• Lightweight and easy to handle
• Functions efficiently across a broad temperature range
• Environmentally friendly with no heavy metals
• Comprehensive safety management through integrated BMS
• Consistent voltage output and low self-discharge rate
• Lifetime customer support

Features

• Exceptionally high charge and discharge cycle count
• Integrated smart battery management system with individual cell fuses
• Protection against overcharge, over-discharge, overcurrent, short circuits, and excessive heat
• High and low temperature disconnect functions
• Charge voltage of 28.8V
• Maximum charge current of 100A
• Maximum discharge current of 100A
• Eco-friendly design without heavy metal contaminants
• Removable carry handle for convenience
• Low self-discharge rate allowing long standby times

Specifications

• Nominal voltage: 25.6V
• Nominal capacity: 100Ah per battery unit
• Minimum capacity: 99.5Ah
• Cycle life: More than 4000 cycles
• Energy: 2560 watt hours per battery unit
• Continuous discharge current: 100A
• Self discharge: Less than 5 percent per month
• Charge temperature: 0°C to 55°C (32°F to 131°F)
• Discharge temperature: -20°C to 60°C (-4°F to 140°F)
• Storage temperature: -10°C to 45°C (14°F to 113°F) with up to 90 percent relative humidity for periods longer than three months
• Battery dimensions: 20.9 x 8.1 x 8.5 inches
• Weight: 52.9 pounds

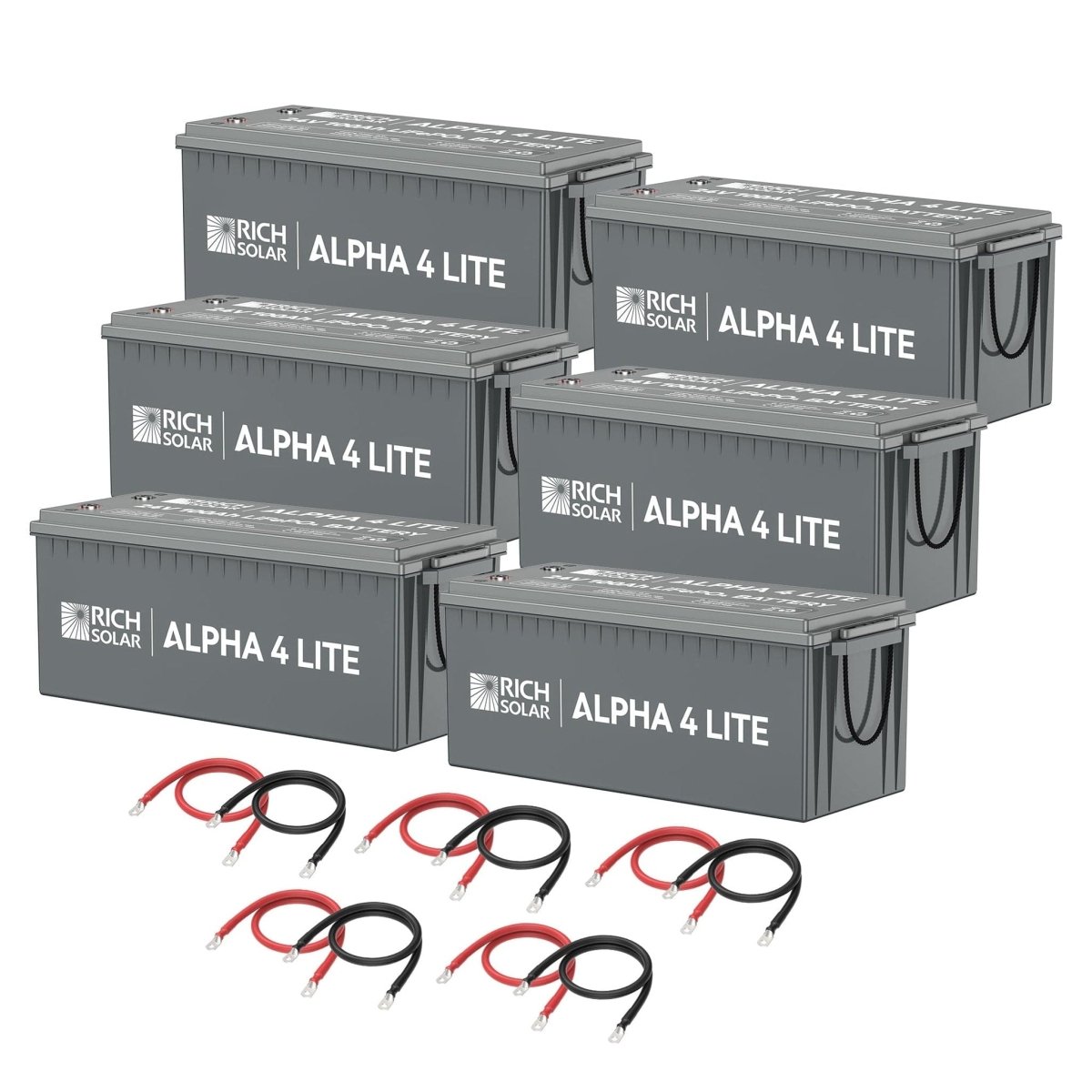

• Includes 6 units of 24V 100Ah ALPHA 4 LITE LiFePO4 battery
• Includes 10 units of 1 foot 2 AWG battery cables
• BMS safety features: overcharge detection voltage 3.75V ±0.05V, overcharge detection delay 1000ms ±500ms, overcharge recovery voltage 33.55V ±0.05V
• Over discharge detection voltage 2.20V ±0.08V, over discharge detection delay 1000ms ±500ms, over discharge recovery voltage 2.70V ±0.10V
• Short circuit protection included
• Warranty: 5 years
