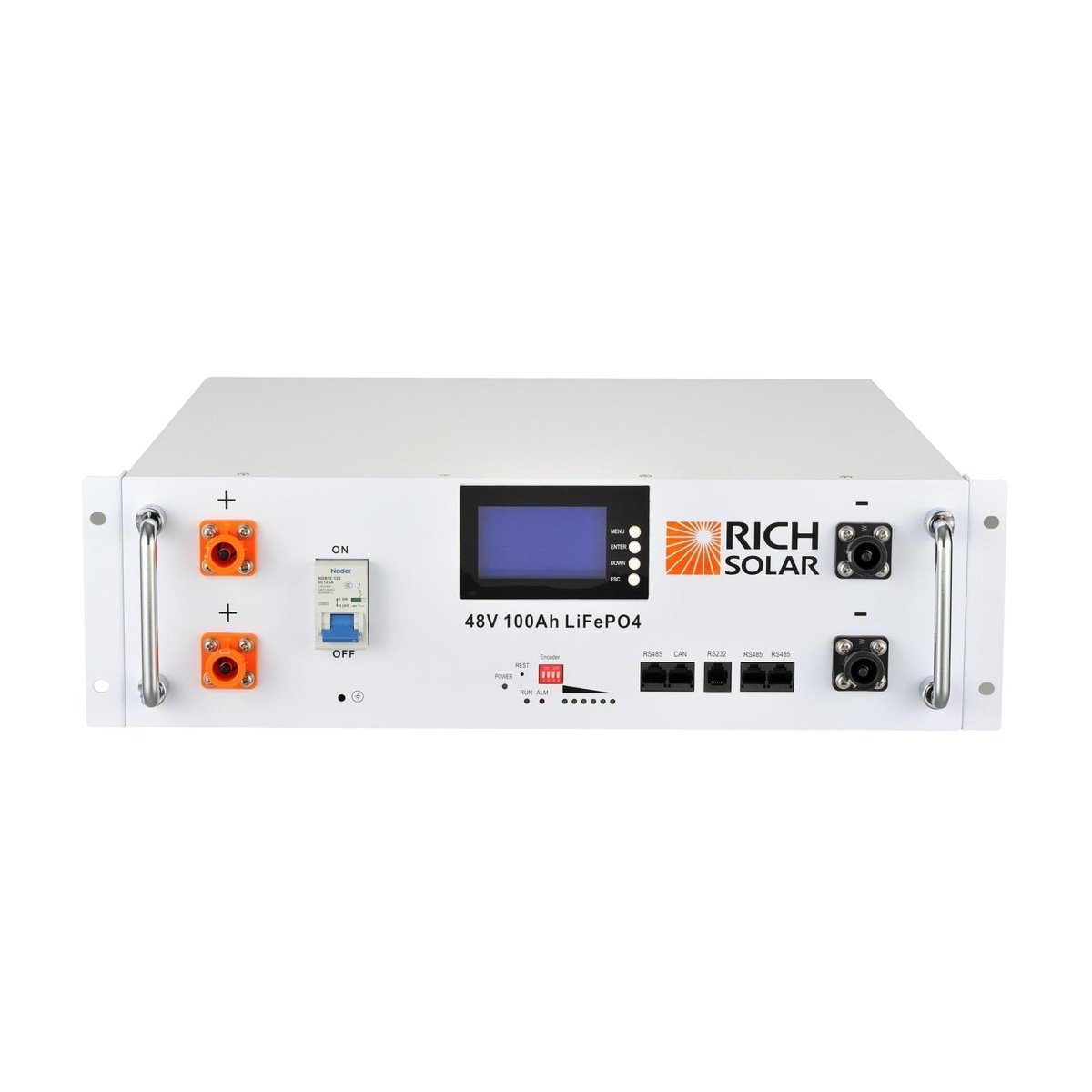

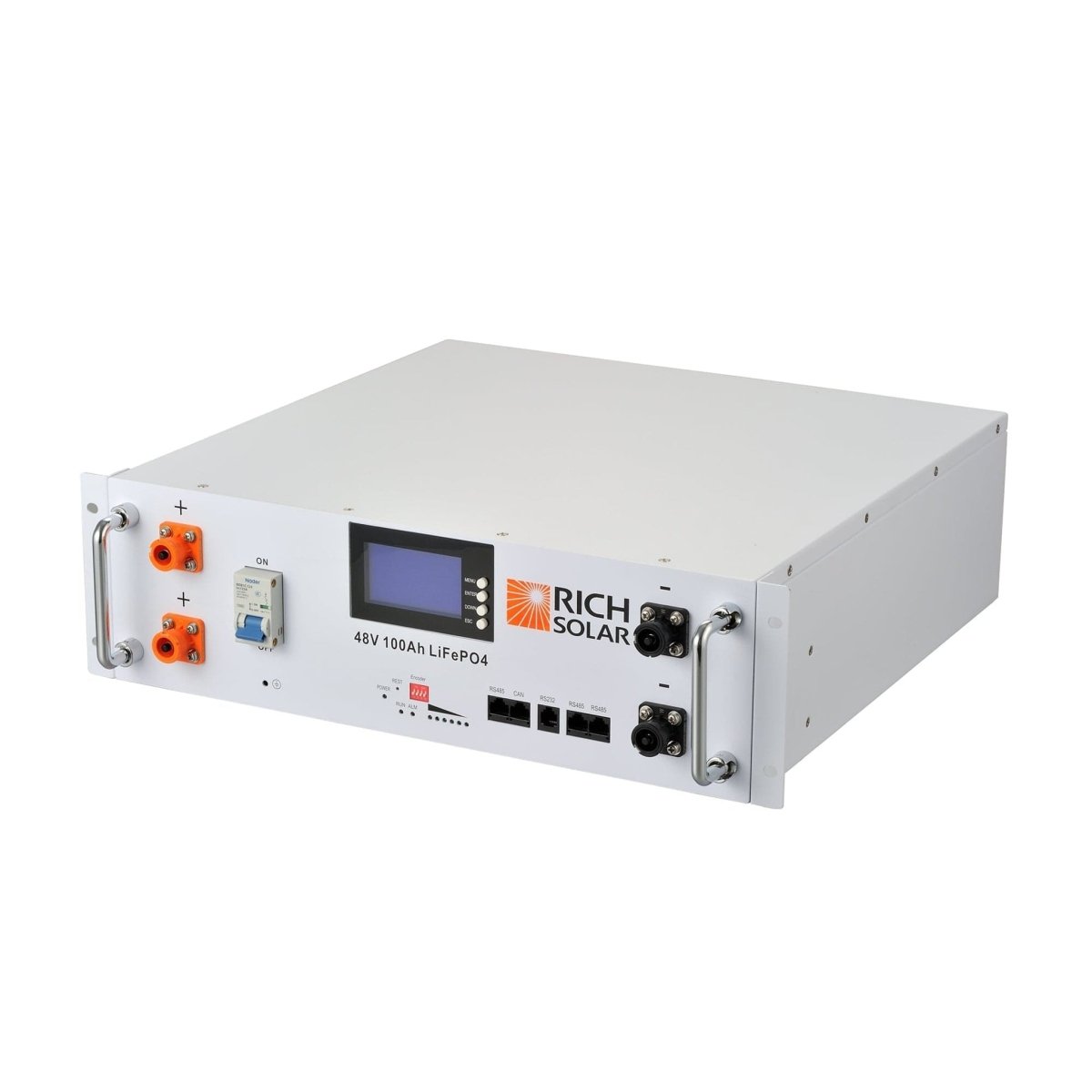

ALPHA 5 | 48V 100Ah LiFePO4 Battery

Overview

The ALPHA 5 48V 100Ah LiFePO4 Battery from RICH SOLAR provides reliable and safe energy storage in a compact form. It uses lithium iron phosphate technology for stable thermal and chemical performance suitable for off-grid and solar energy systems.

Benefits

• Long cycle life exceeding traditional batteries
• Smart battery management system to ensure safety and efficiency
• Performs reliably in various temperature conditions
• Compact and lightweight with high energy density
• Low self-discharge rate for longer storage periods
• Environmentally friendly without harmful chemicals
• Supports parallel connection for system expansion

Features

• High cycle life designed for thousands of charge and discharge cycles
• 20 year lifespan with proper maintenance
• Built in smart battery management system protecting against overcharge, deep discharge, overheating, and short circuits
• Excellent temperature tolerance ensuring stable output
• Compact size and lightweight design ideal for mobile and space limited uses
• Low self discharge to maintain power during storage
• Environmentally friendly construction free from heavy metals

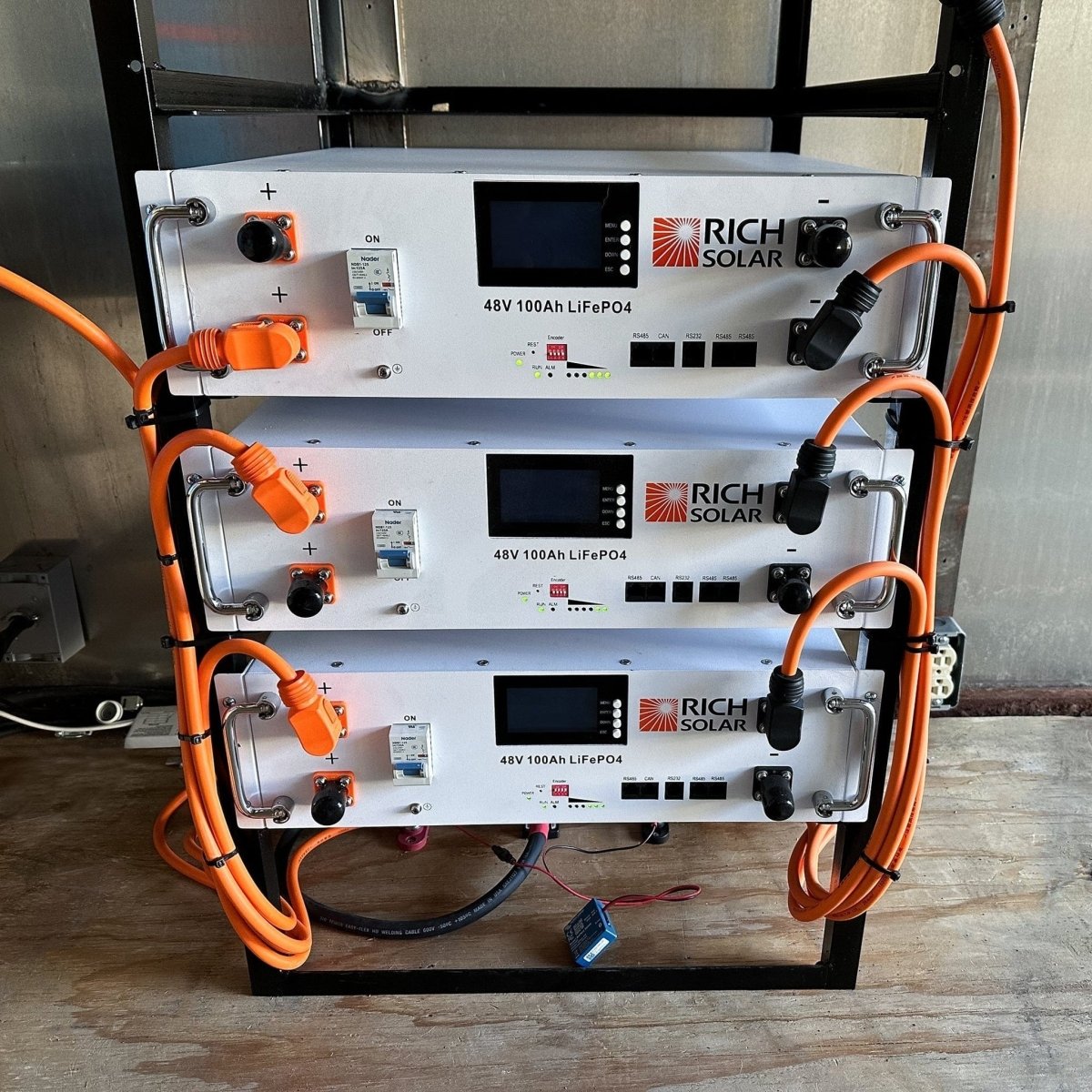

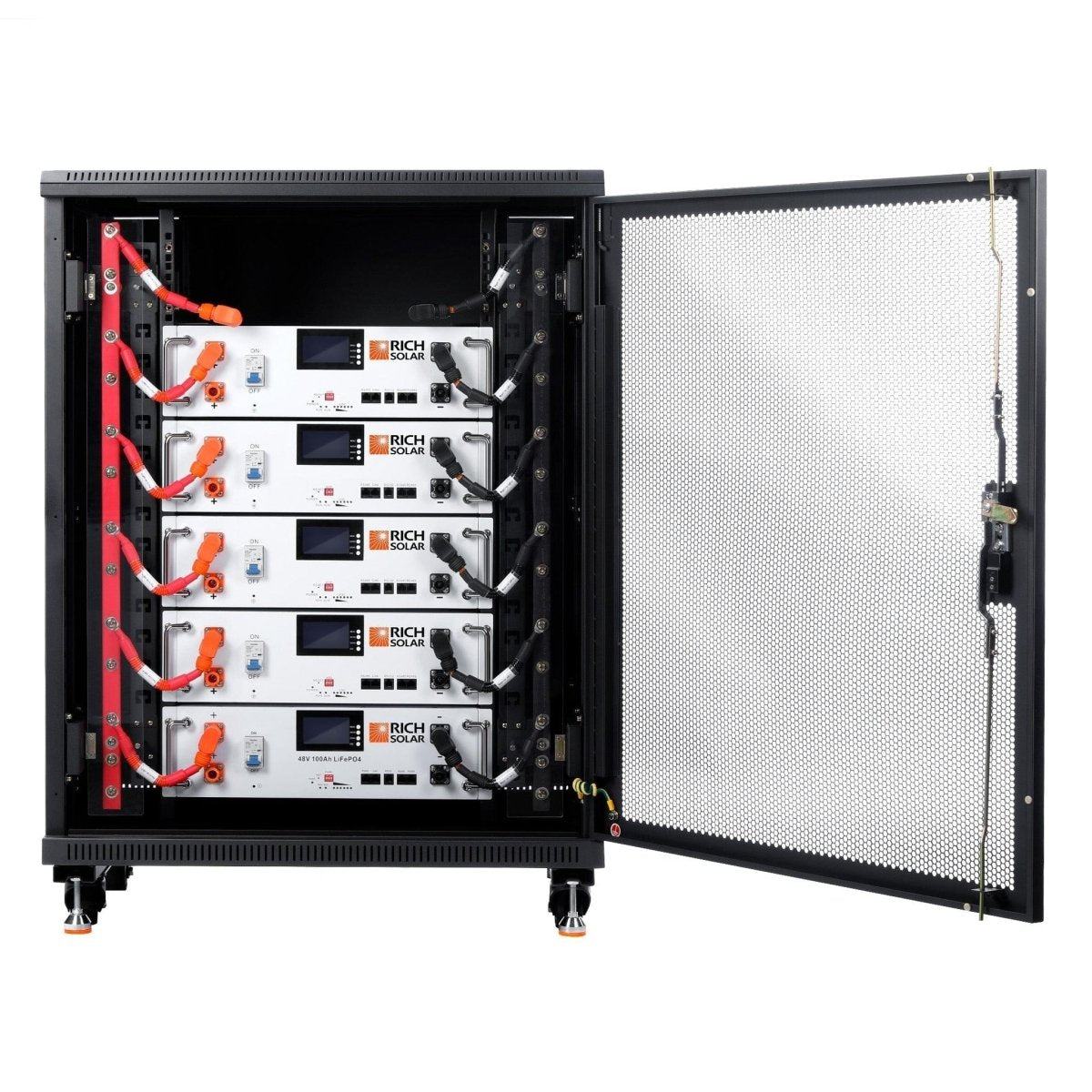

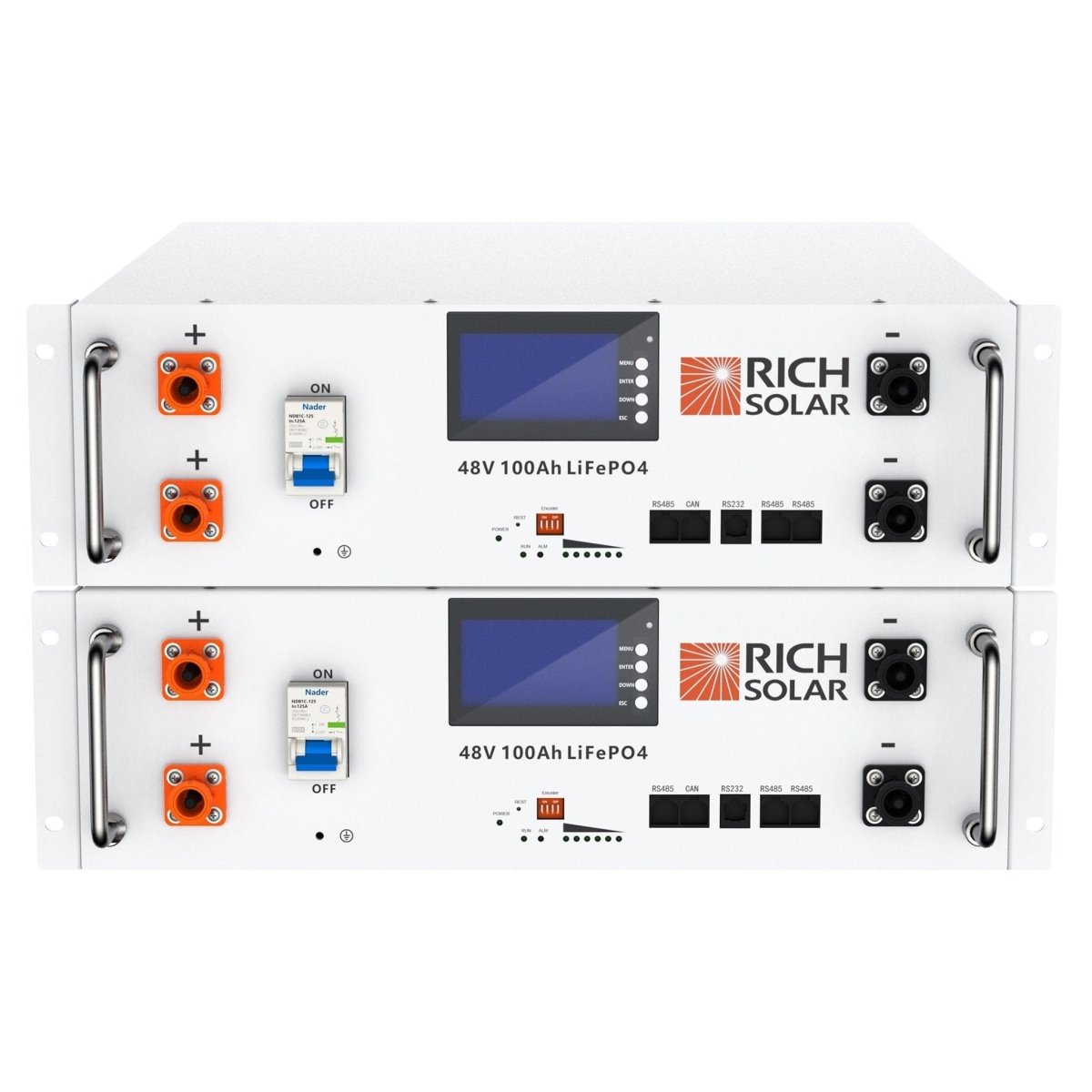

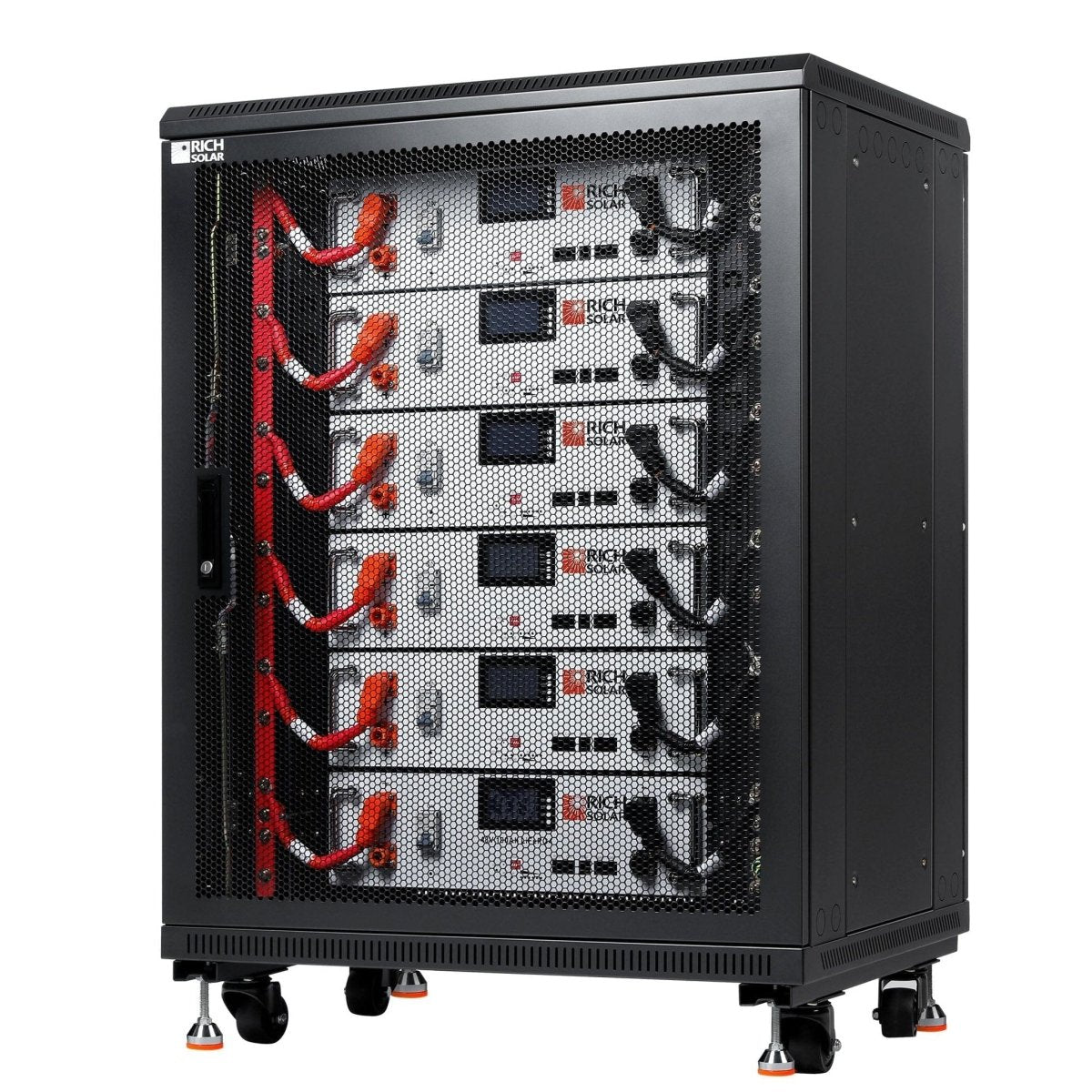

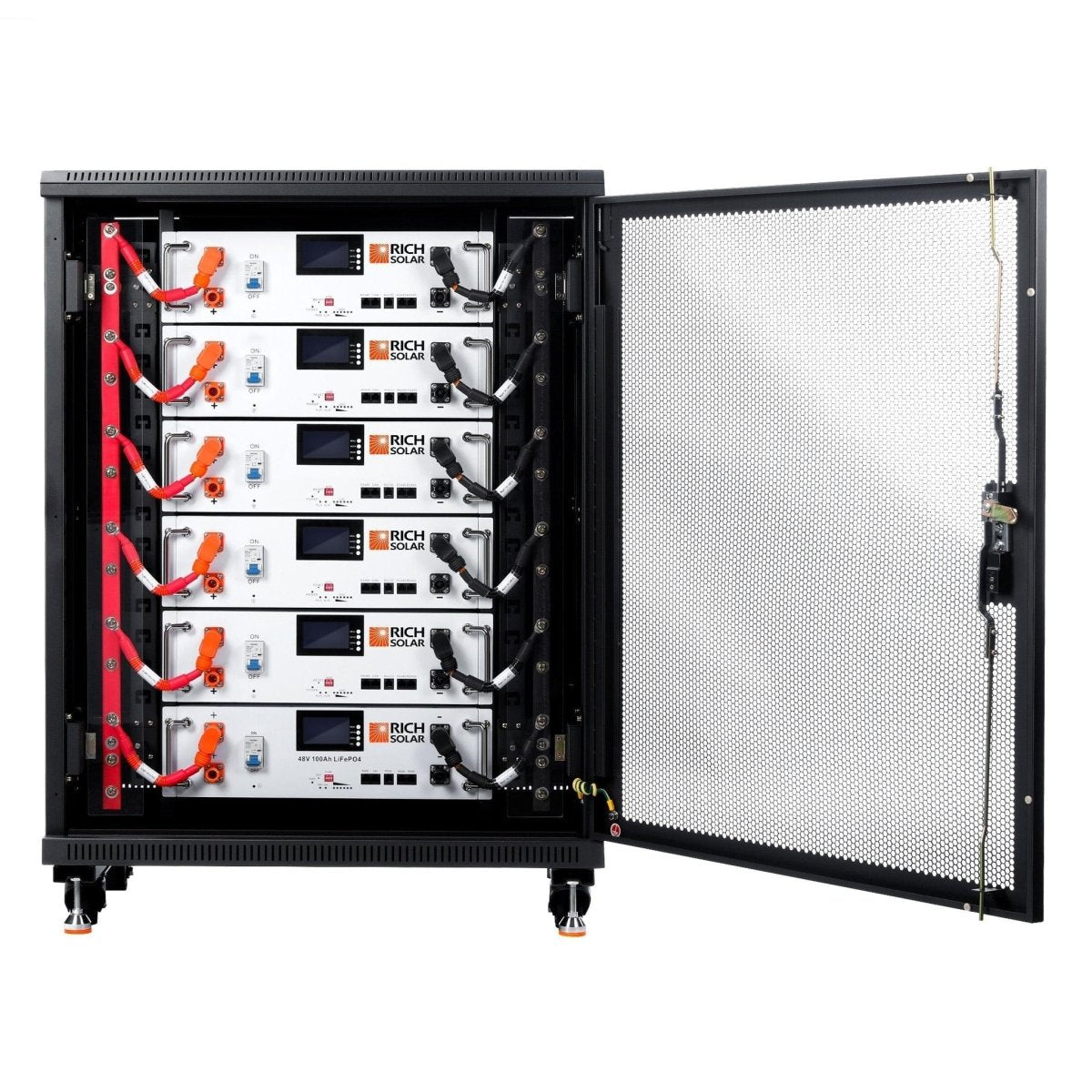

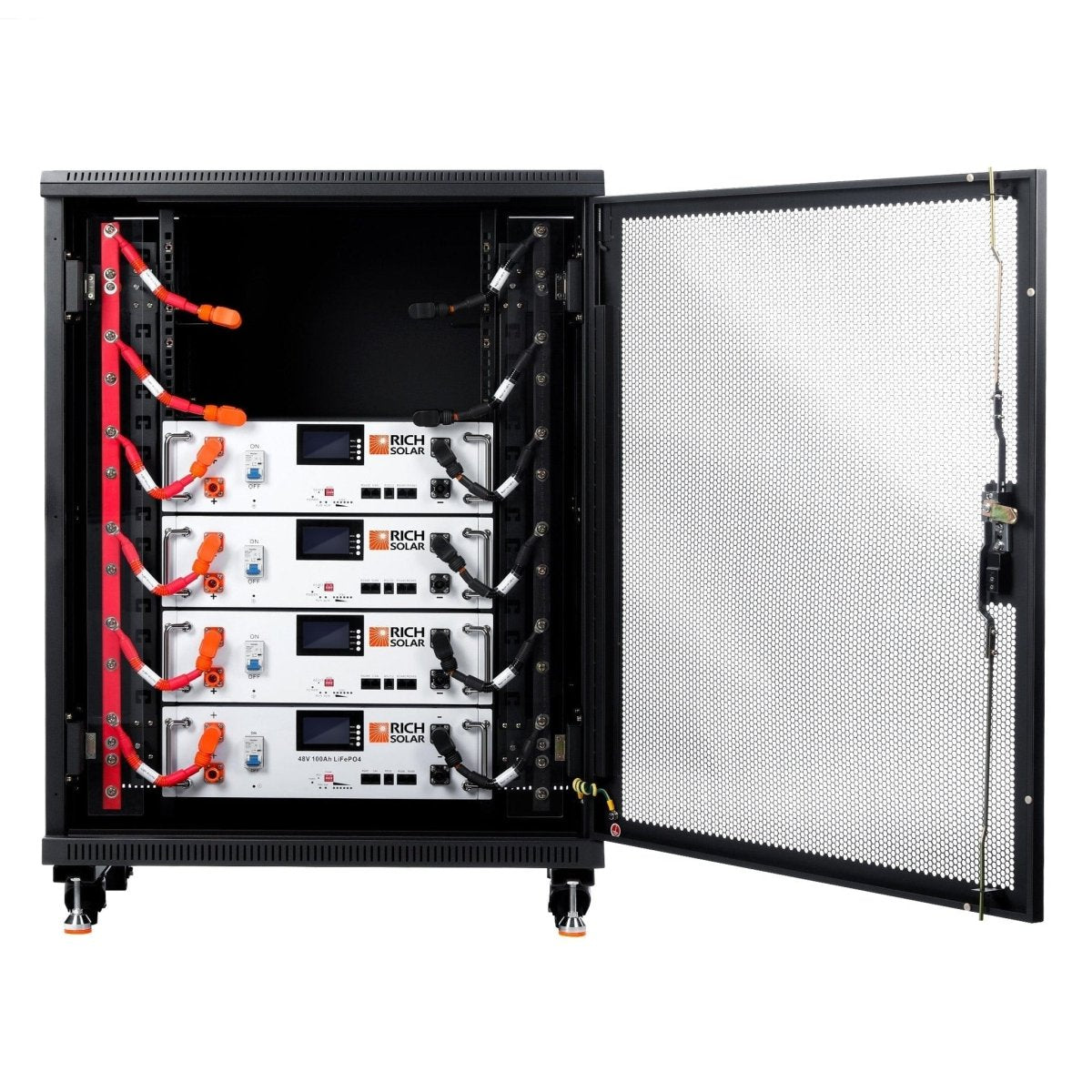

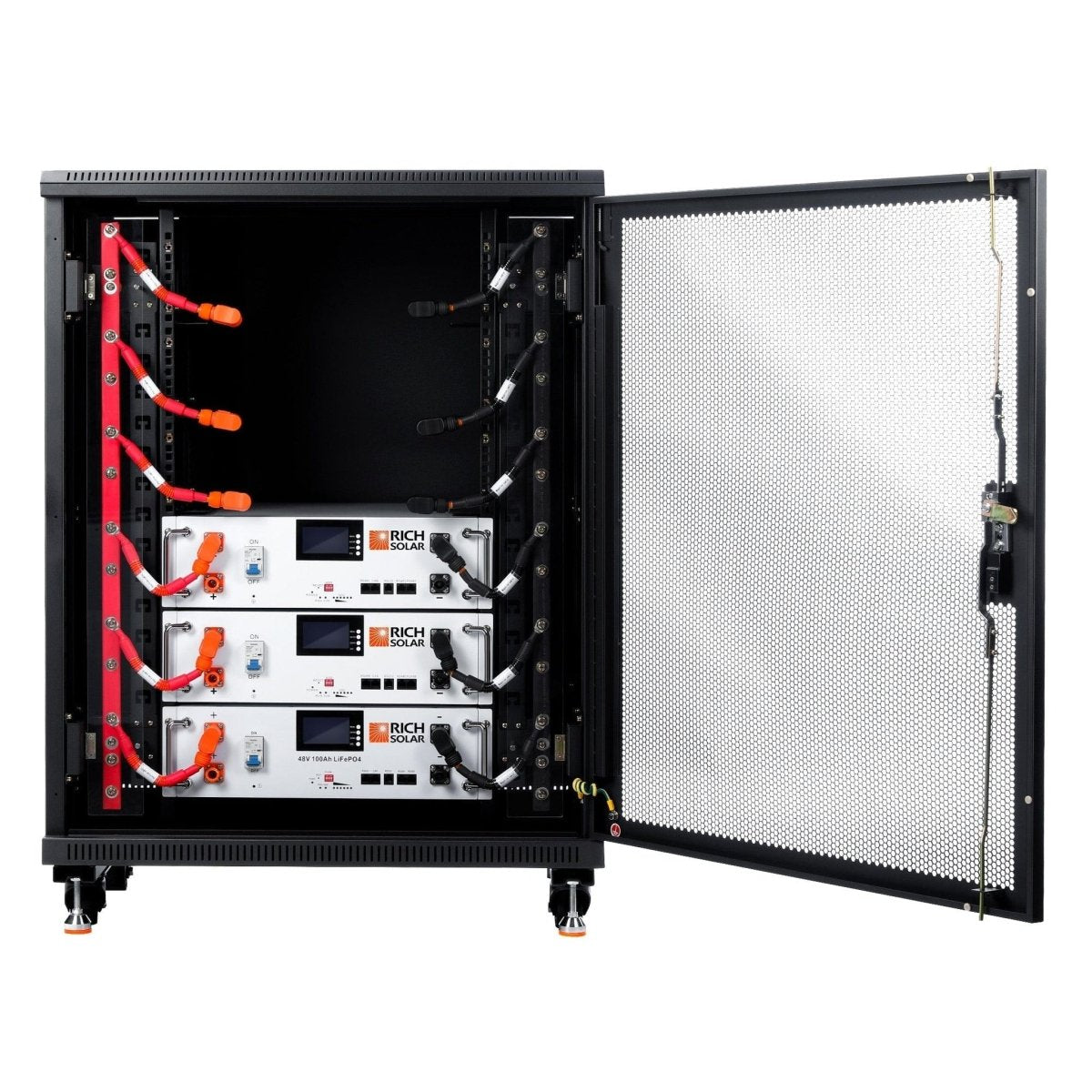

• Supports connection of multiple batteries in parallel for increased capacity
• Each cell is fused to isolate failures and prevent further damage
• Removable carry handle for convenience
• Protected against short circuits
• Fire resistant to physical damage and excessive thermal exposure
• Withstands overcharge and over discharge without damage

Specifications

• Nominal Voltage: 48V
• Nominal Capacity: 100Ah at 0.5C and 77F
• Minimum Capacity: 99.5Ah at 0.5C and 77F
• Expected Cycle Life: Over 7000 cycles at 1C charge and discharge, 77F, 80% depth of discharge
• Charge Method: Smart charger with constant current and constant voltage
• Operating Voltage: 48V
• Energy Capacity: 4800 watt hours
• Charge Voltage Range: 52.0 to 52.5V max
• Continuous Charge Current: 100A
• Continuous Discharge Current: 100A
• Over Voltage Shutdown: 52.5V plus or minus 0.2V
• Discharge Cut off Voltage: 42V plus or minus 0.5V
• Self Discharge Rate: Less than 3 percent per month stored at 50 percent state of charge
• Waterproof Rating: IP65
• Charge Temperature Range: 32°F to 113°F
• Discharge Temperature Range: -4°F to 122°F
• Storage Temperature Range: -4°F to 122°F
• BMS High Temperature Cut off: 149°F
• BMS Low Temperature Cut off: 32°F
• Dimensions: 19 x 17.7 x 5.2 inches
• Weight: 42 kilograms (92.6 pounds)
• Polarity Reverse Protection: Yes
• Short Circuit Protection: Yes

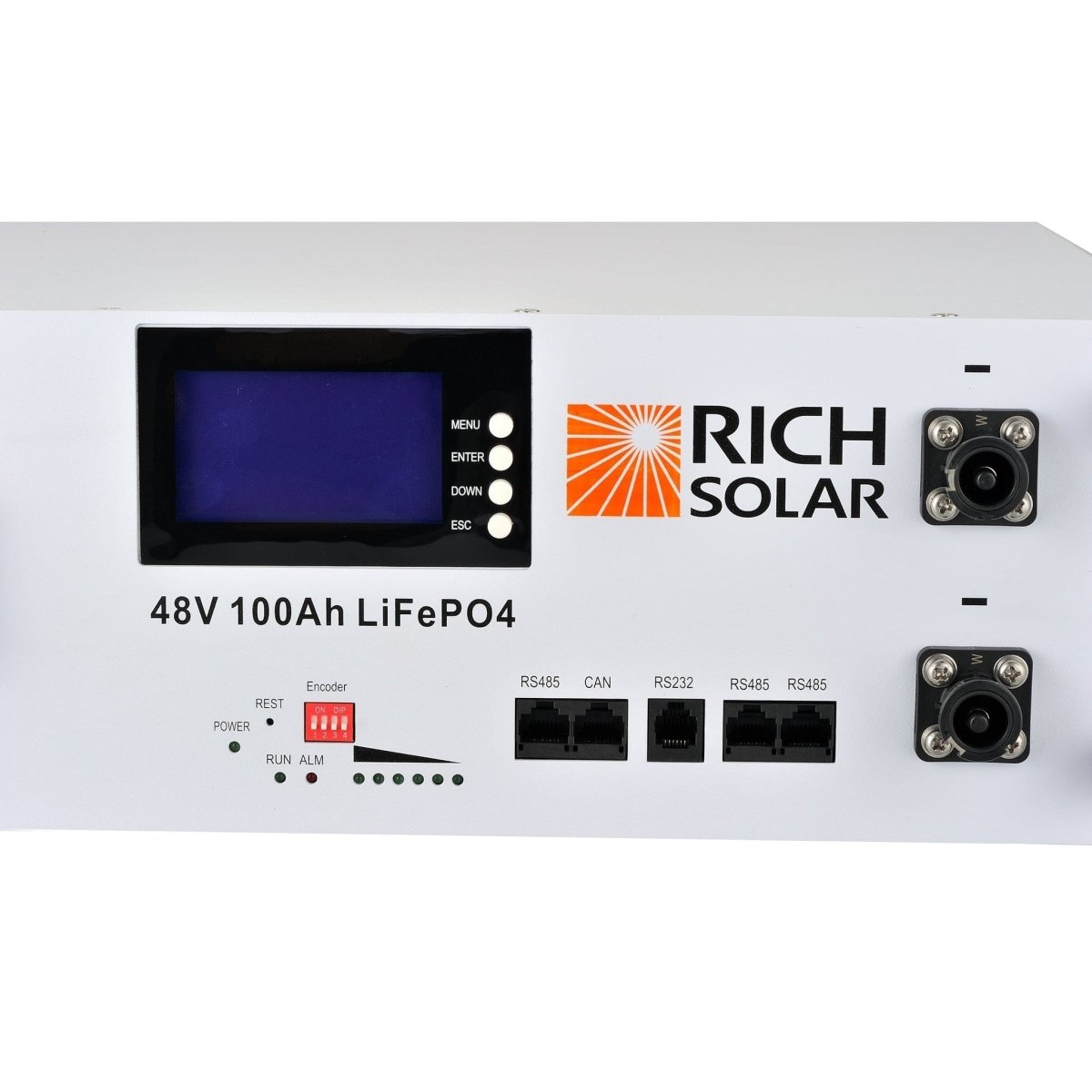

• Communication Ports: RS485 and CAN
• Warranty: 10 year manufacturer defect
