Rich Solar | Hybrid Inverter 8000W 48V NOVA 8K | RS-H6048K

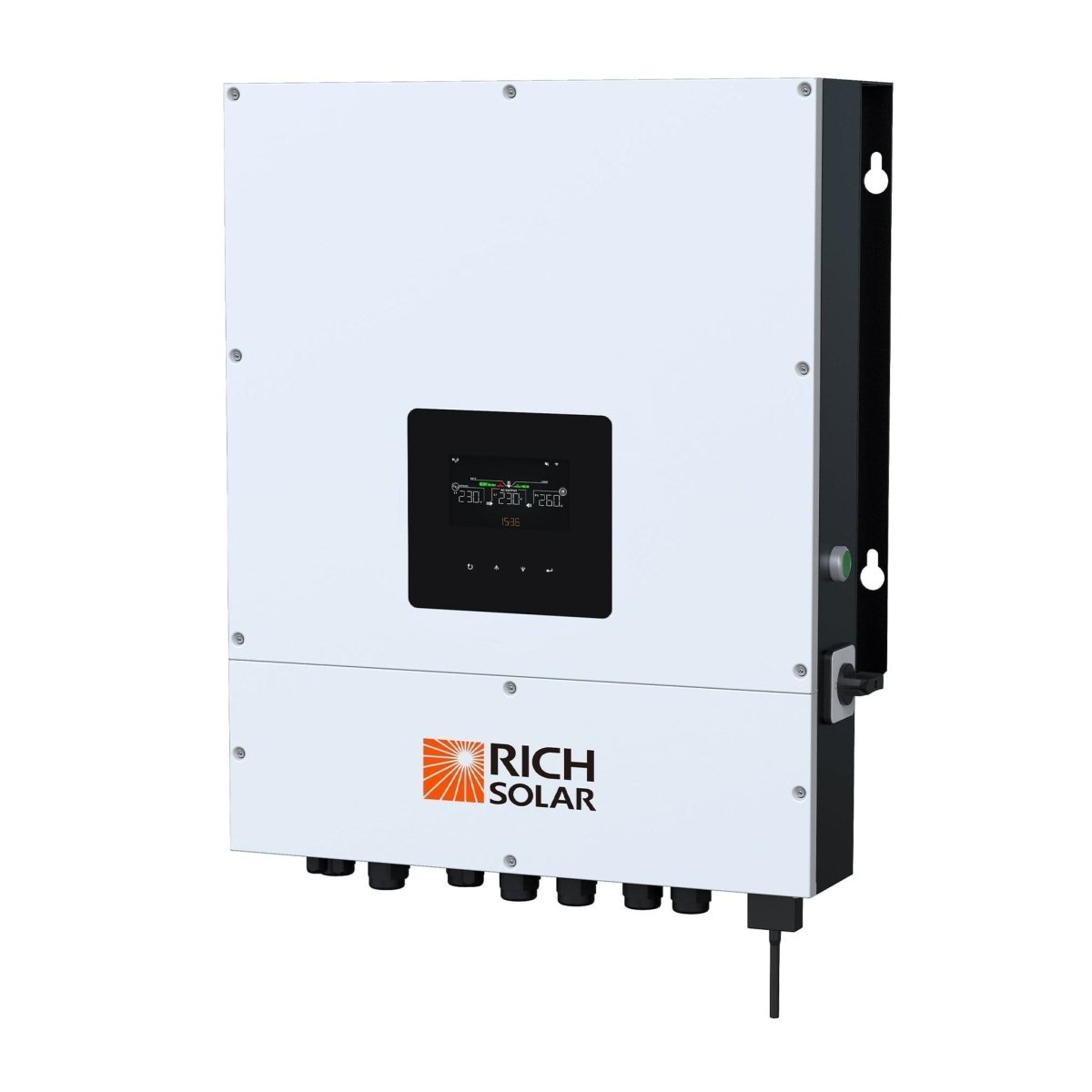

NOVA 8K 8000 Watt 48V Split Phase Hybrid Inverter

Overview

The NOVA 8K is a 48V split phase hybrid inverter designed for whole home energy systems, off grid use, and backup power. It supports up to 8000 watts of photovoltaic input and delivers 6000 watts of continuous output at 120/240 volts. The inverter offers efficient performance, smart energy management, and compatibility with batteries, solar panels, and the utility grid.

Benefits

• IP65 waterproof and dustproof design suitable for indoor and outdoor environments
• Dynamic RGB LED display for easy monitoring of system status
• Integrated Wi-Fi connectivity for remote monitoring and control via mobile app
• Ready for generator connection and emergency load handling
• Optional external CT sensor for self consumption optimization and precise load management
• Flexible power priority settings to choose between photovoltaic, battery, or grid power
• Advanced battery communication through RS485 port for lithium battery integration
• Customizable charging parameters to support various battery types
• Scalable design allowing parallel operation of up to six units for increased capacity

Features

• Maximum photovoltaic input power of 7500 watts
• Continuous rated output power of 6000 volt amperes or watts
• Supports parallel operation with up to six units
• Maximum direct current voltage of 600 volts
• Start up voltage at 120 volts DC and initial feeding voltage at 160 volts DC
• Maximum power point tracking voltage range from 120 to 550 volts DC
• Automatic frequency detection between 50 and 60 Hertz
• Pure sine wave output voltage
• Nominal output voltages of 120 volts AC phase to neutral, 208 volts AC and 240 volts AC phase to phase
• Output voltage range from 105.5 to 132 volts AC per phase
• Nominal output current of 25 amperes per phase
• Battery voltage range from 40 to 62 volts DC
• Maximum charging current of 120 amperes
• DC to AC efficiency of 91 percent
• Operating temperature from minus 25 to 60 degrees Celsius with derating over 45 degrees
• Dimensions 8.5 by 20.3 by 27.6 inches or 215.5 by 515 by 700 millimeters including extension box
• Net weight 90.4 pounds or 41 kilograms

Specifications

• Maximum PV Input Power 7500 watts
• Rated Output Power 6000 volt amperes/watts
• Parallel Capability supports up to 6 units
• Maximum DC Voltage 600 volts DC
• Start Up Voltage 120 volts DC, Initial Feeding Voltage 160 volts DC
• MPPT Voltage Range 120 to 550 volts DC
• Frequency Range 50 Hertz / 60 Hertz automatic detection
• Output Voltage Waveform Pure Sine Wave
• Nominal Output Voltage 120 VAC phase to neutral, 208 VAC and 240 VAC phase to phase
• Output Voltage Range 105.5 to 132 VAC per phase
• Nominal Output Current 25 amperes per phase
• Battery Voltage 40 to 62 volts DC
• Maximum Charging Current 120 amperes
• Efficiency DC to AC 91 percent
• Operating Temperature Range minus 25 to 60 degrees Celsius with derating over 45 degrees
• Dimension 8.5 by 20.3 by 27.6 inches / 215.5 by 515 by 700 millimeters
• Net Weight 90.4 pounds / 41 kilograms
