Rich Solar | Flexible Solar Panel 200W 24V MEGA 200 FLEX PRO | RS-F200P

MEGA 200 FLEX PRO 200W 24V Flexible Solar Panel 360° Bendable IP68 Waterproof

Overview

The MEGA 200 FLEX PRO is a 200 watt 24 volt flexible solar panel designed for adaptability and durability. Its thin, fully bendable design fits curved surfaces such as RVs, boats, vans, and overland vehicles. The panel meets IP68 waterproof standards for dependable use in wet and dusty conditions. It is lightweight, efficient, and simple to install, providing steady solar power in various outdoor settings.

Benefits

• Conforms to curved surfaces including RV roofs and boat decks
• Lightweight and easy to carry, weighing only 8.1 pounds
• Durable walkable surface suitable for foot traffic
• Efficient energy conversion with high performance PERC cells
• Maintains power output in low light and cloudy conditions
• Operates reliably across a wide temperature range
• Waterproof and dustproof with IP68 rating
• Resists strong wind and snow loads
• Simple plug and play setup with pre-attached MC4 connectors

Features

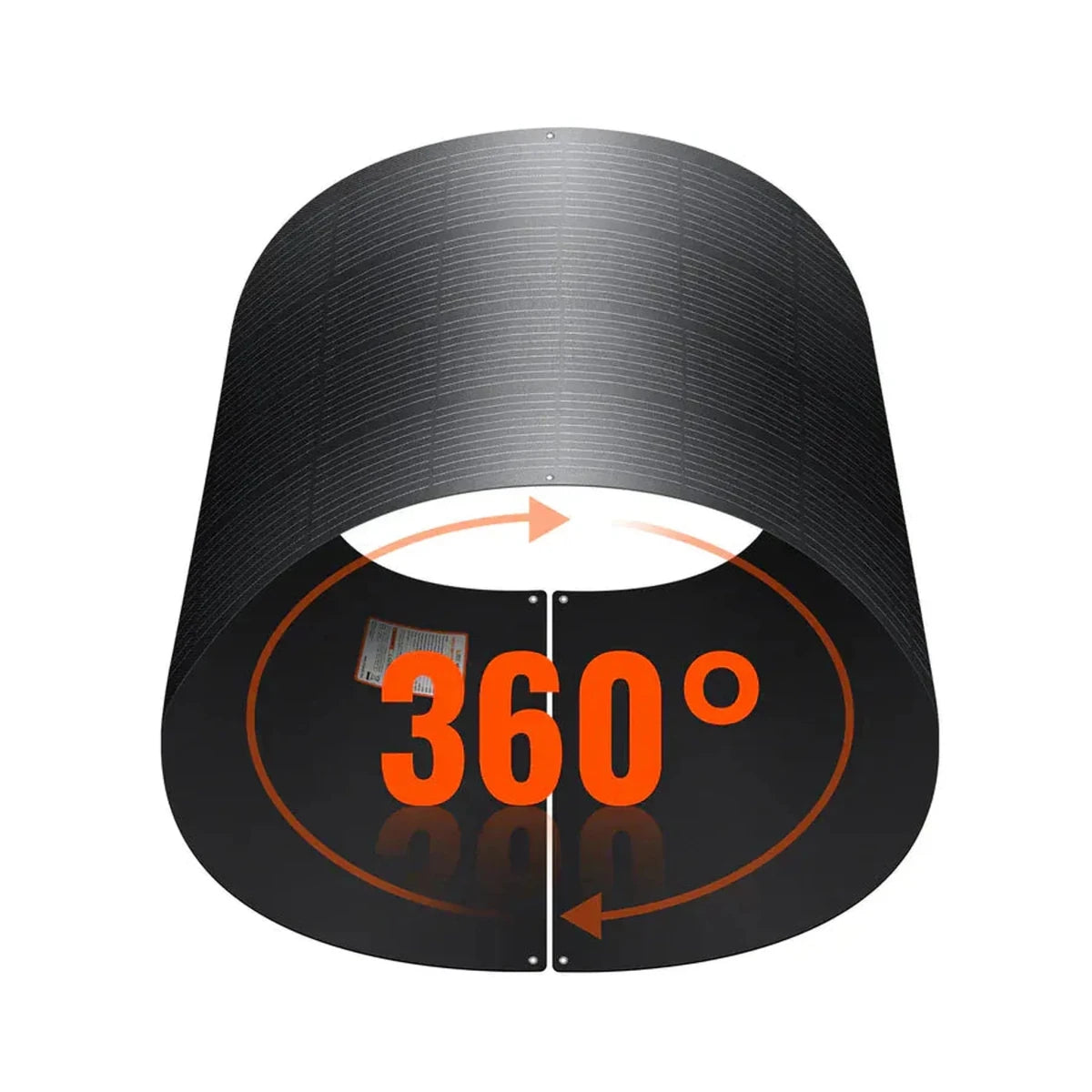

• 360° flexible panel adapts to various curved shapes
• Ultra-thin profile at 0.1 inch thickness

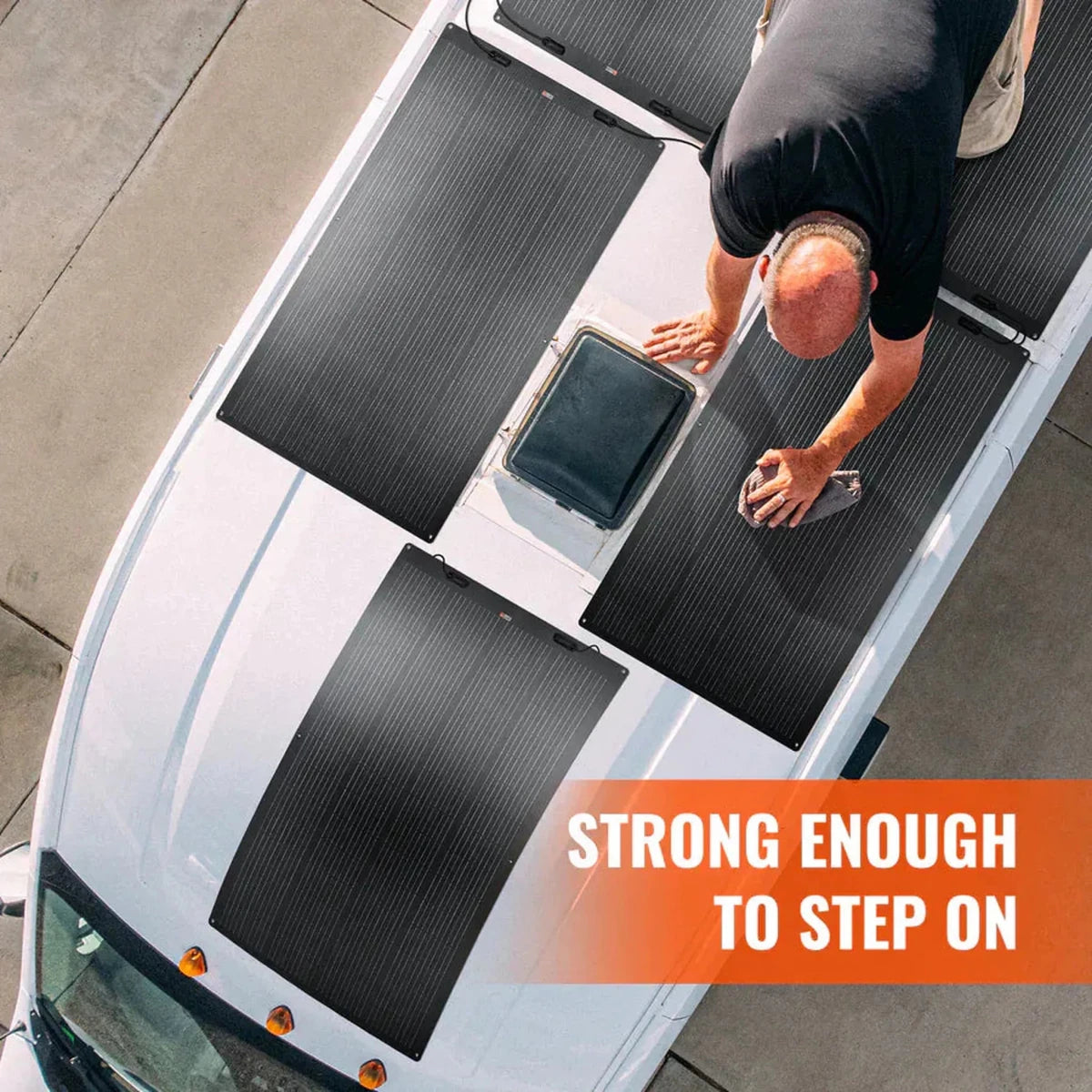

• Walkable design supports foot traffic without damage
• High efficiency PERC cells converting sunlight up to 22.8 percent
• Low temperature coefficient of minus 0.35 percent per degree Celsius
• IP68 waterproof rating ensuring protection against rain and dust
• Strong load resistance up to 5400 pascal front load and 2400 pascal back load
• Wide operating temperature from minus 40 to plus 185 degrees Fahrenheit
• Pre-attached MC4 connectors for quick installation
• Flexible mounting options including adhesive, Velcro, pre-drilled holes, and hanging
• Compatible with both 12 volt and 24 volt solar power systems

Specifications

• Maximum Power: 200 W
• Maximum Power Voltage (Vmp): 34.2 V
• Maximum Power Current (Imp): 6.02 A
• Open Circuit Voltage (Voc): 40.8 V
• Short Circuit Current (Isc): 6.33 A
• Maximum System Voltage: 1500 V DC
• Maximum Series Fuse Rating: 20 A
• Operating Temperature Range: minus 40 °F to plus 185 °F
• Weight: 8.1 lb

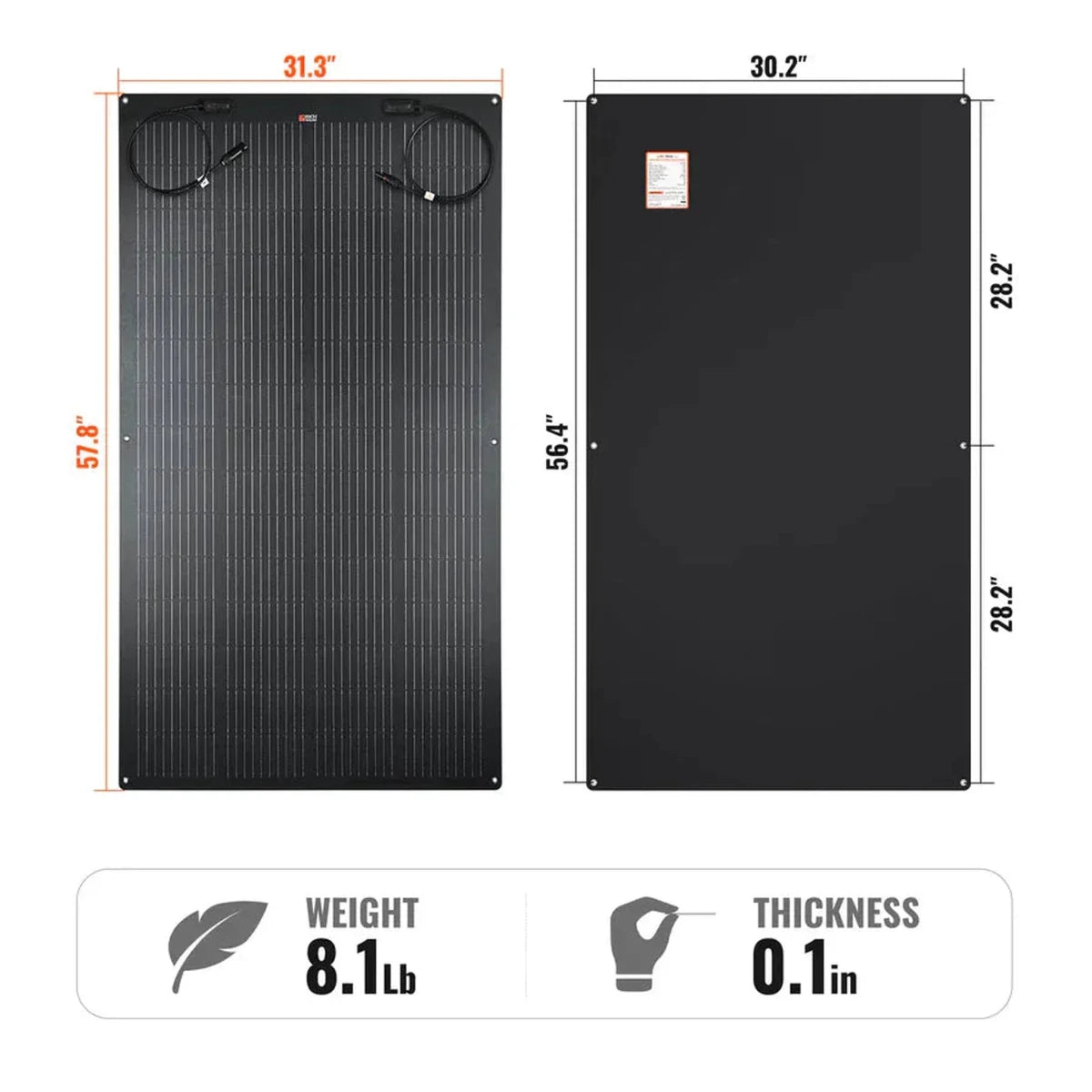

• Dimensions: 57.8 × 31.3 × 0.1 inches
• Material and Workmanship Warranty: 1 year
