OVS Air It Up® Gen2 — 4-Tire Inflation System (Complete Universal Kit)

Overview

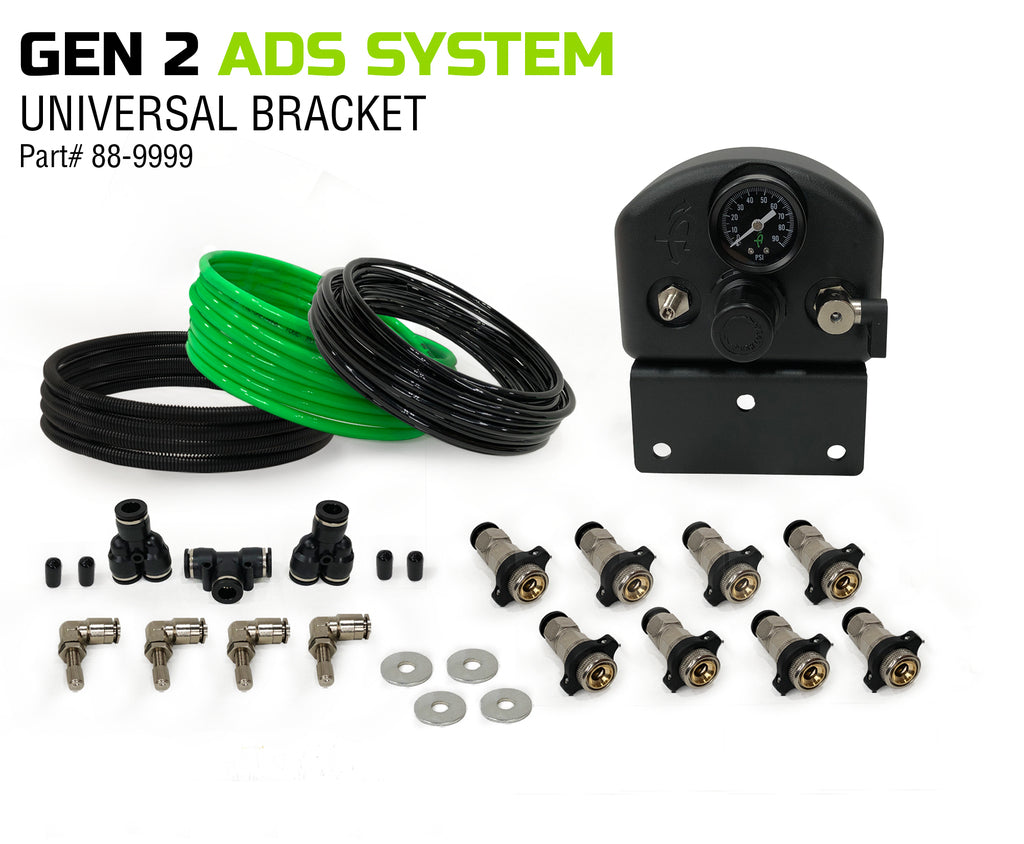

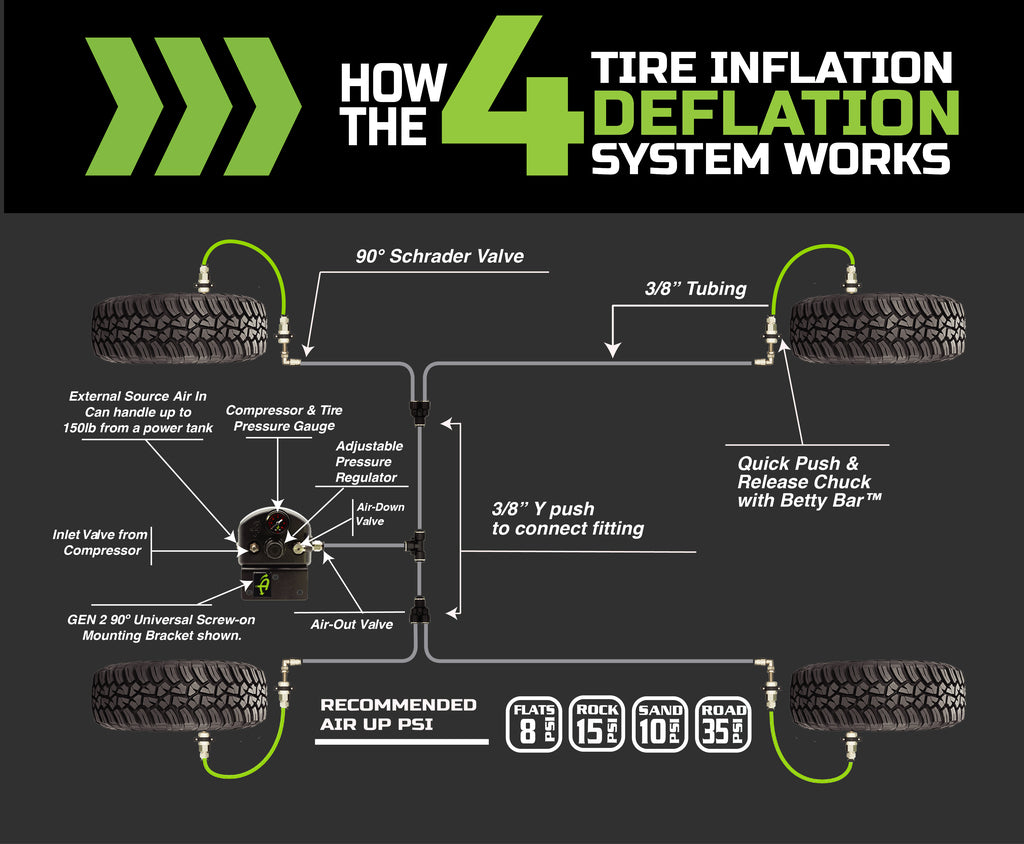

The OVS Air It Up Gen2 4-Tire Inflation System lets you inflate, deflate or equalize all four tires at once using an onboard air source or a portable compressor. The kit includes the controller box, DOT-approved hoses and fittings, quick-connect chucks, pre-cut whips and a storage bag for straightforward installation and on?vehicle storage.

Benefits

• Save time by adjusting all four tires simultaneously instead of doing each tire one-by-one.
• Keep tire pressures consistent for better handling, improved fuel economy and reduced uneven tire wear.
• Flexible setup lets you use an onboard tank, a permanent compressor, a portable pump or CO2, so you can work wherever you are.
• Pre-cut hoses and push-to-connect fittings reduce installation stress and get you on the road faster.
• Compact kit and storage bag make it easy to store the system in your vehicle when not in use.

Features

• Inflates, deflates and automatically equalizes four tires simultaneously.

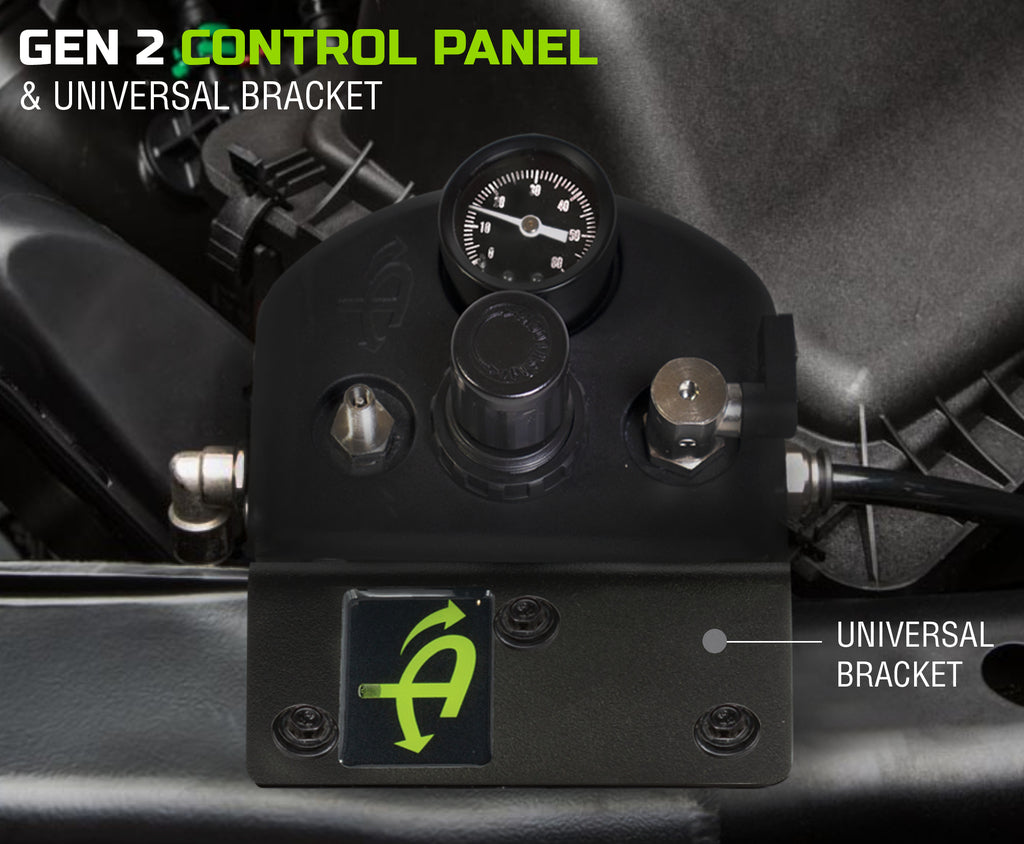

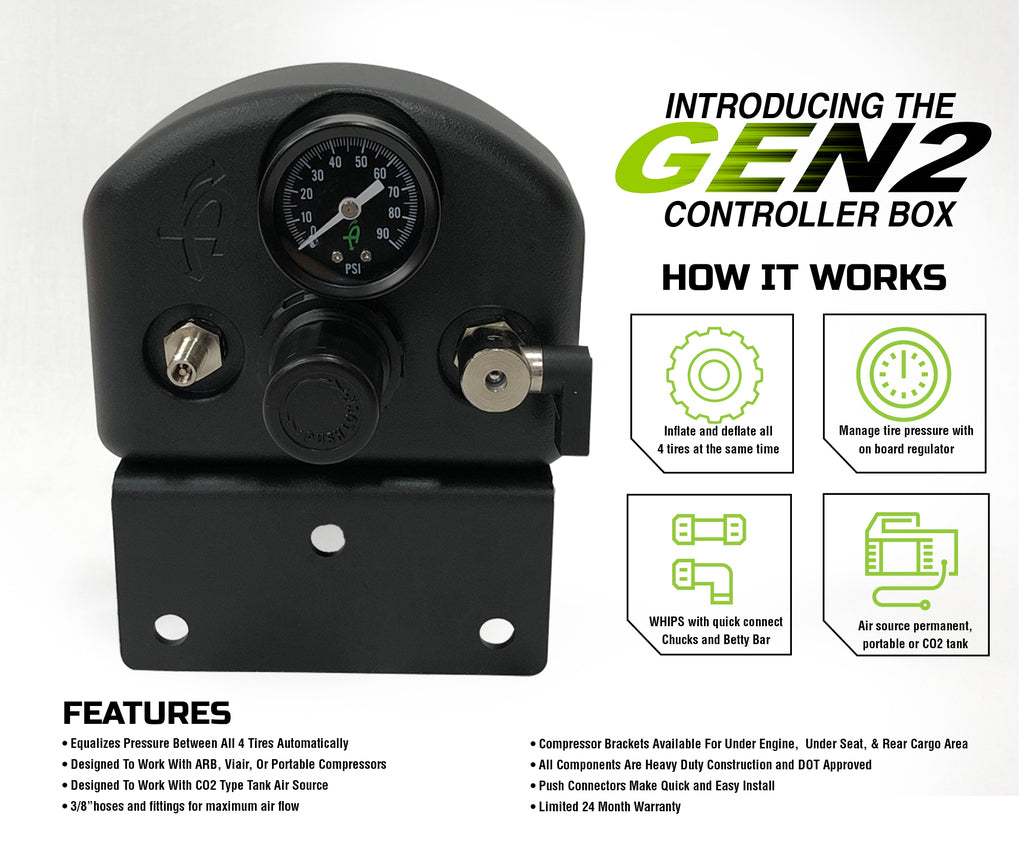

• Gen2 ADS controller box with integrated air regulator and 2 inlet valves for permanent or portable air sources.
• Works with onboard compressors (ARB, Viair, EGOI 2) or portable compressors and CO2-style tank sources.
• Includes DOT-approved 3/8-inch air line throughout the system.
• Comes with 8 quick-connect chucks featuring the Betty Bar™ for easy connection and 4 green tire connect whips.
• Pre-cut hoses and push-to-connect fittings for straightforward installation.
• Includes 90 psi pressure regulator and 150 psi blow-off valve for safe operation.
• Heavy-duty construction built for vehicle use and repeated field service.

Specifications

• Weight: 7.90 lbs
• Width: 4.25 in
• Height: 21.00 in
• Depth: 14.00 in

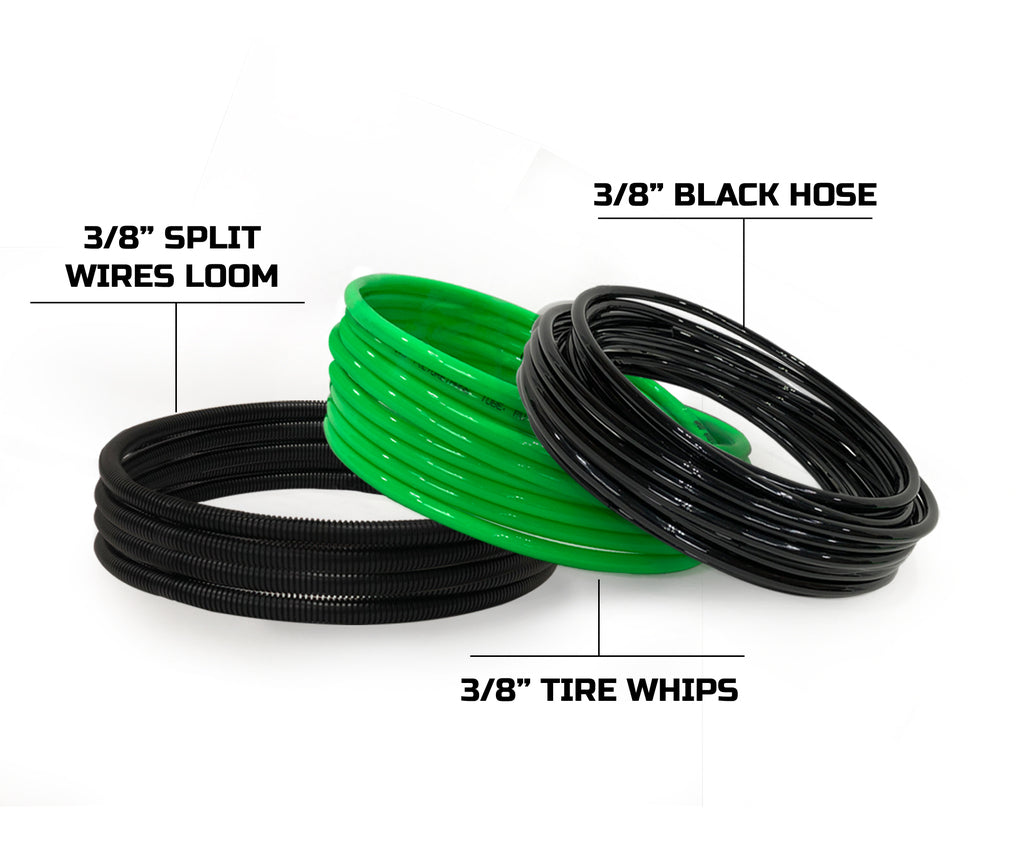

• Air line: DOT-approved 3/8-inch hose
• Regulator: 90 psi pressure regulator included
• Safety: 150 psi blow-off valve included
• Connections: 2 inlet valves on ADS controller for permanent or portable air sources

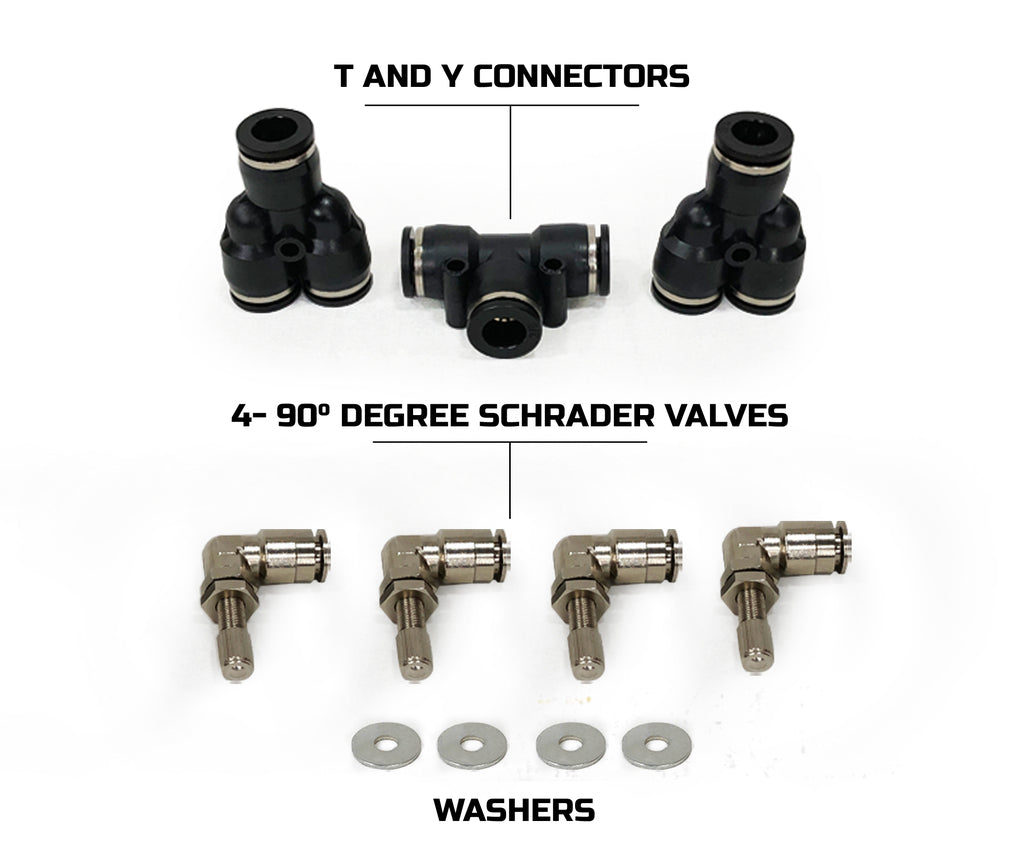

• Hardware included: 8 quick-connect chucks (Betty Bar™), 4 green tire connect whips, 90-degree Schrader valves, pre-cut hoses, push-to-connect fittings
• Compatibility: Designed to work with ARB, Viair, EGOI 2 and other portable compressors; compatible with CO2-type tank sources
• Color: Black

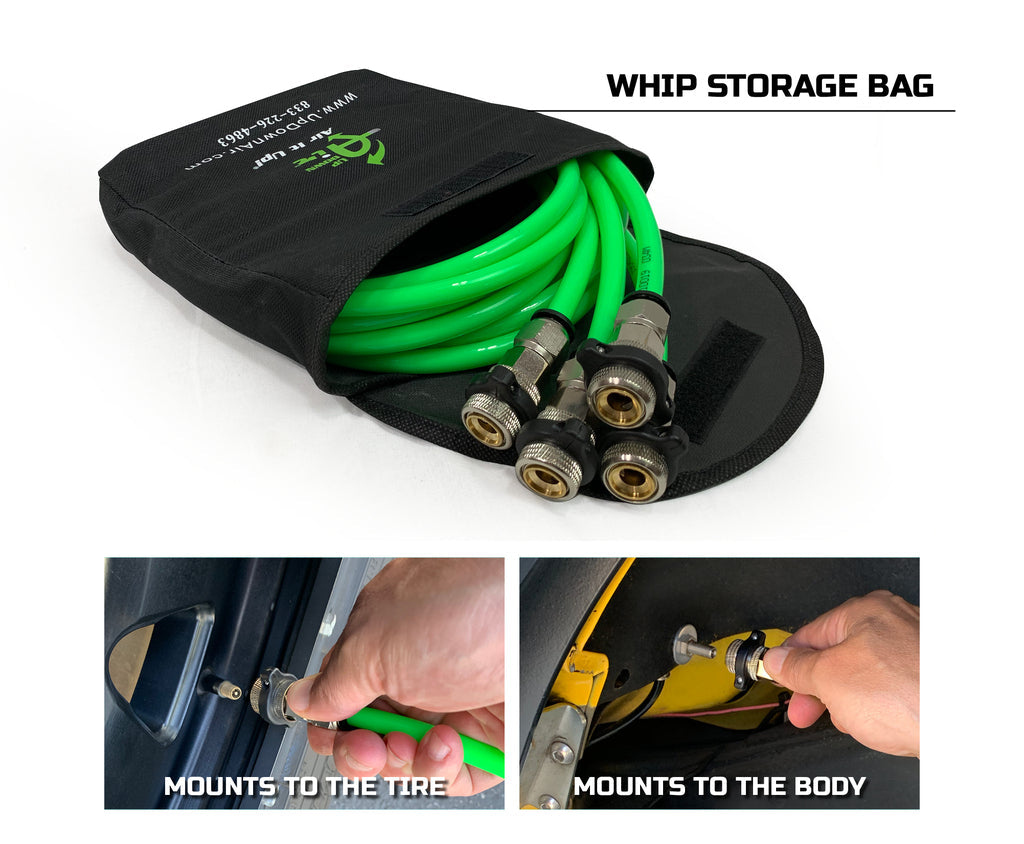

• Storage: Includes storage bag for chucks, whips and controller
• Warranty: 5-year limited warranty
