Up Down Air 4-Tire Inflation System — Engine Bay Mount (Jeep Wrangler JK & JKU)

Overview

An onboard 4-tire inflation and equalization system designed for 2007–2018 Jeep Wrangler JK & JKU models. Mounted in the engine bay (driver side, rear), it can automatically equalize, inflate or deflate all four tires using a permanent air source or a portable pump connected via an external Schrader valve. All components are heavy-duty and DOT approved.

Benefits

• Save time — inflate or equalize all four tires simultaneously instead of doing them one by one.
• Drive with confidence — maintain consistent tire pressure for better handling and predictable performance.
• Protect your tires — consistent pressures help reduce uneven wear and extend tire life.
• Convenient on-vehicle solution — works with an onboard compressor or a portable pump for flexibility on and off-road.
• Less fuss at the trailhead — automatic equalization makes transitions between highway and off-road pressures quick and easy.

Features

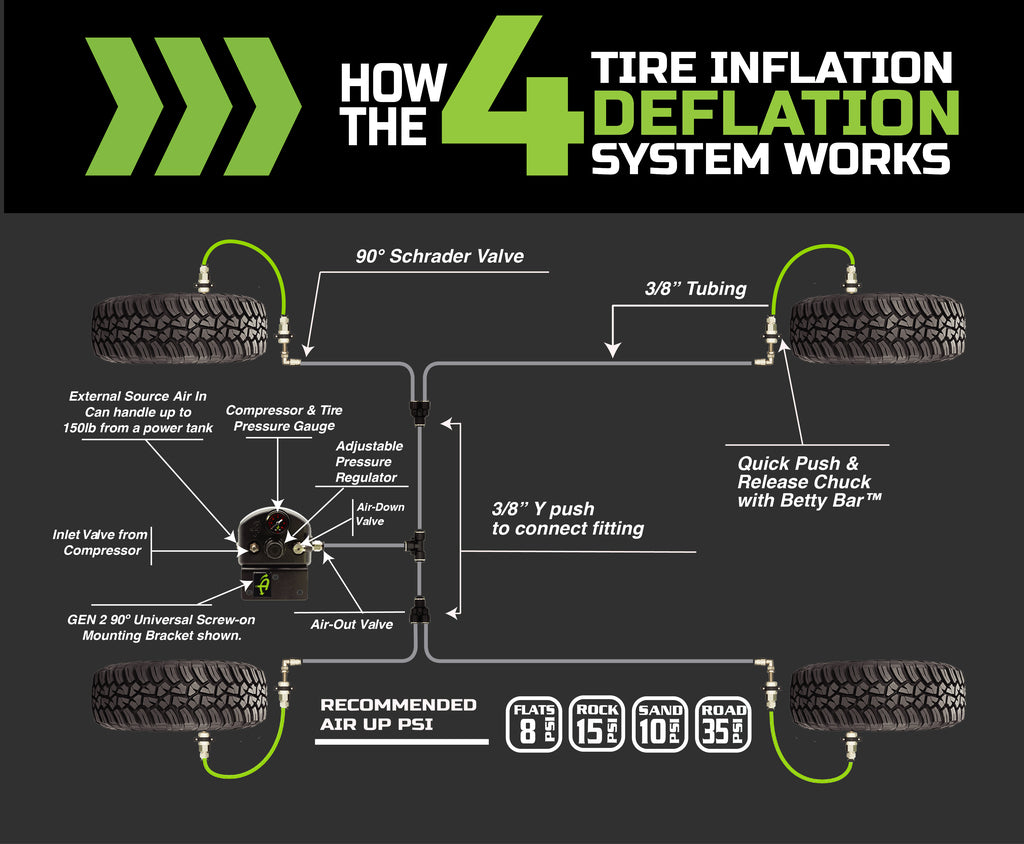

• Simultaneously deflates, inflates, or equalizes four tires.

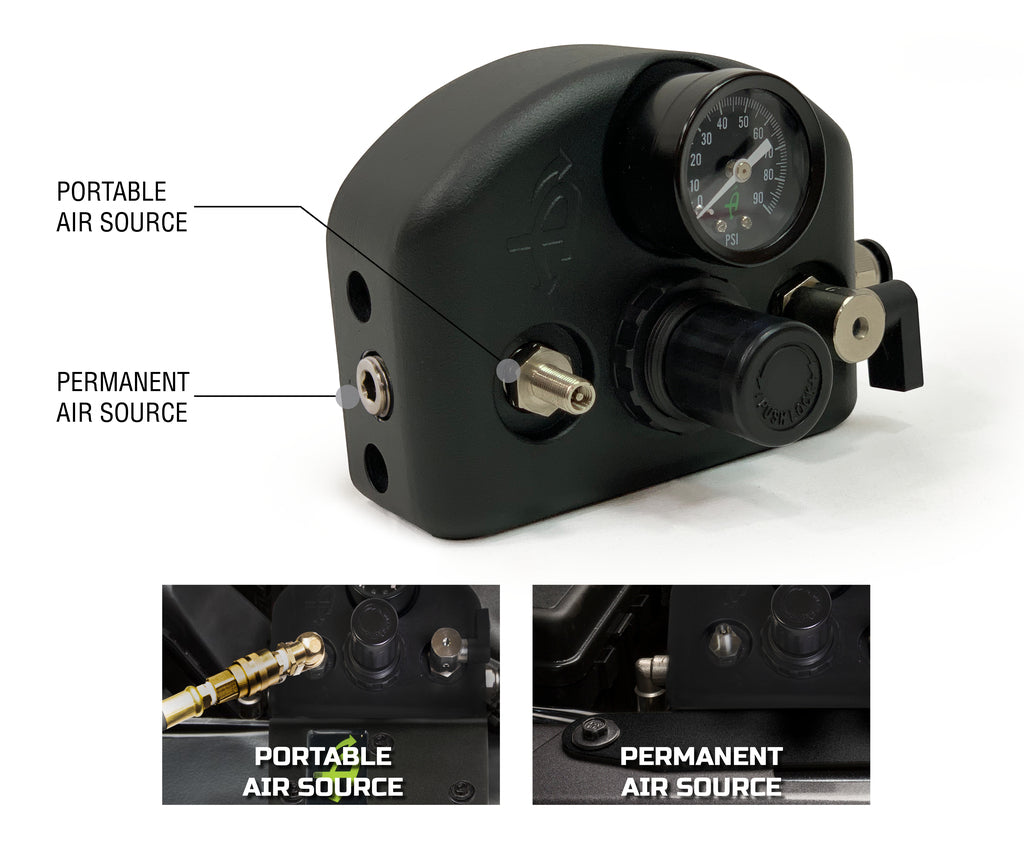

• ADS Controller with two inlet valves supports a permanent onboard air source or a portable air pump via an external Schrader valve.

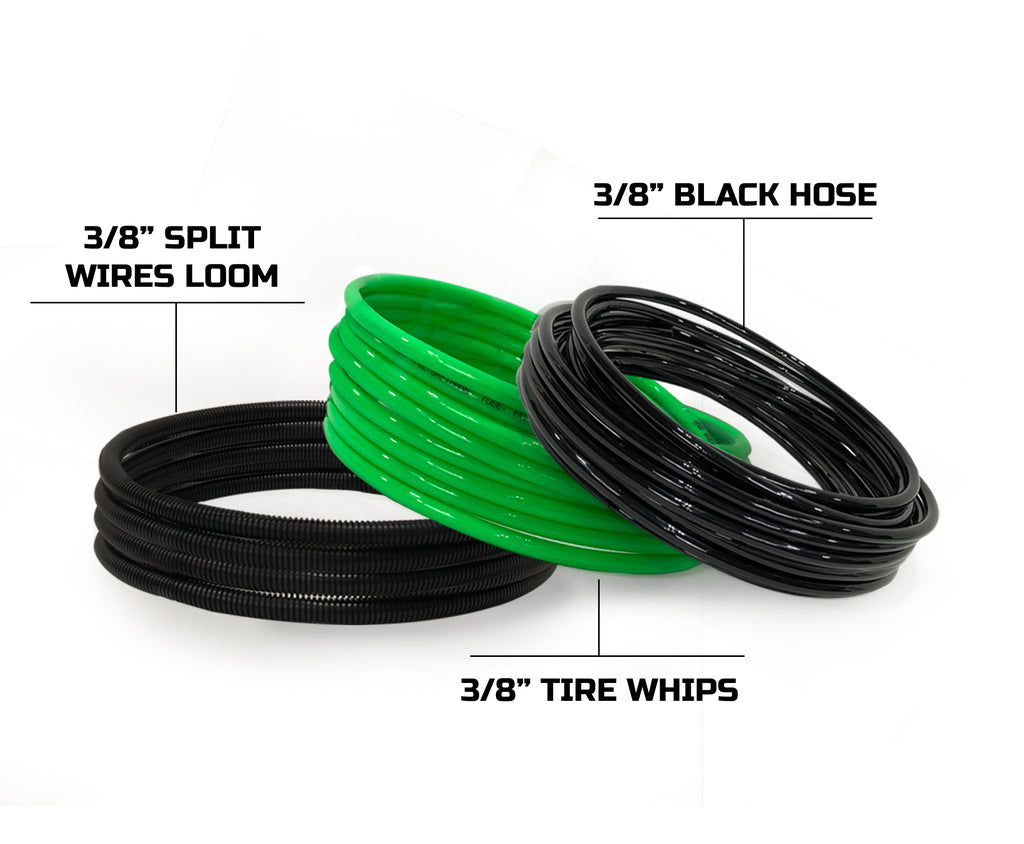

• Includes pre-cut hoses and push-to-connect fittings for straightforward installation and reliable airflow.

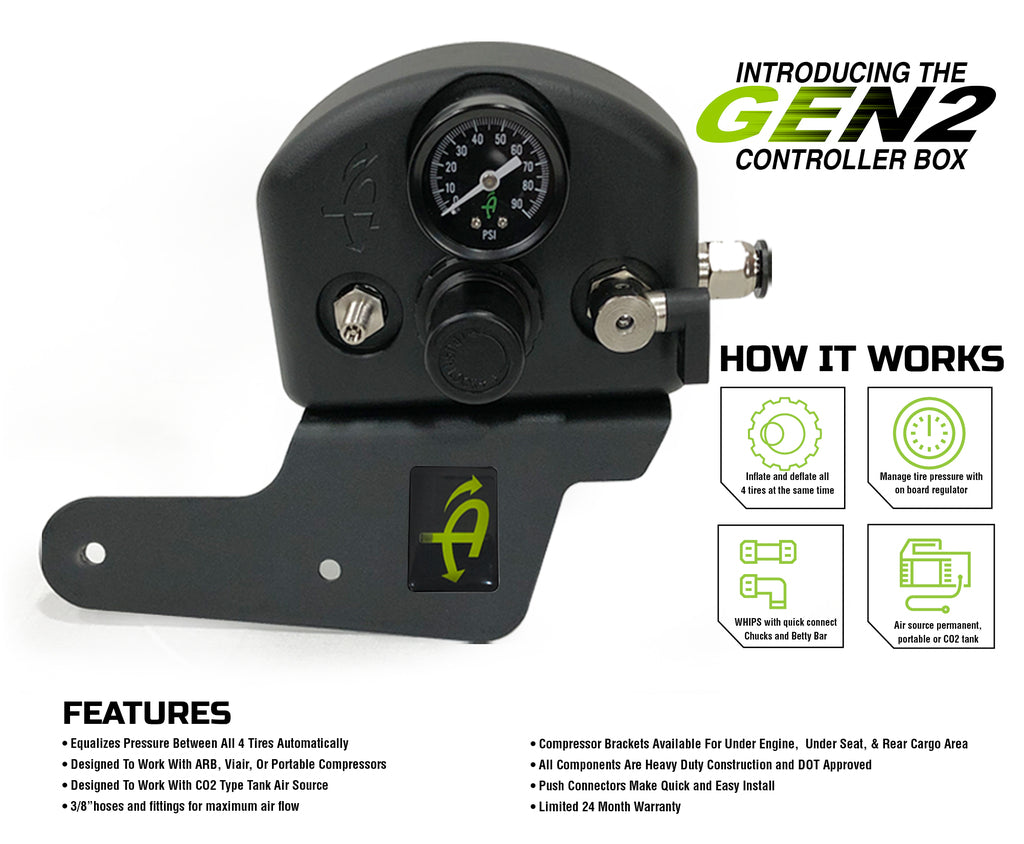

• ADS Controller Box, 90 psi pressure regulator, and 150 psi blow-off valve included.
• Comes with 8 quick-connect chucks featuring the Betty Bar™ for easy use.

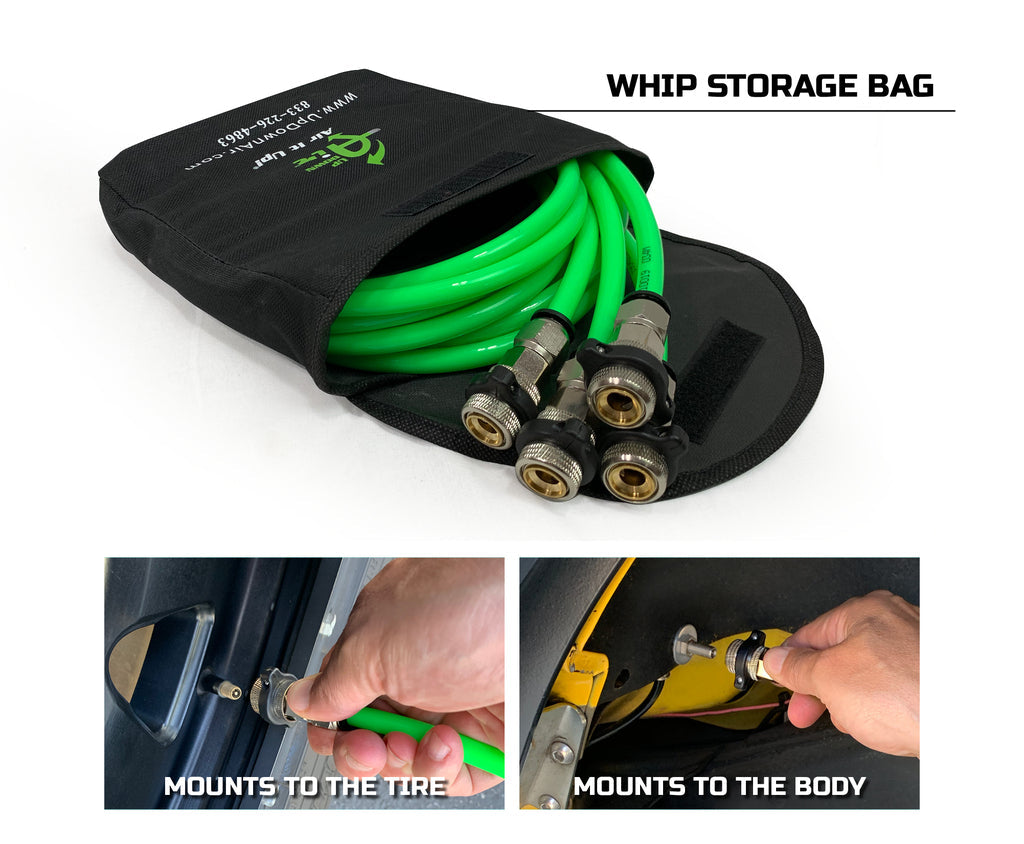

• Includes 4 green tire connect whips and a storage bag for organized stowage.
• Compatible with EGOI 2, ARB, and VIAIR compressors when using the ADS Controller.
• Heavy-duty, DOT-approved components tested for durability.

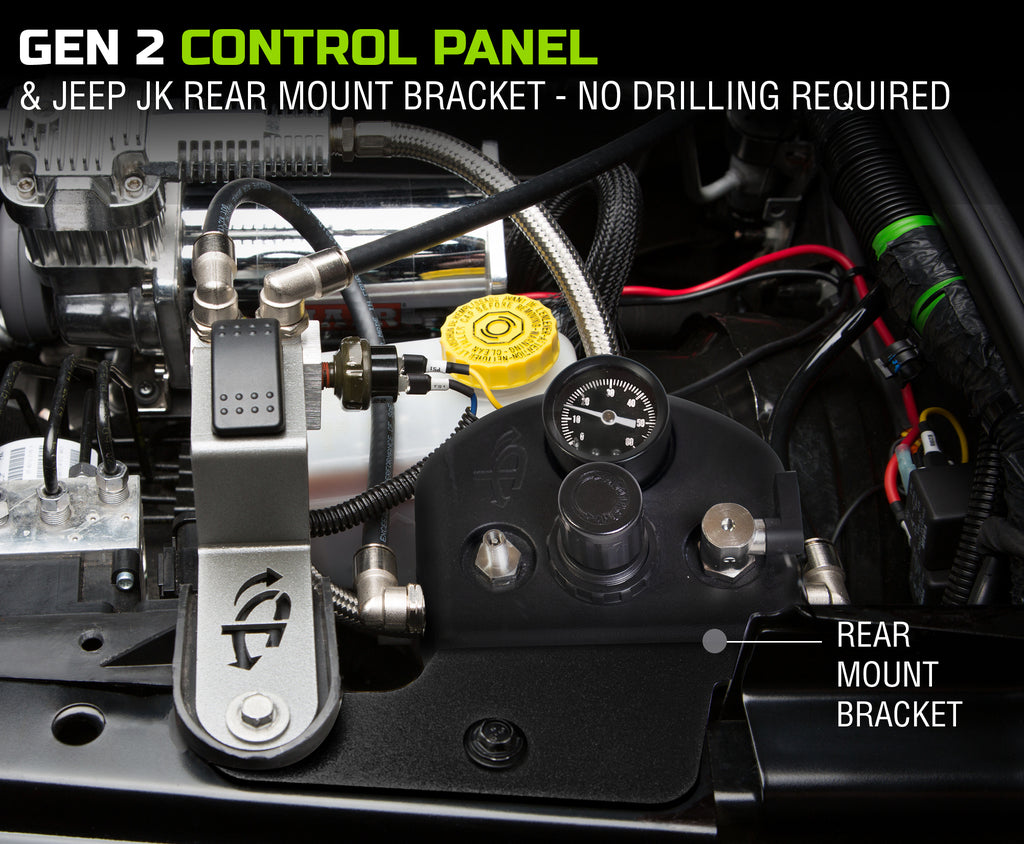

• Designed for engine bay mounting at the driver-side rear location.

Specifications

• Vehicle fit: Jeep Wrangler (2007–2018)
• Body type: JK & JKU
• Compatible models: Sport, Sahara, Rubicon, all trims
• Mounting location: Engine bay — driver side rear
• Weight: 7.90 lbs
• Dimensions: Width 4.25 in · Height 21.00 in · Depth 14.00 in

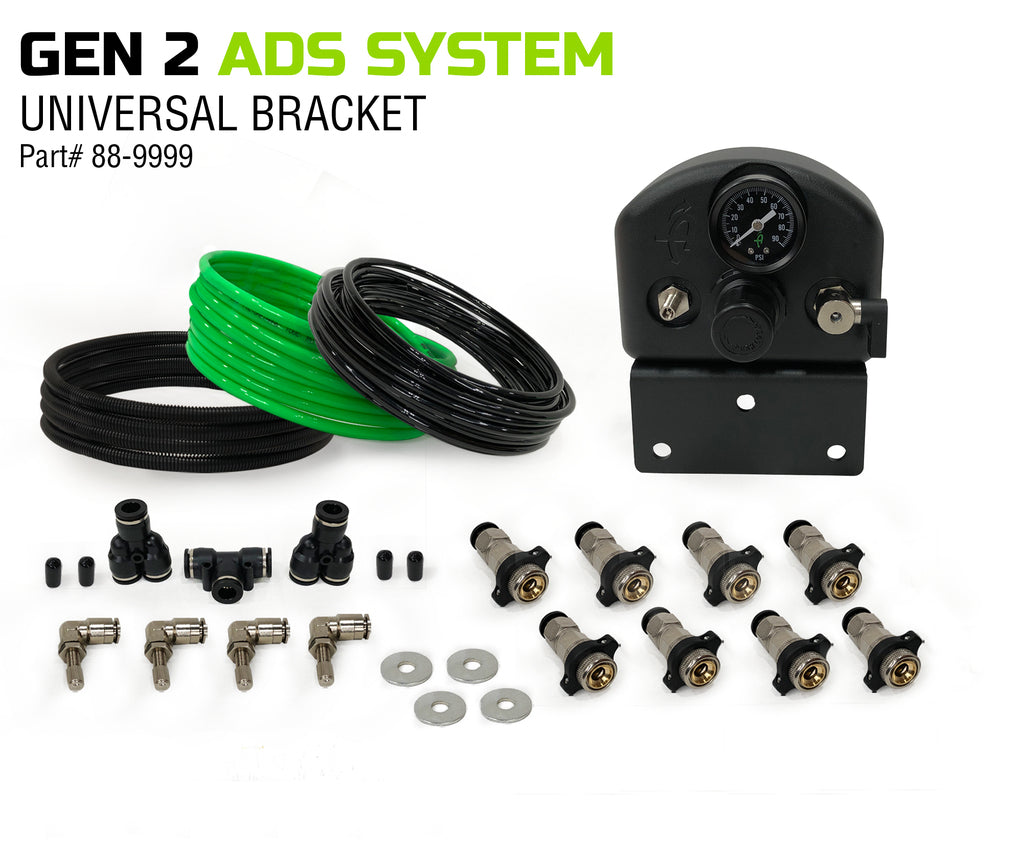

• Included components: ADS Controller Box, pre-cut hoses, push-to-connect fittings, 90 psi pressure regulator, 150 psi blow-off valve, 8 quick-connect chucks (Betty Bar™), 4 green tire connect whips, storage bag
• Compressor compatibility: EGOI 2, ARB, VIAIR (with ADS Controller)
• Certifications: DOT-approved components
• Warranty: 5?Year Limited Warranty
