Up Down Air 4-Tire Inflation System — Jeep Gladiator JT (Passenger Engine Bay) by OVS

Overview

A compact, no-drill 4-tire inflation and equalization system designed to install in the passenger-side engine bay of a Jeep Gladiator JT. The Gen 2 Air Delivery System (ADS) lets you inflate, deflate, and automatically equalize all four tires quickly using a portable or permanent air source.

Benefits

• Save time by inflating or equalizing all four tires at once instead of doing each tire individually.
• Keep tire pressures consistent for safer handling and improved on- and off-road performance.
• Reduce hassle with a compact, no-drill installation that fits common compressor mounting locations.
• Make tire servicing on the trail easier with quick-connect chucks and a simple, portable-compatible design.

Features

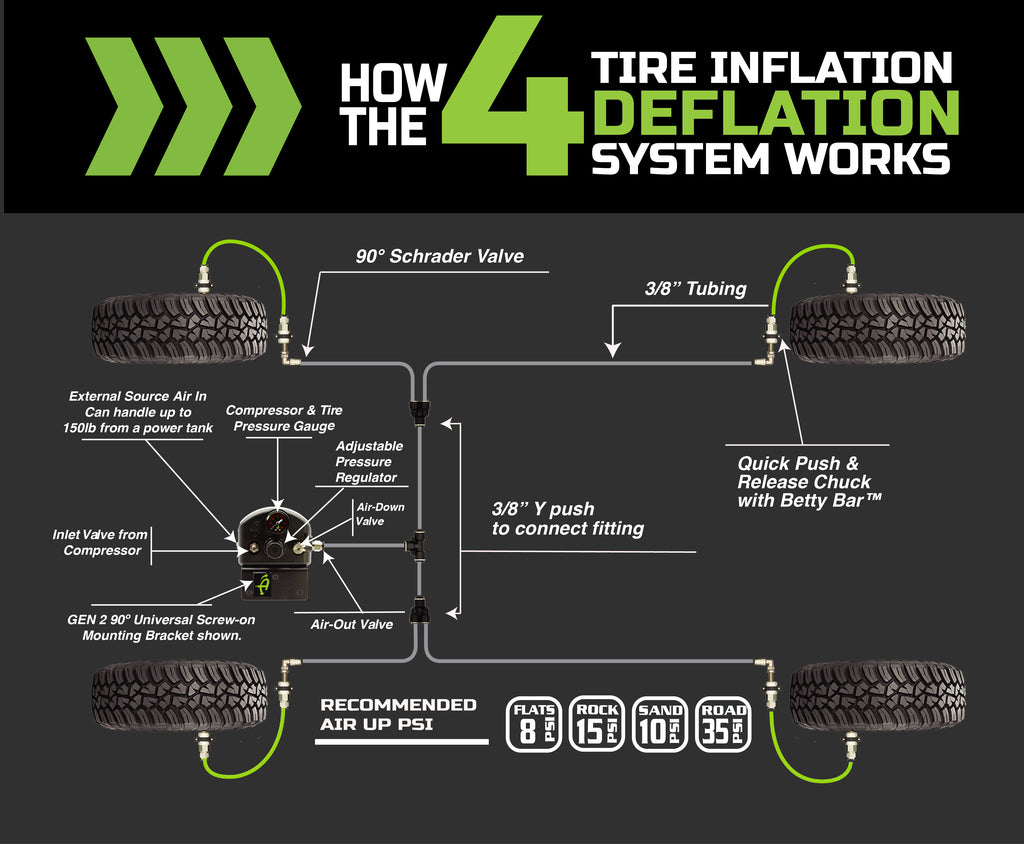

• Automatic equalization of four tires for simultaneous inflation and deflation.

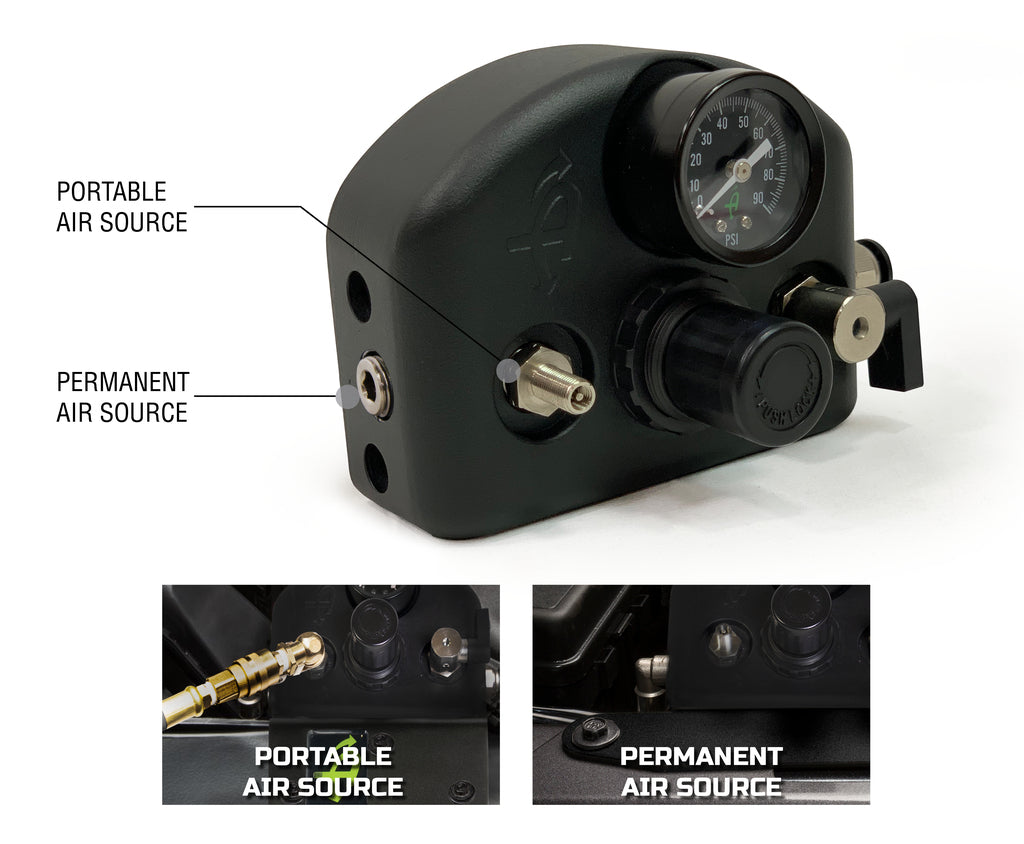

• ADS Controller Box with two inlet valves to accept permanent or portable air sources.
• Includes 90 psi pressure regulator and 150 psi blow-off valve for controlled inflation.
• Pre-cut hoses and push-to-connect fittings for fast, tool-free connections.
• 8 quick-connect chucks with Betty Bar operation and 4 green tire-connect whips with a storage bag.
• Works with common compressors such as EGOI 2, ARB, and Viair, and CO2-type tanks.
• Compressor bracket options for under-engine, under-seat, and rear-cargo mounting locations.
• Heavy-duty construction with DOT-approved hoses and fittings.

Specifications

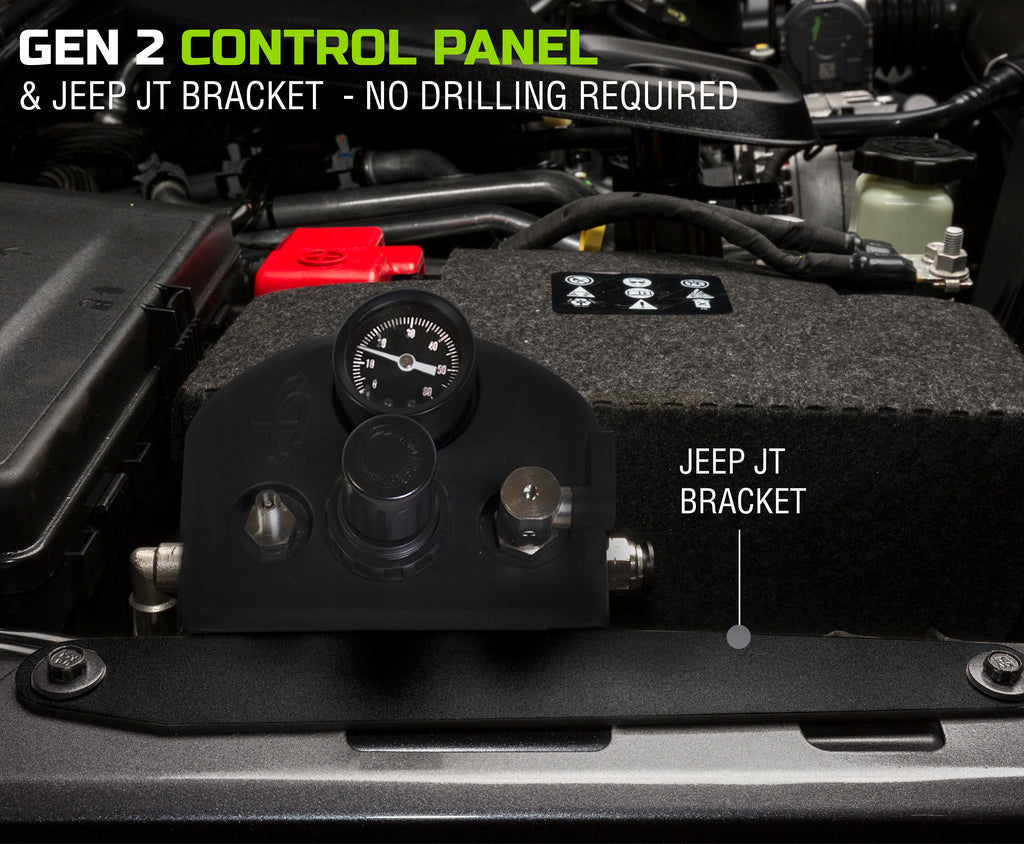

• Intended vehicle/location: Jeep Gladiator JT — engine bay, passenger side
• System type: Gen 2 Air Delivery System (ADS) — 4-tire inflation/equalization

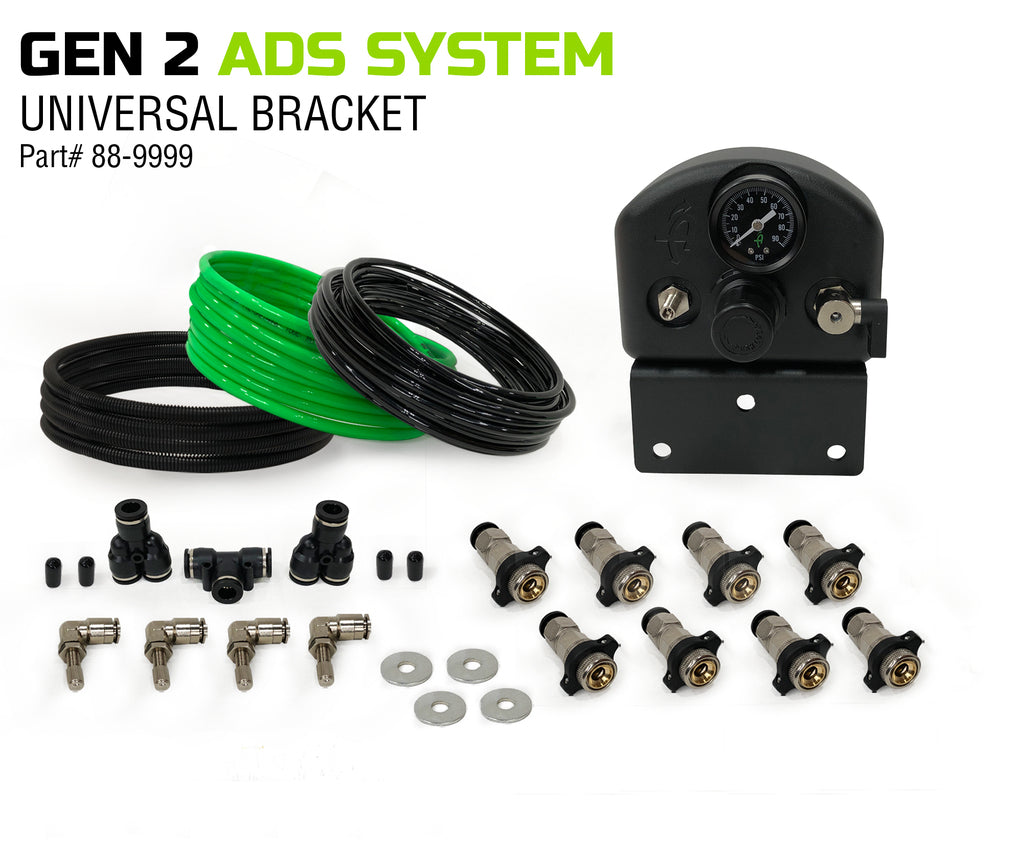

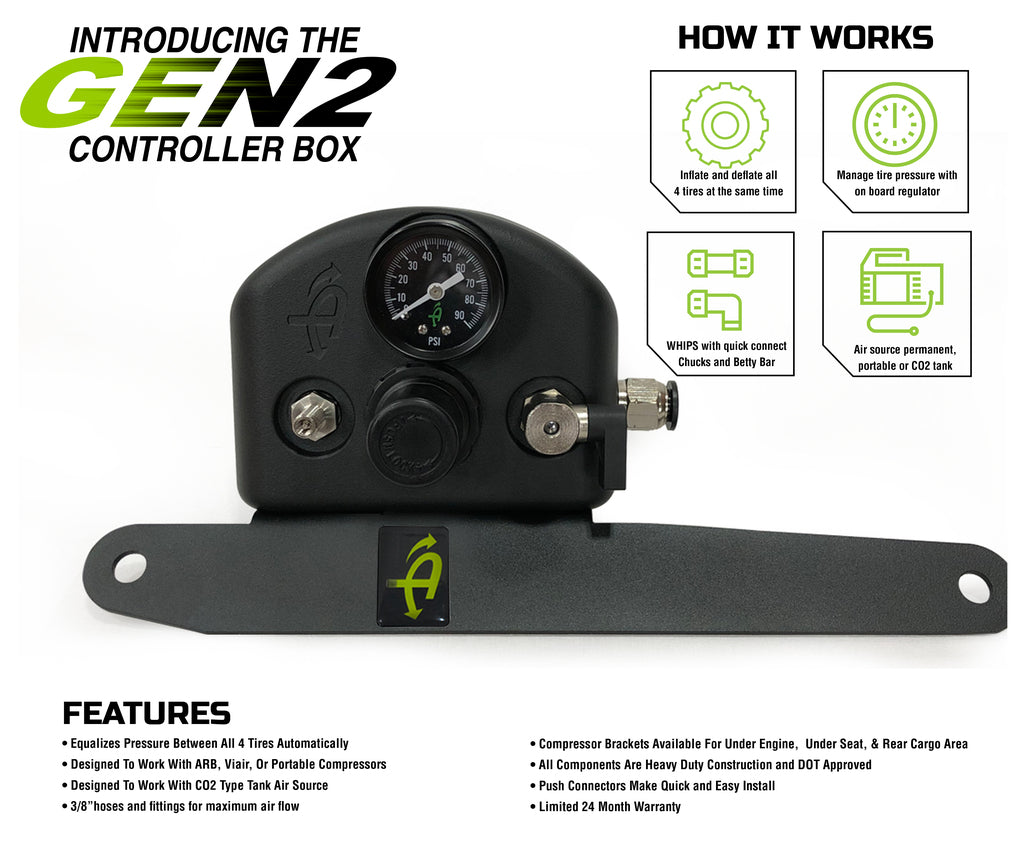

• Included controller components: ADS Controller Box, 90 psi pressure regulator, 150 psi blow-off valve
• Inlet valves: 2 (accepts permanent or portable air sources)

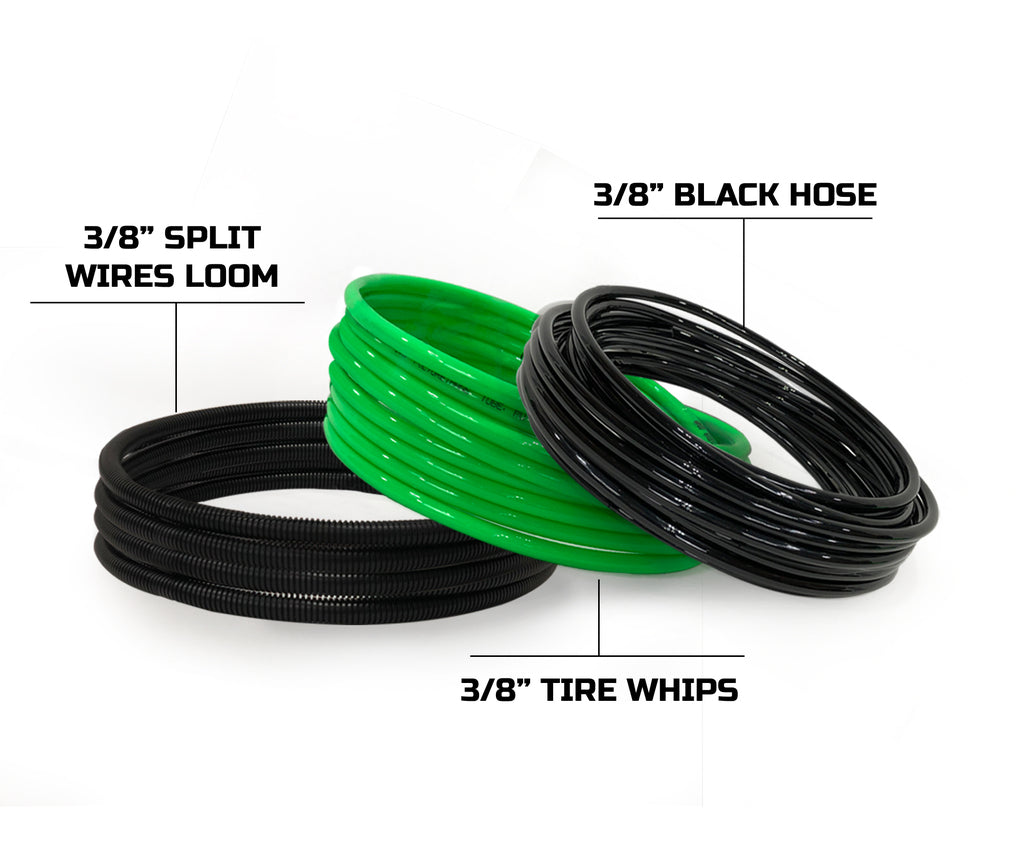

• Hoses and fittings: Pre-cut 3/8" hoses and push-to-connect fittings; DOT-approved
• Quick connect hardware: 8 quick-connect chucks (Betty Bar compatible); 4 green tire-connect whips; storage bag included
• Compatible air sources: EGOI 2, ARB, Viair compressors, portable compressors, CO2-type tanks
• Mounting bracket options: under-engine, under-seat, rear cargo area
• Installation: No drilling required for system components
• Weight: 5.00 lbs
• Width: 5.00 in
• Height: 15.00 in
• Depth: 15.00 in
• Warranty: 5-year limited warranty
• Shipping: Free shipping
