Newstripe 4400 Airless Striping Machine

Overview

The Newstripe 4400 is a compact, professional-grade airless striping machine that delivers precise, high-pressure line marking for athletic fields, parking lots, and other surfaces. It sprays clean lines from 2 to 6 inches wide, draws paint directly from a standard 5-gallon pail, and features user-friendly controls for fast setup and operation.

Benefits

• Paint straighter, more consistent lines with less rework thanks to a stable four-wheel chassis and 10-inch pneumatic tires.
• Reduce paint waste and get brighter marks by controlling pump pressure to match your paint type and viscosity.
• Spend less time on setup and cleanup—pull paint from a 5-gallon pail, use a snap-on lid to prevent spills, and flush the system quickly between colors.
• Complete jobs faster and with fewer people—one operator plus the HashMark Master II can apply hash marks up to 5× faster than traditional methods.
• Handle detailed work easily—the quick-release clamp and included hose let you spray stencils, curbs, and hard-to-reach areas without swapping equipment.

Features

• Adjustable airless pump pressure (0–3000 psi) for precise control over spray application.
• Spray width range: 2 to 6 inches.
• 10-inch pneumatic tires and four-wheel design for improved stability and straight lines on uneven surfaces.
• Draws paint directly from a standard 5-gallon pail with a universal snap-on lid to prevent spills.
• Handle-mounted controls for intuitive setup and on-the-go adjustments.

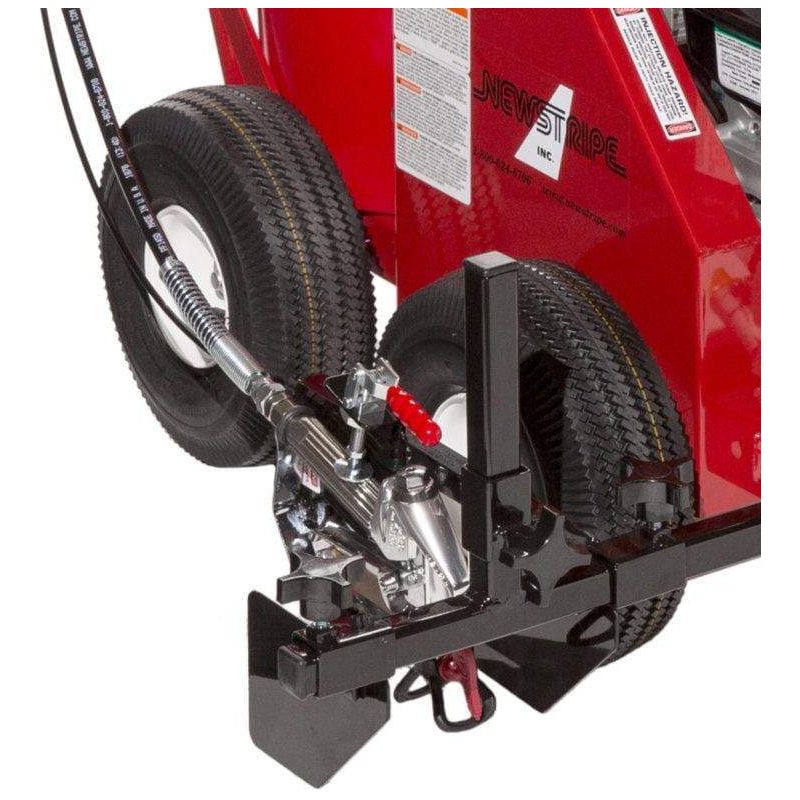

• Quick-release clamp to detach the spray gun for stencils and detailed work; includes a 25-foot hose for extended reach.
• Includes a liquid pump protector to preserve the system during storage and between jobs.
• Optional rear caster available for spraying arcs and circles; compatible with HashMark Master II for faster hash marking.

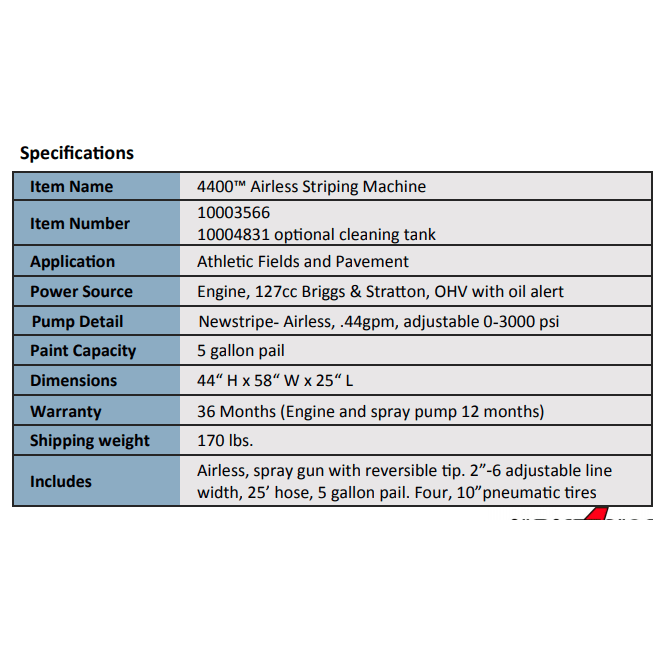

Specifications

• Pump pressure: Adjustable 0 to 3000 psi
• Spray width: 2 to 6 inches
• Tire size: 10-inch pneumatic tires
• Configuration: Four-wheel design
• Paint supply: Pulls from standard 5-gallon pail (universal snap-on lid included)
• Hose length: 25-foot included hose
• Accessories: Quick-release clamp, liquid pump protector included; optional rear caster available
• Controls: Handle-mounted user controls for pressure and operation
• Typical applications: Athletic fields, parking lots, stencils, curbs, and other line-marking tasks
