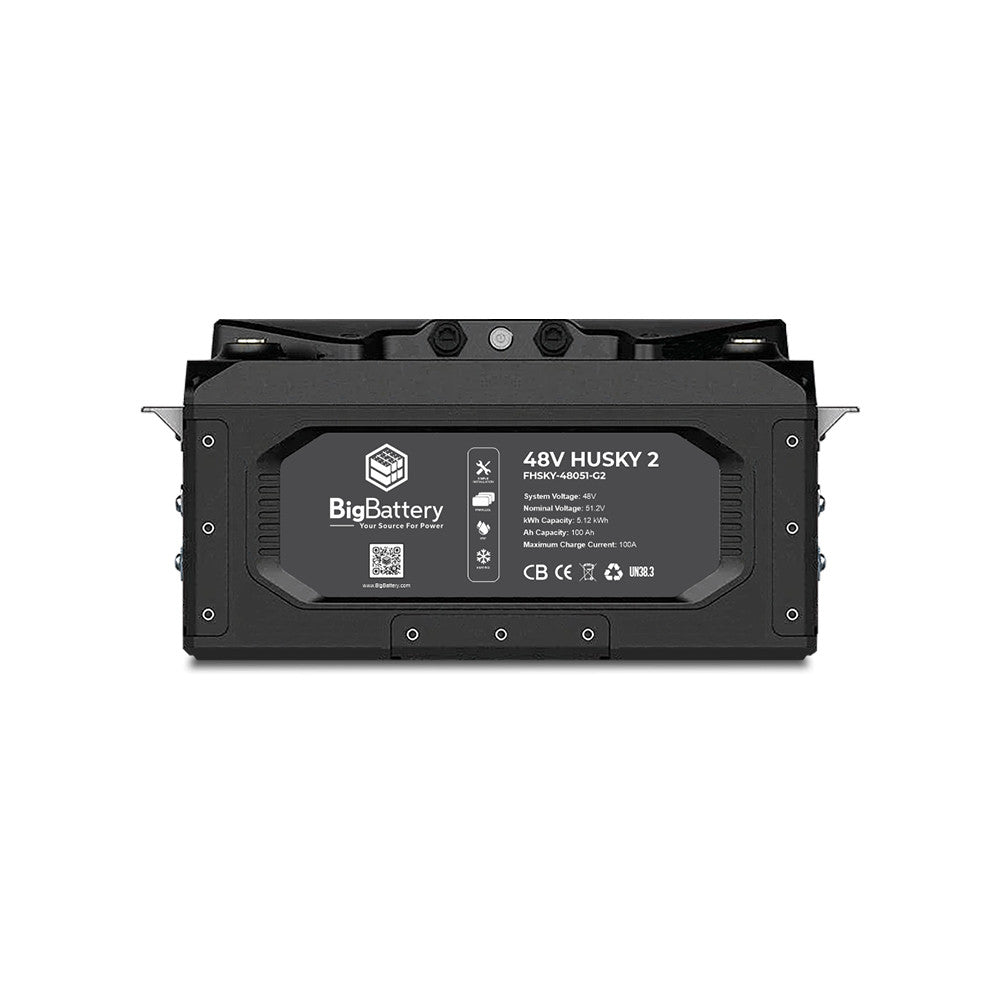

BigBattery 48V HUSKY 2 LiFePO4 Lithium Battery 5.12kWh for RVs Camper Vans and Commercial Vehicles

Overview

The 48V 5.12 kWh LiFePO4 HUSKY 2 battery from BigBattery is designed to deliver reliable energy for golf carts utility carts RVs and camper vans. With high energy density and durability it supports long lasting power for a variety of mobile applications.

Benefits

• Consistent performance using Tier 1 LFP cells suitable for different environments
• Enhanced safety with IP65 rated enclosure and advanced battery management system
• Self heating capability enables operation in low temperature conditions
• Easy power monitoring through CANBus and RS485 communication protocols

Features

• System voltage of 48V with nominal voltage 51.2V
• LiFePO4 chemistry ensuring long cycle life and stability
• 5.12kWh capacity with 100Ah rating
• Charge voltage range from 55.6 to 57V and max charge voltage at 58.8V
• Operating voltage between 48 and 57V
• Battery management system cutoffs between 42 and 47V
• Cell configuration of 16 series cells
• Max continuous discharge current of 100A and peak discharge current up to 150A for 5 seconds
• Max charge current of 100A
• Charge temperature range from minus 4 degrees Fahrenheit to 113 degrees Fahrenheit
• Discharge temperature range from minus 4 degrees Fahrenheit to 122 degrees Fahrenheit
• Optimal discharge temperature between 59 and 95 degrees Fahrenheit
• Storage up to six months at temperatures between minus 4 and 122 degrees Fahrenheit
• Weight of 100 pounds
• Dimensions: 12.6 inches deep 18.1 inches wide and 9.8 inches high
• Supports up to sixteen batteries in parallel
• IP65 protection rating
• Communication via CANBus and RS485
• Self heating function included

Specifications

• SKU 1622004
• Manual available for download
• Spec sheet available for download
• Safety data sheet available for download
