American Hearth | Boulevard SeeThrough Gas Fireplace 48 in | DVLL48SP90N

American Hearth Boulevard 48" See-Through Linear Gas Fireplace

Overview

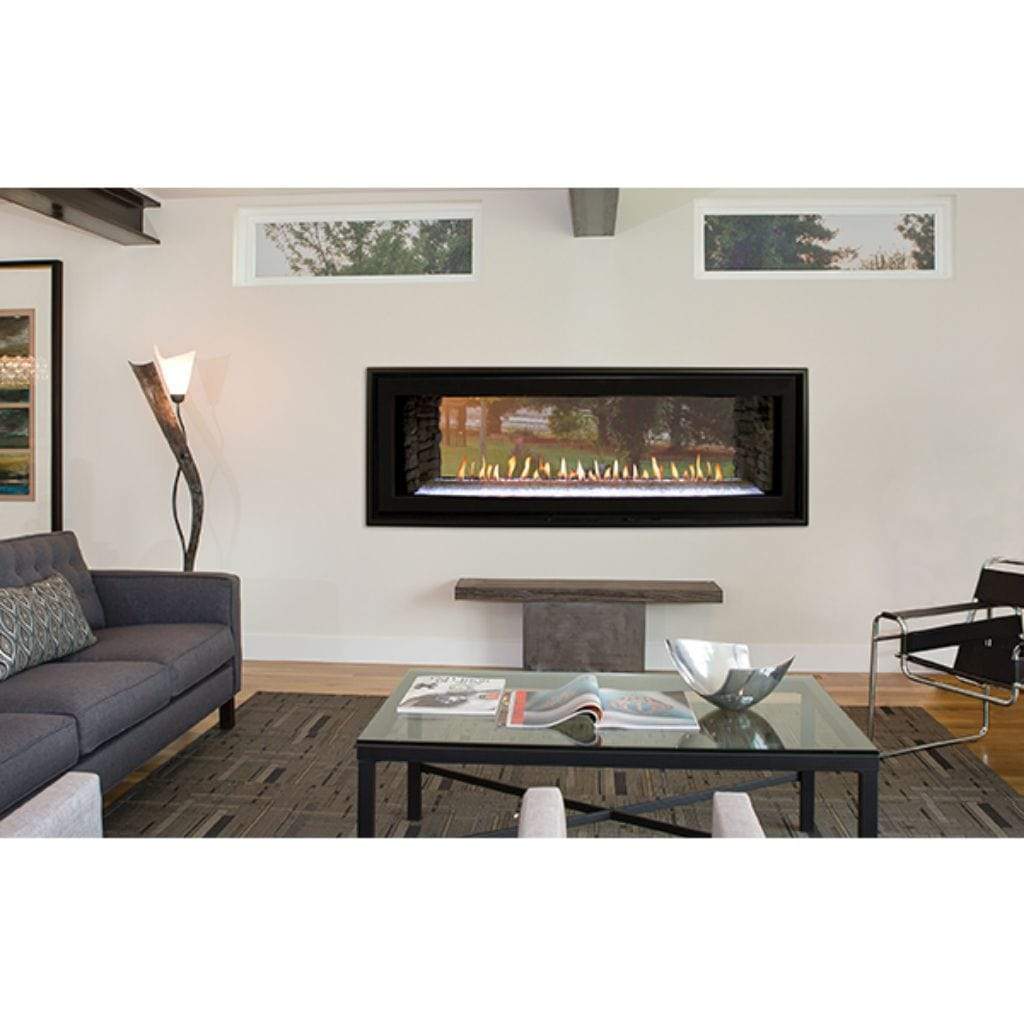

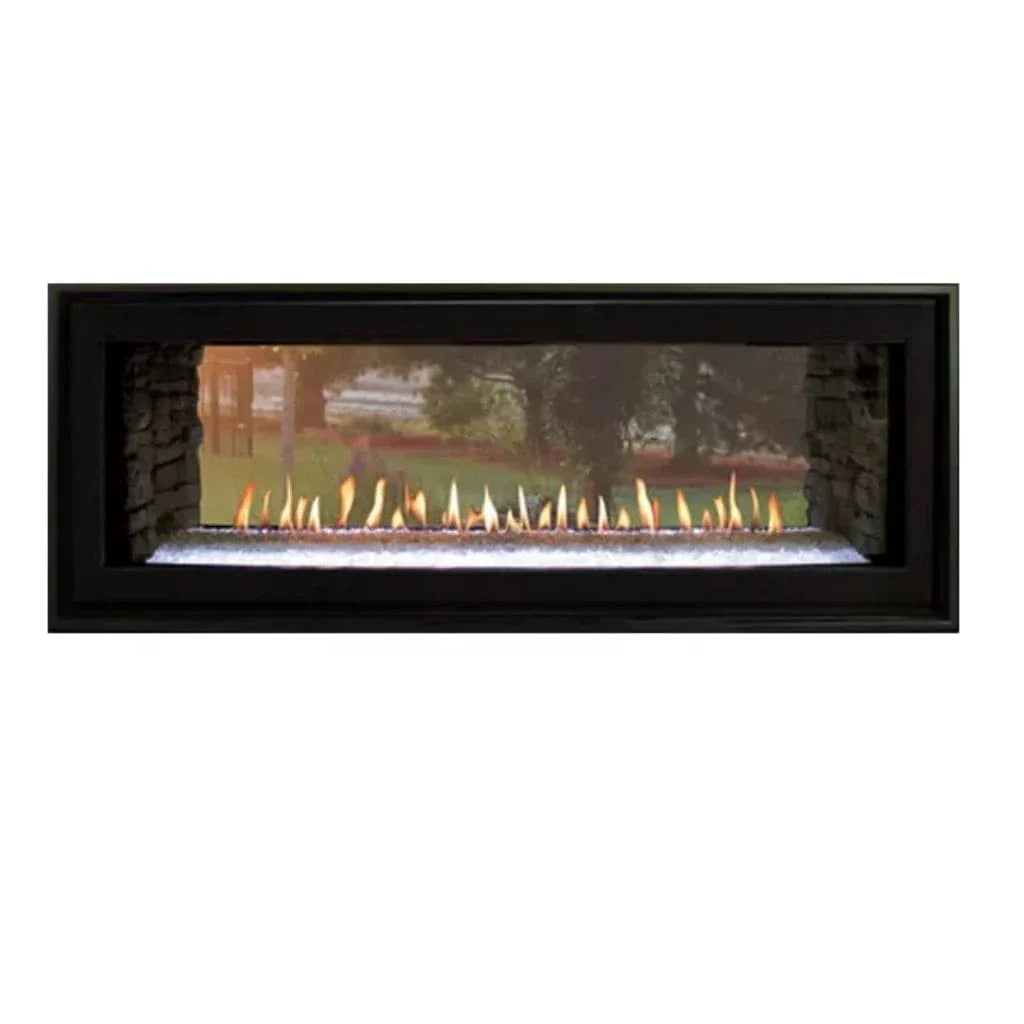

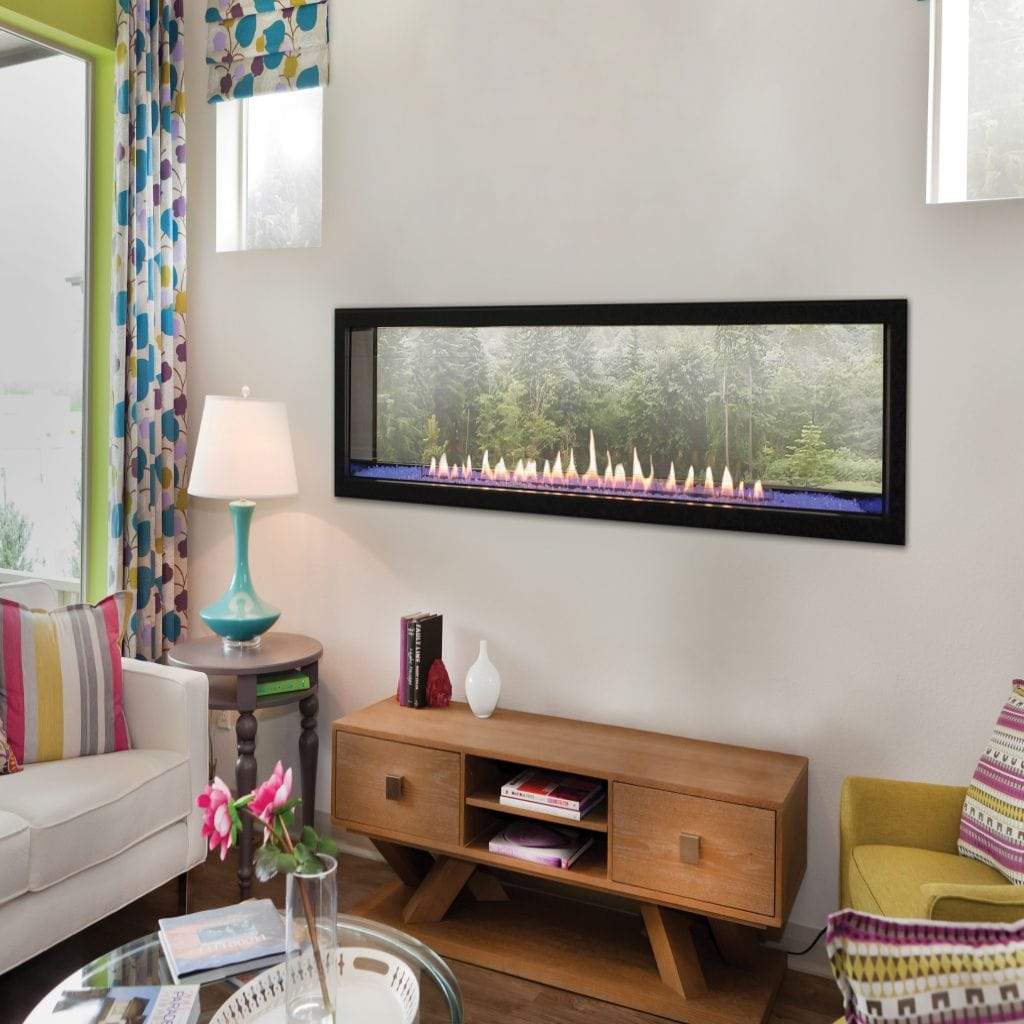

The Boulevard 48 Direct-Vent See-Through fireplace offers a stunning 48-inch viewing area, complemented by a fully recessed burner and elegant white LED underfloor lighting. Designed to be installed in an interior wall, it creates a warm ambiance that brightens adjoining rooms. Alternatively, with the optional stainless steel outdoor kit, enjoy a seamless transition between indoor and outdoor spaces. Effortlessly customize your fireplace with various liners, logs, fronts, and decorative glass for a personalized touch.

Benefits

• Enhances the beauty of your home with its stylish design.
• Provides a cozy atmosphere for gatherings and relaxation.
• Offers flexibility in installation, making it suitable for both interior and exterior walls.
• Allows for customization, ensuring it matches your home’s decor.

Features

• Multi-Function Remote included for convenient control.
• Safety barrier screen for added protection.
• Requires separate purchase of liner to complete installation.
• Ceramic glass for a clear view of the fire.
• Accommodates +24 lbs of optional media for personalization.
• Can be installed in interior or interior/exterior applications.
• Direct Vent Multi-Function Remote Control with variable thermostat functionality.
• Generous viewing dimensions of 13 x 48 inches on both sides with top venting of 5x8.
• Natural Gas BTU: 37,000; Propane BTU: 34,000.

Specifications

• Venting: 5 x 8 Top Vent Only, with a minimum vent rise of 12 inches.
• Weight: 434 lbs.
• Warranty: 10-year limited on combustion chamber, lifetime limited on glass, and three-year limited on all other parts.
• Framing Dimensions (Indoor Wall): 51-3/4" H x 68" W x 19-1/2" D.
• Framing Dimensions (Outdoor Wall): 51-3/4" H x 68" W x 21-1/4" D.

What's in the Box?

• Multi-Function Remote for burner and LED accent lighting control.
• Ceramic glass for clear viewing.
• Safety barrier screen.
• Noncombustible board for top (two pieces included).

Requirements

• Liner must be purchased separately.
• 8 sq. ft. of decorative crushed glass required; additional media can be added.

Configuration Options

Available configurations include:

• Conventional See-Through: Installed on an interior wall requiring finishing with plaster, tile, stone, or brick on both sides.
• Indoor/Outdoor See-Through: Installed on an exterior wall needing interior side finishing. Special framing and an Exterior Decorative Front are required for the exterior wall.

Product Manual

Download Product Manual

Warranty Information

The product comes with a 10-year limited warranty on the combustion chamber, a lifetime limited warranty on glass, and a three-year limited warranty on all other parts. Remote controls and lighting systems are covered for one year.

FAQs

• Installation Advice: It is strongly recommended that a certified professional install all units to avoid warranty issues.
• Power Outage Functionality: Most appliances will function during a power outage. Please consult a local dealer for specifics.
• Ignition Differences: Millivolt fireplaces utilize a standing pilot, while electronic ignition fireplaces need a power source.
• Thermostat Compatibility: Our units operate on millivolts or low voltage, thus most Wi-Fi thermostats will not be compatible.
• Model and Serial Number Location: The rating plate attached to the valve of your appliance contains this information.
• Unit Age Identification: The first two digits of the serial number indicate the year of manufacture.
