MRCOOL Easy Pro® DIY 24K BTU Ductless Mini-Split Heat Pump System

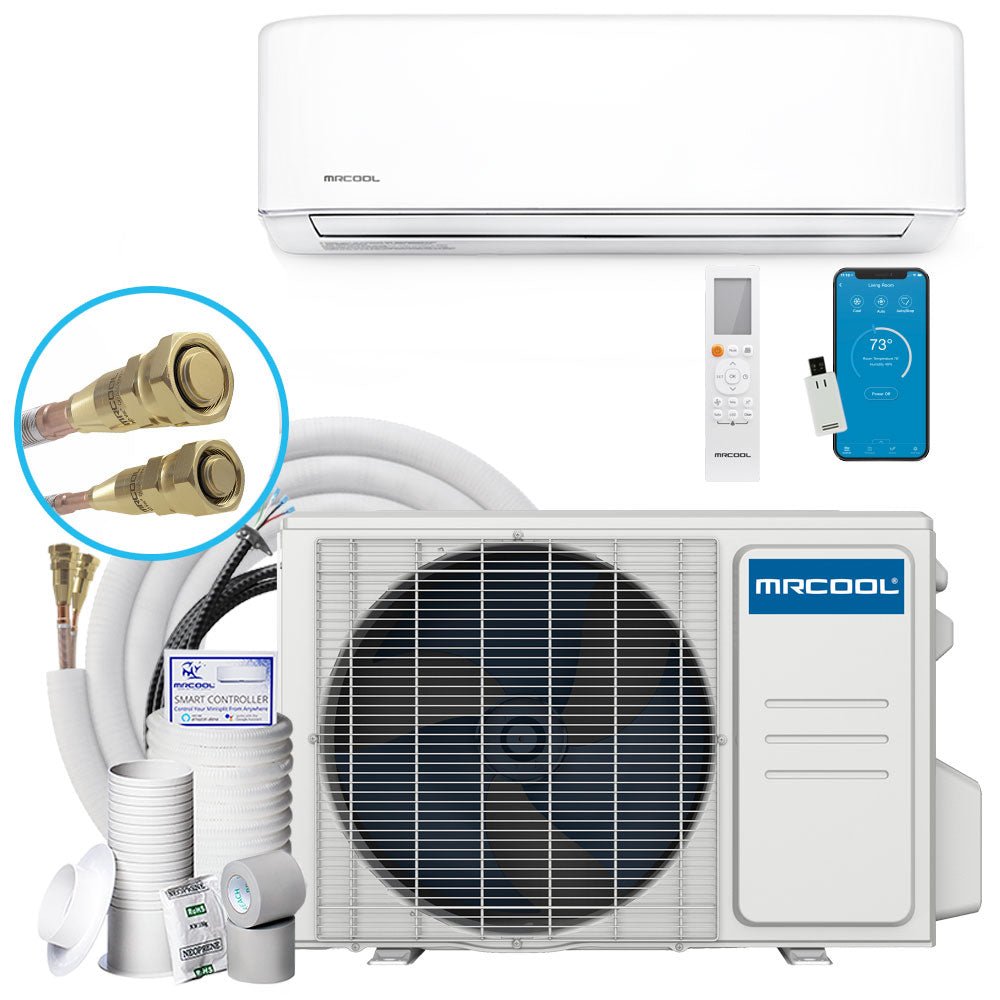

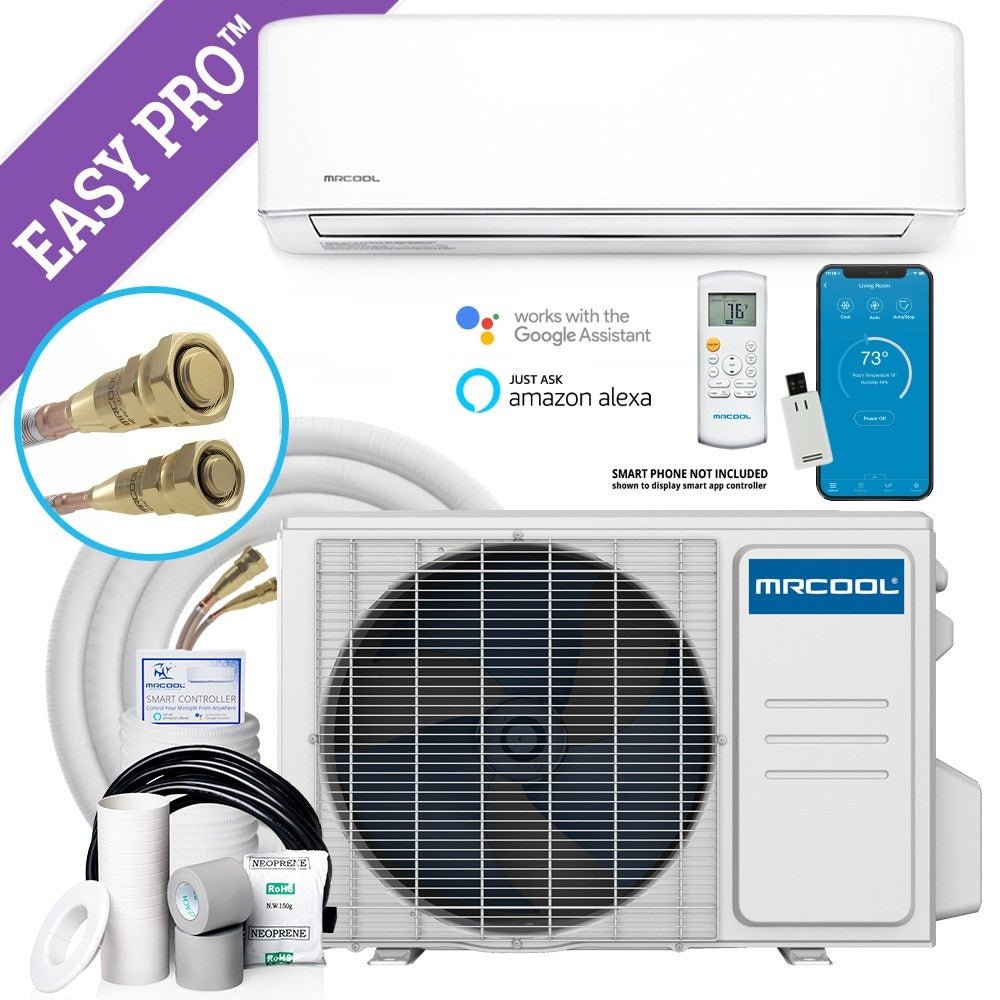

The MRCOOL Easy Pro® DIY 24,000 BTU Ductless Mini-Split Heat Pump System delivers powerful performance and hassle-free installation, making it the perfect solution for spaces up to 1,000 square feet. It comes with a 16-foot pre-charged line set and Fast Connection® fittings, allowing homeowners to install the unit without the need for professional tools or services.
This system is loaded with convenient features, including Follow Me® technology, which ensures personalized comfort by adjusting the temperature based on your location in the room. The anti-mildew function helps maintain a cleaner, healthier indoor environment for you and your family. Routine upkeep is simple—the air filters are easy to rinse and reuse, and the LED display provides diagnostic codes to make troubleshooting quick and straightforward.
Control the system your way—via the SmartHVAC app on your Apple or Android device, the included remote control, or voice commands using Amazon Alexa or Google Assistant. Backed by a 1-year compressor warranty and a 2-year parts warranty, this energy-efficient system offers reliable year-round heating and cooling for your home or office with minimal effort.
| MODEL |
|
| GTIN |
810035935228 |
| UPC |
810035935228 |
| UNIT TYPE |
Mini-Split |
| SHORT DESCRIPTION |
MRCOOL® DIY Easy Pro® 24k BTU Ductless Mini-Split Heat Pump System
|
| LONG DESCRIPTION |
Create the ultimate comfort level in your home or office with the MRCOOL® Easy Pro® 24k BTU Ductless Mini-Split Heat Pump System. Heating or cooling up to 1,000 square feet efficiently with an 18 SEER, this unit is also easy to install thanks to 16 foot pre-charged line set with Fast Connection® fittings. You can choose one of the many operational modes to customize your heating and cooling experience such as Sleep Mode, Auto Mode, or Timer Mode. Maintaining the system is easy too as the filters need only to be rinsed with water before returning to the air handler. Cleaning both the indoor and outdoor units is as simple as wiping them down with a dry or damp cloth without any need for special cleaning products. Controlling the system is easy too thanks to the included remote, the SmartHVAC app on your Apple or Android devices, or your Amazon Alexa and Google Assistant. Feel protected in your purchase with the 1-year compressor warranty and 2-year parts warranty in the unlikely event that something goes wrong. This is a full heating and cooling system that is easy to install and won’t break the bank.
|
| BULLET 1 |
Up to 18 SEER |
| BULLET 2 |
Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
|
| BULLET 3 |
Energy Efficient DC Inverter
|
| BULLET 4 |
Low ambient cooling: cooling down to 5F exterior temperatures, the ideal system for computer server rooms, greenhouses, and any other applications that require cooling all year
|
| BULLET 5 |
Includes features such as timer mode, refrigerant leakage detection, and more
|
| BULLET 6 |
Systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
|
| BULLET 7 |
Quiet Running |
| SEER |
18 |
| SEER2 |
18 |
| EER |
9 |
| EER2 |
9 |
| COP 47 |
3.08 |
| HSPF |
|
| HSPF2 |
hspf2-4/hspf2-5 : 8.3/6.5
|
| CFM |
|
| COOLING CAPACITY |
24000 BTU |
| HEATING CAPACITY |
25000 BTU |
| VOLTAGE |
208-230 V |
| PHASE |
1 |
| CYCLE |
60 Hz |
| MAX FUSE BREAKER |
35 A |
| MIN CIRCUIT AMPACITY |
21 A |
| RATED LOAD |
15 A |
| ZONE CAPACITY |
1 |
| REFRIGERANT TYPE |
R-410A |
| REFRIGERANT VOLUME |
65.96 oz |
| DECIBEL RATING |
40 dBA |
| DECIBEL RATING LOW |
27 dBA |
| DECIBEL RATING HIGH |
45 dBA |
| MIN AMBIENT COOL |
5F - 122F |
| MIN AMBIENT HEAT |
5F - 75.2F |
| MAX LINESET LENGTH |
164ft |
| LIQUID LINE SIZE |
3/8in |
| SUCTION LINE SIZE |
5/8in |
| COMPRESSOR MOTOR TYPE |
Twin - Rotary |
| CONDENSER FAN MOTOR RPM |
810/720 |
| BLOWER MOTOR SPEEDS |
3 |
| BLOWER MOTOR RPM |
1100/940/860 |
| FILTER TYPE |
Washable |
| FAN ONLY OPTION |
Yes |
| SLEEP MODE |
Yes |
| AUTO COOL |
Yes |
| WIFI COMPATIBILITY |
yes |
| APP COMPATIBILITY |
yes |
| WORKS WITH IOS |
Yes |
| WORKS WITH ANDROID |
Yes |
| REMOTE CONTROL INCLUDED |
Yes |
| ENERGY STAR CERTIFIED |
yes |
| AHRI CERTIFIED |
yes |
| REGISTERED WARRANTY |
2-year Parts/1-year Compressor
|
| REGISTERED PARTS WARRANTY |
2 years |
| REGISTERED COMPRESSOR WARRANTY |
1 year |
| PROPOSITION 65 WARNING |
Yes |
| CONDENSER DEPTH |
13.46 in |
| CONDENSER HEIGHT |
26.5 in |
| CONDENSER WIDTH |
35.04 in |
| CONDENSER WEIGHT |
97.66 lbs |
| AIR HANDLER DEPTH |
9.21 in |
| AIR HANDLER HEIGHT |
13.27 in |
| AIR HANDLER WIDTH |
42.60 in |
| AIR HANDLER WEIGHT |
35.27 lbs |
