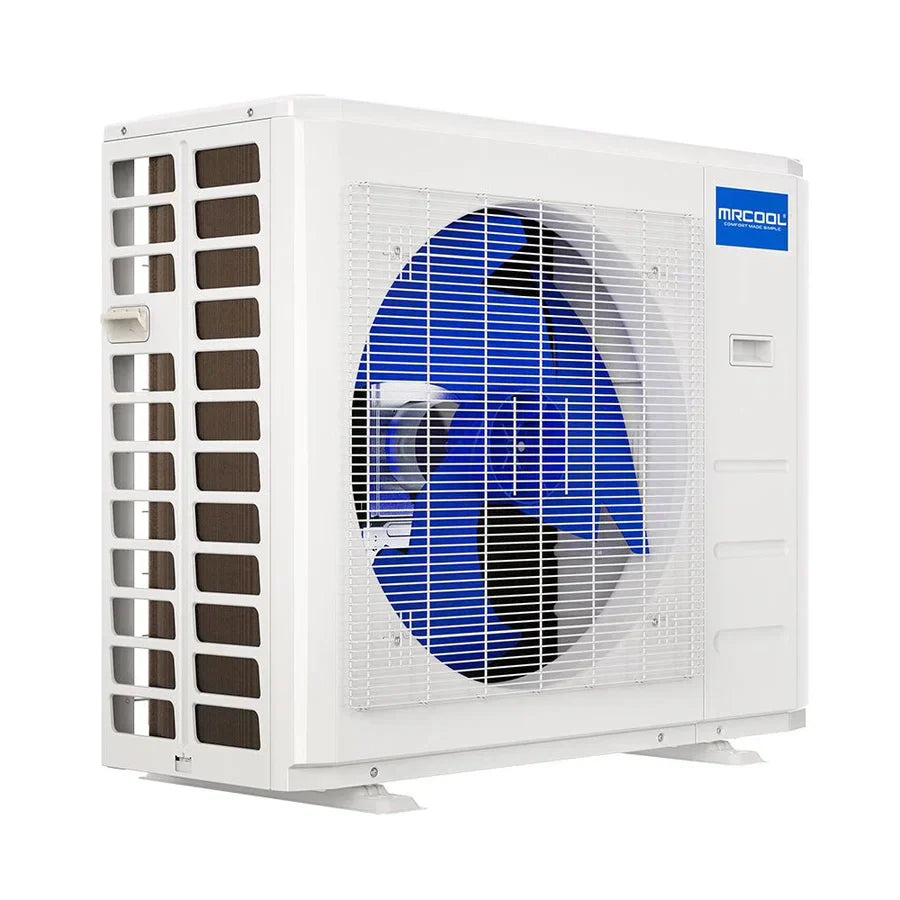

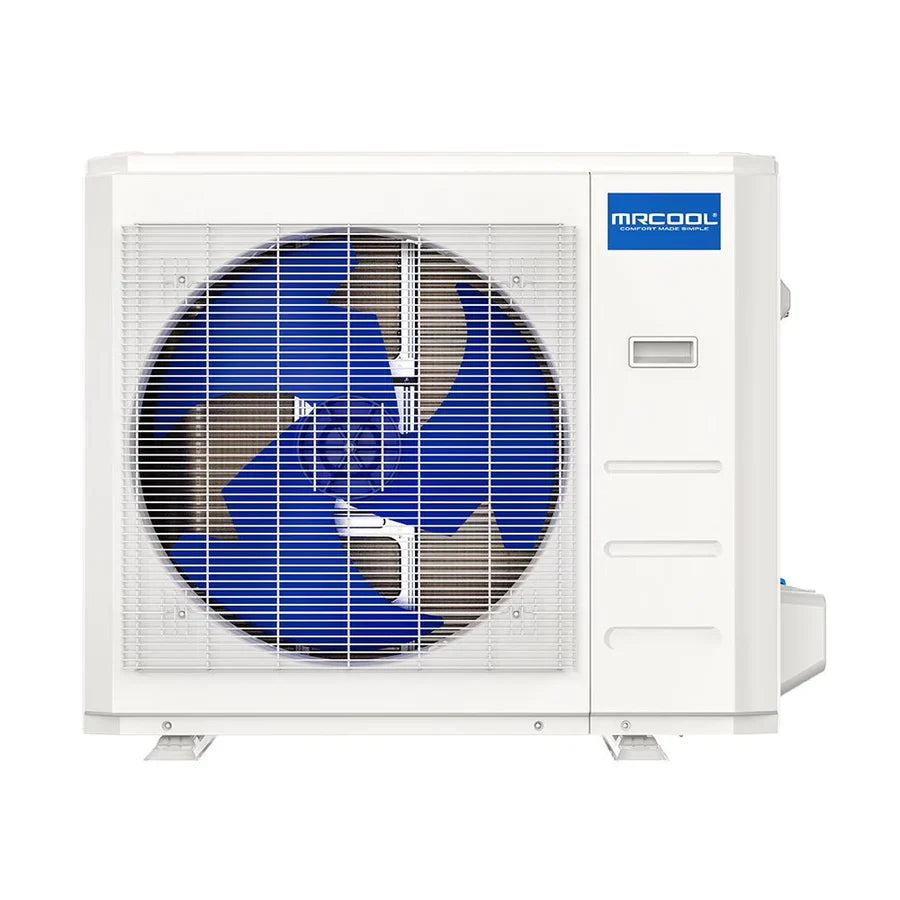

MRCOOL® DIY® 5th Gen 12K BTU Mini-Split Condenser – 115V
The 5th Generation MRCOOL® DIY® 12,000 BTU Ductless Mini-Split Condenser makes year-round home comfort more accessible than ever. Designed with true do-it-yourself convenience in mind, this single-zone system delivers powerful heating and cooling for spaces ranging from 350 to 500 sq. ft., without requiring professional installation or special tools.
The included 25-foot pre-charged QuickConnect® line set, filled with eco-friendly R-454B refrigerant, eliminates the need for vacuuming during setup. The durable DIYPRO® cable replaces traditional electrical conduit, offering added protection against weather, animals, and landscaping damage.

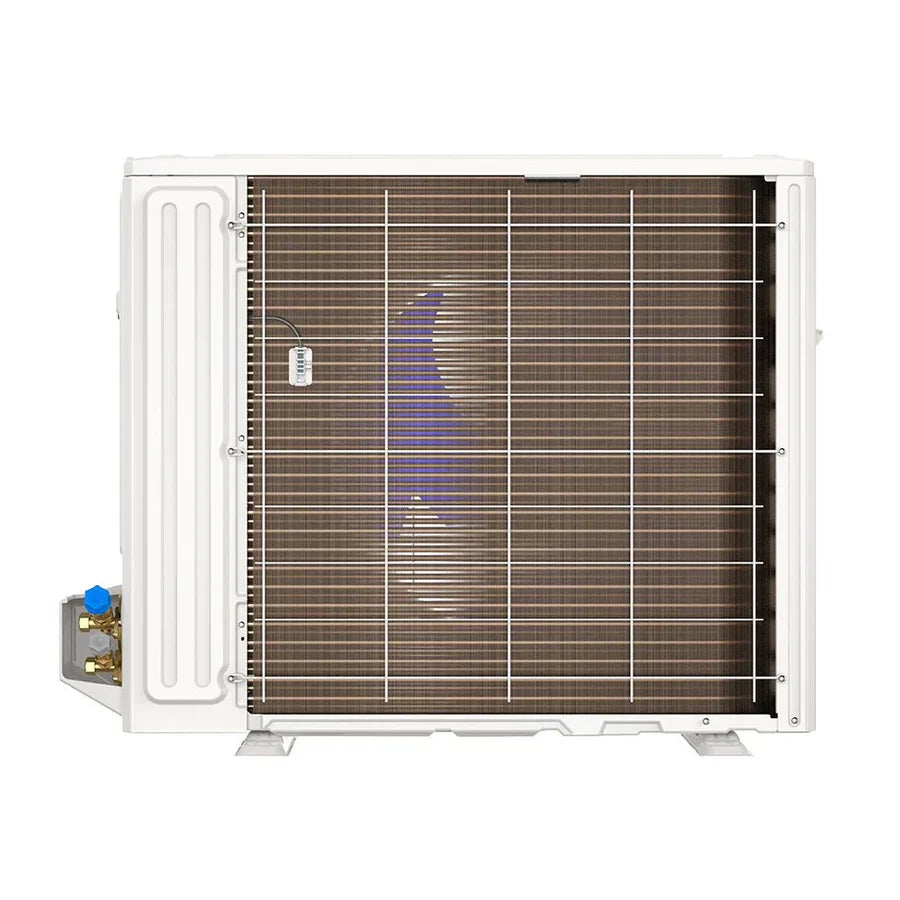

This system offers multiple control options for maximum convenience: use the included remote, the SmartHVAC app on your Apple or Android device, or control it hands-free with Amazon Alexa or Google Assistant. The Gold Fin® Condenser provides excellent corrosion resistance, making this unit ideal for coastal or high-humidity environments.
Advanced features are built-in to enhance comfort and energy efficiency. The Timer function allows you to schedule heating and cooling cycles, while Auto mode maintains your desired temperature with minimal effort. In the event of a power outage, Auto Restart restores your previous settings automatically. The anti-mildew function also helps keep the air handler dry and clean by minimizing condensation buildup.
Backed by an industry-leading limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, the MRCOOL DIY® 5th Gen Mini-Split Condenser combines cutting-edge technology with durability and ease of use—perfect for long-lasting, hassle-free home climate control.
Product Specifications:
| BRAND NAME |
MRCOOL |
| SERIES |
DIY 5th gen Single-Zone Mini-splits |
| MODEL |
DIY-12-HP-C-115D25-O |
| GTIN |
840255586955 |
| UPC |
840255586955 |
| SHORT DESCRIPTION |
MRCOOL® 12k DIY 5th Generation Mini-Split Condenser 115v |
| SEER2 |
23.5 |
| EER2 |
12.5 |
| HSPF2-4 |
10.2 |
| HSPF2-5 |
7.6 |
| TONNAGE |
1 |
| COOLING CAPACITY (BTU) |
12000 |
| HEATING CAPACITY (BTU) |
12000 |
| VOLTAGE (V) |
115 |
| PHASE |
1 |
| CYCLE |
60 |
| MAX FUSE BREAKER (A) |
20 |
| MIN CIRCUIT AMPACITY (A) |
18 |
| COLOR |
White |
| ZONE CAPACITY |
1 |
| REFRIGERANT TYPE |
R-454B |
| REFRIGERANT VOLUME (OZ) |
30.34 |
| DECIBEL RATING (DBA) |
54 |
| INVERTER |
DC |
| LINE SET LENGTH |
25 |
| MAX LINESET LENGTH (FT) |
82 |
| LIQUID LINE SIZE |
1/4 |
| SUCTION LINE SIZE |
3/8 |
| COMPRESSOR MOTOR TYPE |
Rotary |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
No |
| FAN ONLY OPTION |
Yes |
| QUIET MODE |
Yes |
| AUTO COOL |
Yes |
| WIFI COMPATIBILITY |
Yes |
| APP COMPATIBILITY |
Yes |
| WORKS WITH IOS |
Yes |
| WORKS WITH ANDROID |
Yes |
| UL LISTED |
Yes |
| ETL LISTED |
Yes |
| ENERGY STAR CERTIFIED |
Yes |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
Extended Limited Lifetime* |
| BASE PARTS WARRANTY |
5 |
| BASE COMPRESSOR WARRANTY |
7 |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| NET DEPTH (IN) |
11.93 |
| NET HEIGHT (IN) |
21.85 |
| NET WIDTH (IN) |
30.12 |
| NET WEIGHT (LBS) |
83.11 |
| GROSS DEPTH (IN) |
16.54 |
| GROSS HEIGHT (IN) |
27.56 |
| GROSS WIDTH (IN) |
36.22 |
| GROSS WEIGHT (LBS) |
65.48 |
