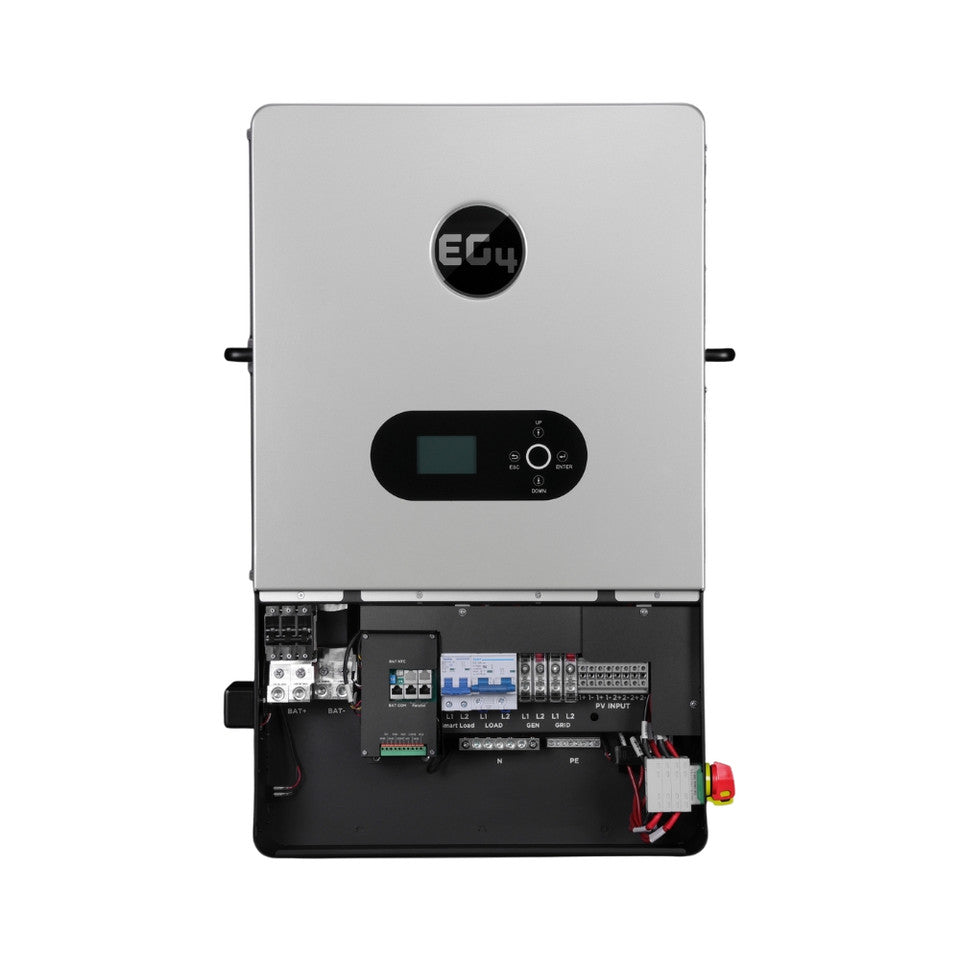

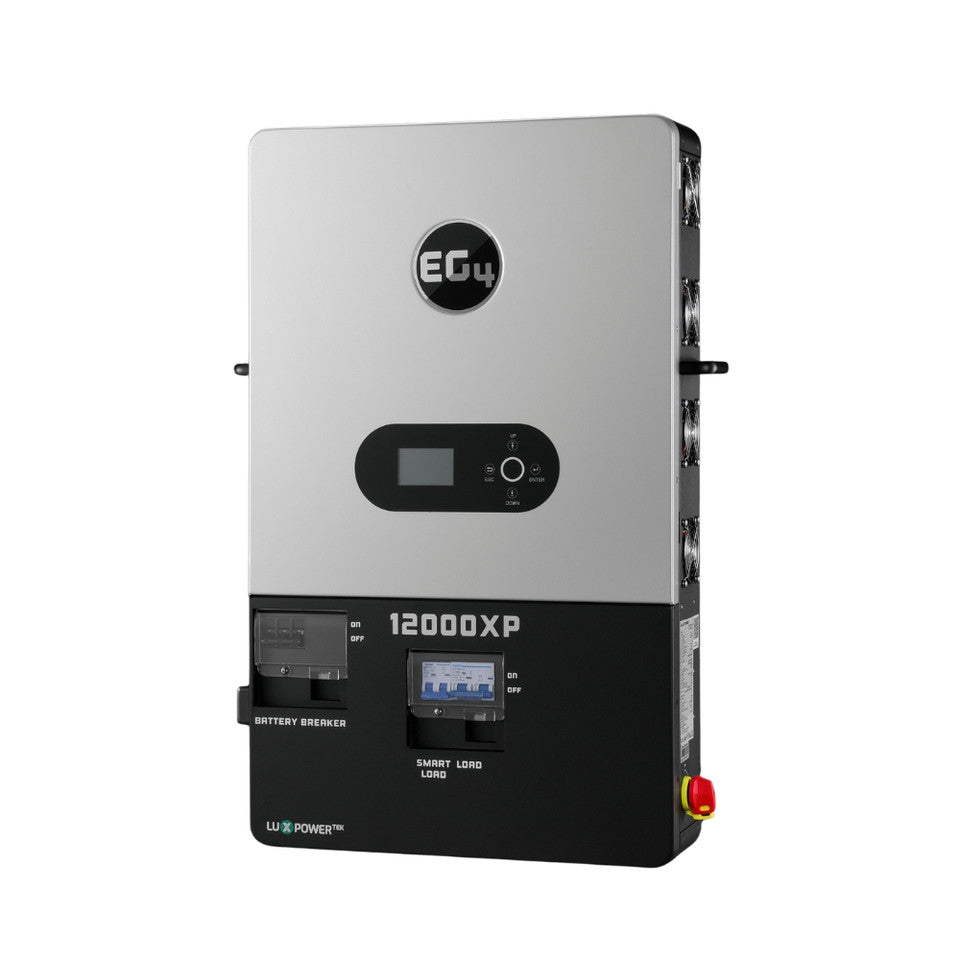

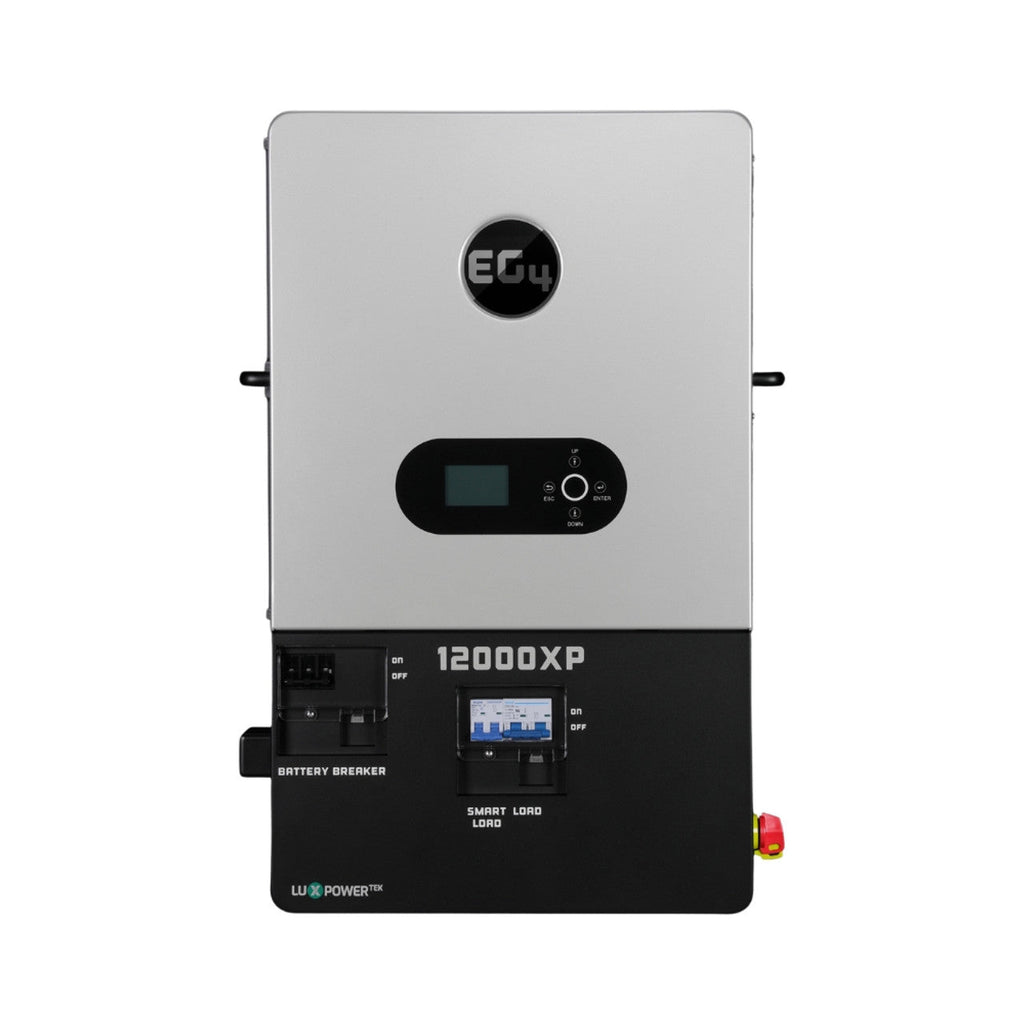

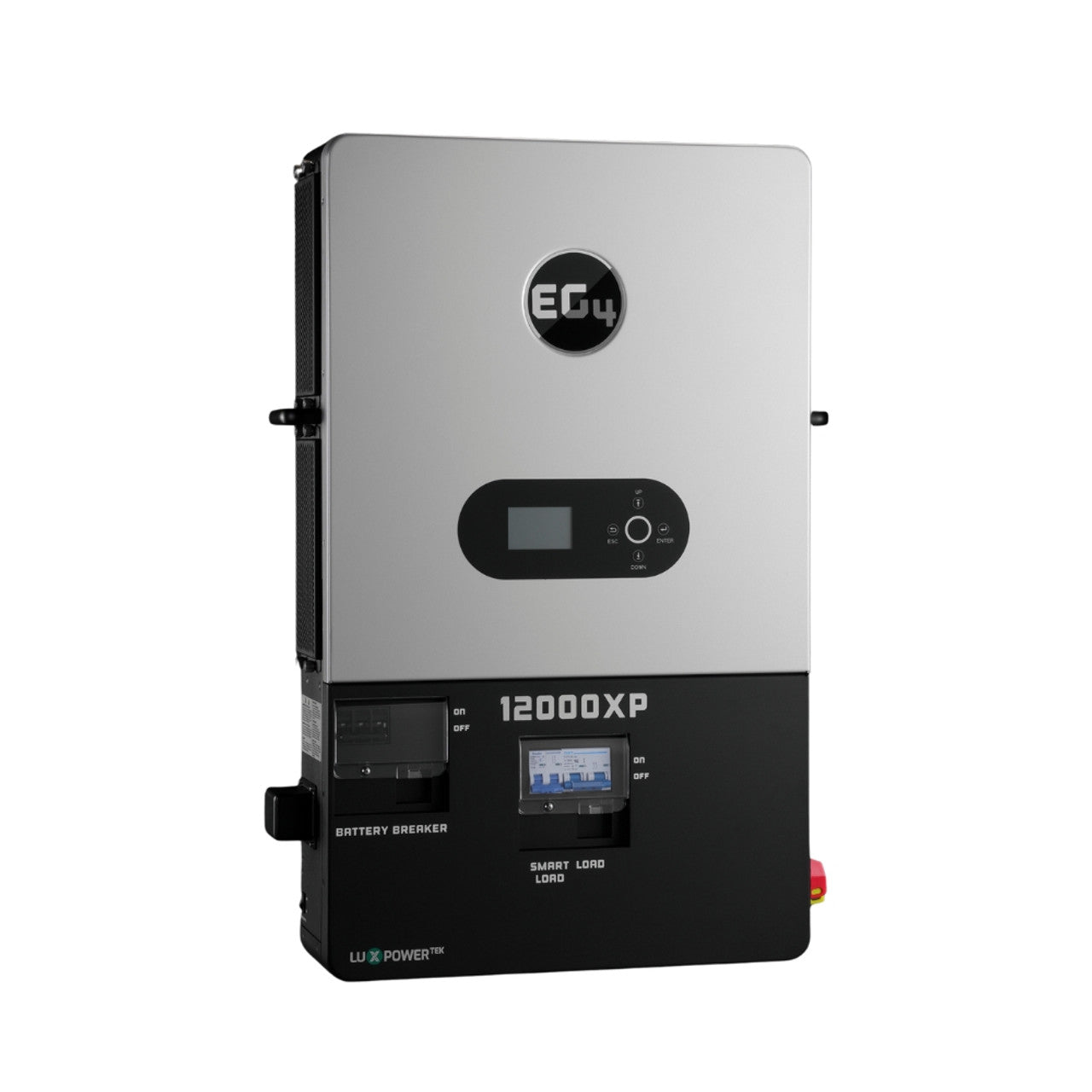

EG4 12000XP Off-Grid Solar Inverter
The EG4 12000XP is a powerful, all-in-one off-grid inverter designed for reliable performance and durability. Whether operating fully off-grid or integrated with grid power, it offers versatile solutions for both residential and commercial applications.
Key Features:
-
High Input Voltage (480VDC): Supports high-voltage input, reducing the need for extensive cabling and allowing up to 24kW PV input without a combiner box.
-
Dual MPPT Design: Optimizes solar energy utilization, ensuring efficiency and stability under varying sunlight conditions.
-
Plug-in Wi-Fi Capability: Remotely monitor and adjust settings through the EG4 app or monitoring system, giving you control from any location.
-
Closed-Loop Communication: Seamlessly integrates with EG4 48V batteries and other compatible brands for enhanced system performance and safety.
-
Rapid Shutdown Compliance: NEC 690.12-ready rapid shutdown (RSD) capabilities ensure compliance and peace of mind in critical situations.
Performance Highlights:
-
12kW Power Output with Surge Capacity up to 18kW: Provides reliable power for heavy-duty appliances and equipment in off-grid settings.
-
Expandable Power Options: Parallel up to six units for a scalable 72kW system, allowing flexibility to meet future power demands.
-
High Efficiency: With 99% MPPT efficiency, the inverter maximizes energy harvest while minimizing energy loss.
Technical Specifications:
-
AC Input: 120/240VAC | 50/60 Hz
-
Max Continuous Output: 12kW
-
Surge Capacity: 18kW (5 seconds)
-
Battery Compatibility: Lead-Acid/Lithium, with a minimum recommendation of 400Ah per inverter
-
Operating Temperature: 32°F – 113°F (0°C – 45°C)
-
Protection Features: PV Reverse Polarity, Over-Voltage, and Surge Protection
-
Warranty: 5 years
Ideal Applications:
-
Residential Off-Grid Living: Perfect for homes aiming to break free from grid dependence.
-
Remote Worksites and Cabins: Provides a steady, reliable power supply for isolated locations.
-
Commercial and Industrial Use: Suitable for demanding off-grid power requirements.
With high output power, advanced safety features, and remote management, the EG4 12000XP is an efficient, durable, and scalable solution to meet your off-grid energy needs.
